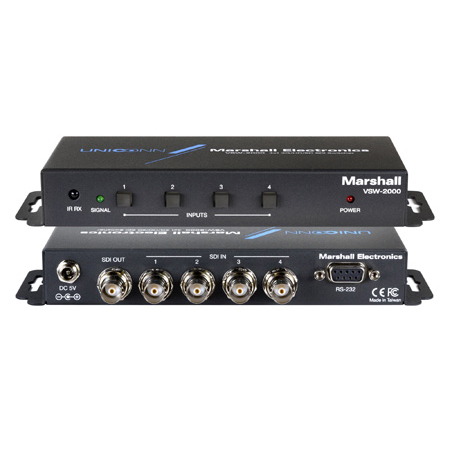

Marshall VSW-2000 4x1 3G/HD/SDI Switcher
  • Marshall VSW-2000 4x1 3G/HD/SDI Switcher
  • Marshall VSW-2000 4x1 3G/HD/SDI Switcher
  • Marshall VSW-2000 4x1 3G/HD/SDI Switcher
  • Marshall VSW-2000 4x1 3G/HD/SDI Switcher
  • Marshall VSW-2000 4x1 3G/HD/SDI Switcher

Questions? Ask a Markertek Expert:
800-522-2025 Email

Marshall VSW-2000 4x1 3G/HD/SDI Switcher

Manufacturer: Marshall Electronics

Item #: MAR-VSW-2000   •   MFG #: VSW-2000



List Price:$440.00
Our Price:$373.75

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The VSW-2000 allows rapid switching between up to 4 HD-SDI video feeds, delivering broadcast-quality video over a wide range of formats. Great as a sub-switcher to add inputs to existing production switchers, as a remote-controlled switcher eliminating multiple cable runs or as a simple router feeding a monitor or projector.

    The VSW-2000 4x1 3G/HD/SD-SDI Switch receives, equalizes, and re-clocks up to 4 SDI inputs and switches the desired input to SDI equipped monitors or receivers. The switch supports all 3G/ HD/SD-SDI bit rates. Flexible control is provided through RS-232, IR remote, or front panel push buttons. VSW-2000 provides a convenient and cost effective solution in systems where simple operation plus high signal integrity is required


    • Features

      • 4 Inputs, supports rapid switching between 3G/HD/HD-SDI formats to SDI switched output
      • Output provides re-clocking and equalization

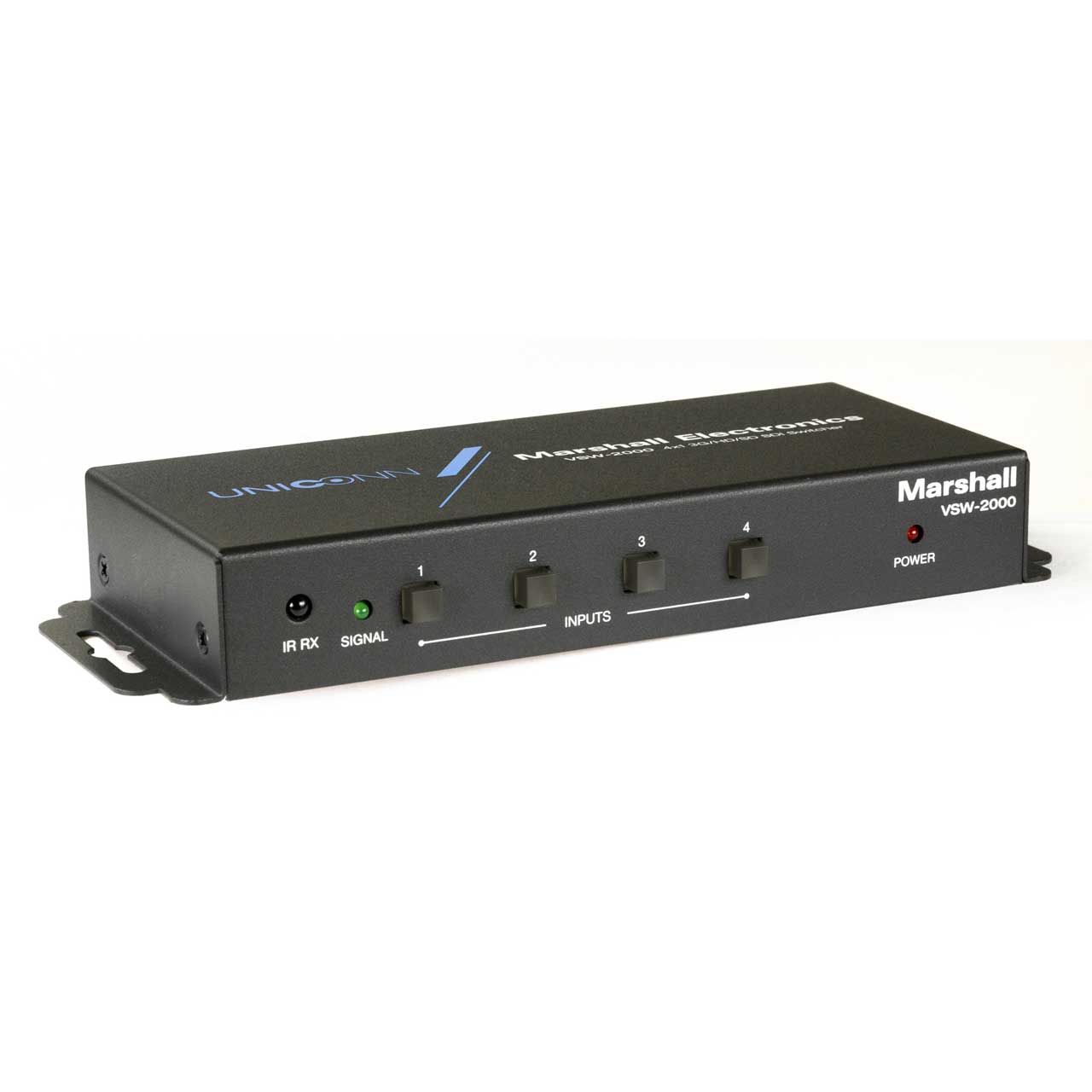

      • Controllable via front panel buttons, RS-232 serial or IR remote allowing flexible system design
      • Ideal for conference rooms, production switcher expansion or monitor routing
      • Ideal for small to medium-sized conferences or productions
      • Desktop or rack-mountable (1 RU)

    • Specifications

      • SDI Inputs / Output: 3G/HD/SD-SDI
      • Auto 3G/HD/SD detection: Yes
      • Supported protocols: DVB-ASI at 270Mbps, SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-425M
      • Video bandwidth: 2.97Gpbs & 2.97/1.001Gbps
      • Re-clocking function: Yes
      • Cable equalization: [3G] up to 90m (300ft) / [HD] up to 150m (500ft) / [SD] up to 300m (1000ft)
      • Audio support: Yes
      • RP-198 pathological patterns: Immune

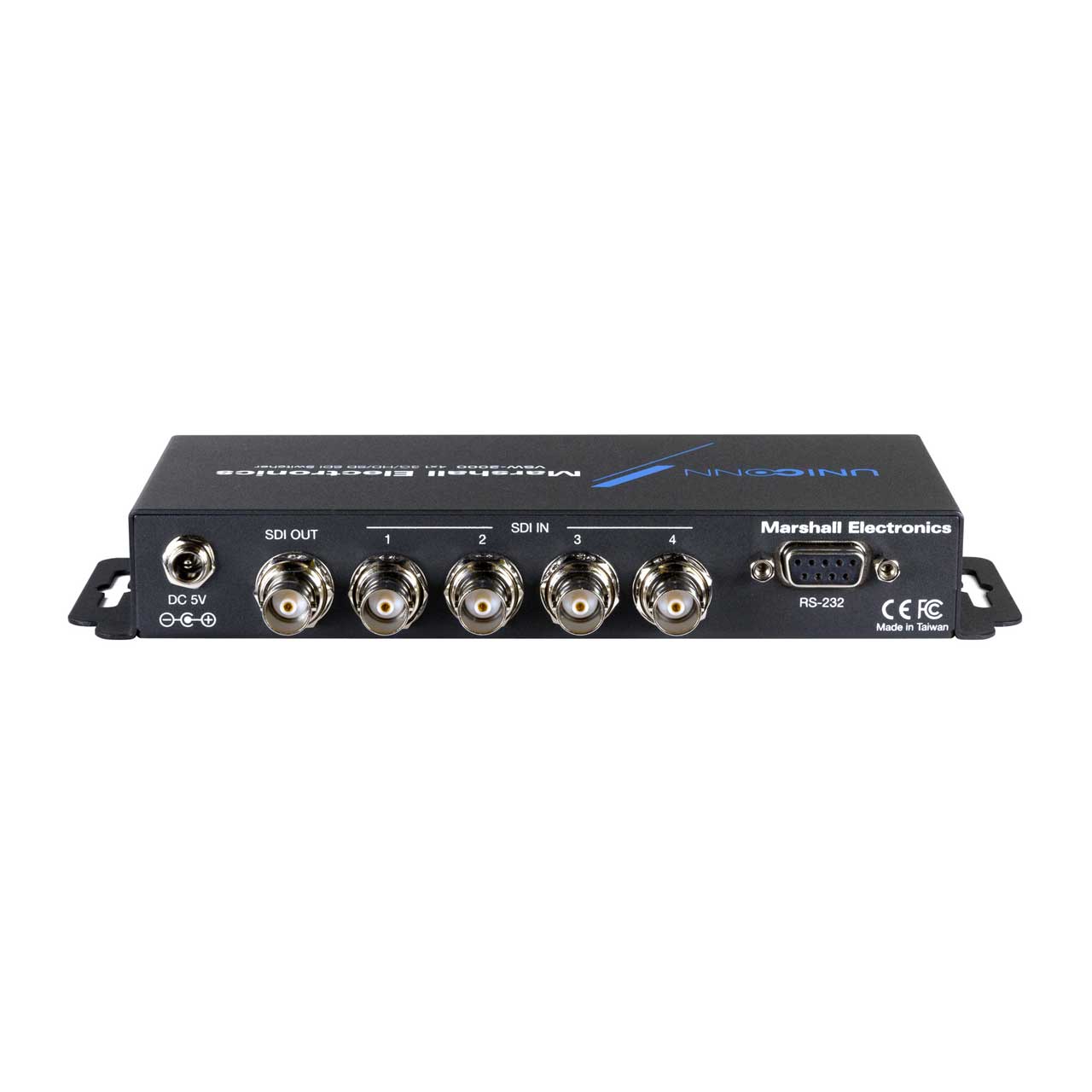

      • Input: 4x BNC [SDI]
      • Output: 1x BNC [SDI]

      • Eye pattern characteristics [HD]
      • Amplitude: Within 800mV (<10%)
      • Rise overshoot: Less than 2% (<10%)
      • Fall overshoot: Less than 2% (<10%)
      • Long time jitter: 0.195 UI (<1.0 UI)
      • Timing jitter: 0.8 UI (<1.0 UI)
      • Alignment jitter: 0.13 UI (<0.2 UI)

      • Housing: Metal enclosure
      • Dimensions: 165 x 71 x 26mm [6.5" x 2.8" x 1"]
      • Weight: 1413g [14.5 oz]
      • Fixedness: Inter-locked power supply
      • Power supply: 5V 4A DC
      • Power consumption: 5 Watts [max]
      • Operation Temperature: 0~40°C [32~104°F]
      • Storage Temperature: -20~60°C [-4~140°F]
      • Relative Humidity: 20~90% RH [no condensation]

    • Item Includes

      • 1x VSW-2000

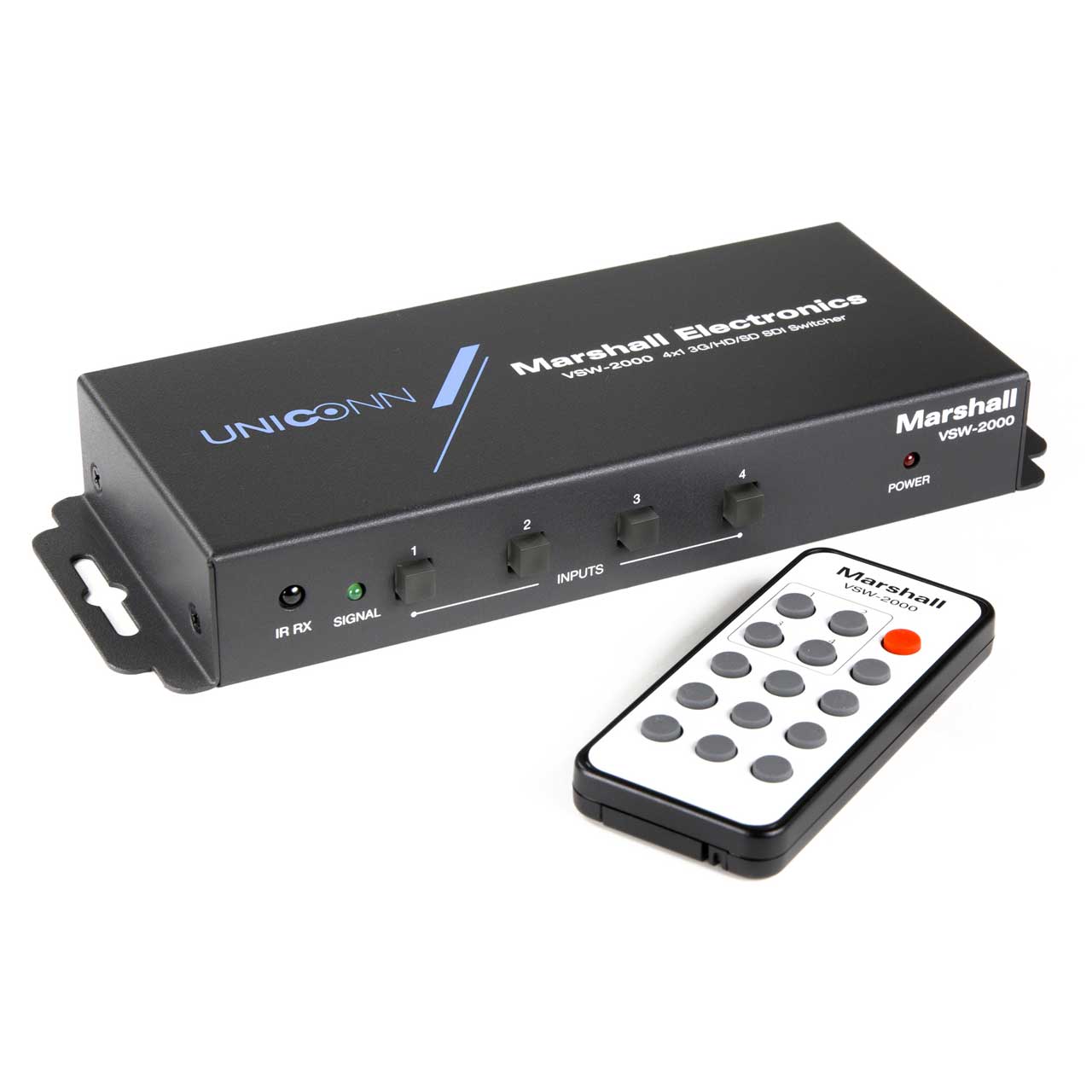

      • 1x IR controller
      • 1x 5V 4A power adapter
      • 1x User Manual

    • GTIN:

      0801813177107
