Blackmagic Design Cloud Store Mini 10G RackMounted Network Storage Solution with 4 Internal M.2 Flash Memory Cards - 8TB

ITEM #: BMD-CLOUDSTRMINI MFG #: DWCLDE/CLDMINI08

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMD-CLOUDSTRMINI

DWCLDE/CLDMINI08 - Overview

Network Storage with Global Sync
The Blackmagic Cloud Store Mini is a fast network storage solution in a compact rack mount design. It features a high speed 10G Ethernet connection and four internal M.2 flash memory cards operating in parallel RAID 0 for extremely fast file access. It's fast, even with lots of simultaneous users all accessing files at the same time! With Dropbox live sync, files can be distributed between multiple units globally, for very fast local file access, even on lower cost internet connections. Plus you don't need IT consultants as it's easy to use. There's even an HDMI monitor output! Blackmagic Cloud Store Mini is the perfect solution for storing and sharing files on your network!

Designed for Film and Television
Blackmagic Cloud Store Mini is the perfect network storage solution for any use! It's great for film and television where large media files need to be shared between multiple users for editing, color correction, audio post and VFX work. It even handles massive 12K Blackmagic RAW digital cinema files! Each user gets zero latency and they don't need to store files on their local computer. It's the perfect solution for DaVinci Resolve! Dropbox sync allows multiple disks to be synchronized in different locations globally. Then each location gets the fastest editing experience possible. That's critical for multicam editing where multiple media files are playing simultaneously!

Portable and Quiet Design
Blackmagic Cloud Store Mini features a compact rack mount design that's very portable and whisper quiet. Internally it has an array of 4 flash memory cards working in parallel for higher speed. The 10G Ethernet port and the 1G Ethernet port operate as a 2 port network switch. That's great if you don't have a 10G Ethernet network, as you can connect the 10G port directly into your computer and the 1G port to your existing network. If you need to access files quickly, then the USB-C even operates as a network connection, simply by plugging it into your computer. There is also an HDMI monitoring output so you can watch a live graphic view of the storage operating on a TV or monitor.

Flash Memory Allows Multiple Simultaneous Users
The Blackmagic Cloud Store Mini is available with 8 TB of flash memory, so you have lots of space for your files. That's fantastic for television production, as it's small enough to be portable, but it has enough storage space for lots of video media. M.2 flash memory cards are used for extreme reliability, high access speeds and zero seek times. Plus the four M.2 cards are arranged in a parallel RAID 0 group so they can operate much faster than a single card. That ensures enough speed to keep up with the 10G Ethernet connection. Plus in the future, as new larger M.2 cards are released, the flash memory cards can be replaced with new ones. That ensures a very long life!

  • Features:

    • Compact rack mount design with quiet cooling.
    • Four internal M.2 flash memory cards for 8 TB capacity.
    • RAID 0 memory configuration for high performance.
    • Sync to Dropbox.
    • Includes HDMI monitoring output with live storage status.
    • Includes fast 10G Ethernet and 1G Ethernet ports.
    • Supports Ethernet over USB-C connection to computers.
    • USB-C ports allow local backup of files.
    • No subscriptions, no licenses and no user data tracking.

  • Specifications:

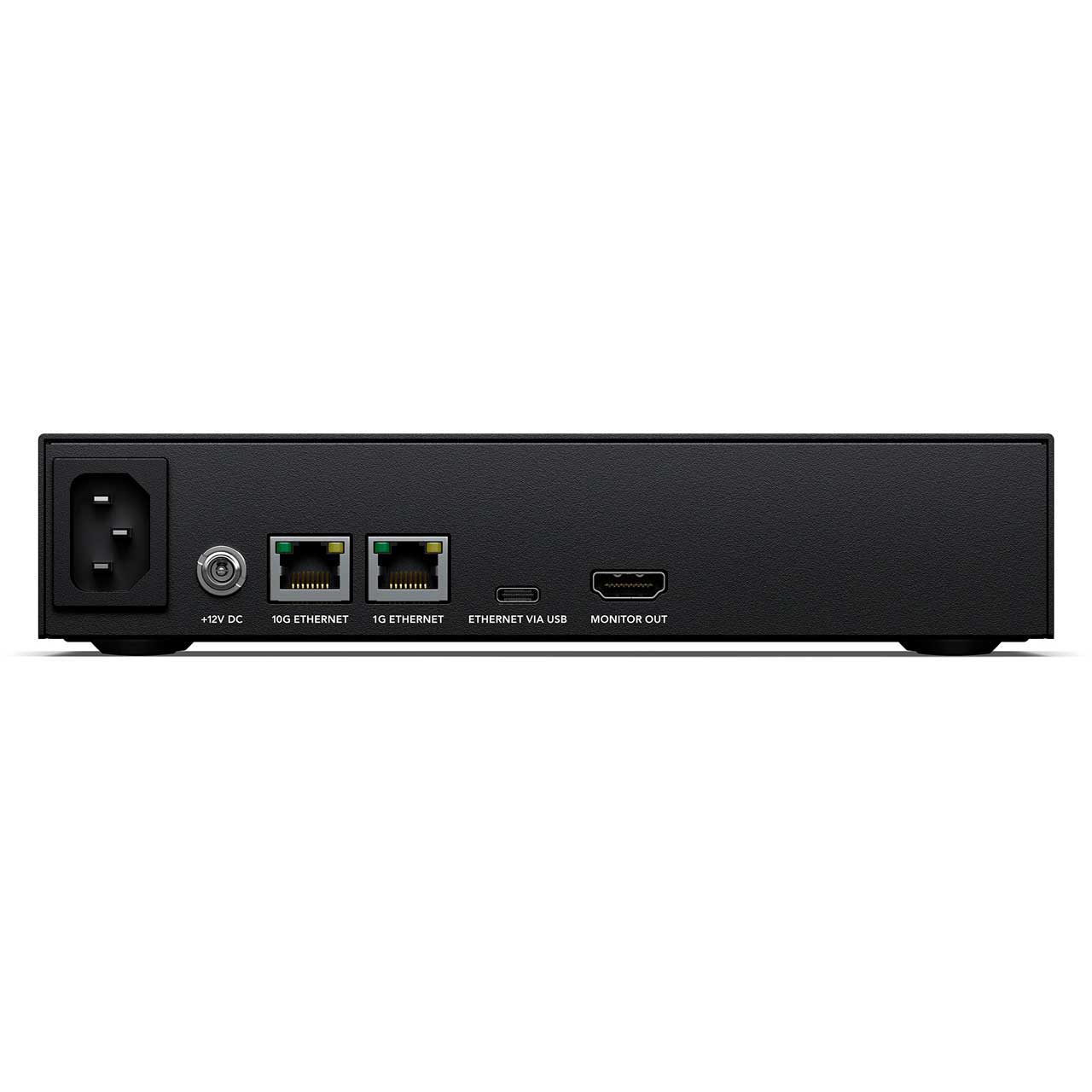

    • Connections
    • 10G Ethernet Ports: 1x Ethernet 100/1000/10G BASE-T
    • 1G Ethernet Ports: 1x 100/1000 BASE-T
    • USB-C Port: 1x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
    • HDMI Monitor Outputs: 1
    • Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates

      File Sharing Protocol
    • Protocol: SMB
    • Computer Connections: 50 max

      Cloud Synchronization
    • Compatible Services: Dropbox

      Storage
    • Storage Type: M.2 NVMe SSD
    • Total Capacity: 8TB

      Displays
    • HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
    • Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph
    • Status Indicator: Front panel LED illuminates white indicating normal operation or red indicating disk fault

      Device Control
    • External Control: USB-C or Ethernet for configuration and software updates

      Software
    • Software Included: Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite, Internal software upgrade via Blackmagic Cloud Setup using USB-C port

      Operating
    • Mac 11.1 Big Sur, Mac 12.0 Monterey or later
    • Windows 10 and 11

      Power
    • Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input
    • Power Inputs: 1x IEC C14 mains input. 1x 12V DC locking 5.5 mm barrel connector
    • Power Usage: 35W

      Environmental
    • Operating Temperature: 32°to 104°F
    • Storage Temperature: -4° to 140°F
    • Relative Humidity: 0% to 90% non-condensing

  • Item Includes:

    • 1x Blackmagic Cloud Store Mini

  • Warranty:

    • 12 Month Limited

  • GTIN:

    9338716007756
