Blackmagic Design Cloud Store Ultra 1RU High Performance Flash Storage - 2x Independent 100G Ethernet Connections - 24TB

ITEM #: BMD-CLOUDSTUL24T MFG #: DWCLDG/CLDULT024

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$9,719.00

Availability: Preorder – Expected Availability Jul 2026
iAvailability Description Popup
  • Shipped to USA (50 states) only.


DWCLDG/CLDULT024 - Overview

Now you can share your media files globally, in minutes!

Blackmagic Cloud Store lets you share your media files globally, eliminating the high cost of collaborating with talented editors and colorists around the world! The Blackmagic Cloud Store is storage that syncs and shares media with Blackmagic Cloud. It even understands proxy workflows, so a whole timeline and its media can be shared in minutes. The internal memory core is so fast it can saturate the four 10G Ethernet ports to their theoretical maximum speed, even with multiple users connected. File access is very low latency, so responsiveness is fast. That why it's perfect for sharing media between editors, colorists, audio engineers and VFX artists!

Blackmagic Design Cloud Store Ultra 24TB is an extremely high-performance network storage solution in a compact 1RU design with server-style front-to-rear cooling. Cloud Store Ultra features 24TB capacity 12-card RAID 0 flash memory core, 2x 100G Ethernet ports, RAID 5 support for data protection, two redundant power supplies, USB-C and Blackmagic Cloud Sync for distributing files globally. It's fast, even with lots of simultaneous users all accessing files at the same time.

Designed for Film and Television
Blackmagic Cloud Store is the perfect network storage solution for any use! But it's perfect for film and television where large media files need to be shared between multiple users for editing, color correction, audio post and VFX work. It even handles massive 12K Blackmagic RAW digital cinema files! Each user gets zero latency and they don't need to store files on their local computer. It's the perfect solution for DaVinci Resolve! Blackmagic Cloud sync allows multiple disks to be synchronized in different locations globally. Then each location gets the fastest editing experience possible. That's critical for multicam editing where multiple media files are playing simultaneously!

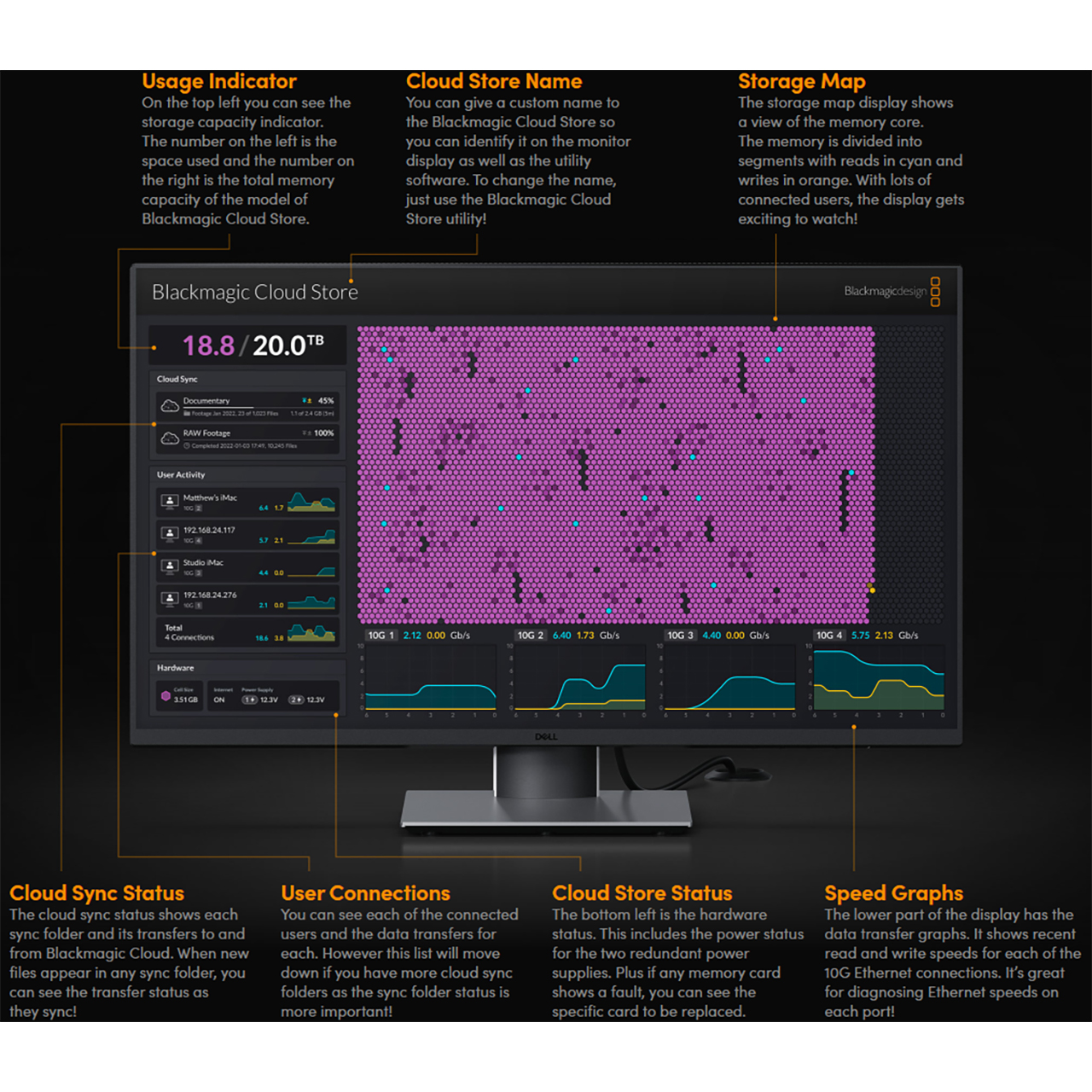

The most exciting feature is the live HDMI monitoring output. The Blackmagic Cloud Store Max and Ultra models also have an SDI monitoring output. The storage map shows a graphic representation of the memory core in real time with reads and writes shown dynamically. There are also graphs that show data transfers on the Ethernet connections. The status of the media sync to the Blackmagic Cloud website is also shown. Errors are shown as well, including power supply status.

Please Note: 100G 2110 systems, such as Blackmagic Design's 100G products, use QSFP28 optical fiber Ethernet cables to carry 8+ channels of Ultra HD video over single-mode fiber. These systems feature redundant 100G Ethernet for SMPTE-2022-7 compliance, providing ultra-high speed connectivity.

  • Features:

    • Extremely high performance flash memory based network storage
    • Two independent 100G Ethernet ports operating as separate networks
    • 12 internal M.2 flash memory cards for up to 48TB capacity
    • RAID 0 memory configuration for high performance
    • RAID 5 support for extra data protection
    • Blackmagic Cloud sync for global media collaboration
    • Includes HDMI and SDI monitoring output with live storage status
    • No subscriptions, no licenses and no user data tracking
    • Includes software utility for Mac and Windows platforms
    • Dual redundant AC power supplies for broadcast reliability
    • Localized for 13 popular languages allowing international use

  • Specifications:

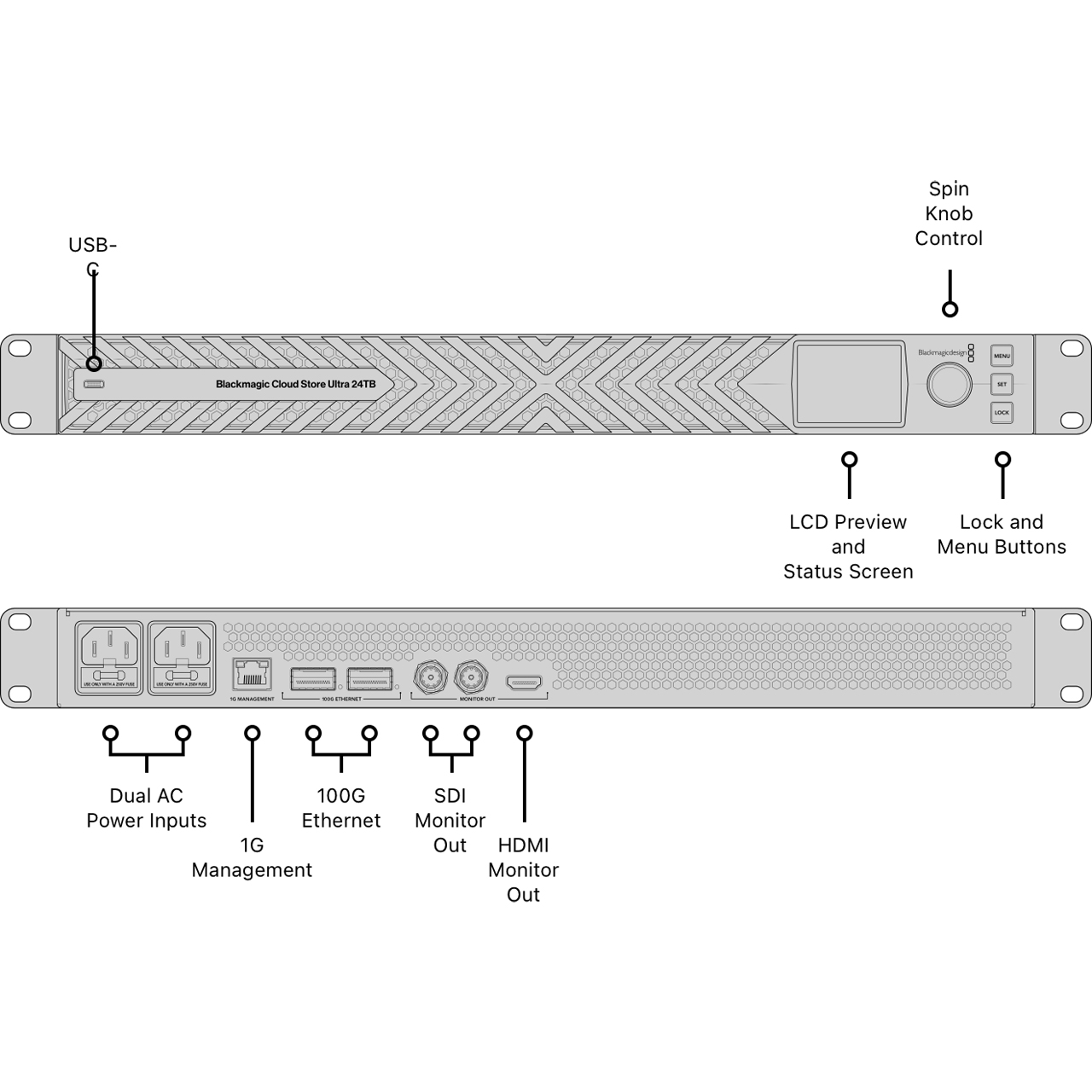

      Connections
    • 10G Ethernet Ports: 4x RJ45 Ethernet 100/1000/10G BASE-T
    • 100G Ethernet Ports: 1x QSFP28 Ethernet 100G BASE-T
    • USB-C Port: 1x USB 3.0 (up to 5Gb/s) - Supports Ethernet Over USB
    • SDI Monitor Outputs: 1
    • HDMI Monitor Outputs: 1
    • Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates

      File Sharing Protocol
    • Protocol: NFS/SMB
    • Computer Connections: 200 max.

      Cloud Synchronization
    • Blackmagic Cloud
    • Amazon Web Services S3 sync

      Storage
    • Storage Type: M.2 NVMe SSD
    • Total Capacity: 24TB

      Displays
    • SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
    • HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
    • Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph
    • Front Panel Display: Built in 2.2" LCD for settings and storage name, capacity and use
    • Status Indicator: Front panel LED illuminates white indicating normal operation or red indicating disk fault

      Control
    • Built in Control Panel: 3 buttons, 2.2" color display and spin knob for menu settings
    • External Control: USB-C or Ethernet for configuration and software updates

      Software
    • Software Included:
      - Blackmagic Cloud Setup Utility
      - Blackmagic Proxy Generator Lite
      - Internal software upgrade via Blackmagic Cloud Setup using USB-C port

      Operating Systems
    • Mac 15.0 Sequoia
    • Mac 26.0 Tahoe or later
    • Windows 10, 64-bit
    • Windows 11

      Power Requirements
    • Power Supply: Internal 100V - 240V, AC 50/60Hz with IEC C14 mains input
    • Power Inputs:
      - 1x IEC C14 mains input
      - 1x 4-pin XLR +12V DC input
    • Power Usage: 150W

      Physical
    • Dimensions: 19.00" x 9.25" x 1.74"
    • Weight: 6.31lbs
    • Operating Temperature: 32°F - 104°F
    • Storage Temperature: -4°F - 140°F
    • Relative Humidity: 0% - 90% non-condensing

  • Item Includes:

    • 1x Blackmagic Cloud Store Max 24TB
    • 1x Welcome wallet with QR code for software download
