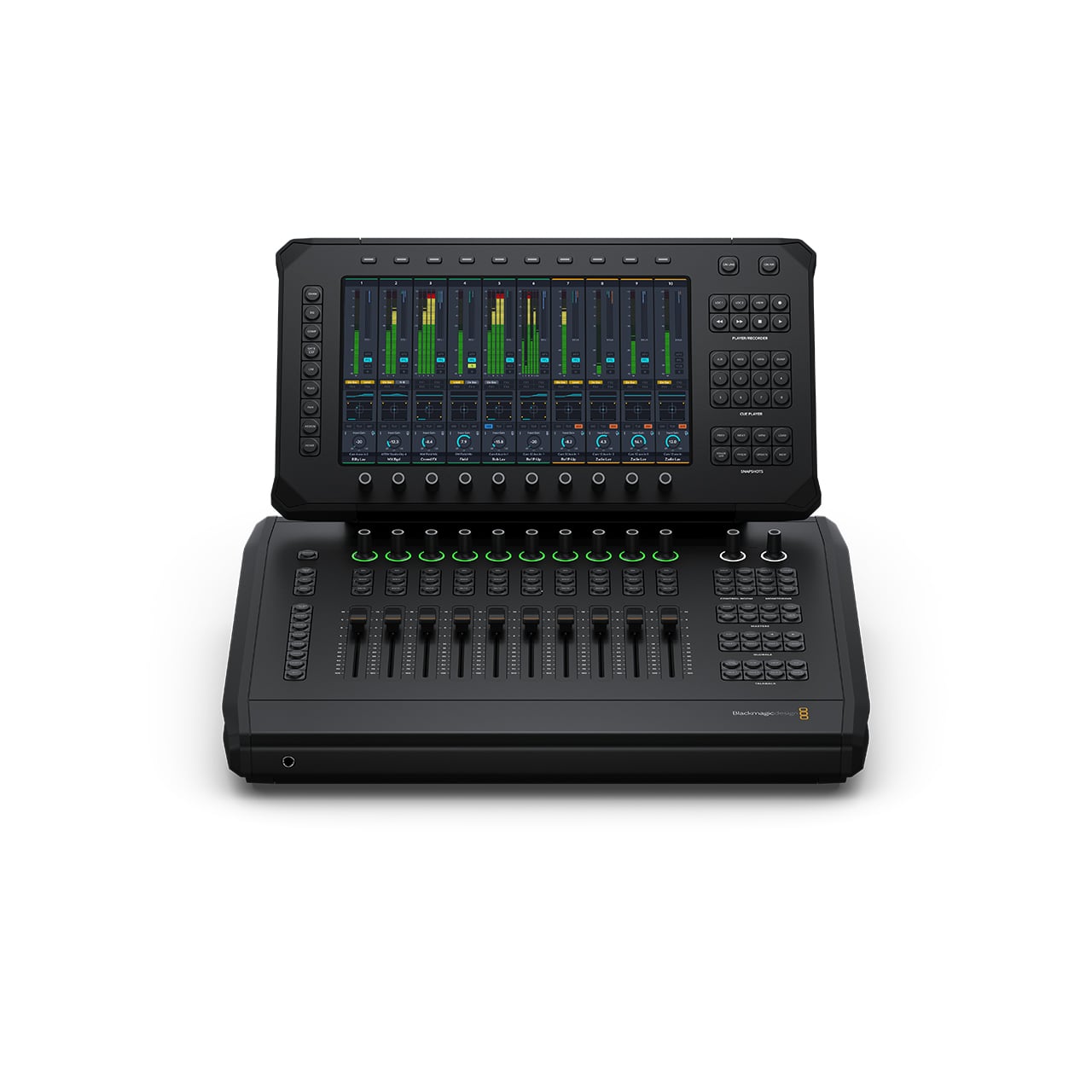

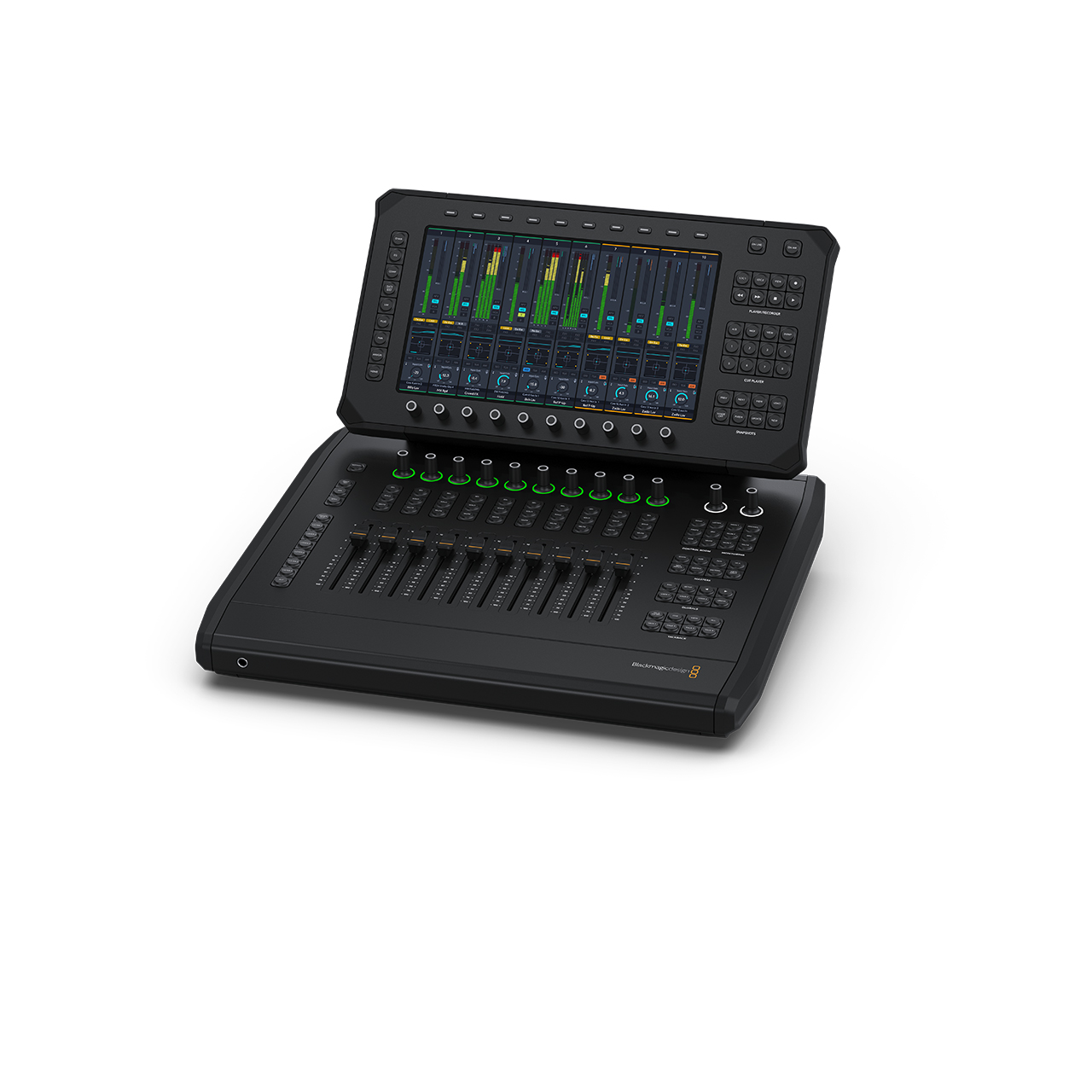

Blackmagic Design Fairlight Live Audio Panel 10 Desktop Control Surface with 10x Motorized Faders & Large Touchscreen

DVFL/AAFLP10 - Overview

Powerful software-based live audio mixer with support for SMPTE 2110 broadcast and immersive workflows, full redundancy, and third party plug-ins!

• Features:

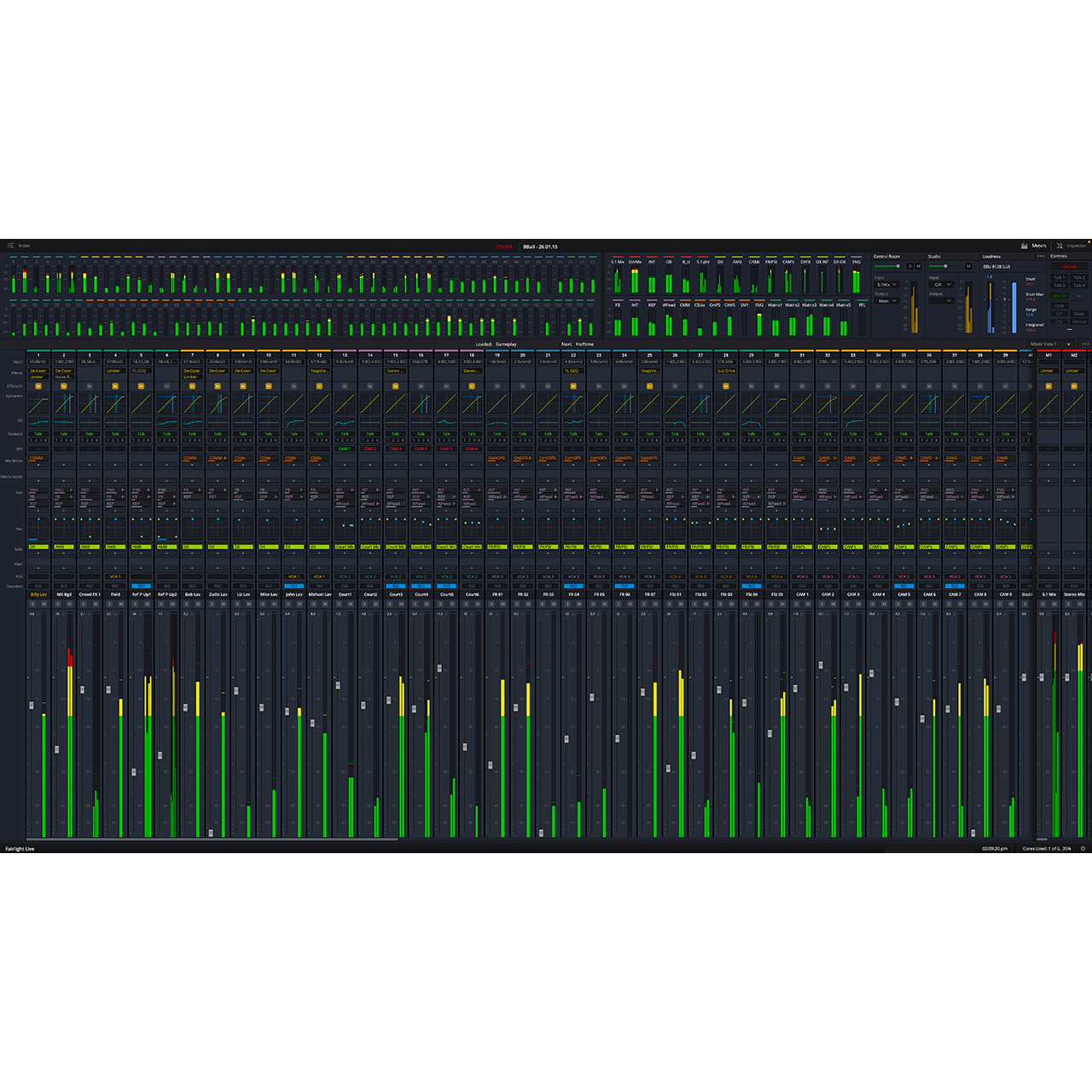

  • Full featured software based broadcast mixer for high end live audio
  • Supports hundreds of channels with wide format and complex mixes
  • Supports mono, stereo, LCR, 5.1 surround, immersive and ASAF
  • Optimized low latency operation on both macOS and Windows
  • Flexible redundancy with user configurable multiple fail safe levels
  • Direct ATEM connectivity via USB with automatic template support
  • Supports standalone use, Fairlight Live panels, or MCU consoles
  • Compatible with Core Audio, ASIO and 2110 interfaces


• Specifications:

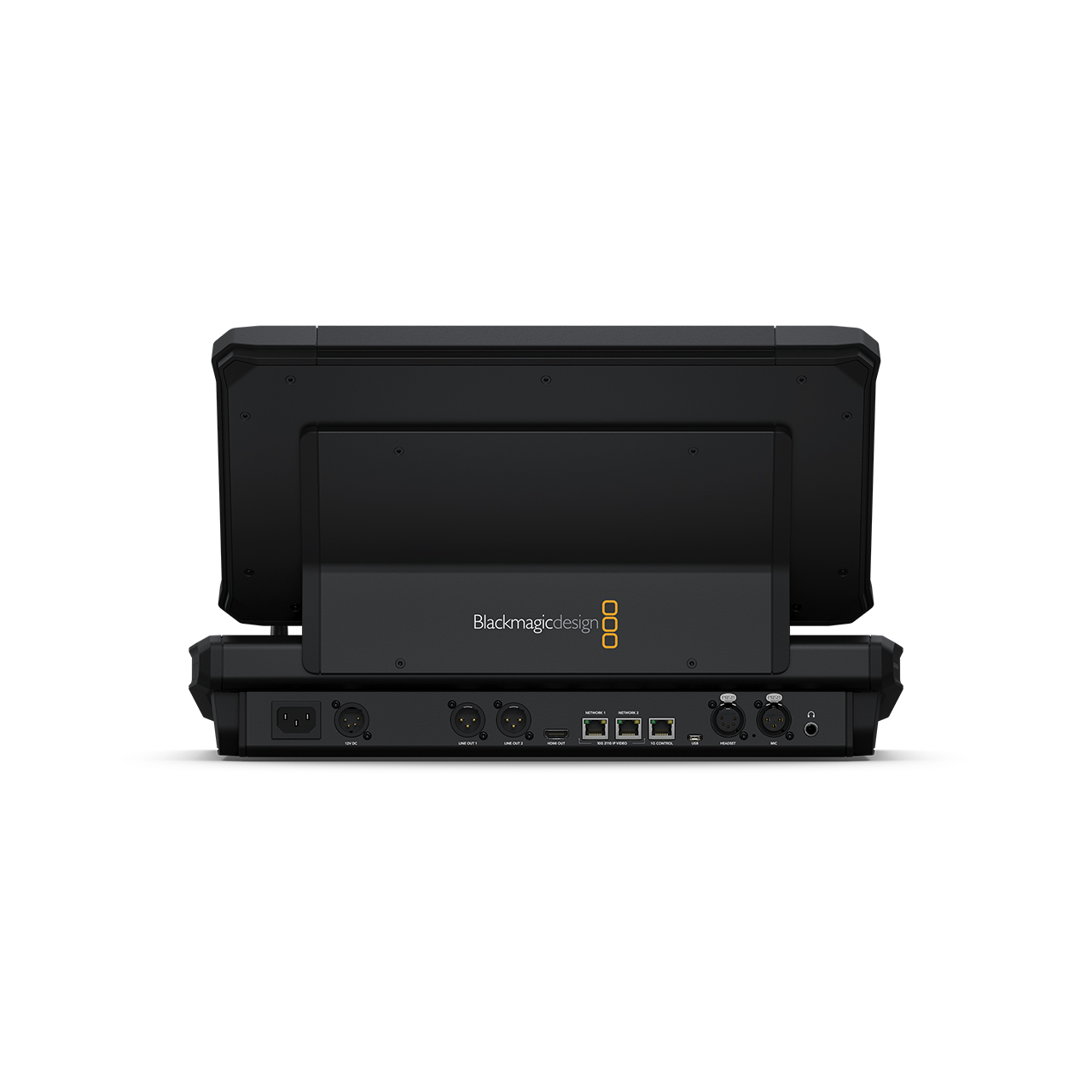

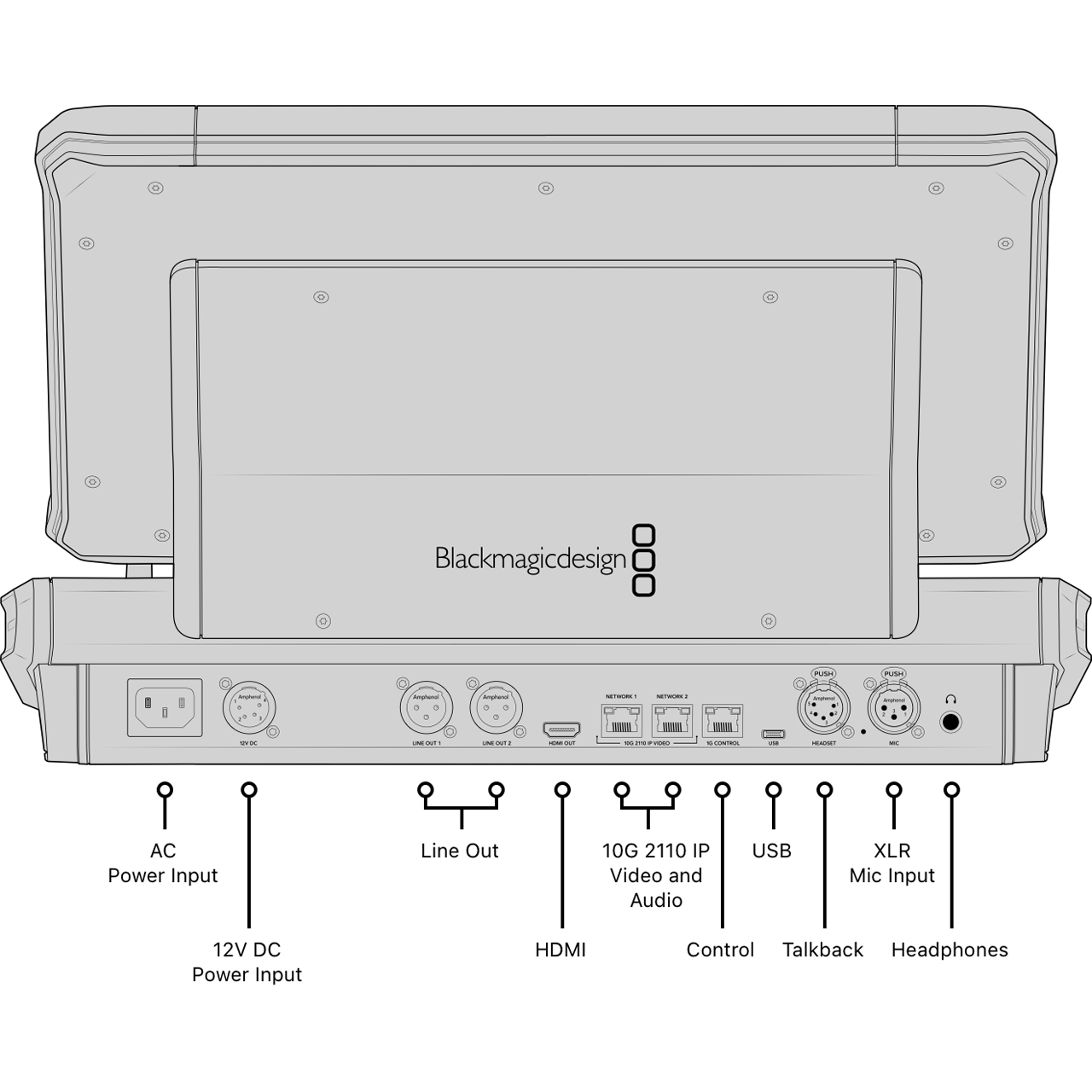

  Connections
  • 2110 IP Video and Audio Networks: 2x 10G RJ45 Ethernet connections
  • Senders and Receivers per 10G Pair: Supports 2110 IP video and audio plus analog audio in and out of panel
  • 1G Control Network: 1x 1G RJ45 for computer connection, configuration and software updates
  • HDMI Monitor Outputs: 1
  • Analog Audio Inputs:
    - 1x 3-pin XLR for mic level analog audio
    - 1x 5-pin XLR for talkback headset
  • Analog Audio Outputs:
    - 2x 3-pin XLR for line level analog audio
    - 1x 5-pin XLR for talkback headset
    - 2x 6.35mm headphone jack
  • Computer Interface: 1x USB Type-C for computer connection, software configuration and software updates
  • HDMI Video Output: 1x HDMI Type A
  • Power:
    - 1x IEC C14 power input
    - 1x 4-pin XLR 12V DC power input

    Display
  • Display: 1x 11.6 inch 1920 x 1080 LCD touch screen
  • HDMI Out: HD or Ultra HD
  • Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

    Controls
  • Channel Faders: 10 flying faders
  • Channel Rotary Knobs: 10 multi function rotary knobs with ring LED indicators
  • Channel Control Buttons: Select, Solo and Mute for each channel
  • Channel Focus: Processing and input controls for selected channel
  • Contextual Rotary Knobs: 10 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens
  • Contextual Buttons: 10 buttons to activate functions or adjust parameters appearing on upper row of focus and view screens
  • On Line Button: Online mode follows timecode from external source
  • On Air Button: On Air mode locks panel
  • Player/Recorder Keypad: Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks
  • Cue Player Keypad: Cue Player controls - Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices
  • Snapshots Keypad: Store and recall mixer settings and configurations
  • Control Room and Monitoring Keypad: Controls for source selection and monitor circuit selection
  • Masters Keypad: Controls for master views and enabling masters on faders. View Only selection sends metering views to screen, when off selection targets faders.
  • Globals Keypad: Global controls include forward, back, undo and escape plus access the setup screen and 3x USER defined buttons
  • Talkback Keypad: Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen

    Talkback
  • Mic: 1x built in talkback microphone
  • Talkback Connections:
    - 1x 5-pin XLR headset
    - 1x 3-pin XLR Mic input
    - 2x 6.35mm headphone sockets
    - 2x 3-pin XLR audio monitor outputs
  • Talkback Selection: Talkback groups, direct to channel, or all
  • Talkback Groups: 4

    Software
  • Software Included:
  • - Fairlight Live
    - Blackmagic OS
    - Internal software upgrade via updater application

    Operating Systems
  • Mac 15.0 Sequoia
  • Mac 26.0 Tahoe or later
  • Windows 11

    Power Requirements
  • Power Supply: 1x 100 - 240V AC 50/60Hz internal power supply
  • Power Inputs:
    - 1x IEC C14 socket
    - 1x 4 pin XLR 12V DC input for external power supply or battery use

    Physical
  • Dimensions: 17.91" x 18.82" 10.75"
  • Weight: TBC
  • Operating Temperature: 32° to 104°F
  • Storage Temperature: -4° to 140°F
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x Fairlight Live Audio Panel 10
  • 1x Welcome wallet with QR code for software download
