Blackmagic Design HDL-SMTV4K12G3 SmartView 4K G3 6RU Ultra HD Broadcast Monitor with 12G-SDI/SMPTE-2110 IP Video Inputs


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Preorder
iAvailability Description Popup

    HDL-SMTV4K12G3 - Overview

    Blackmagic SmartView 4K G3 features built in optical and copper SMPTE-2110 IP video connections so customers can connect directly to IP based broadcast systems. Customers also get two 12G-SDI inputs for connecting to a wide range of professional video equipment. Plus both the 12G-SDI and 2110 video inputs can output to a 12G-SDI loop output connection.

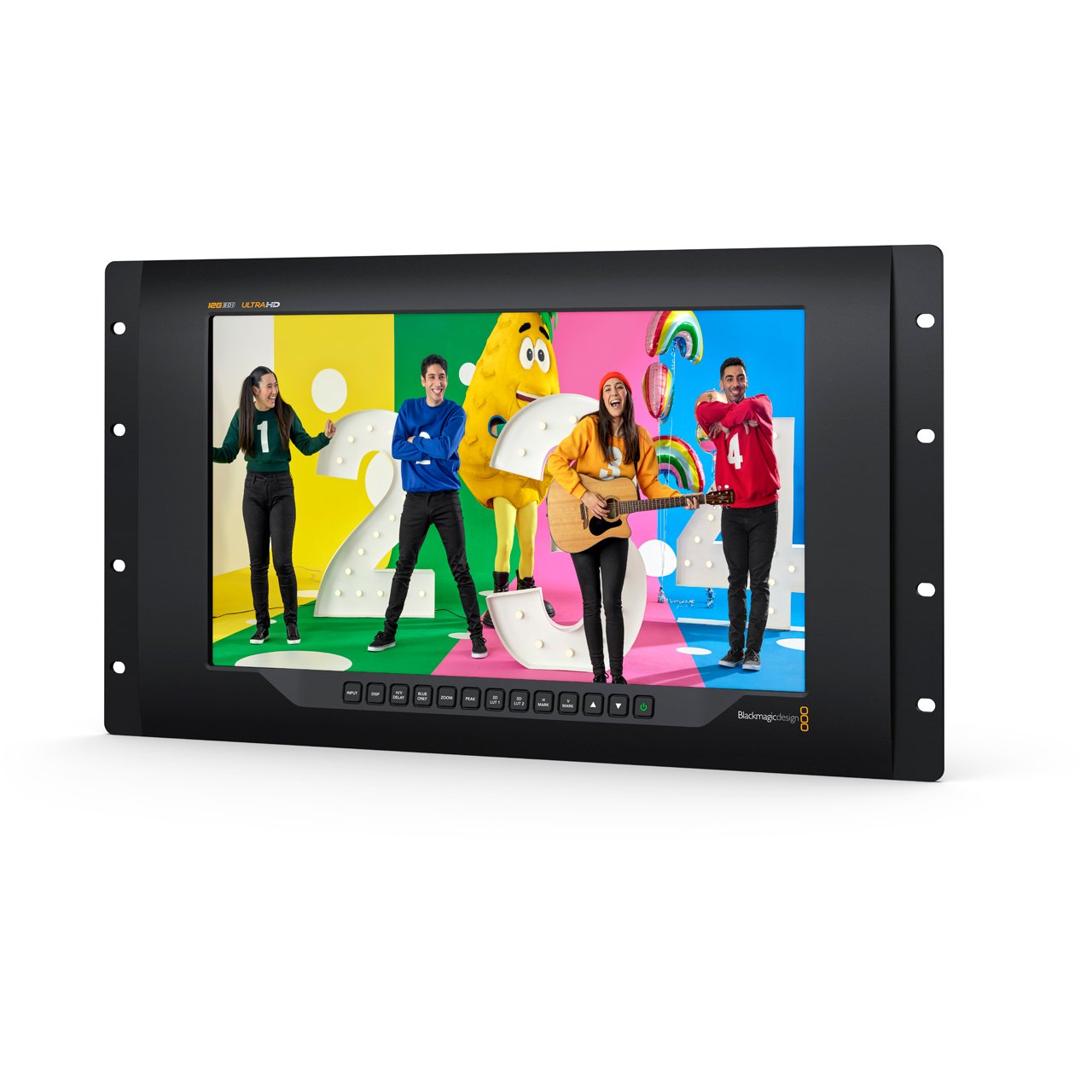

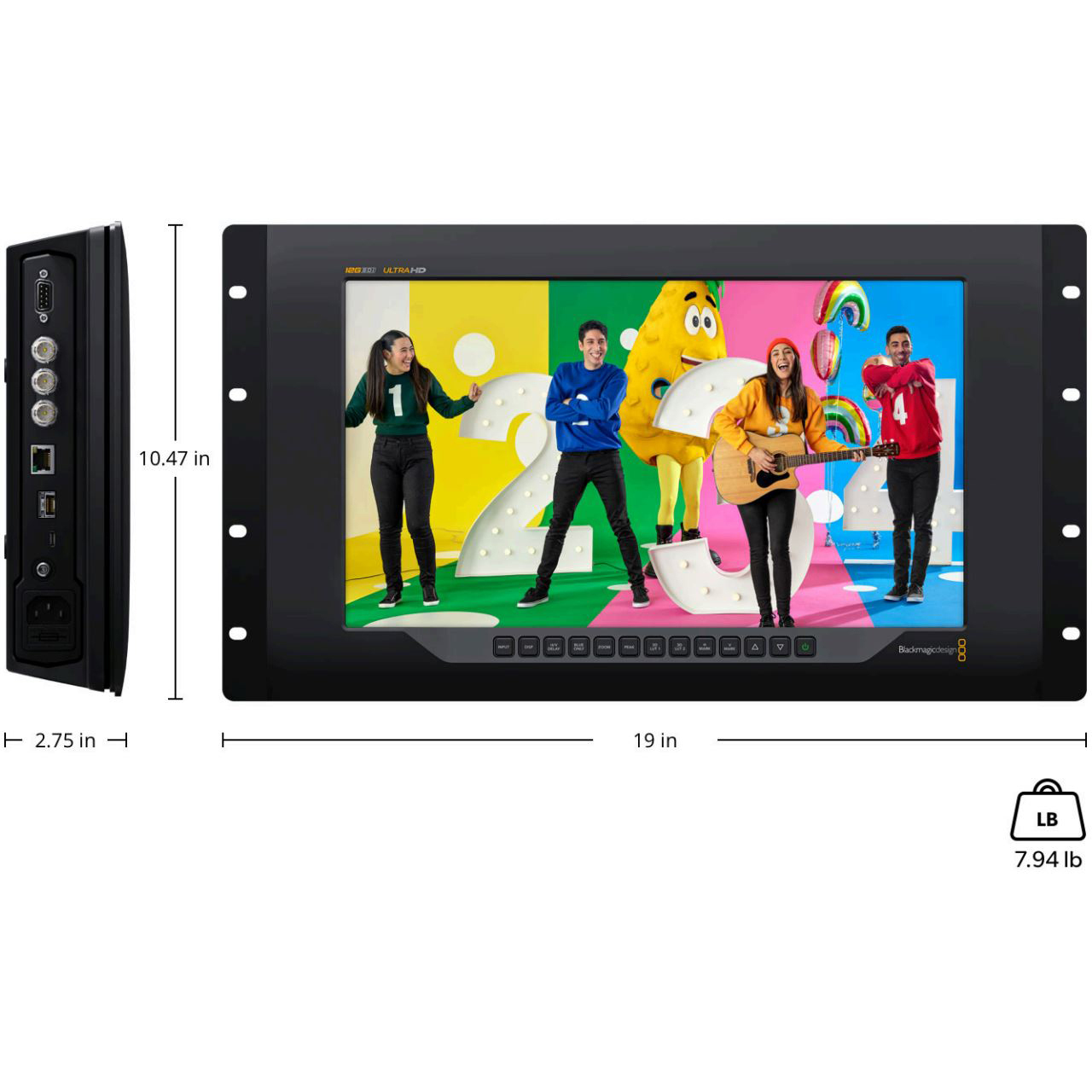

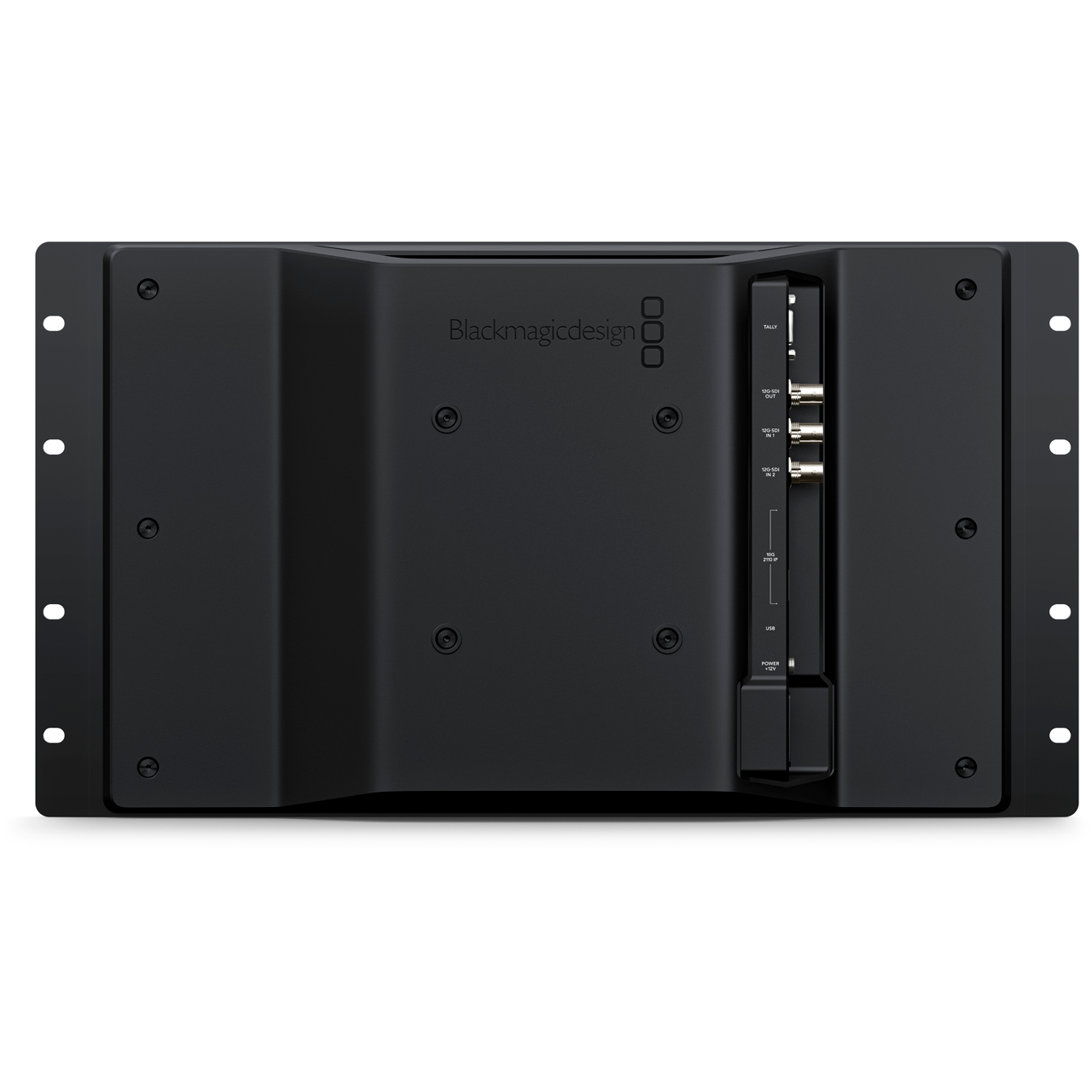

    SmartView 4K features an incredibly strong machined aluminum metal design with crisp clean lines. Plus SmartView 4K is only a few inches deep. Because monitors are often installed at the top of equipment racks, this thin design allows a large area behind the monitor to better ventilate the whole rack and keep all the equipment cool. Along the bottom of the SmartView 4K is a range of button controls that are tilted slightly so they're easier to press. On the rear of the monitor are all the video connections, plus there's even a VESA mounting point.

    The LCD used on SmartView 4K features an extremely high resolution so it will display every pixel in an Ultra HD image. That means customers get an incredibly clean image with deep color fidelity. SmartView 4K is designed for broadcast so it will instantly lock to a new video source, which is very common when the monitor is connected to a router and the input can change constantly to different timed sources. Unlike TVs, the video is not over scanned so customers get all image pixels right to the edge of the LCD.

    • Features:

      • Rack mount monitor with SMPTE-2110 IP and 12G-SDI video connections.
      • Slim design for better rack ventilation.
      • High resolution, Ultra HD display.
      • Monitoring controls including brightness, H/V and zoom.
      • Includes frame guides and focus peaking.
      • Includes 3D LUT for monitoring.
      • Supports all video standards up to 2160p60.
      • Conforms to SMPTE-2110 standard for IP video.
      • Includes NMOS protocol for virtual routing.
      • Includes free SDK for integration into broadcast automation systems.
    • Specifications:

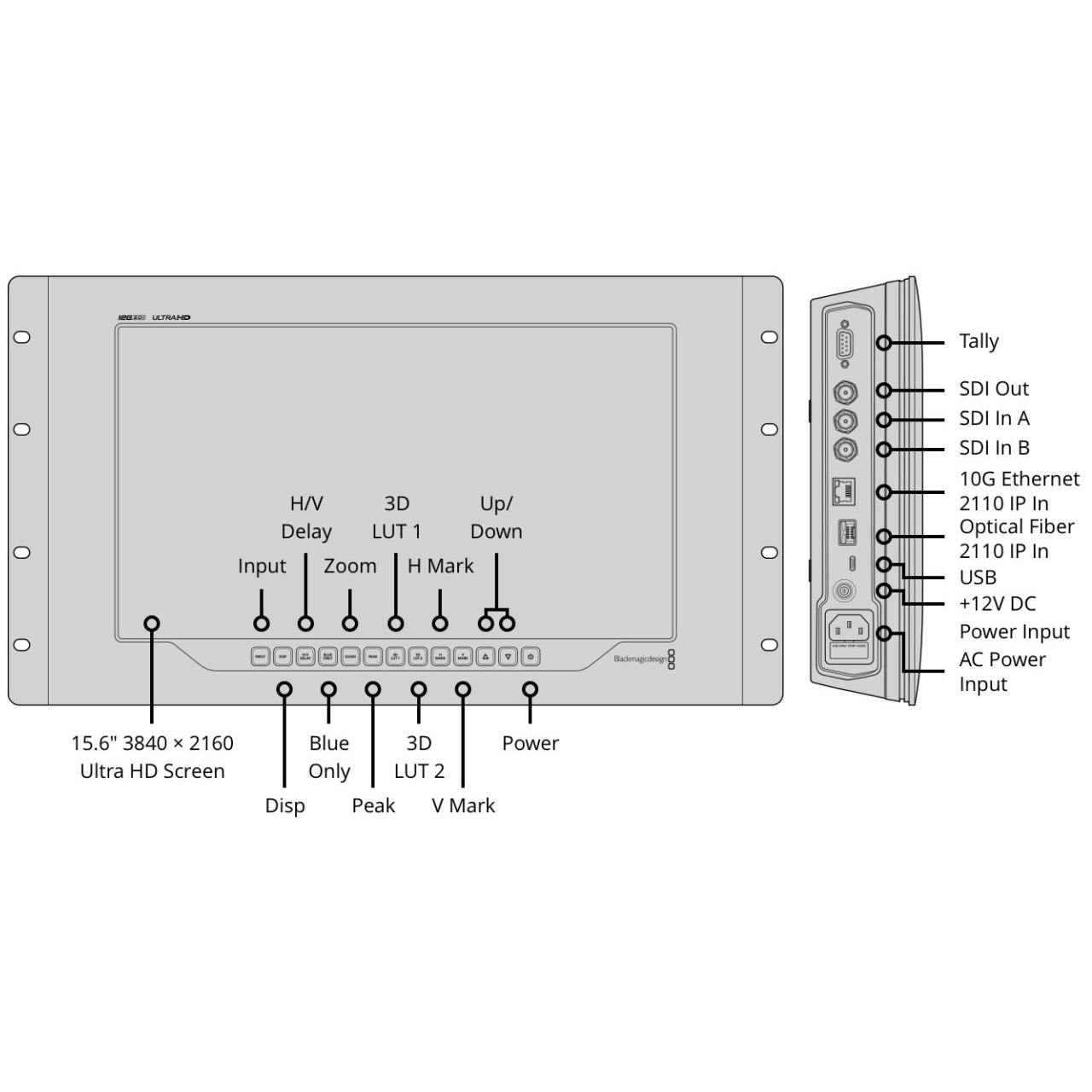

      • Connections
      • SDI Inputs: 2
      • SDI Outputs: 1 loop out. Reclocked video output that automatically switches to input selection.
      • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
      • Optical Video Input: SFP Optical Fiber connector cage. Supports 2110 IP video and optical SDI.
      • Multi Rate Support: Auto detection of 4K, Ultra HD, 2K, HD or SD inputs.
      • Updates and Configuration: USB
      • Ethernet: 1 x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
      • Tally: 9-pin D connector

      • Standards
      • SD Format Support: 525i59.94 NTSC, 625i50 PAL
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
      • 2K Format Support: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
      • Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
      • 4K Format Support: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
      • SDI Color Space: REC 601, REC 709
      • SDI Auto Switching: Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
      • Video Sampling: 4:2:2 and 4:4:4

        IP Video Compliance
      • SMPTE 2110-20 (Uncompressed Video): IGMP v2
      • SMPTE 2110-21 (Traffic Shaping): Sender: Narrow, Receiver: Narrow, Wide Synchronous, Asynchronous
      • SMPTE 2110-30 (PCM): Audio Conformance level: Level C
      • SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
      • Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
      • NMOS IS-04 Discovery and Registration: v1.3.2, Peer-to-peer via mDNS/DNS-SD
      • NMOS IS-05 Connection Management: v1.1.2
      • NMOS BCP-002-01: Natural Grouping
      • NMOS BCP-004-01: Receiver capabilities
      • Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.

      • Display Element: 15.6" TFT Active Matrix LCD
      • Display Resolution: 3840 x 2160 pixels
      • Response: 25 ms
      • Contrast Ratio: 1000:1
      • Color Depth: 16.7 million colors

        Power Requirements
      • Power Supply: 1x Internal 100 - 240V AC 50/60Hz.
      • Power Inputs: 1x IEC C14 socket for AC power. 1x 5.5mm barrel +12V DC In for external power supply or battery use.
      • Power Consumption: 24 W

        Environmental Specifications
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 140° F
      • Relative Humidity: 0% to 90% non-condensing
    • Item Includes:

      • 1x SmartView 4K G3
      • 1x Welcome wallet with QR code for software download
    • Warranty:

      • 12 Months Limited
    • GTIN:
