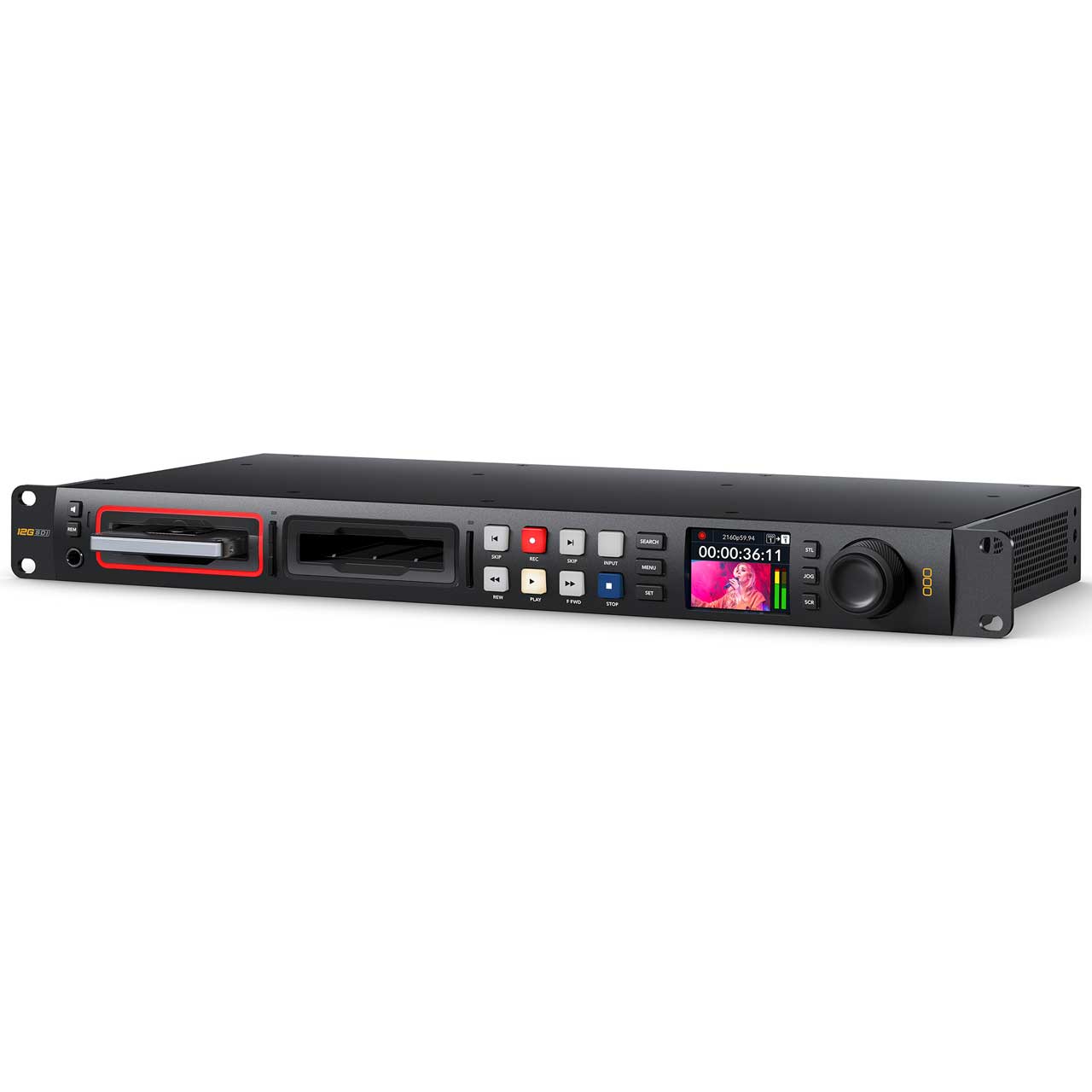

Blackmagic Design HYPERD/ST/DG4P HyperDeck Studio 4K Pro - Full UHD - Dual Link 12G SDI - 10G USB-C/Ethernet Ports


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    HYPERD/ST/DG4P - Overview

    For extreme power, the Blackmagic Design HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. This model's SDI has been upgraded to full 12G-SDI with a loop 12G-SDI output. The two SDI outputs are both 12G-SDI so you can play ProRes 4444 files for true Ultra HD fill and key out. The HDMI connections and the ProRes and DNx file formats all switch between SD, HD and Ultra HD television standards. Like the other models, H.264 is included for SD and HD, but then switches to H.265 when recording in Ultra HD. Even the networking has been upgraded to 10G Ethernet for incredible speed! You also get 2 redundant AC power supplies!

    • Specifications:

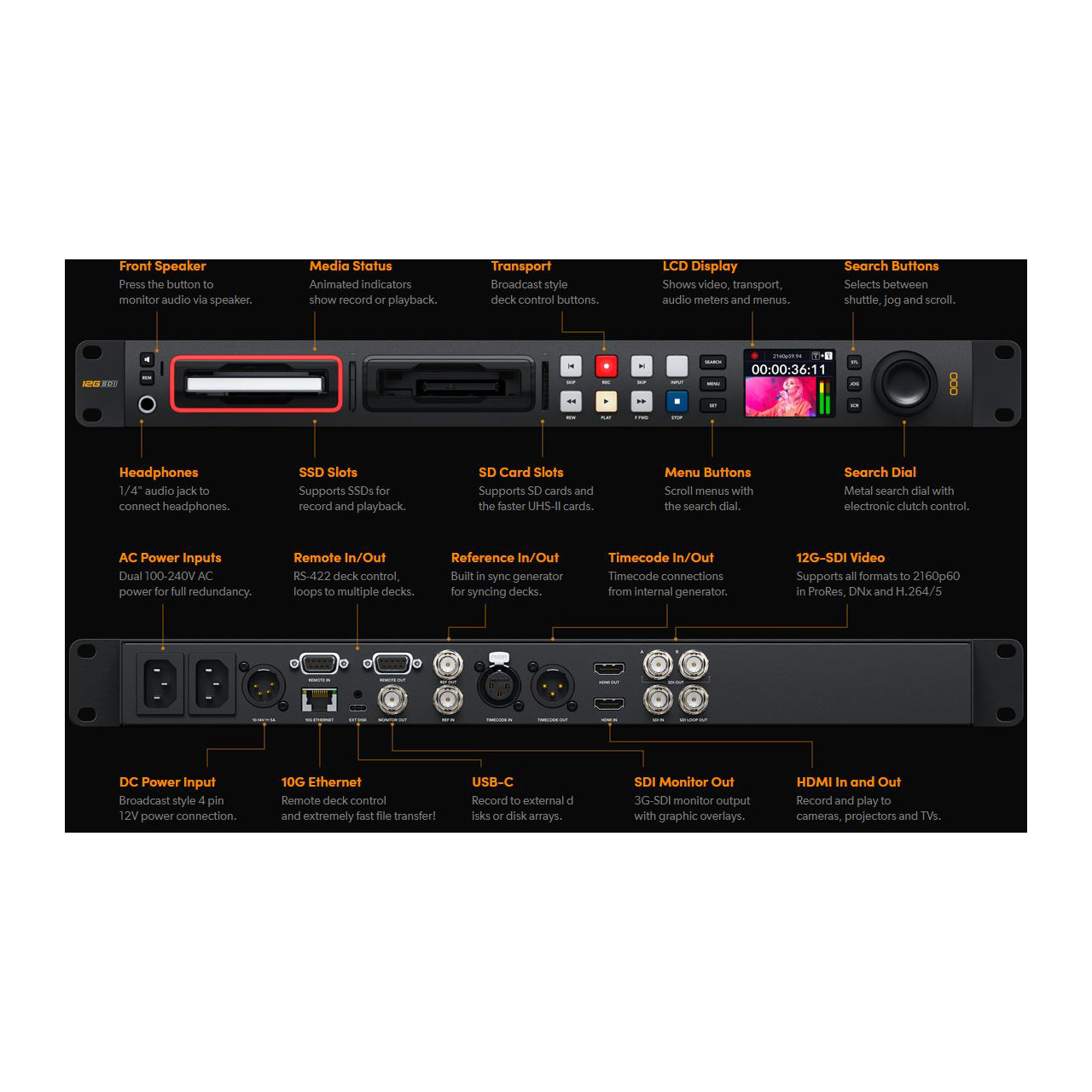

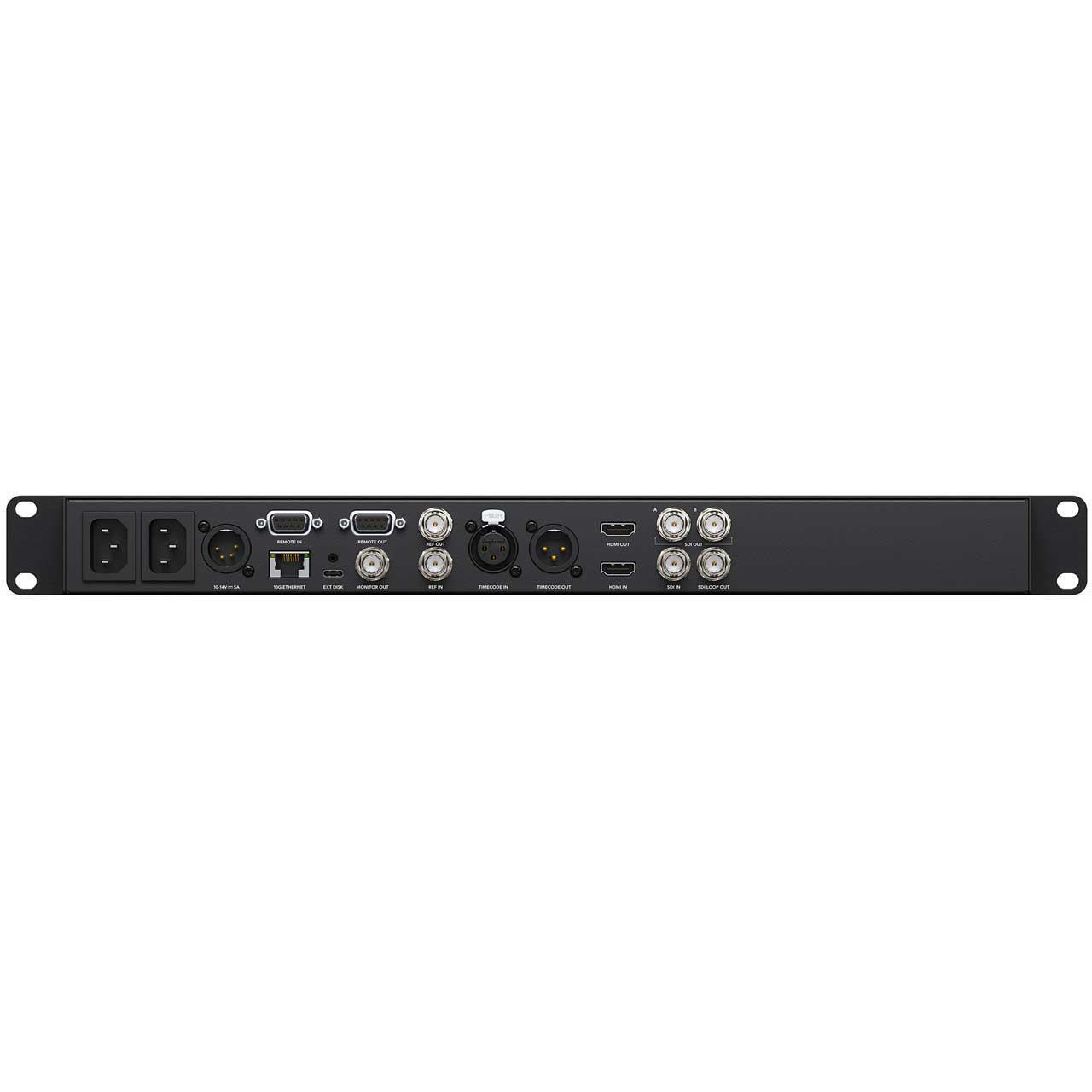

      • Connections
      • SDI Video Inputs: 1
      • SDI Video Outputs: 2
      • SDI Monitor Outputs: 1
      • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
      • HDMI 2.0 Video Inputs: 1
      • HDMI 2.0 Video Outputs: 1
      • Built in Speaker: Mono
      • Audio Output: 1x 6.35mm headphone jack
      • Screen: 2.2" LCD
      • Timecode Connections: 1x XLR In, 1x XLR Out
      • Reference Connections: 1x BNC In, 1x BNC Out. Tri-Sync or Black Burst
      • SDI Audio Inputs: 16ch embedded audio
      • SDI Audio Outputs: 16ch embedded audio
      • HDMI Audio Inputs: 8ch embedded audio
      • HDMI Audio Outputs: 8ch embedded audio
      • Remote Control: 1x RS-422 In, 1x RS-422 Out
      • Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol
      • Ethernet: 10Gb/s
      • Computer Interface: 1x USB Type-C 3.1 Gen 2 (up to 10Gb/s) for external drive recording, webcam out, software configuration & updates

      • SD Video: 525i59.94 NTSC, 625i50 PAL
      • HD Video: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
      • 2K DCI Video: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
      • Ultra HD Video: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K DCI Video: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A & B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 & SMPTE 2108-1
      • SDI Metadata Support: HD RP188 & closed captioning CEA-708. HDR Metadata supported on SDI
      • Supported HDMI Formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
      • Audio Sampling: Television standard 24-bit, 48 kHz sample rate
      • Video Sampling: 4:2:2 YUV
      • Color Precision: 10-bit
      • Color Space: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out
      • HDR Support: Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
      • Multi Rate Support: Auto detection of SD, HD, 6G-SDI & 12G-SDI

      • Media: 2x 2.5" disc slots, 2x SD card slots, 1x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, 2K DCI, Ultra HD & 4K DCI
      • Media Type: SATA-II or SATA-III 2.5" solid state media. UHS-I & UHS-II SD cards
      • Media Format: ExFAT or HFS+

      • Built in Control Panel: 16 buttons for transport & device control with search dial featuring electronic clutch & 2.2" color display
      • External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload

      • Built in 2.2" LCD for video, audio & timecode monitoring & menu settings
      • LED bezel indicator lights around SSD media slots & LED indicator lights above the SD media slots

      • Power Supply: 2x Internal 100-240V AC 50/60Hz. 1x 4 pin XLR 12V DC in for external power supply/battery use
      • Power Usage: 100W max

      • Operating Temp: 32°-104° F
      • Storage Temp: -4°-140° F
      • Humidity: 0% to 90% non-condensing
    • Item Includes:

      • 1x HyperDeck Studio 4K Pro
    • Warranty:

      • 12 Month Limited Manufacturer's Warranty
    • Supported Codecs


      • ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill & key over SDI A & B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p & 1080p HD formats up to 60fps.DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI & 2160p formats up to 60fps.H.265 SDI 4:2:2 10-bit, H.265 High 4:2:0 10-bit, H.265 Medium 4:2:0 10-bit, H.265 Low 4:2:0 10-bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10-bit, H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
