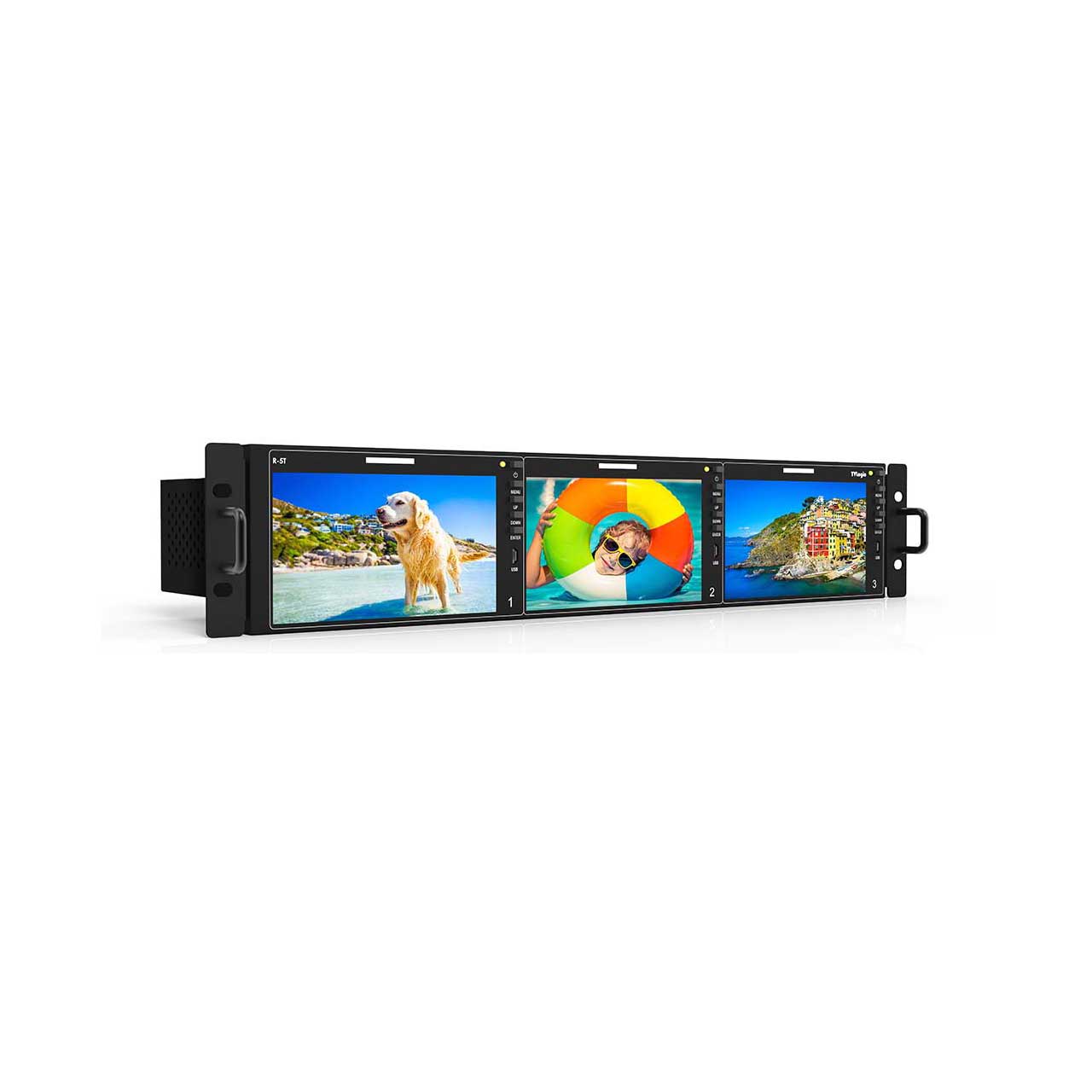

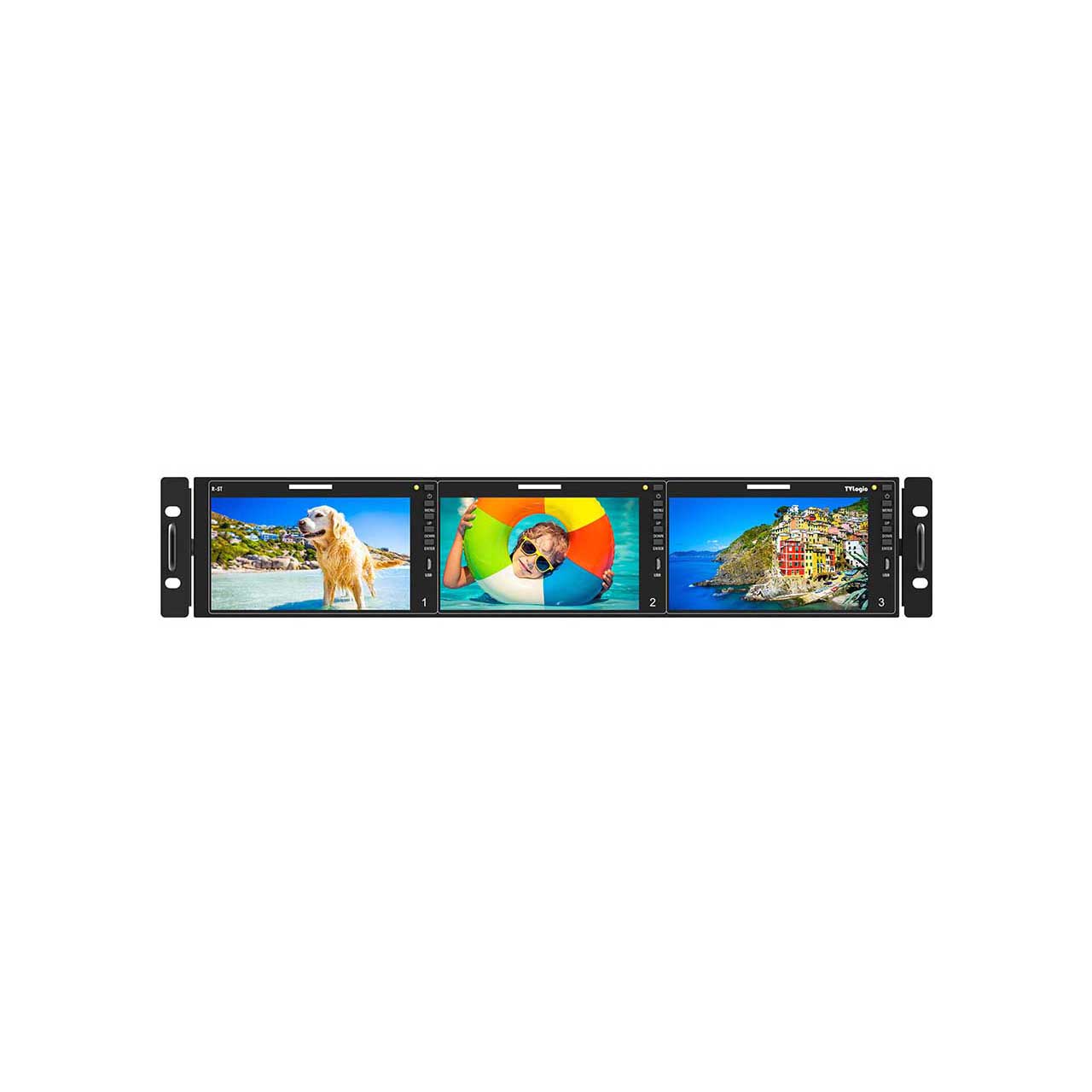

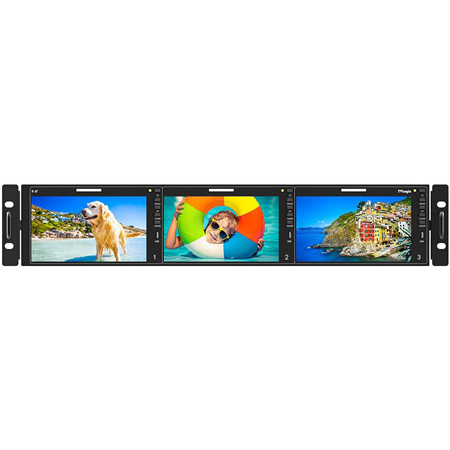

TVLogic R-5T 12G-SDI 3X 5.5 Inch LCD Full HD Screen Rackmount Monitor

R-5T - Overview

• Features:

  • 1:1 Pixel Mapping Modes for SD/HD
  • Audio Level Meter Display
  • H/V Delay
  • Key Lock
  • Luma(Y') Zone Check
  • Time Code Display
  • User Aspect
  • Various Scan Modes
  • Waveform/Vector Scope


• Specifications:

  • Display Spec:
  • Size: 5.5"
  • Resolution: 1920X1080(16:9)
  • Pixel Pitch: 0.0213(W)x0.0639(H)
  • Color Depth: 16.7M
  • Viewing Angle: 160°(H)/160°(V)
  • Luminance: 500cd/m2
  • Contrast Ratio: 1,000:1
  • Display Area: 122.7(H)x69.0(V)mm

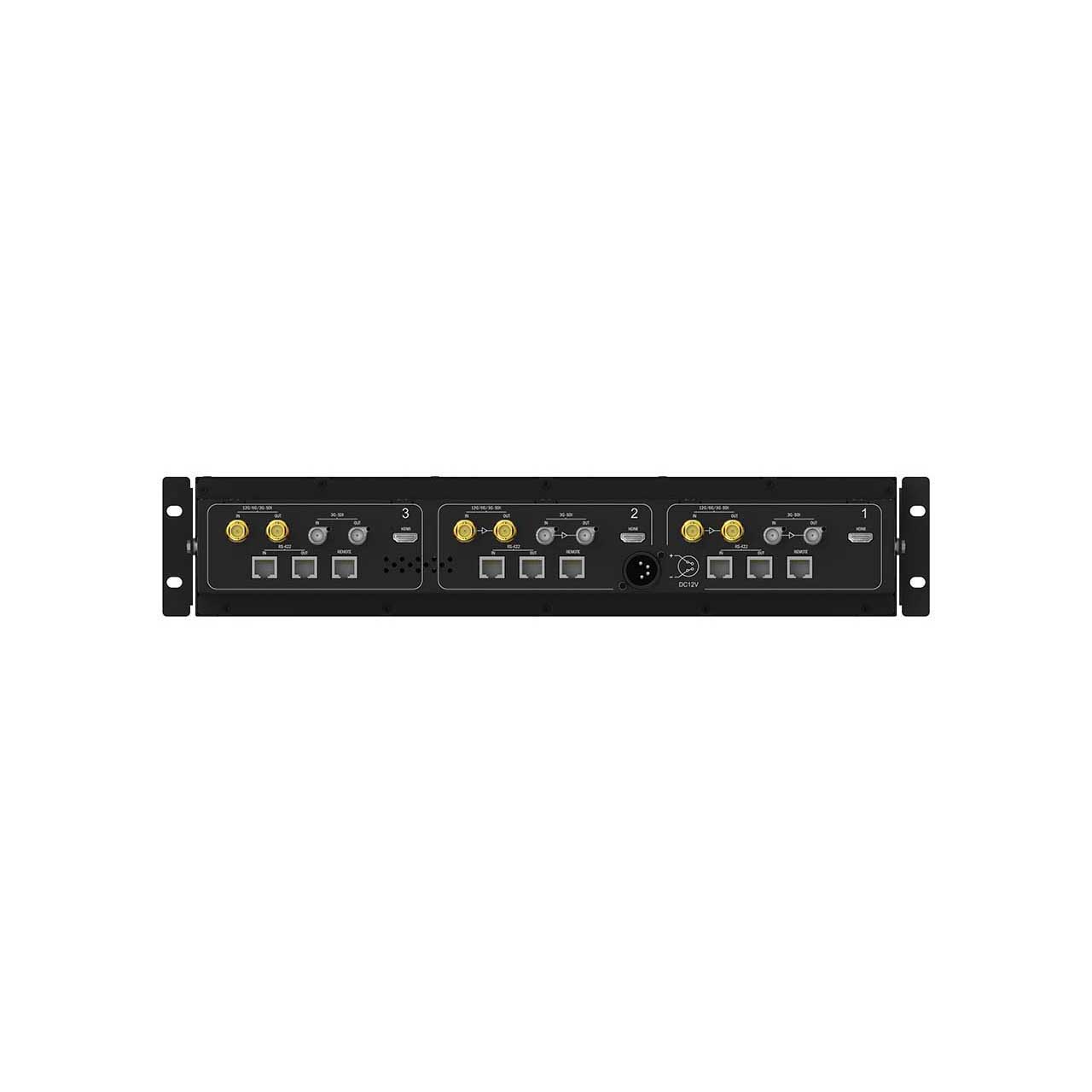

    Input:
  • 2 X BNC: SDI Input(12G-SDI x 1 / 3G-SDI x 1)
  • 1 X HDMI: HDMI Input

    Output:
  • 2 X BNC: 1 x 12G-SDI / 1 x 3G-/SDI OUTPUT

    Input Signal:
  • 3G SDI: 2.970Gbps
  • 12G SDI: 11.880Gbps
  • HD SDI: 1.485Gbps
  • SD SDI: 270Mb/s
  • HDMI: 1080p(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50)

    SDI Input Signal Formats:
  • SMPTE 2082: 3840x2160(60/50/59.94p)
  • SMPTE 2081: 3840x2160 (30/25/24p/23.98p/29.97p)
  • SMPTE 425M-A/B: 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
  • SMPTE 296: 720p (60/59.94/50)
  • SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
  • SMPTE 260: 1035i (60/59.94)
  • SMPTE 125: 480i (59.94)
  • ITU-R BT.656: 576i (50)
  • 2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

    Other Functions:
  • REMOTE: GPI (RJ45)
  • USB: Firmware update by USB memory stick
  • Ethernet: X


• Item Includes:

  • 1x TVLogic R-5T 3 x 5.5" 12G-SDI/HDMI Full HD Rackmount LCD Monitors
  • 1x Rackmount Kit
  • 1x DC Power Adapter


• Warranty:

  • Limited 2-Year Warranty on Hardware
