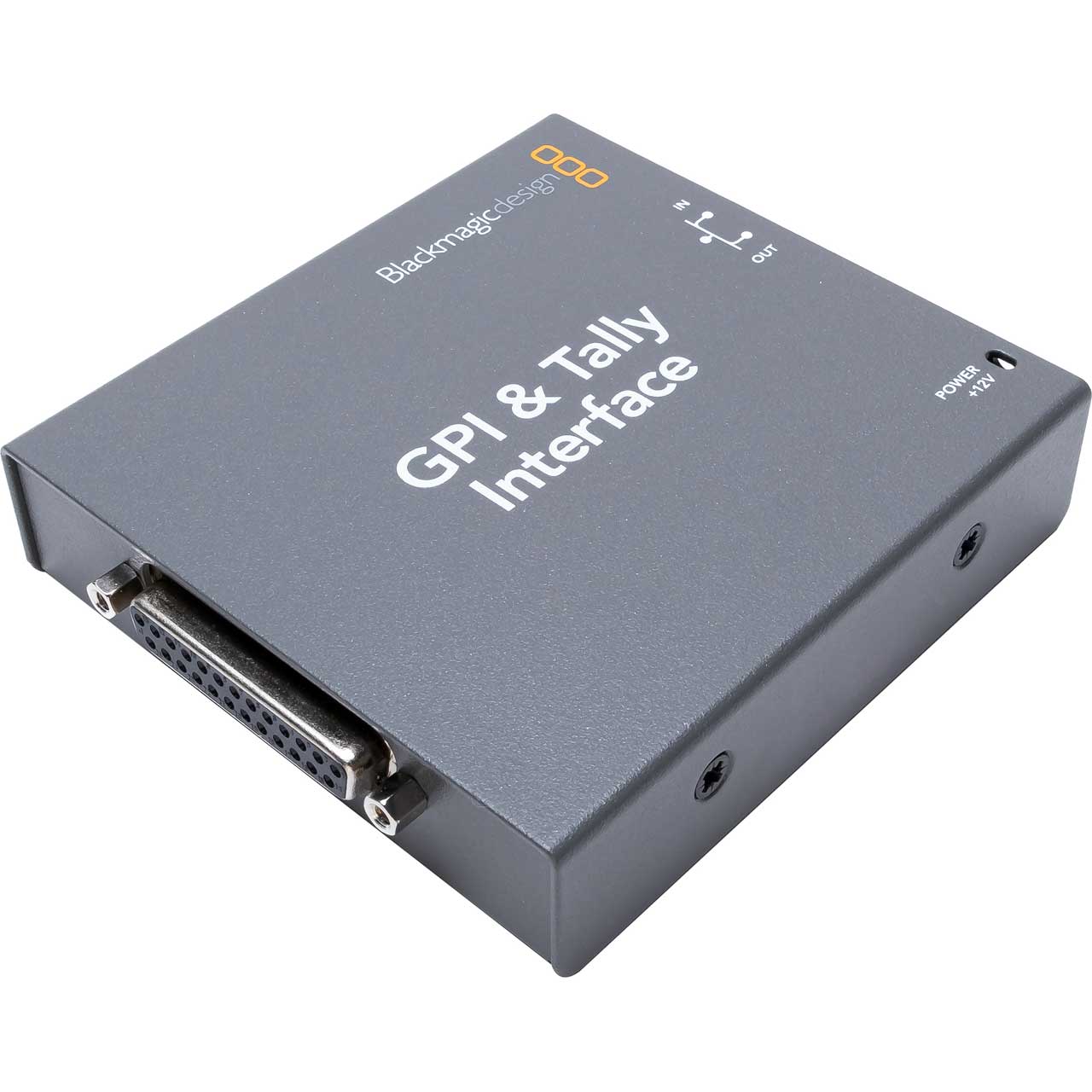

Blackmagic Design SWTALGPI8 GPI and Tally Interface for ATEM Production Switchers - BStock (Used/Damaged Box)

BMD-SWTALGPI8BS - Overview

• Features:

  • Displays Tallies for Video Signals
  • Indicates On-air Status
  • For ATEM Switchers / Videohub Routers
  • 8 Contact Closure Inputs & Outputs
  • Connects with Multiple Interfaces

    Please Note! This is a BStock item. It has been used and its box has some damage.


• Specifications:

  • Connections:

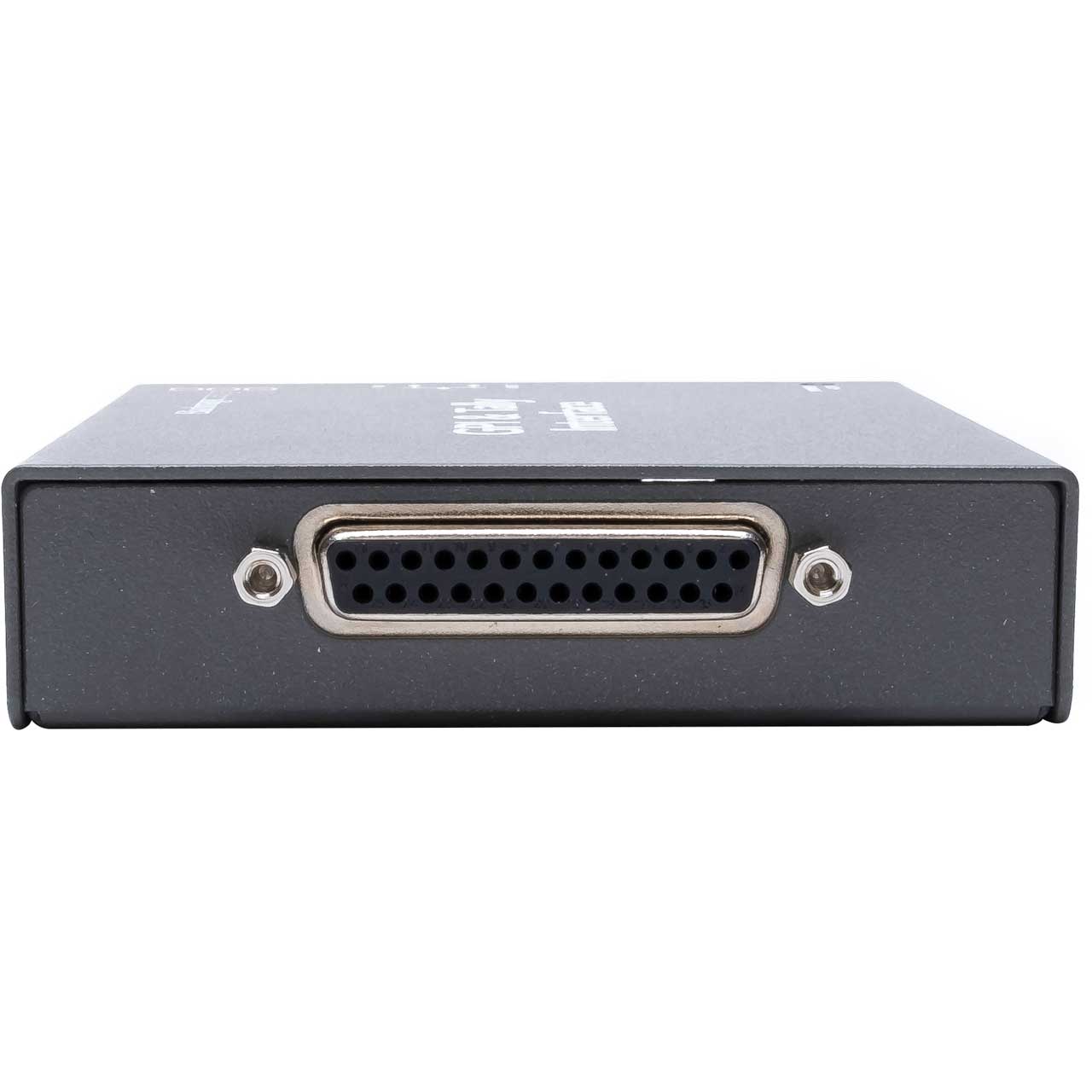

  • Contact Closure 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
  • Inputs Optical isolators triggered by connection to ground. Max 5V at 14mA.
  • Outputs Mechanical relay contact closure to ground. Max 30V at 1A.

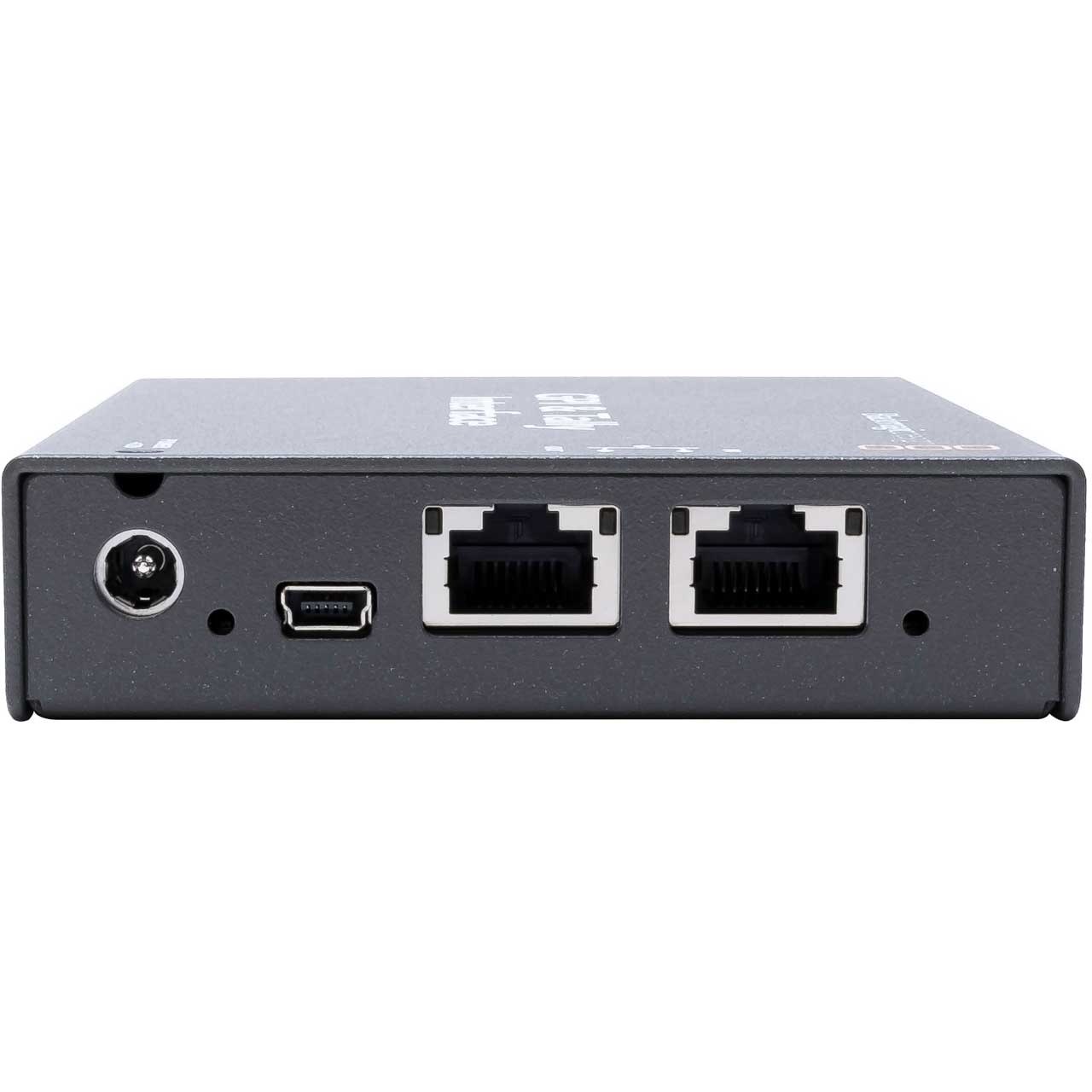

  • Ethernet 10/100 BaseT with loop through for connecting to other ethernet enabled equipment
  • Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates
  • Extras:
  • Software Included Configured via ATEM Switcher Utility
  • Internal Software Upgrade Firmware built into software driver. Loaded at system startup or via updater software
  • Operating System Microsoft Windows 7 and Apple Mac OS X
  • Power Supply 12V power supply included with international socket adaptors for all countries
  • Product Warranty 12 Months Limited Manufacturer's Warranty


• Item Includes:

  • Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
  • 12 V Power Supply
  • 1-Year Limited Warranty


• GTIN:

  9338716001327
