Gigatronix BNC 12G SDI Straight Crimp Jack - Nickel Plated - For Gigatronix UHD75-M59/M59XF and Belden 4855R Cables

ITEM #: BN10-4855-C06-Z MFG #: BN10-4855-C06-Z

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Gigatronix Ltd
Free Shipping with $49 Minimum Order

List Price:

$9.95

Our Price:

$7.50

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BN10-4855-C06-Z - Overview

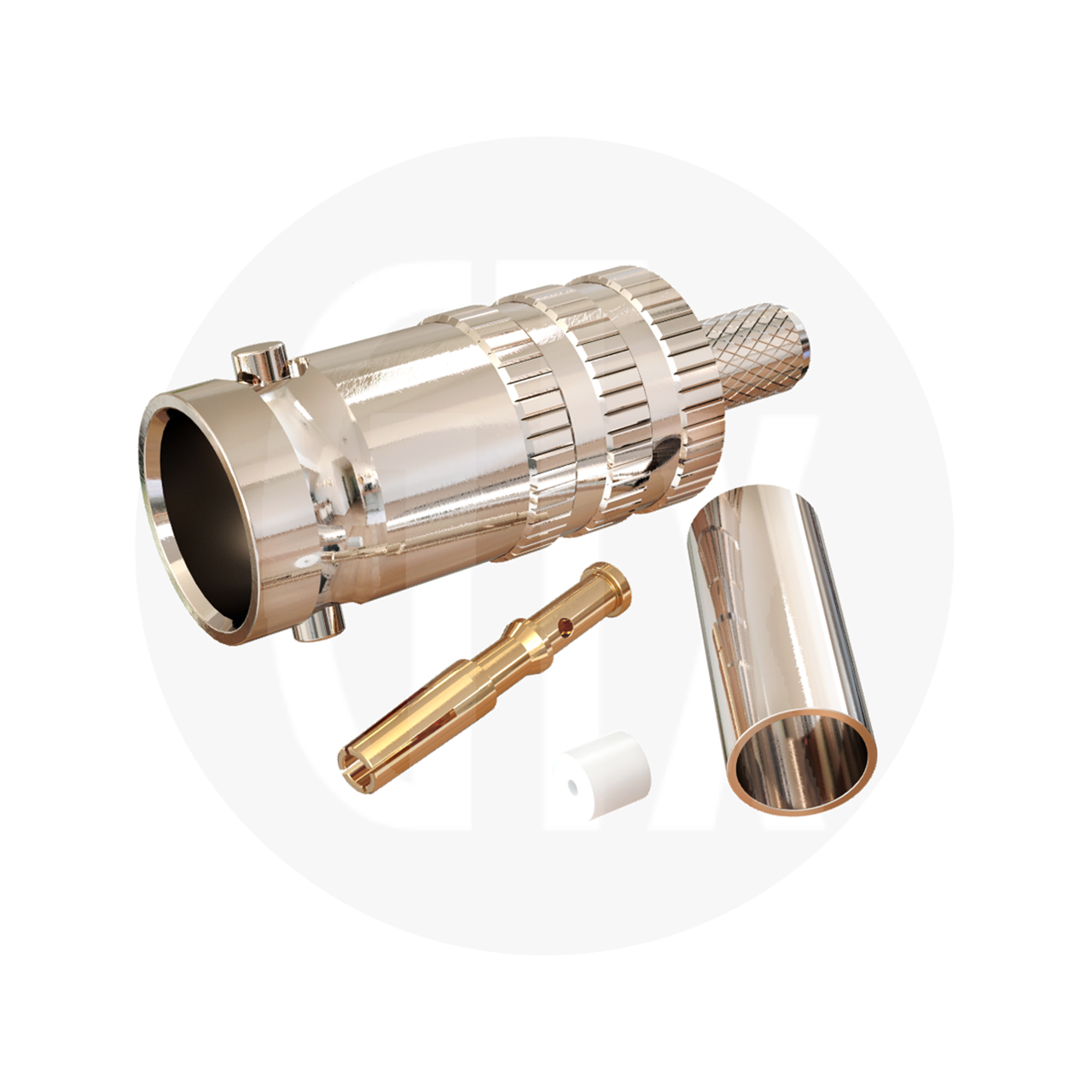

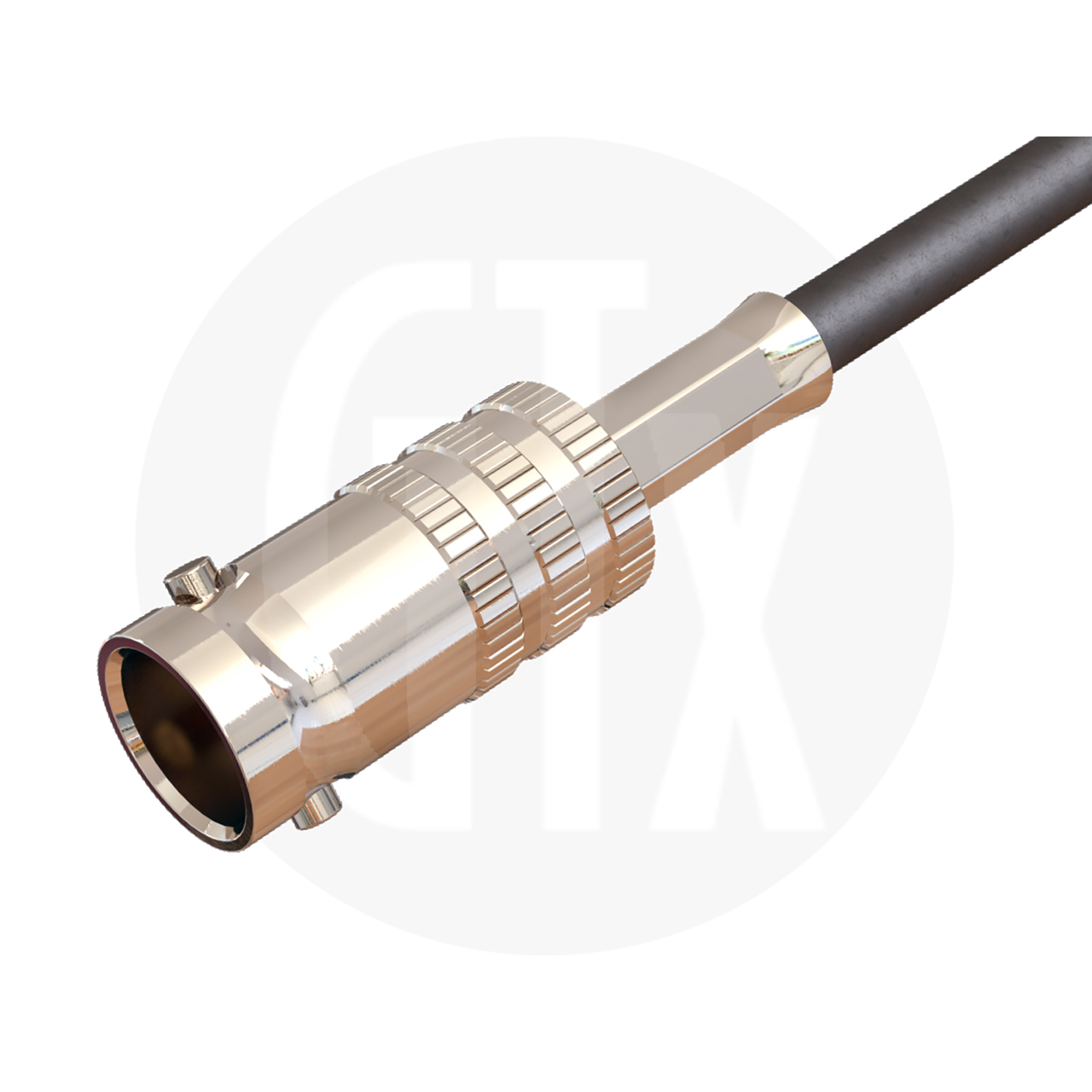

The Gigatronix BN10-4855-C06-Z is a nickel plated BNC 12G SDI Right Angle Crimp Jack. It is designed for use with Gigatronix UHD75-M59/M59XF and Belden 4855R cables.

  • Specifications:

    • Electrical
    • Dielectric Withstanding: 1500V RMS Maximum
    • Impedance: 75Ω
    • Interface Frequency: 12GHz
    • Working Voltage: 500V RMS Maximum

      Environmental
    • RoHS Compliant: Yes
    • Temperature Range: -85°F - 329°F (-65°C - 165°C)

      Material
    • Body: Brass, Nickel Plated
    • Contact: Phosphor Bronze, Gold Plated
    • Dielectric: PTFE
    • Ferrule: Brass, Nickel Plated
    • Insulator: PTFE

      Mechanical
    • Cable Retention: Equal to breaking strain of cable
    • Captive Contact: Yes
    • Contact Gender: Female
    • Durability: 500 mating cycles
    • Fixing Method: Crimp
