Gigatronix BNC 12G-SDI 4K Straight Crimp Plug - Nickel Plated - For Gigatronix UHD75-M59/XF and Belden 4855R Cables

Name: Gigatronix BNC 12G-SDI 4K Straight Crimp Plug - Nickel Plated - For Gigatronix UHD75-M59/XF and Belden 4855R Cables
Brand: Gigatronix Ltd
SKU: BN15-4855-C06D-Z
Price: 2.35 USD
Availability: InStock

ITEM #: BN15-4855-C06D-Z MFG #: BN15-4855-C06D-Z

Gigatronix Ltd

List Price:

$7.95

Our Price:

$2.35

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BN15-4855-C06D-Z - Overview

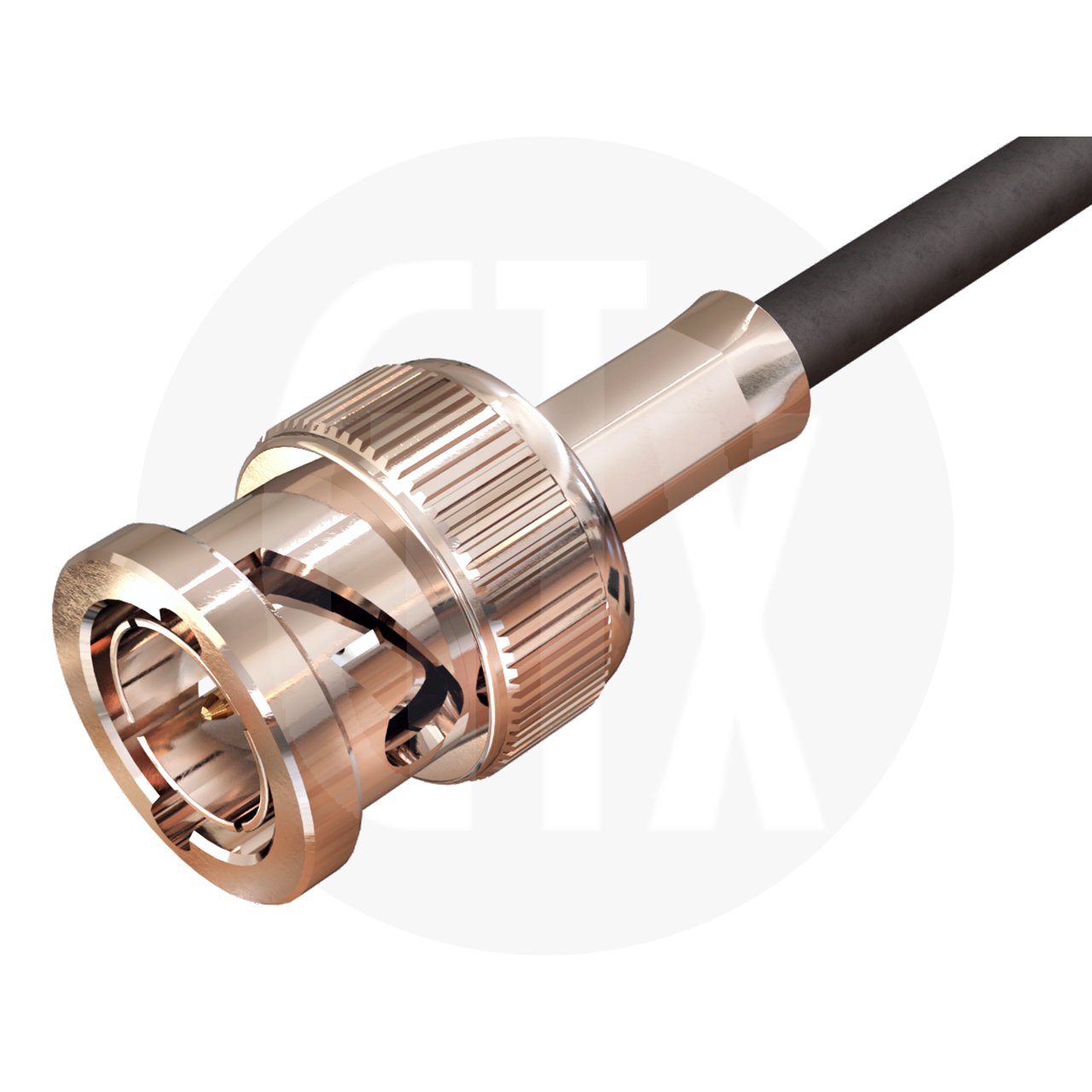

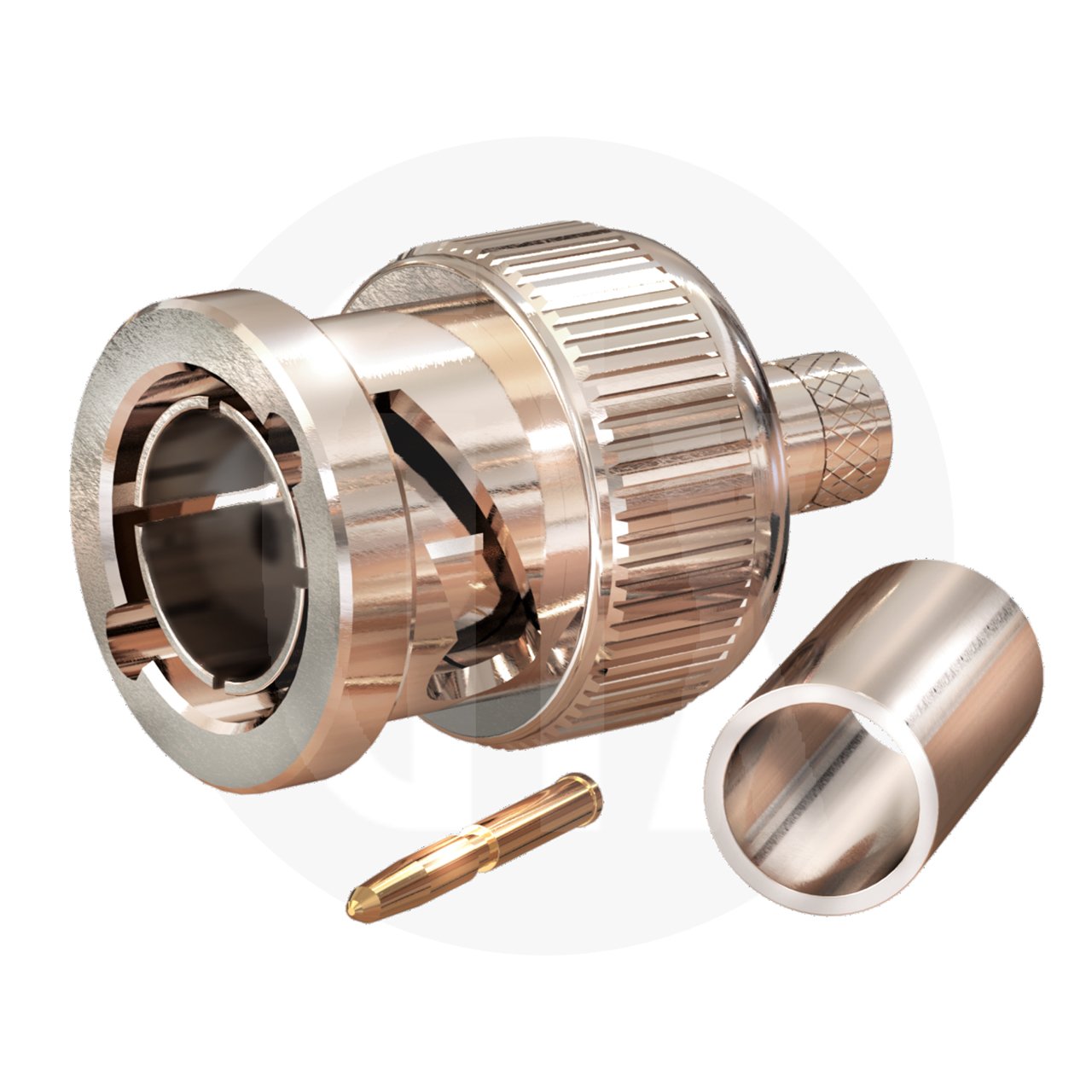

The Gigatronix BN15-4855-C06D-Z is a precision 75 ohm BNC Crimp Plug designed to carry 12G-SDI (Serial Digital Interface) 4K signals on a single channel.

BN15-4855-C06D-Z is designed to suit the following cables types:
Gigatronix - HD75-M59, UHD75-M59, UHD75-M59XF
Belden - 1855A, 4855R, 4855P

Specifications:
- Electrical
- Dielectric Withstanding: 1500V RMS Maximum
- Impedance: 75Ω
- Interface Frequency: 12GHz
- Working Voltage: 500V RMS Maximum

  Environmental
- RoHS Compliant: Yes
- Temperature Range: -85°F - 329°F (-65°C - 165°C)

  Material
- Body: Brass, Nickel Plated
- Coupling Nut: Zinc Alloy, Nickel Plated
- Dielectric: PTFE
- Ferrule: Brass, Nickel Plated
- Pin: Brass, Gold Plated
- Spring: VK5

  Mechanical
- Cable Retention: Equal to breaking strain of cable
- Contact Termination: Crimp
- Durability: 500 mating cycles
- Fixing Method: Crimp
