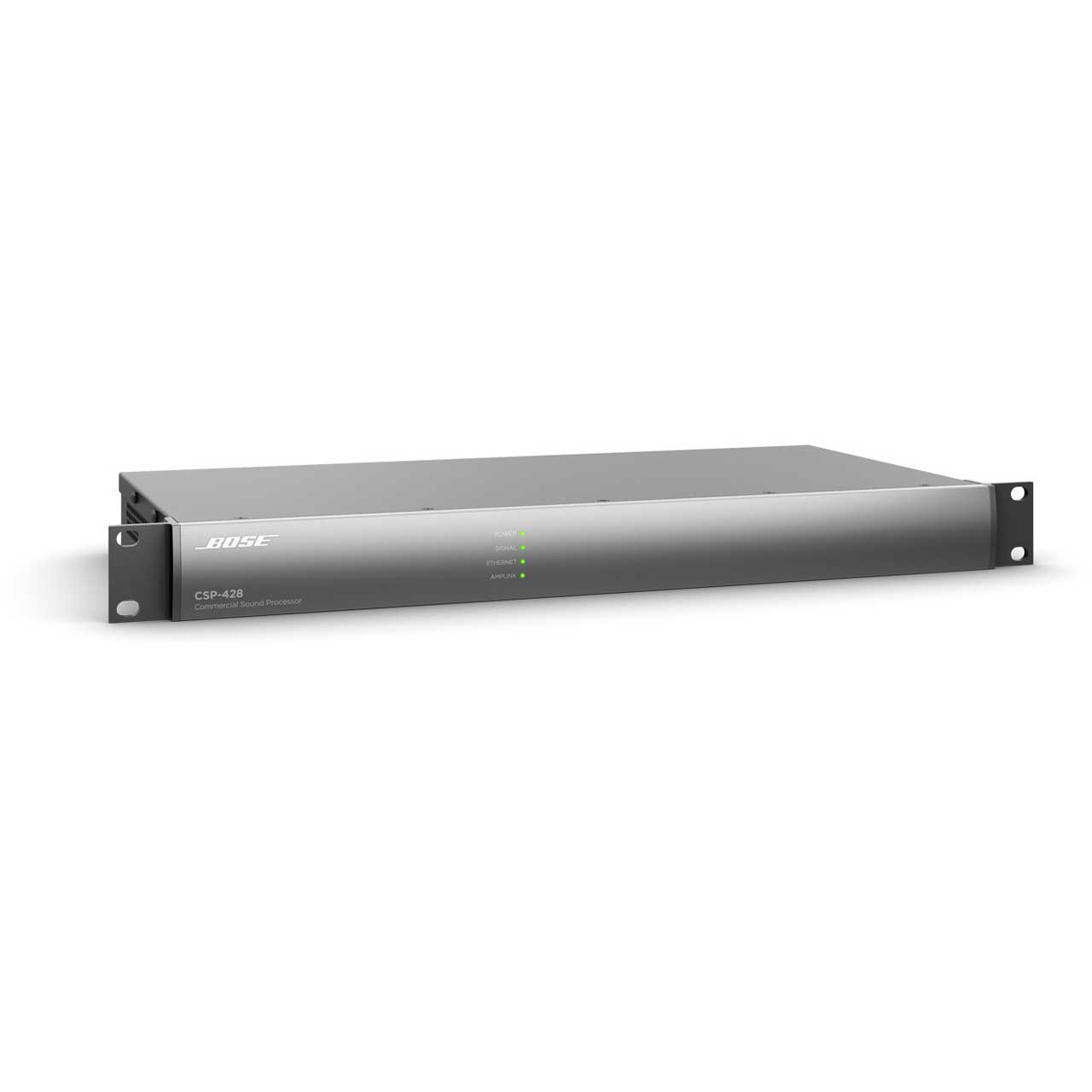

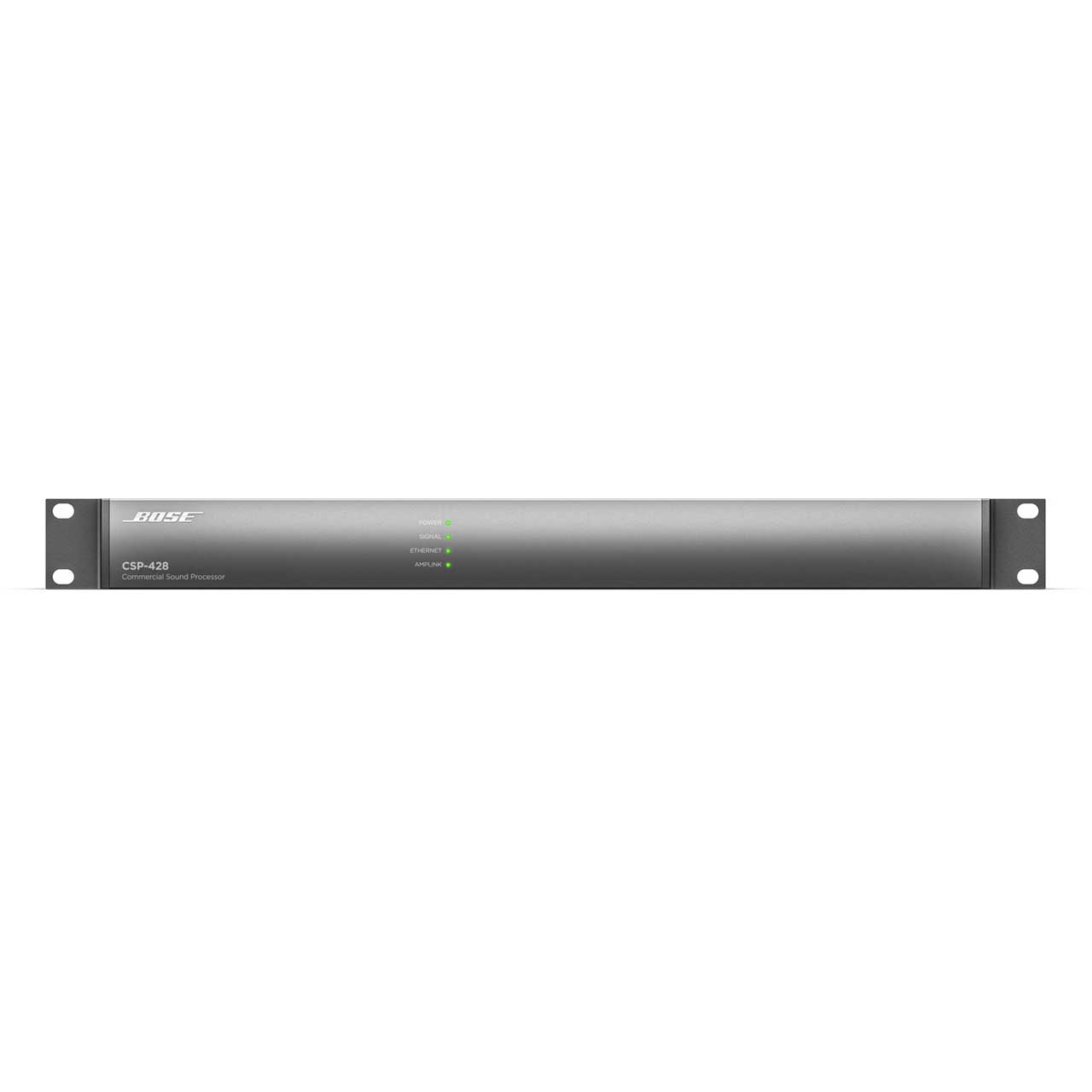

Bose CSP-428 Commercial Sound Processor

CSP-428 - Overview

• Features:

  • Right-sized connectivity for cost-effective commercial installation -- 2 x 2 balanced analog I/O, 2 pair mono-summed RCA inputs, 8 control inputs, 1 control output, mute contact, Ethernet port, and Bose AmpLink connectivity
  • CSP configuration utility with browser-based UI facilitates real-time display and control of levels, routing, thresholds, priorities, scheduled events, Bose loudspeaker EQs, plus input and area EQs
  • Rear-panel Ethernet port for PC/Mac configuration; also allows for connection to networks supporting ControlCenter digital zone controllers and the ControlSpace Remote app
  • AutoVolume compensation continuously adapts zone output level based on ambient noise when paired with the Bose AVM-1 sense microphone (sold separately)
  • Opti-voice paging provides a smooth transition between music and announcements
  • Opti-source level management monitors input level of up to 4 sources, maintaining consistent volume when switching sources
  • SmartBass processing expands performance and response at any listening level on supported Bose loudspeakers
  • Bose AmpLink output for simplified digital audio connection to compatible power amplifiers, reducing terminations, and related points of failure Intuitive end-user operation -- optional ControlCenter CC-1D, CC-2D, and CC-3D (sold separately) digital zone controllers and ControlSpace Remote app provide easy volume control and source selection


• Specifications:

  • Integrated DSP
  • Signal Processor/CPU: 32-bit fixed/floating-point DSP + ARM, 456 MHz
  • Maximum Calculation: 3.6 GIPS / 2.7 GFLOPS
  • Audio Latency: 900 µs (analog in to analog out)
  • A/D and D/A Converters: 24-bit
  • Sample Rate: 48 Khz

    Audio Performance Specifications
  • Frequency Response: 20 Hz - 20 kHz (+0.3 dB/-0.5 dB)
  • THD+N: < 0.01 % at +4 dBu (A-weighted/20 Hz - 20 kHz)
  • Channel Separation (Crosstalk):< -105 dB at +4 dBu input and output level, 1 kHz
  • Dynamic Range: > 115 dB A-weighted 20 Hz - 20 kHz, analog through

    Audio Inputs
  • Input Channels: 4 analog inputs (two unbalanced, two balanced)
  • Connectors: RCA pairs, 3-pin Euroblock, 4-pin Euroblock with dedicated GPI for paging
  • Type: Unbalanced, mono-summed, Balanced mic/line, Balanced mic/line or 600 Ω paging input
  • Sensitivity Options (via configuration utility): -10 dBV -70 / -60 / -50 / 0 / +4 dBu, -10 dBV with selectable phantom power, -70 / -60 / -50 / 0 / +4 dBu -10 dBV with selectable phantom power
  • Input Impedance: 12 kΩ @ 1 kHz (with or without phantom power active)
  • Maximum Input Level: +24 dBu (THD+N <=0.3%, 20 to 20kHz, 0 dB gain)
  • Equivalent Input Noise: <-119 dBu (22Hz - 20 kHz, 150 Ω input, 64 dB gain)
  • Phantom Power: +48V, open circuit, 10mA max per channel, selectable per input, 80mA max across all channels

    Audio Outputs
  • Output Channels: 10 (2 analog, 8 digital via AmpLink)
  • Connectors: 3-pin Euroblock 3-pin Euroblock RJ-45
  • Type: Balanced line level, Balanced line level, or fully-isolated output for Music On Hold for 600 Ω telephone systems (activated in configuration utility), 48 kHz, 8-channel digital audio over AmpLink
  • Output Impedance: 66 Ω
  • Maximum Output Level: +24 dBu (THD+N <=0.3%, 22 Hz to 20 kHz )

    Control Inputs
  • Inputs (Control): 8 digital inputs, 2 kΩ internal pull-up resistor to 5 V, Green 3.81 mm pitch connector (9-pin)
  • Mute (Control): 1 digital input, 2 kΩ internal pull-up resistor to 5 V, Black 3.81 mm pitch connector (2-pin)
  • Digital Input Voltage: 0 V to 3.3 V (threshold voltage = 1.6 V)

    Control Outputs
  • Outputs (Control): 1 digital outputs, Orange 3.81 mm pitch connector (2-pin)
  • Output Voltage: High - 8 V (open circuit), 2.5 V @ 10 mA, Low - < 1 V @ 100 mA, push-pull
  • Output Current: 10 mA source, 100 mA sink (24 VDC max external supply voltage)

    Indicators And Controls
  • LED Status Indicators: Power/Status, Signal, Ethernet, AmpLink
  • Audio Signal Indication: Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 dBFS to Clip)

    Electrical Specifications
  • Mains Voltage: 85 VAC-264 VAC 50/60 Hz
  • AC Power Consumption: < 30 W typical, over all mains voltages, (PSU Max < 45W)
  • Mains Connector: IEC 60320-C14 (Inlet)
  • Power Dissipation: ~22 W (75 BTU/Hr, 19 kcal/hr)

    Physical
  • Dimensions (H x W x D): 44 x 483 x 215 mm (1.7 x 19 x 8.5 in)
  • Operating Temperature: 0 °C - 40 °C (32 °F - 104 °F)
  • Cooling System: Active, side venting with fan
  • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F )
  • Humidity: 80% (without condensation)

    General
  • Configuration Software: Web browser based configuration utility
  • Network Control: Ethernet (RJ-45), 10/100 Mbps


• Item Includes:

  • 1x Bose CSP-428 Commercial Sound Processor
  • 1x AC power cord
  • 11x Cable ties
  • 1x 2-pin Euroblock (orange)
  • 1x 2-pin Euroblock (black)
  • 1x 3-pin Euroblock (green)
  • 1x 4-pin Euroblock (green)
  • 1x 6-pin Euroblock (orange)
  • 1x 9-pin Euroblock (green)


• GTIN:

  0017817790659
