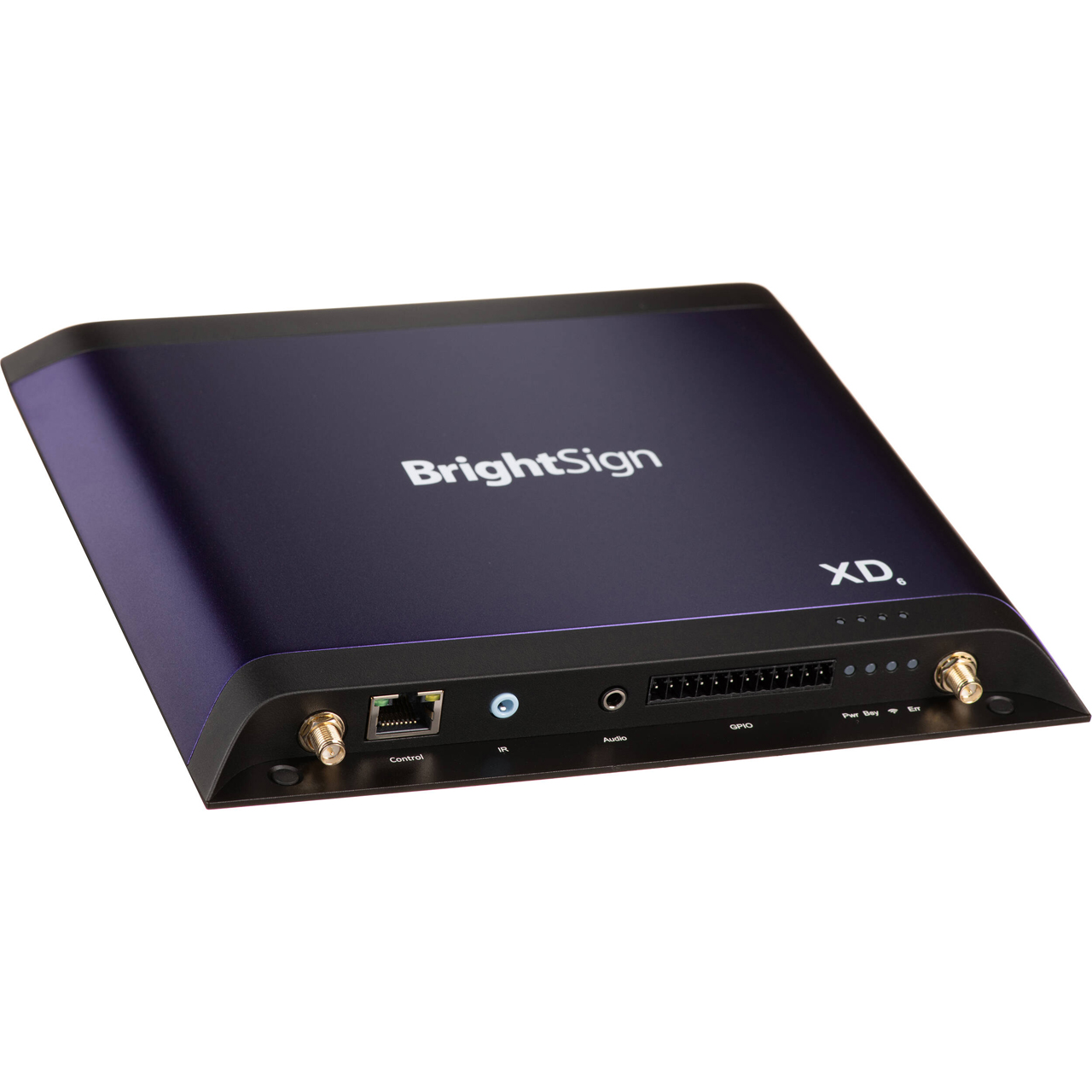

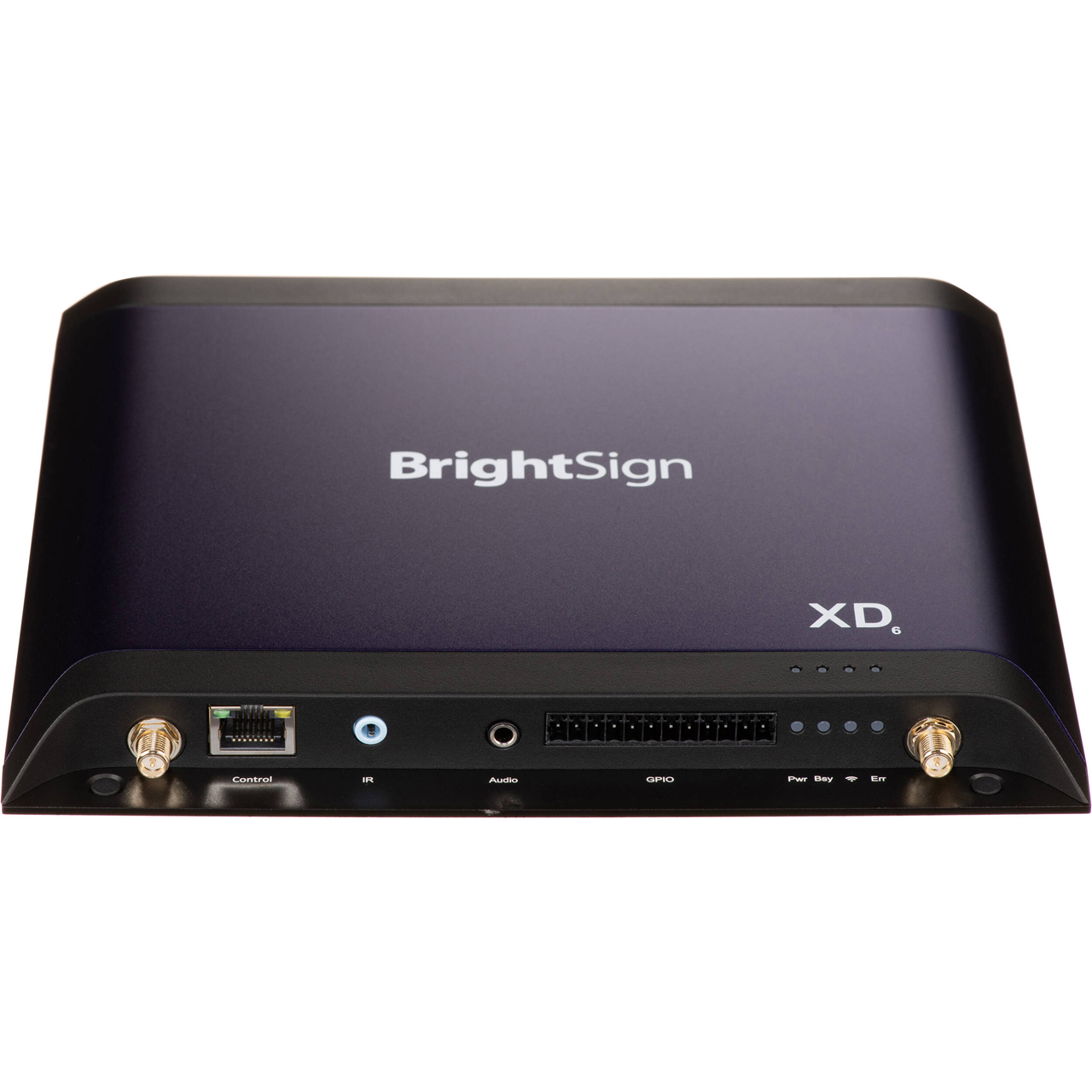

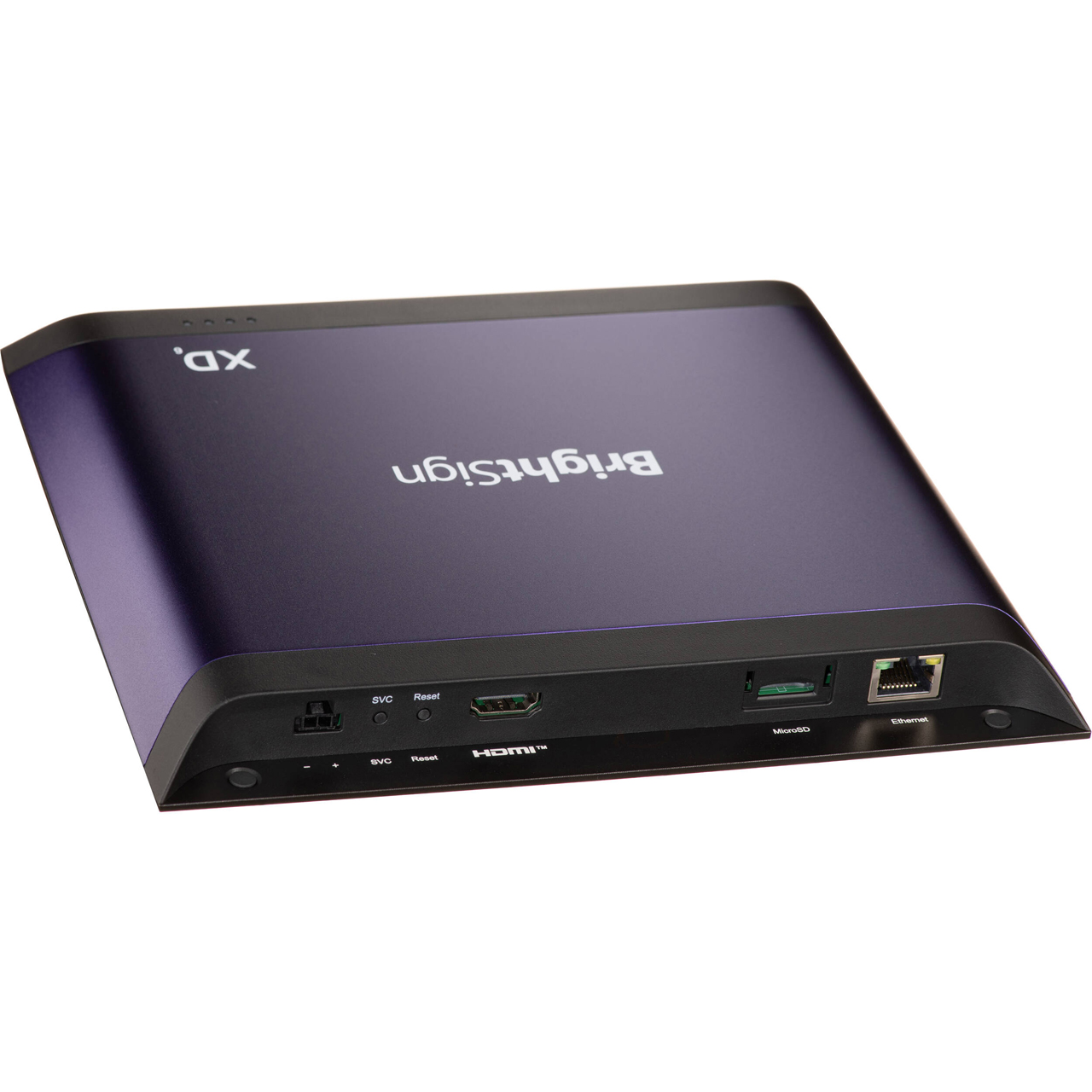

BrightSign XD6 XD236 4K Digital Signage Media Player with Dual UHD Video Decode / PoE+ & Standard IOs

XD236 - Overview

• Features:

  • Deploy high-performance and creative experiences anywhere using the flexibility of PoE+
  • Stellar 4K or dual 4k video, ideal for on-screen and projected displays, and support for 10-bit HDR
  • Deploy immersive and captivating 4K graphics
  • Expandable internal storage via an M2 interface SSD storage option
  • Operate with unparalleled reliability, security, and sustainability on BrightSignOS
  • Reduce total cost of ownership with complimentary remote player management and controls
  • Achieve CMS choice flexibility with a trusted global network of leading integrated partner solutions.
  • Leverage an integrated Neural Processing Unit (NPU) which enables BrightSign players to run powerful AI applications without compromising on video or graphics performance.


• Specifications:

  • Video I/O: 1x HDMI 2.0a Output
  • Audio I/O: 1x 1/8" / 3.5 mm Line Input/Output
  • Media/Memory Card Slot: Single Slot: microSD (Unspecified Type)
  • Internal Storage: Yes

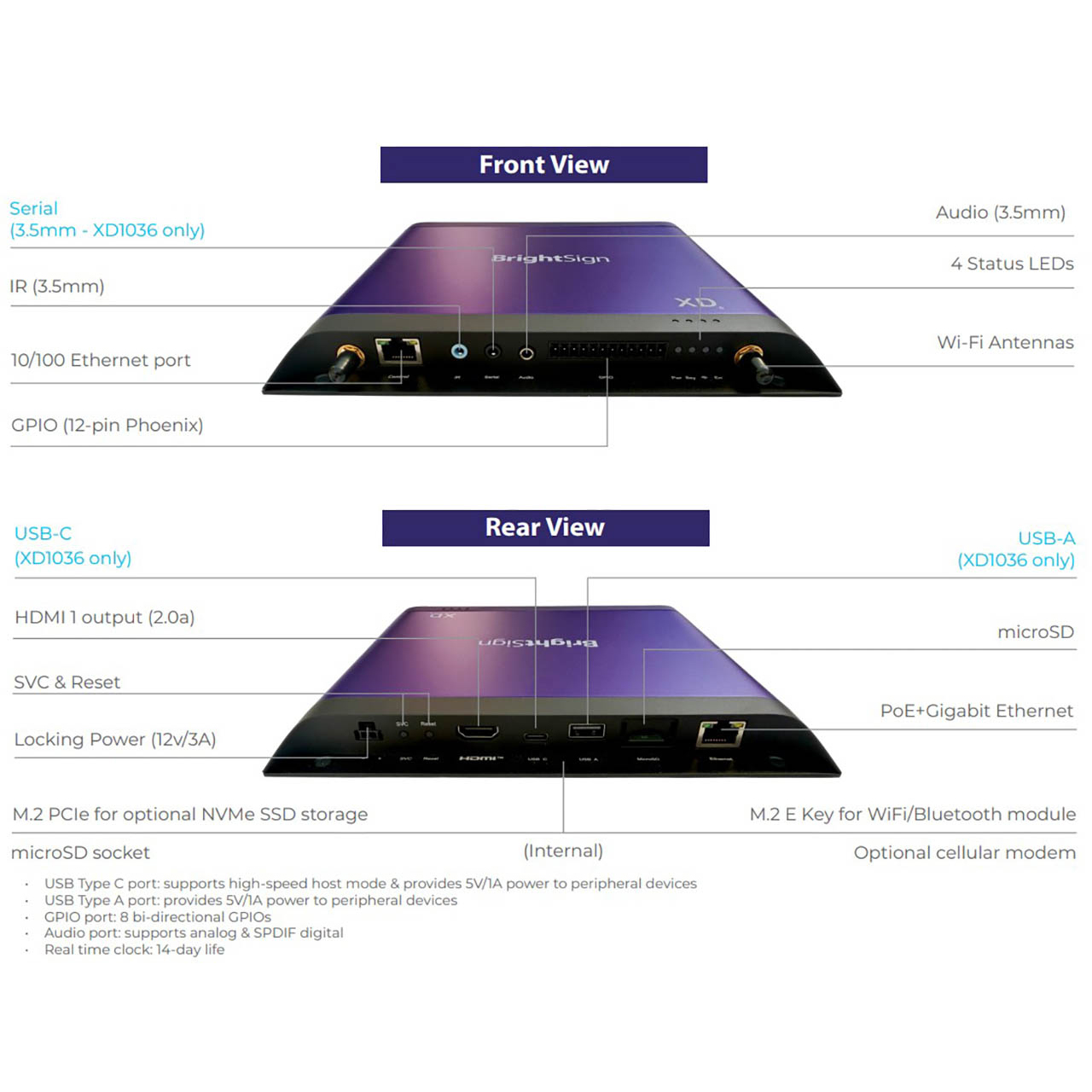

  • Other I/O:
    - 1x 3.5mm Port (IR)
    - 1x 3.5mm (Serial)
    - 1x 12-Pin Phoenix (4 GPIO)
    - 1x RJ45 (Gigabit Ethernet)
    - 1x RJ45 (10/100 Ethernet)
    - 1x M.2 E Key for Optional Wi-Fi/Bluetooth Module
    - 2x Wi-Fi Antennas
  • Power Source: Proprietary Interface (Built-In)

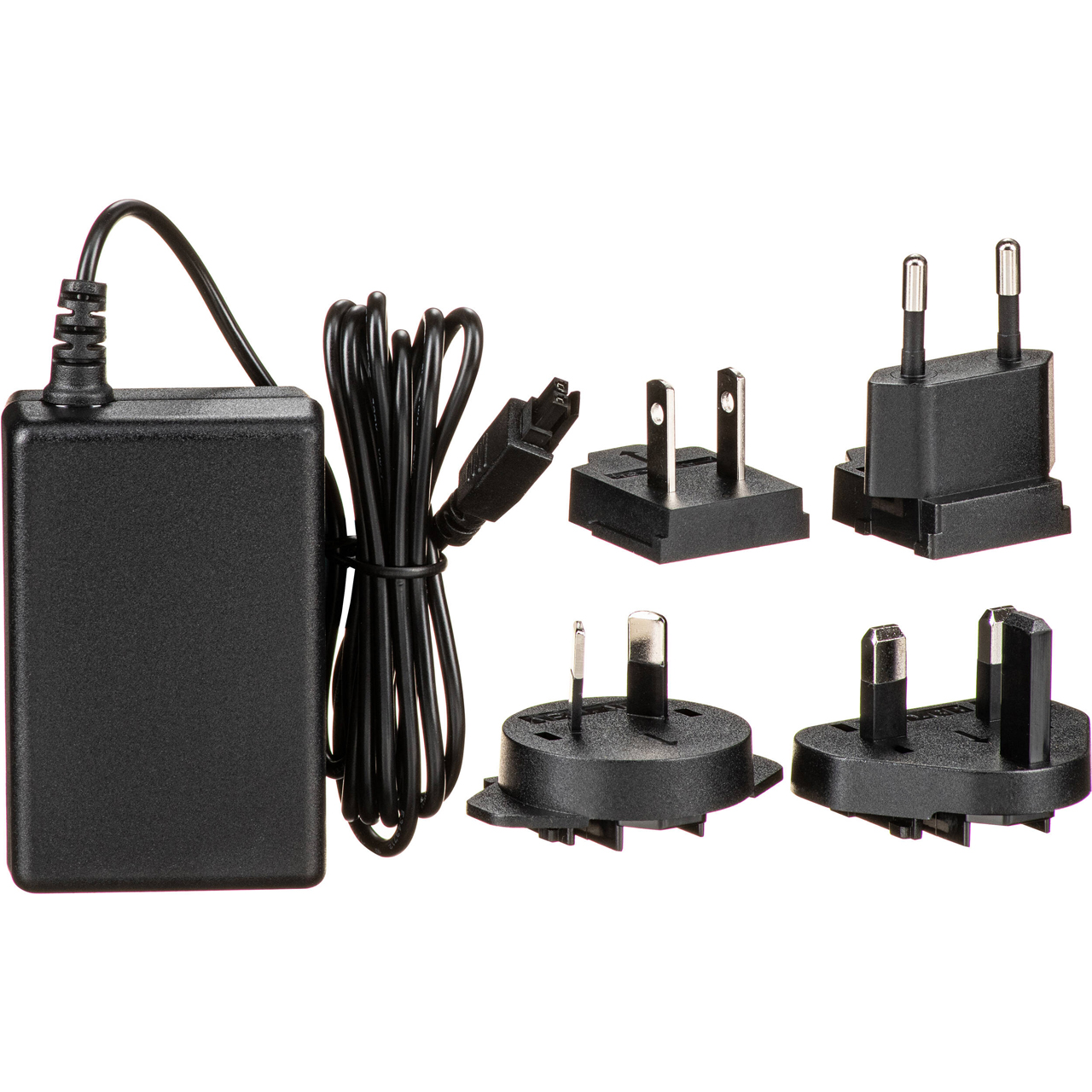

  • DC Input Power: 12 VDC at 3 A
  • Color: Black / Purple
  • Operating Conditions: 32 to 122°F / 0 to 50°C
  • Dimensions: 8.1 x 7.3 x 0.8"
  • Weight: 1.3 lb
  • Package Weight: 2.54 lb
  • Box Dimensions (LxWxH): 10.2 x 9.5 x 3"
