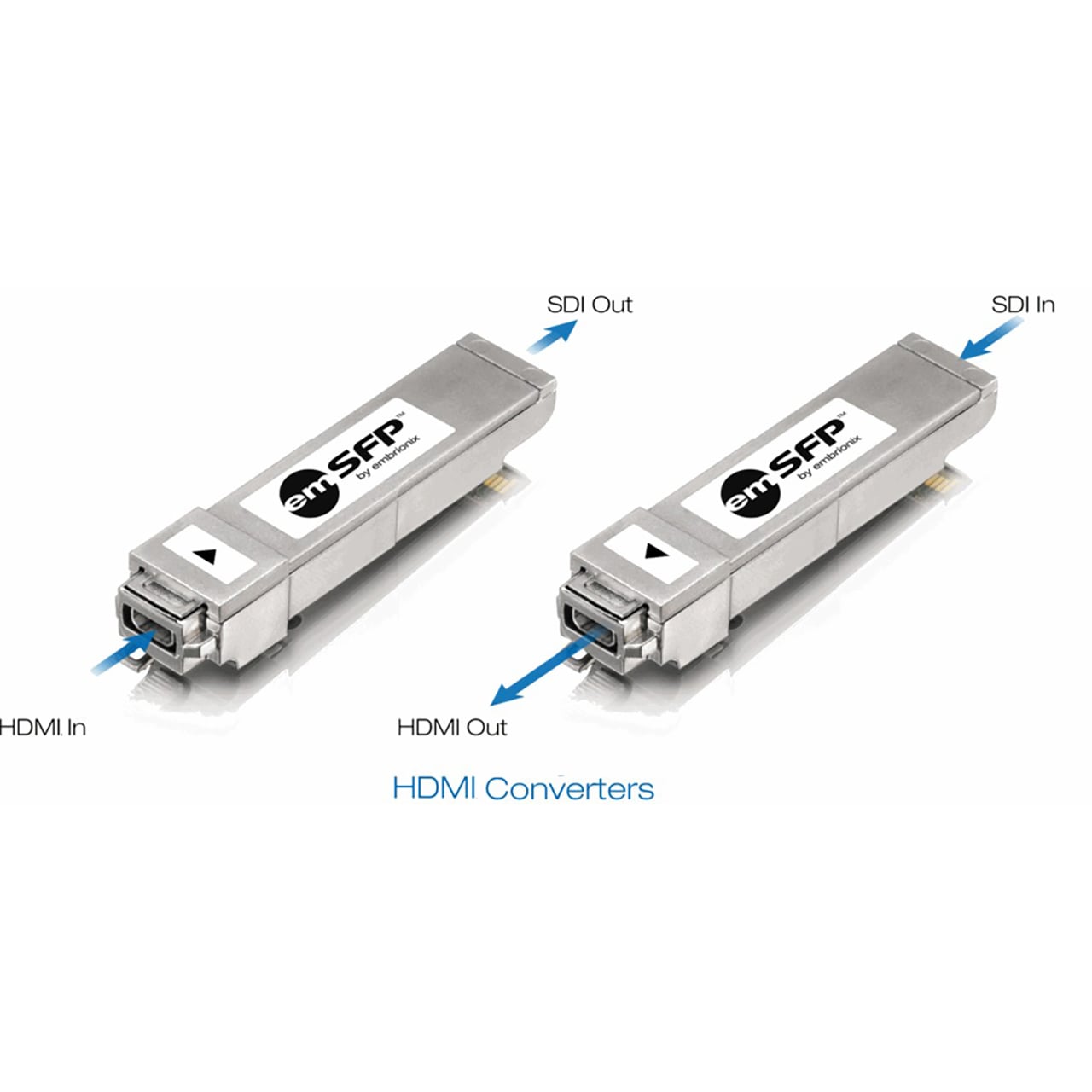

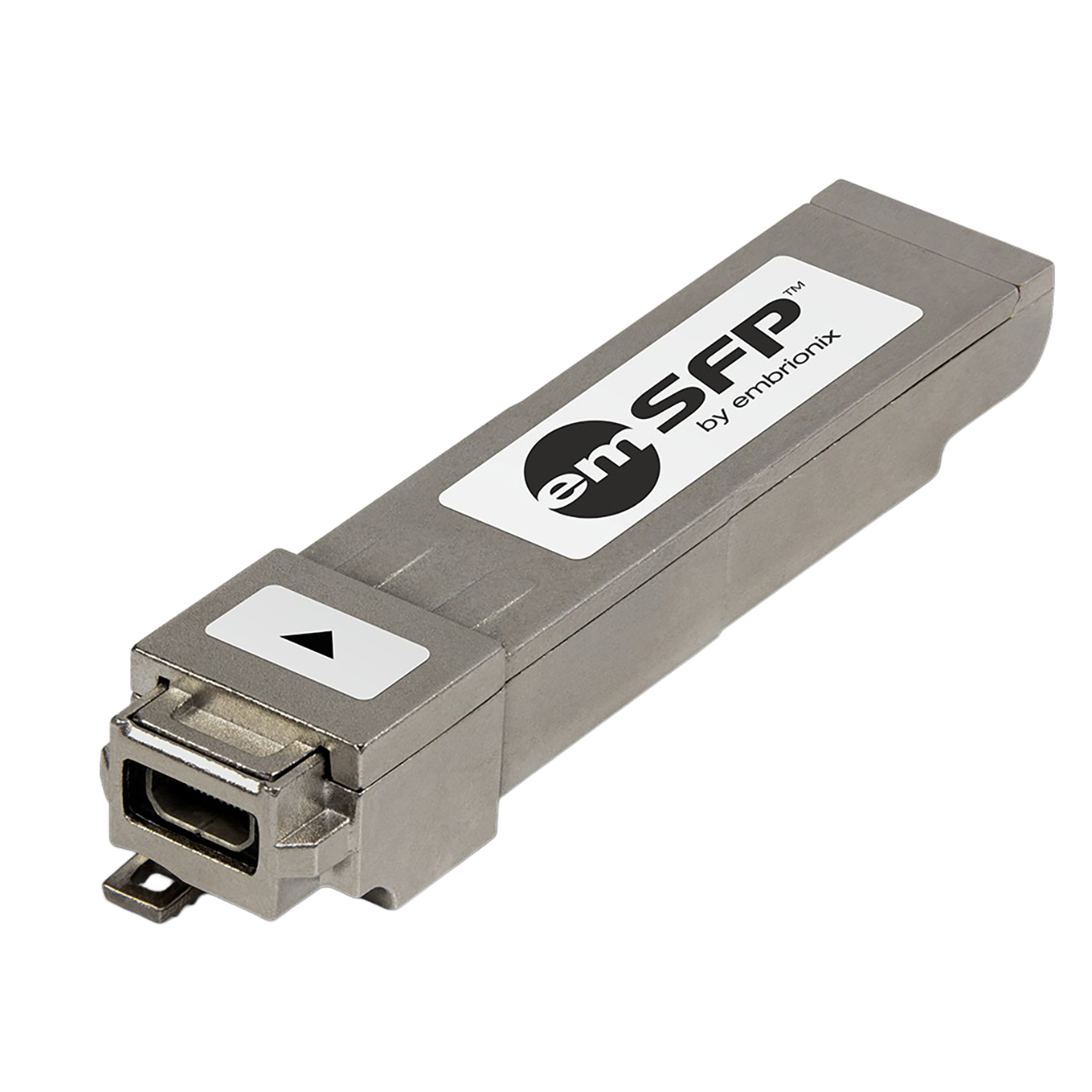

The Barnfind EB34TD1R-SM is an electrical emSFP receiver module designed to convert HDMI/DVI (High de nition multimedia interfacer) to an SDI signal output without scaling artifacts. The EB34TD1R-SM could support HDCP, by programming a key inside. Up to 8 channel of audio is supported and de-embedded from the HDMI signal. The EB34TD1R-SM provides module identi cation information, con guration and diagnostic monitoring through a 2 wire serial interface. It is also a hot-pluggable solution for eld system upgrade and maintenance. The EB34TD1R-SM is interchangeable with other MSA optical video emSFP, coaxial emSFP and emSFP converter improving product flexibility. Ganged cages, belly-to-belly and superposed cages mounting are supported. The module provides a quick time-to-market solution and reduced development risk and cost. The EB34TD1R-SM is Pb-free and ROHS compliant.
Applications include:
Cost effective SDI monitoring solution
Processing cards
SDI switchers
Video routers
Broadcast cameras
