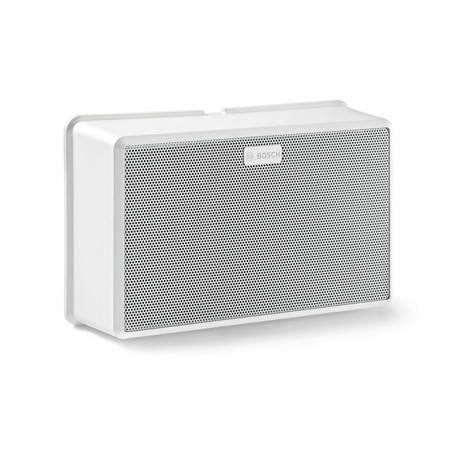

The Bosch ABS Cabinet loudspeaker 6 W is suitable for speech and music reproduction and is applicable for use in voice alarm systems.
The rectangular ABS cabinet has a removable metal front grille.
Easy to install, hidden wall mounting by using two screws supplied with the product.
Two knock-out holes at the top- and bottom of the cabinet allow for easy entry of cable or conduct.
Two rubber grommets in matching color of the cabinet are delivered as standard.

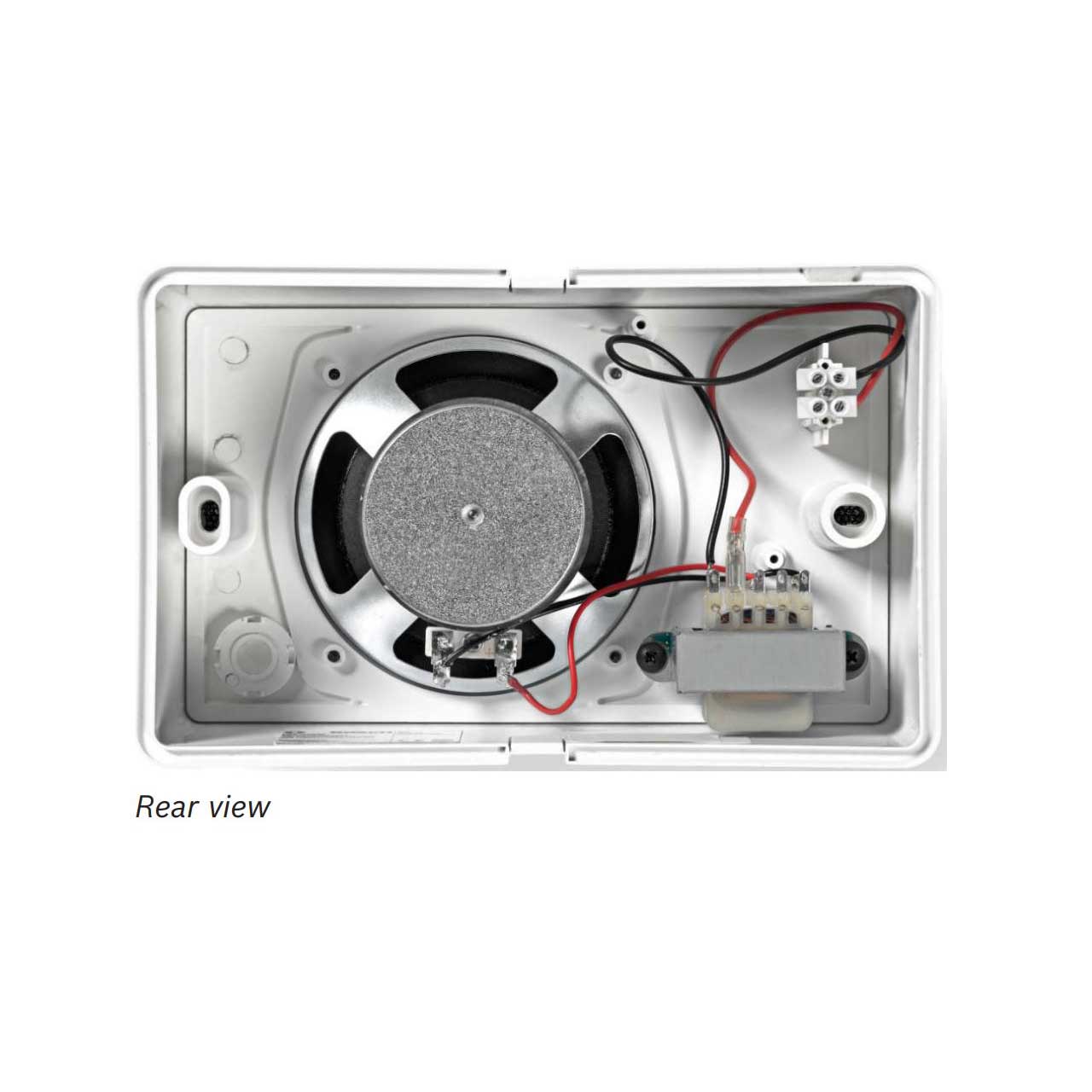

The loudspeaker is provided with a two pole ABS screw terminal block. The transformer allows selection of nominal full-power, half-power, quarter power or eight-power radiation (in 3 dB steps) by connecting the 70 V or 100 V line to the appropriate primary tap on the matching transformer.
After wiring and mounting the cabinet to the wall, the metal front grille can be pushed back on the cabinet.
The cabinet has provisions for internally mounting the optional line/loudspeaker supervision board.
