BSS Audio BLUDIGITAL-IN 4 Digital Input Card for Soundweb London Chassis

ITEM #: BSS-BLUDIG-IN MFG #: BLUDIG-IN

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$455.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


BLUDIG-IN - Overview

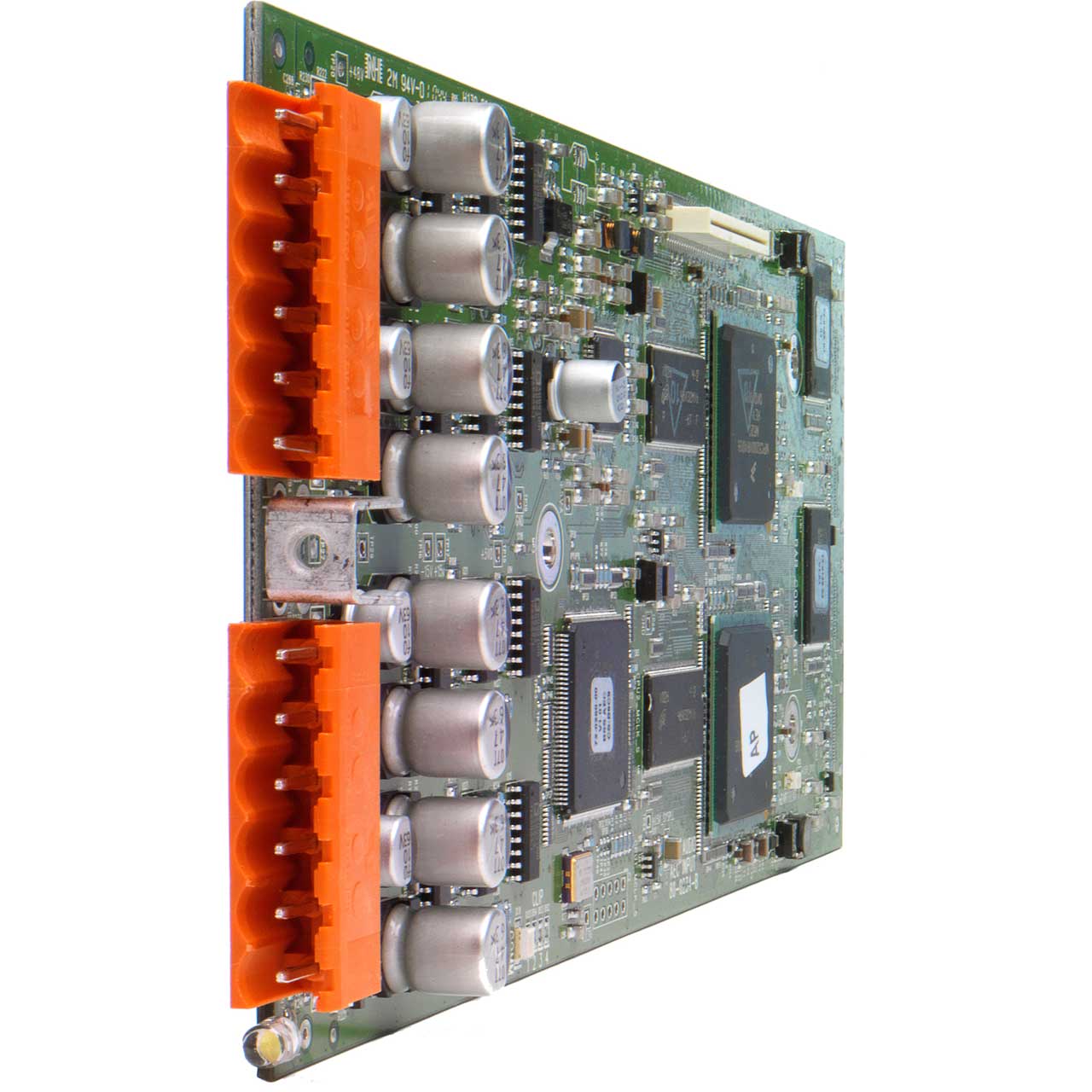

The Soundweb London Digital Output card (BLUDIG-IN) is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.

  • Specifications:

    • The Digital Output Card can be configured in the following ways:
    • 2 Stereo AES/EBU Signals
    • 1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
    • 2 Stereo S/PDIF Signals

      The Digital Output Card has two Combicon connectors which are used as follows:
    • Connector 1
      Stereo Audio, Channels 1 and 2 - AES/EBU / S/PDIF
      Stereo Audio, Channels 3 and 4 - AES/EBU / S/PDIF
    • Connector 2
      Clock Input - High Impedance
      Clock Input - 75R Terminated

      Digital Inputs
    • Up to 2 pairs of AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors
    • Input Impedance: 110 ohm (AES/EBU), 75 ohm (S/PDIF)
    • Sample Rate: 48kHz or 96kHz
    • Sample Rate Conversion: 8kHz-96kHz
    • THD+N: <-140dB
    • Latency: 3/Fso + (56.581/Fsi) + (55.658/Fso)

      Digital Outputs
    • Up to 2 pairs of AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors
    • Output Impedance: 110 ohm (AES/EBU), 75 ohm (S/PDIF)
    • Sample Rate: 48kHz or 96kHz
    • Sample Rate Conversion: 8kHz-96kHz
    • THD+N: <-140dB
    • Latency: 3/Fso + (56.581/Fsi) + (55.658/Fso)


BLUDIG-IN - Required Accessories
