    Blonder Tongue AQT8-QAM/IP 8X 8VSB/QAM Inputs - 8X QAM Channel - 1X IP Outputs

    Item #: BT-AQT8-QAM-IP   •   MFG #: AQT8-QAM/IP



    List Price:$5,561.00
    Our Price:$4,299.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

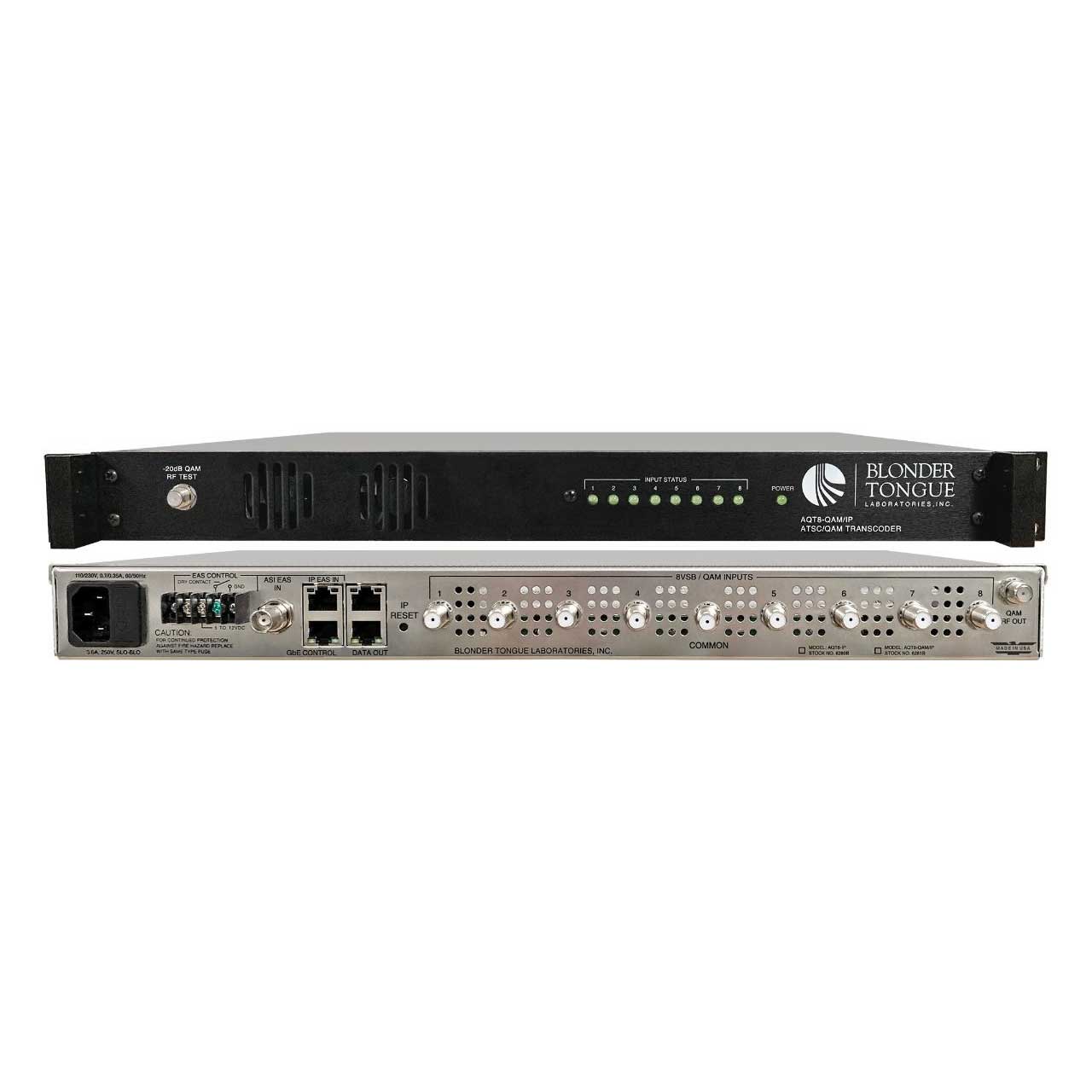

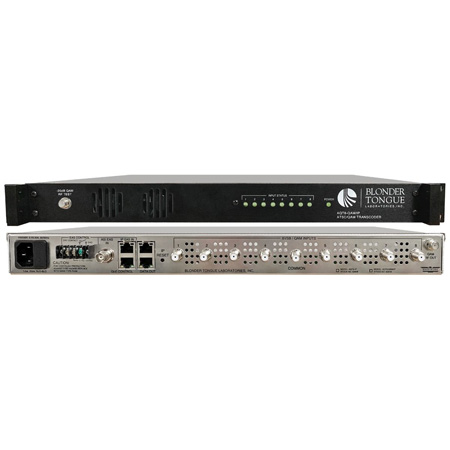

      AQT8-QAM/IP transcoder allows the user to create a line up from off-air and/or cable feeds for coax or IP distribution. The unit simultaneously transcodes eight (8) QAM/8VSB input channels to (8) QAM and (8) IP transport streams. The pass thru QAM outputs contain all programs (major and minor channels) residing in their respective input channel sources and maintains the following MPEG-2 tables: PAT; PMT; PSIP; VCT; EIT and ETT.

      The customizable IP output contains up to 20 programs with a combination of SPTS and/or MPTS across eight (8) IP addresses. MPEG-2 tables associated with each of the selected input programs (PAT, PMT, PSIP, VCT and MGT) are transferred to the IP outputs. This means the virtual channel numbers and program names on the IP outputs can be the same as their RF program input sources and the QAM output. Additionally, the AQT8 (IP outputs only) gives the user the ability to change the PID, Program #, Short Name, Major Ch., and Minor Ch. information to provide a customized IP delivery solution.

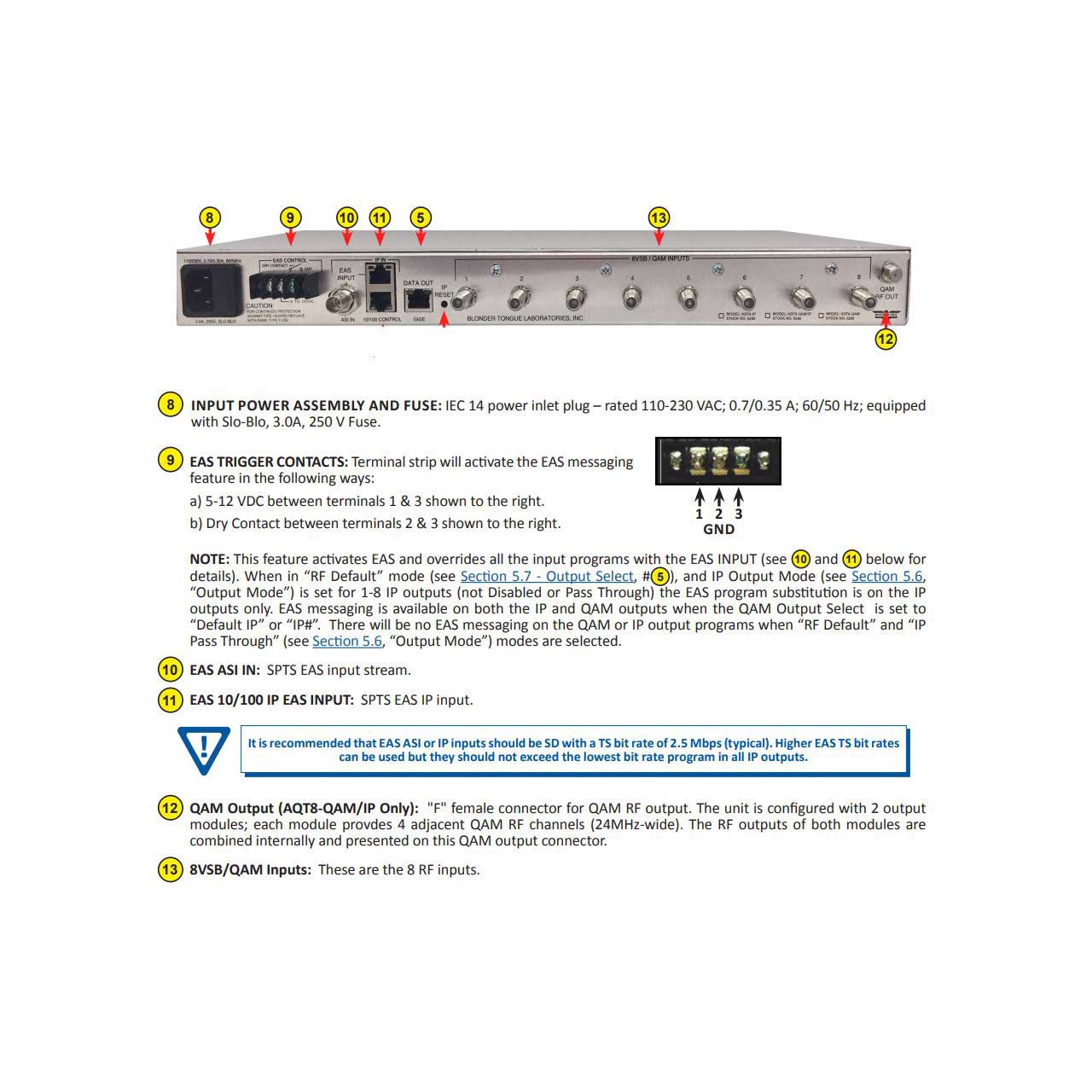

      The AQT8-QAM/IP features Emergency Alert System (EAS) program switching through either an ASI or IP format EAS input and terminal block contacts for triggering. EAS messaging is available on the IP output only, QAM output channels are not interrupted.

      Comprehensive remote monitoring and control is accomplished using any standard Web browser via a rear-panel 10/100BaseT Ethernet connection.


      • Features

        • Accepts up to eight 8VSB or QAM channel inputs
        • Provides a combination of eight SPTS or MPTS via one GigE RJ45 port (20 programs total)
        • Maps QAM/8VSB input programs directly to QAM output channels
        • Provides comprehensive GUI-based monitoring and control via standard Web browsers
        • Supports Closed Captioning EIA-608 and EIA-708 when embedded in RF input(s)
        • Accepts EAS input in ASI or IP formats (EAS interrupts IP delivered programs only)

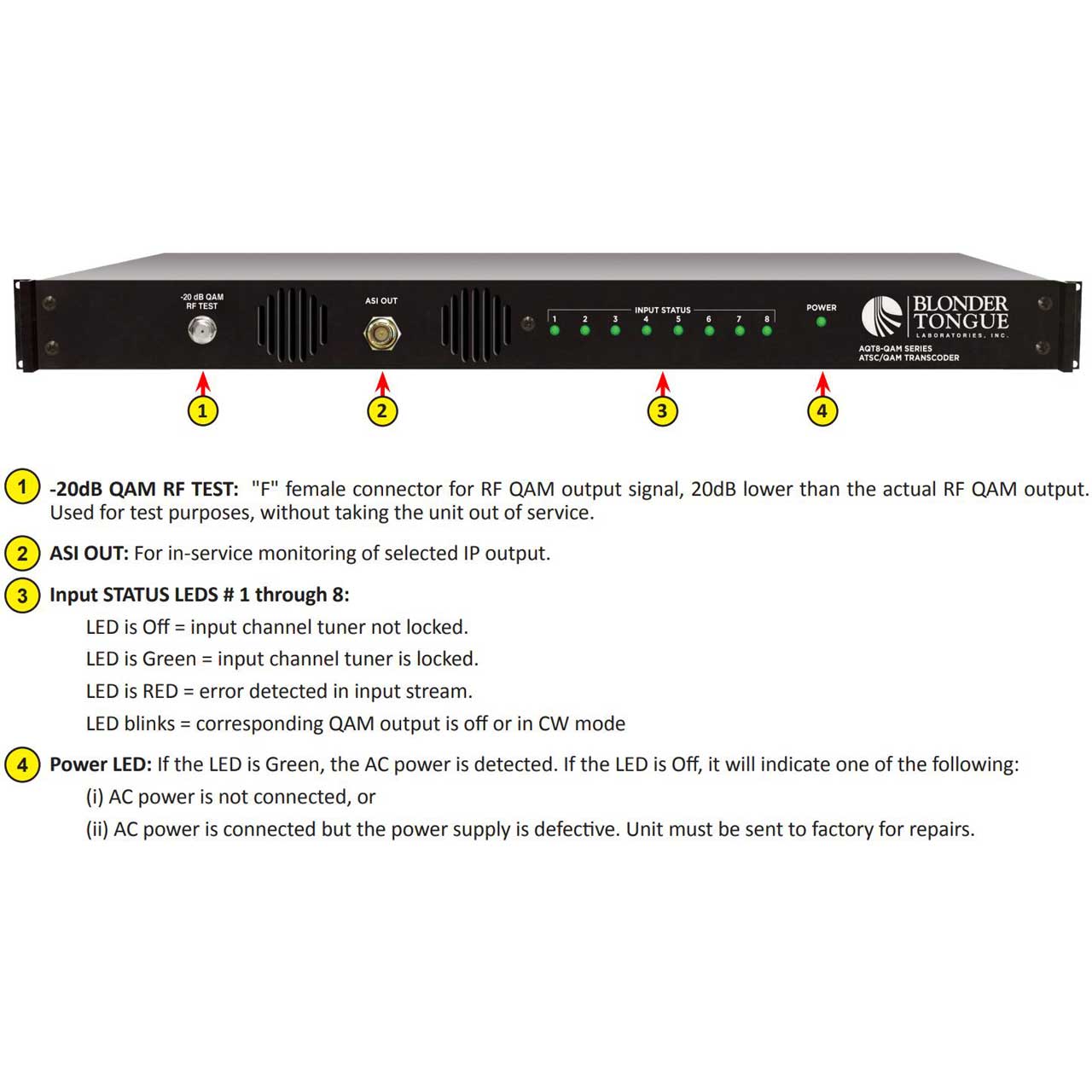

        • Provides in-service monitoring of selected input/output ports via RF Test connector and ASI output

      • Specifications

        • Input
        • Connectors
        • 8VSB/QAM: 8x "F" Female
        • 8VSB Mode
        • Standard: ATSC Digital Television A/53E
        • Tuning Range: UHF (Ch. 14-69), VHF (Ch. 2-13)
        • Data Rate: 19.392 Mbps
        • Bandwidth: 6 MHz
        • Power Level: -20 to +20 dBmV
        • Impedance: 75 Ω
        • QAM Mode
        • Standard: ITU-T J.83 - Annex A & B (64 and 256 QAM)
        • Tuning Range: CATV Ch. 2-135 (STD, HRC, IRC)
        • Data Rate: 38.8 Mbps (QAM 256); 26.97 Mbps (QAM 64) - Auto Detect
        • Bandwidth: 6 MHz
        • Power Level: -15 to 20 dBmV (@ QAM 256)
        • -20 to 20 dBmV (@ QAM 64)
        • Impedance: 75 Ω

        • Output
        • IP
        • Connectors: 1x RJ45 (Rear-panel)
        • Standard: 1000Base-T Ethernet (GigE)
        • UDP/RTP: Supported (user-selectable)
        • Address Assignment: 8x IPv4 addresses & port numbers (user-selectable)
        • QAM
        • No. of Output Modules: 2 Quad-QAM
        • Connector: 1x "F" Female (rear-panel; for combined outputs)
        • Modulation: QAM 16, 32, 64, 128, and 256
        • Standards: ITU-T J.83; Annex A and B
        • DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
        • Frequency Range: 54 to 1002 MHz
        • Tuning: CATV Channel Selectable (Ch. 2 to 158)
        • Channels' Bandwidth: 2x 24 MHz (4x Adjacent 6 MHz)
        • No. of Programs: Variable (not to exceed 38.8 Mbps, Pass-thru of input source)
        • RF Level: +40 dBmV, ± 1 dB increment
        • RF Level Adjustment: +35 to +42 dBmV, 1 dB increment
        • Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)
        • Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)
        • Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)
        • Phase Noise: -98 dBc (@ 10 kHz)
        • Spurious: -60 dBc
        • Broadband Noise: -70 dBc (@ +35 dBmV output level, 5.5 MHz bandwidth)
        • Impedance: 75 Ω
        • QAM Spectrum: Inverted
        • Carrier Suppression: 45 dB
        • Return Loss: 14 dB typical
        • Signal-to-Noise Ratio (SNR): 40 dB typical
        • MER: 39 dB typical
        • I/Q Phase Error: Less than 1 degree
        • I/Q Amplitude Imbalance: Less than 1%
        • ASI
        • Connectors: 1x BNC Female
        • Standard: DVB-ASI; EN 50083-9
