Blonder Tongue BT-HE-DASHBOARD Headend Controller - Controls and Monitors up to 20 HDE-8C-QAMs and AQT8-QAM/IPs
  • Blonder Tongue BT-HE-DASHBOARD Headend Controller - Controls and Monitors up to 20 HDE-8C-QAMs and AQT8-QAM/IPs
  • Blonder Tongue BT-HE-DASHBOARD Headend Controller - Controls and Monitors up to 20 HDE-8C-QAMs and AQT8-QAM/IPs
  • Blonder Tongue BT-HE-DASHBOARD Headend Controller - Controls and Monitors up to 20 HDE-8C-QAMs and AQT8-QAM/IPs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Blonder Tongue BT-HE-DASHBOARD Headend Controller - Controls and Monitors up to 20 HDE-8C-QAMs and AQT8-QAM/IPs

Item #: BT-HE-DASHBOARD   •   MFG #: BT-HE- DASHBOARD



List Price:$499.00
Our Price:$403.99

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

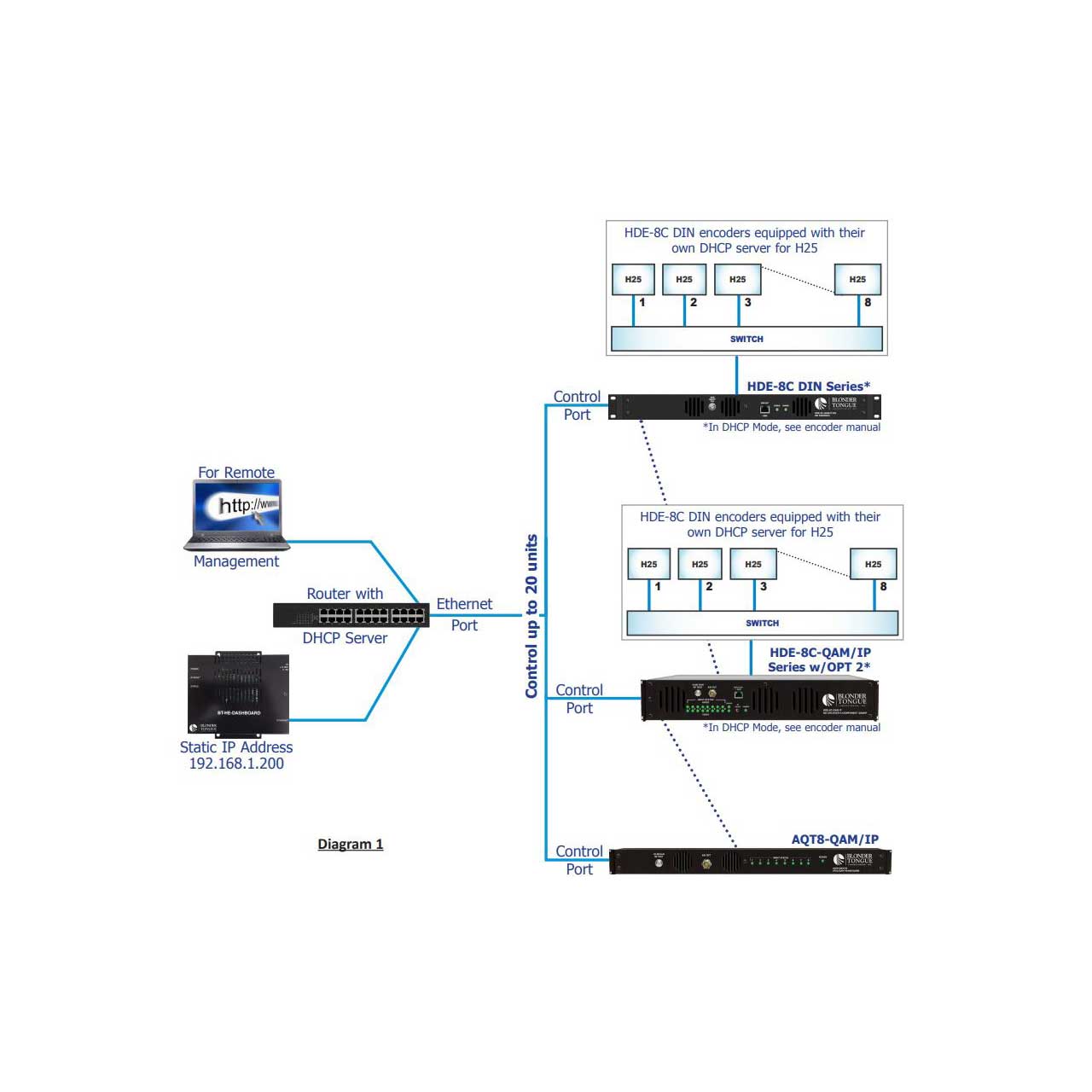

    The Blonder Tongue BT-HE-DASHBOARD provides operators the ease and convenience of controlling multiple HDE-8C-QAM w/Opt 2, HDE-8C-QAM DIN (Opt 2), AQT8-QAM/IP, and AQT8-IP through a single IP address mapped to the headend(s).

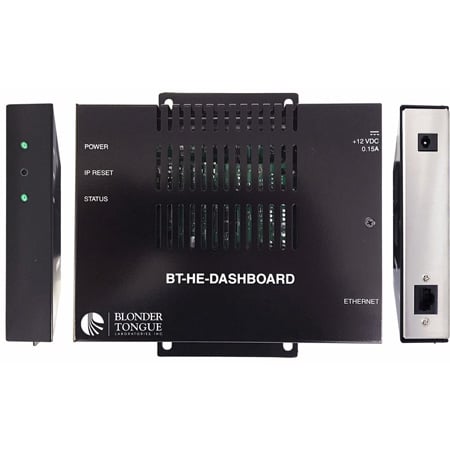

    The DASHBOARD controls and monitors up to twenty (20) supported units and has the provision to remotely update firmware for each unit simultaneously. The compact surface mount unit can be installed horizontally or vertically to any flat surface, such as a wall, side of a rack/cabinet or in a headend rack shelf. It is powered with a supplied 12VDC external power supply.

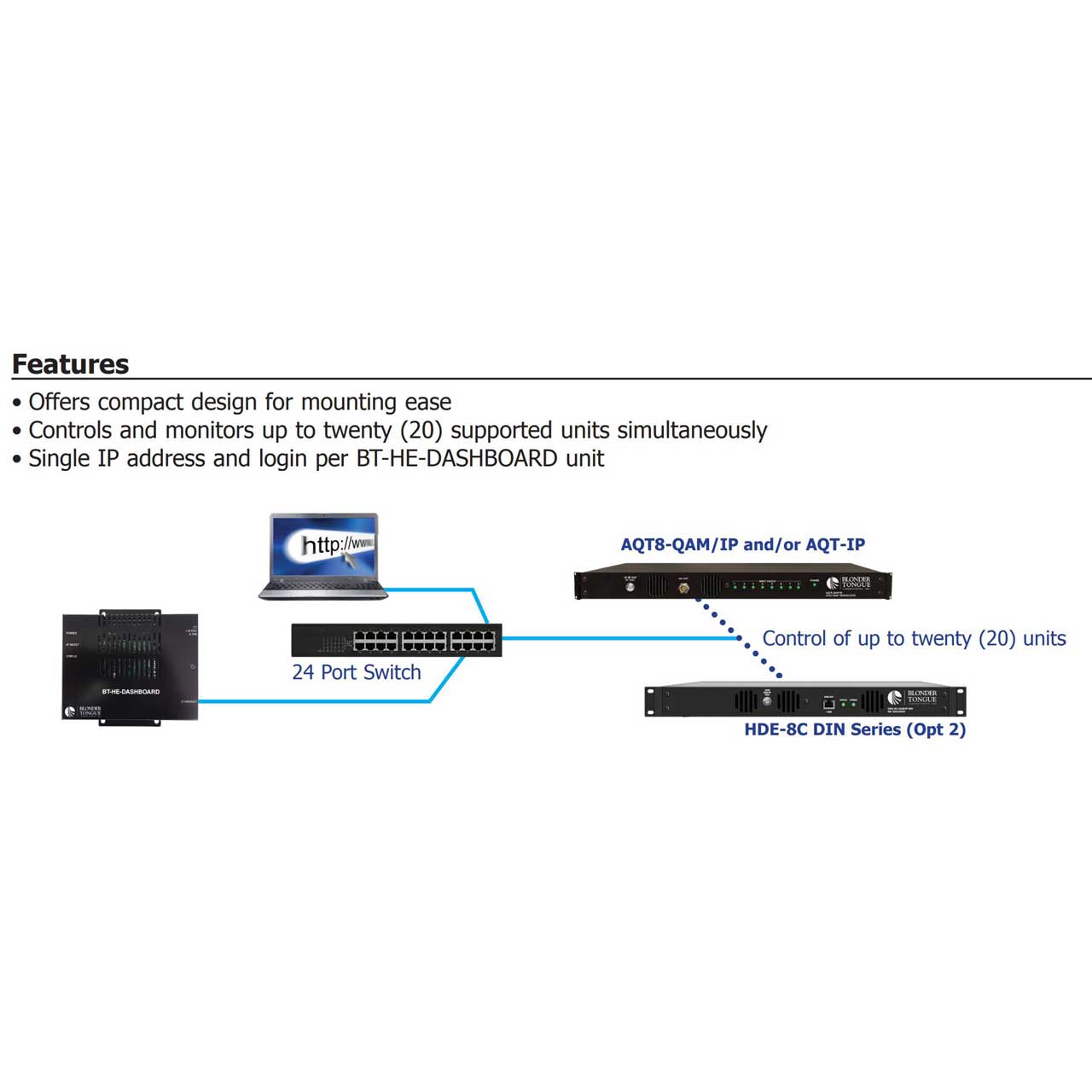

    • Features

      • Offers compact design for mounting ease
      • Controls and monitors up to twenty (20) supported units simultaneously
      • Single IP address and login per BT-HE-DASHBOARD unit

    • Specifications

      • Dimensions (W x D x H): 6.7 x 1.25 x 5.125 inches (170 x 32 x 130 mm)
      • Power: 12 VDC @ 150 MA thru external power supply (Included)
      • Power Dissipation: ~2 W (max)
      • Weight: ~2 lbs (0.9 kg)
      • Operating Temperature: 32 to 122 °F (0 to 50 °C)
      • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
      • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
      • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing

    • Item Includes

      • 12 VDC @ 150 MA thru external power supply (Included)
