    1940 DB27 - Overview

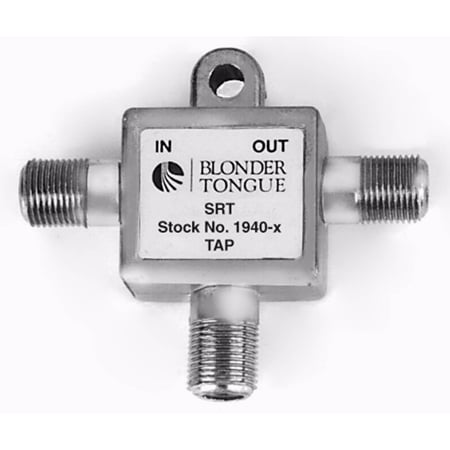

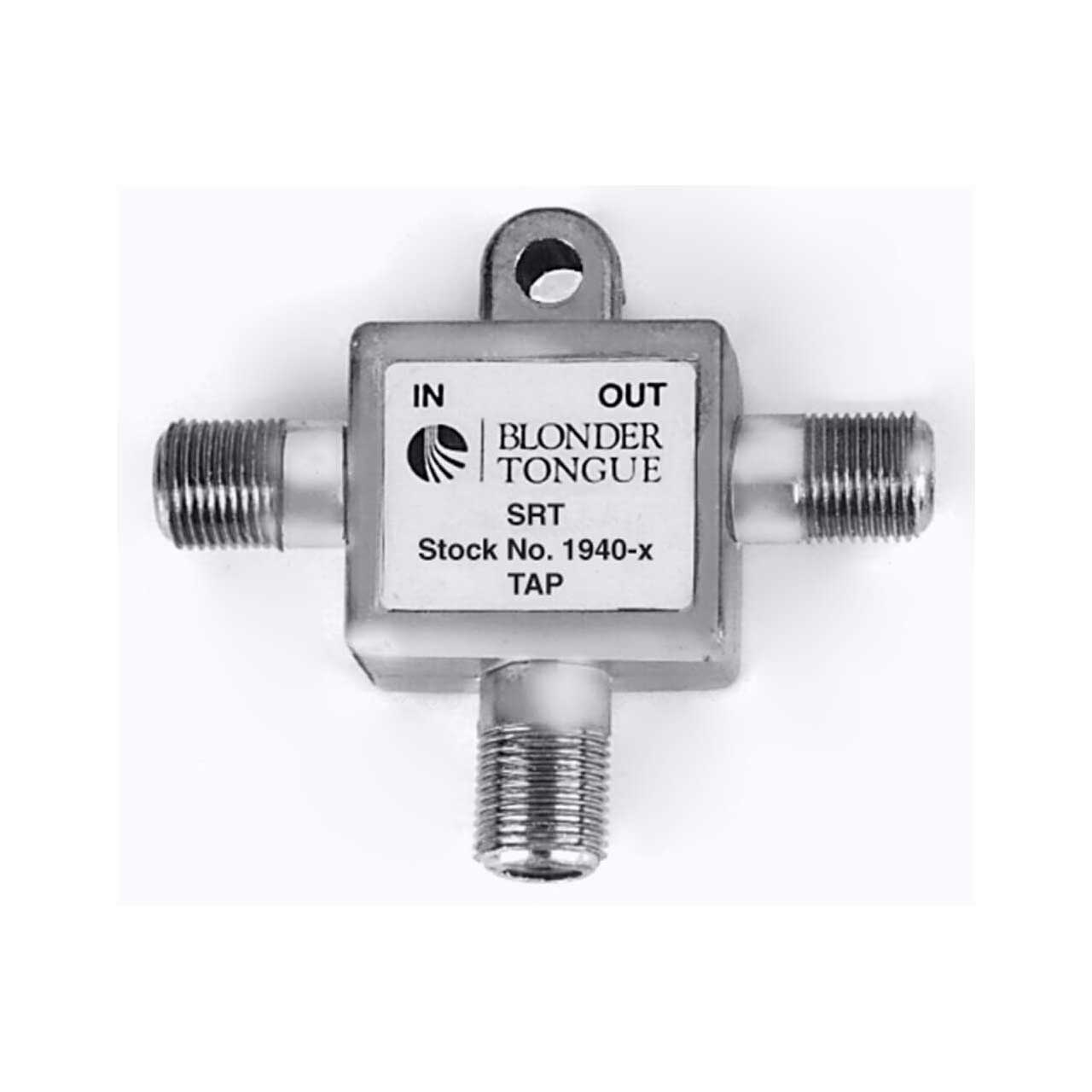

    The Blonder Tongue SRT-27 is a one-way directional tap with a range of 5-1000 MHz. It is formatted in a T Style.

    • Features:

      • 1 GHz Bandwidth
      • 1 Port Directional Couplers - "L" Style (SCW), "T" Style (SRT)
      • 120 dB RFI Shielding
      • Die Cast Housing


    • Specifications:

      • SRT/SCW Tap Value (dB)
      • Thru-line Loss (dB)
      • 5-900MHz: 1.6
      • 900-1000MHz: 2.0

        Input Return Loss (dB)
      • 5-400MHz: 20
      • 400-900MHz: 18

      • Tap Down Loss (±1.0dB): 27

        Isolation Out-to-Tap (dB)
      • 5-400MHz: 30
      • 400-1000MHz: 24


    • Item Includes:

      • 1x Blonder Tongue SRT Directional Tap - 1 Output 5-1000MHz - T Style - 27dB
