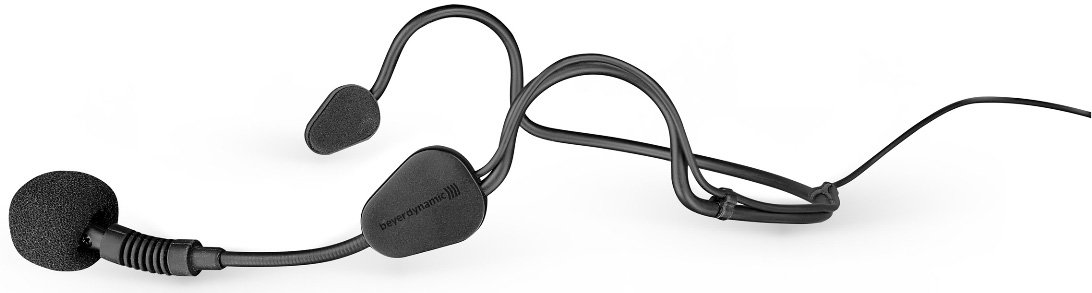

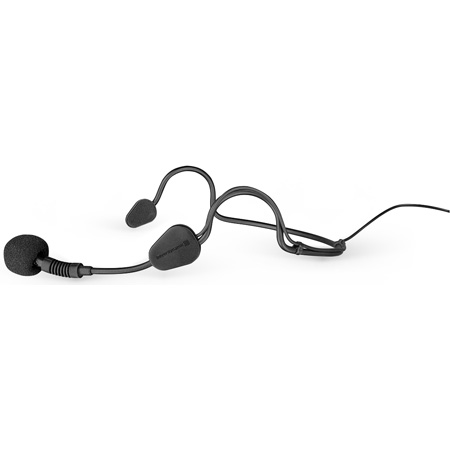

Beyerdynamic TGH34 Condenser Neckworn Microphone (Cardioid)

ITEM #: BYD-TGH34 MFG #: TGH34

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BYD-TGH34

TGH34 - Overview

The Beyerdynamic TG H34 neckworn microphone ensures maximum freedom of movement and is therefore ideal for all free-hand applications. On stage it is very popular among singing dancers, keyboarders or drummers. Furthermore, it is also suitable for all kinds of presentations and sports lessons. The TG H34 features easy handling, a natural sound and optimal fit. The supercardioid polar pattern provides a high gain before feedback. The flexible gooseneck allows optimally positioning the microphone and a wind shield integrated in the microphone reduces wind and popping noise. The TG H34 is supplied with an additional foam wind shield.

The TG H34 microphone is available in two versions: as Opus version it can be connected to the Opus series beltpack transmitters; as TG version it can be used with the wireless microphone systems of the TG series. For wired applications with phantom power sources the TG H34 must be used with an optional power adapter.

  • Features:

    • Supercardioid polar pattern
    • High gain before feedback
    • Lightweight, adjustable neckband
    • Flexible gooseneck for optimal positioning
    • Rugged "flexible" ear hooks

  • Specifications:

    • Transducer Type: Condenser (back electret)
    • Operating Principle: Pressure gradient
    • Polar Pattern: Supercardioid
    • Frequency Response:
      Close Miking: 20 - 13,000 Hz
      Distant Miking (Measured at 1 m): 180 - 13,000 Hz
    • Open Circuit Voltage: 6.0 mV/Pa (-44.5 dBV)* ±3 dB
    • Nominal Impedance: approx. 700 Ω
    • Load Impedance: > 3.5 kΩ
    • Max. SPL at 1 kHz: 119 dB*
    • Equivalent SPL: 31.5 dB SPL*
    • Power Supply: Direct current 1.5 - 9 V
    • Max. Power Consumption: 780 µA
    • Connector: Mini-XLR, 4-pin, female
    • Diameter: 0.59" (15mm)
    • Length Microphone Boom: 3.74" (95mm)
    • Weight: 0.08 LBs (36g)
    • Note: *measured with a supply voltage of U = 5 V DC and a load resistance of 2.2 kΩ

  • Warranty:

    • 2 Years

  • GTIN:

    4010118706479
