Beyerdynamic TGH74T Condenser Headworn Microphone (SuperCardioid) - Tan

ITEM #: BYD-TGH74T MFG #: TGH74T

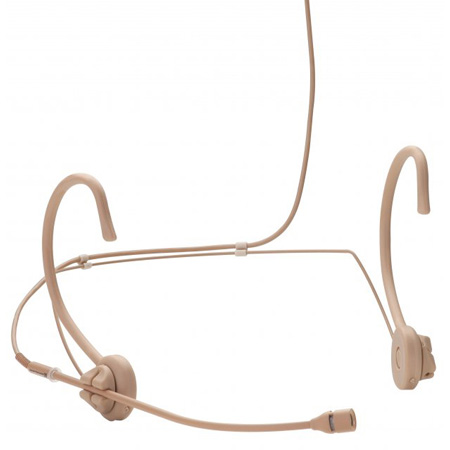

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BYD-TGH74T

TGH74T - Overview

The Beyerdynamic TG H74T designed for wireless operation, offers plenty of freedom of movement. With a supercardoid polar pattern and compensated proximity effect, it is particularly suited for musical and theater applications. Highly adjustable, exceptionally discreet, mountable on both sides and impressively small and rugged - what else could you want from a headset microphone? Available in both black and tan.

The TG H74 microphone is available in two versions: as Opus version it can be connected to the Opus series beltpack transmitters; as TG version it can be used with the wireless microphone systems of the TG series.

For wired applications with phantom power sources the TG H74 must be used with an optional power adapter.

  • Features:

    • Supercardioid polar pattern
    • High gain-before-feedback
    • Rotatable and slidable microphone boom for optimal positioning
    • Unobtrusive metal microphone arm
    • Compensated close-miking effect
    • High wearing comfort


  • Specifications:

    • Transducer Type: Condenser (back electret)
    • Operating Principle: Pressure gradient
    • Polar Pattern: Supercardioid
    • Frequency Response:
      Close miking: 40 - 20,000 Hz
      Distant Miking (Measured at 1 m): 160 - 17,000 Hz
    • Open Circuit Voltage: 3.2 mV/Pa (-49.9 dBV)* ±3 dB
    • Nominal Impedance: approx. 650 Ω
    • Load Impedance: > 3.5 kΩ
    • Max. SPL at 1 kHz: 144 dB*
    • Equivalent SPL: 37 dB SPL*
    • Power Supply: Direct current 1.5 - 9 V
    • Max. Power Consumption: 780 µA
    • Connector: Mini-XLR, 4-pin, female
    • Diameter: 0.30" (7.7mm)
    • Length Microphone Boom: 6.22" (158mm)
    • Weight: 0.07LBs (32g)
    • Note: *measured with CV 18


  • Warranty:

    • 2 Years


  • GTIN:

    4010118708374
