C2G 29880 Retractable Table Box Mount 4K HDMI Adapter Ring with Color Coded Mini DisplayPort/DisplayPort and USB-C

ITEM #: C2G-29880 MFG #: 29880

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$123.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    29880 - Overview

    The Patented (US 11,444,419 B2) C2G 29880 Retractable Universal Mount 4K HDMI Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls, or classrooms to make sure that anyone can connect. The standard configuration includes the adapters to connect nearly any device to the in-room display while supporting up to a 4K video resolution. Choose from HDMI to DisplayPort, Mini DisplayPort, and USB-C to meet connectivity challenges.

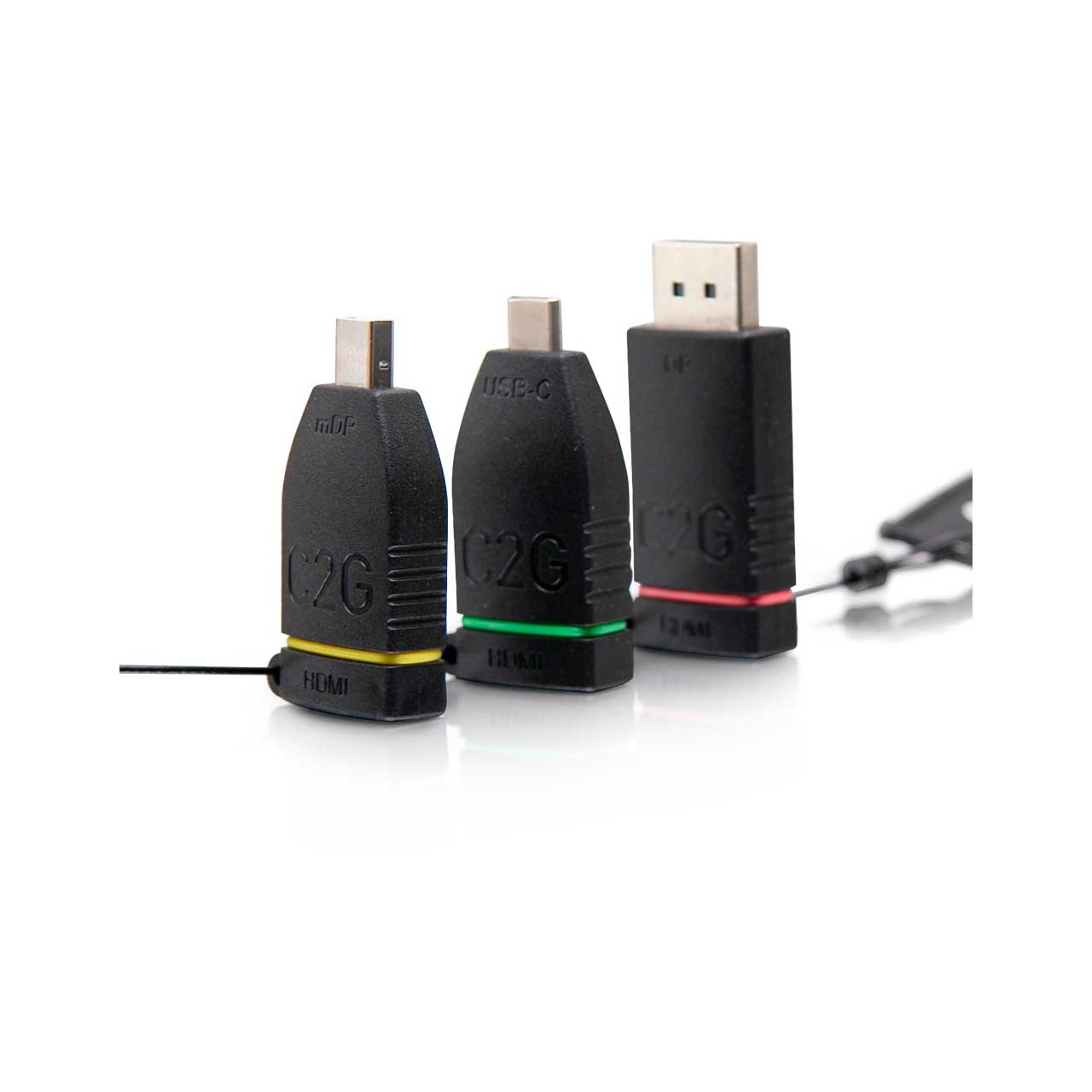

    Color Coded Adapters
    The DisplayPort, Mini DisplayPort, and USB-C adapters are color-coded with a band that saves time and frustration by making it easy to identify the adapter you need.

    Integrated Pull Tab
    Quickly grab the adapters when you need them with the integrated Pull Tab that is also available to be customized to feature your company or organization logo. Minimum order quantities apply to customized Pull Tabs.

    Retractable Universal Mount
    The Retractable Universal Mount attaches to any flat surface, like a table or lectern, providing mounting flexibility to fit your environment best. The retractor extends out to 4.9ft, ensuring that the adapters are always within reach when needed, and the retractor tested to over 20,000 extension cycles for long service life.

    Tools Included
    To simplify the process, the installation tool is included.

    • Features:

      • Adapters support up to a 4K video resolution, so meeting attendees will be able to see the displayed content for improved comprehension and detailed decision making.
      • Adapters are color coded, so no more frustration trying to find the adapter that you typically use for your laptop.
      • Integrated pull tab, so the adapters can be accessed quickly or easily reached when they are tucked away.
      • Installation tools are included, so you save time and money by not needing to purchase any additional tools.

    • Specifications:

      • Signal Specifications
      • USB Type-C to HDMI Adapter: 100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment
      • DisplayPort to HDMI Adapter: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
      • Mini DisplayPort to HDMI Adapter: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment

        Electrical Specifications
      • USB Type-C to HDMI Adapter Power Consumption: 1050mW (210mA/5.0V)
      • DisplayPort to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)
      • Mini DisplayPort to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)

        Physical Specifications
      • Operating Temperature: 32°F - 104°F (0% - 90%RH)
      • Storage Temperature: 14°F - 140°F (0% - 90%RH)

        Physical Characteristics
      • All Connectors (Except Lightning): Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
      • Adapter Hood: Molded Black PVC
      • USB Type-C to HDMI Adapter Color Band: .47x.06 In
      • DisplayPort to HDMI Adapter Color Band: Red .47x.06 In
      • Mini DisplayPort to HDMI Adapter Color Band: Yellow .47x.06 In
      • Retractor: 2.5x2.5x.69 In, Black Steel Wire OD: .05 In, Retracting Cable Length: 6ft, ABS Shell, with Hex Nut Tool and Black Locking Coupler (x2)
      • Black Metal Screws (x4): .27x.87 In, M3, Material: Steel
      • Black Metal Screws (x4): .24x.89 In, M3.5, Material: Steel
      • PC Eyelet: .70x.19x.10 In, Black, Material: PC
      • Pull Tab: 3.15x98x.08 In, Material: Polyester, Black Background, White Text, with Black Eyelet
      • Universal Mounting Bracket: 3.34x2.56x.05 In, Material: C.R.S. Rigidity: 1/4H, Color: Black
      • Product is CE marked and conforms to 2011/65/EU ROHS 2

    • Warranty:

      • Lifetime Warranty

    • GTIN:

      0757120298809
