CAD Audio GXLD2BBAI Digital Wireless Dual Bodypack Microphone System AI Frequency Band (909.3 - 926.8 MHz)

ITEM #: CAD-GXLD2BBAI MFG #: GXLD2BBAI

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CAD-GXLD2BBAI

GXLD2BBAI - Overview

The CAD GXLD2BBAI Dual-Channel Digital Wireless Microphone System with Two Bodypack Transmitters is intended for up to two speakers who prefer the hands-free convenience of a wearable microphone when presenting for school functions, corporate trainings, houses of worship, and more.

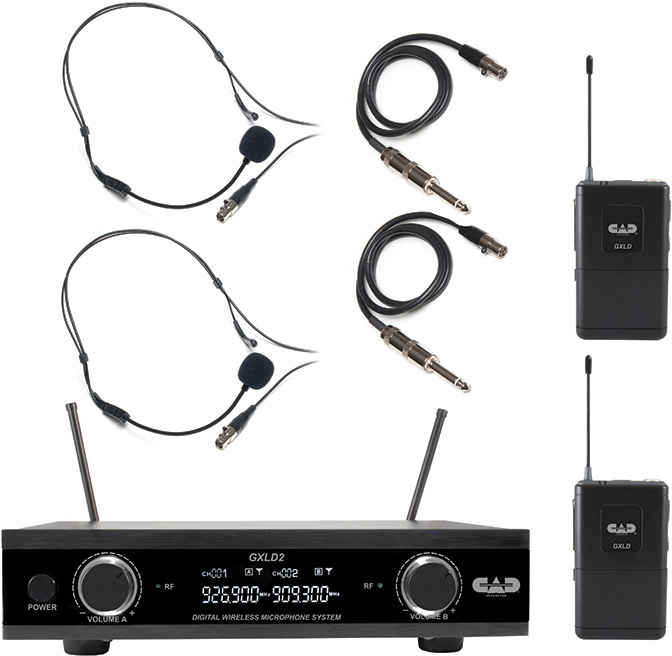

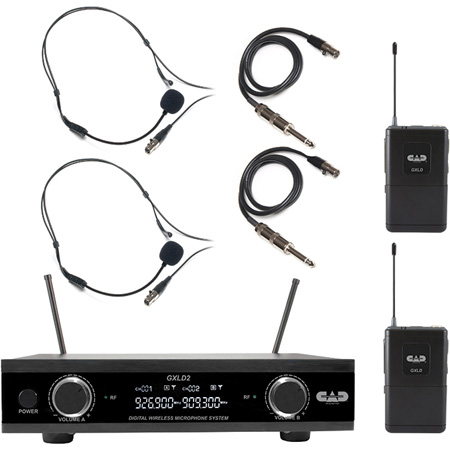

The system consists of a two-channel receiver, two bodypack wireless transmitters, two headworn mics, and two guitar cables. It delivers digital high-definition audio and operates in the AI: 909.3 to 926.8 MHz frequency band, which is free from TV and FCC regulatory issues.

The receiver features volume knobs for each channel and RF indicator lights to show connectivity between the receiver and the transmitters. The back panel includes two balanced XLR output connectors and an unbalanced, mono Mix output on a 1/4" connector. Two antennas with advanced dipole technology help increase the operating distance.

The bodypacks are equipped with on/off and mute controls and run on two AA batteries for approximately 10 hours. The WXHW headworn microphones feature hypercardioid polar patterns to minimize unwanted feedback when used near speakers. The WXGTR cables enable musicians to configure the GXLD2BB into guitar or bass wireless systems

  • Features:

    • Digital High-Definition Audio
    • 2-Channel Wireless Receiver
    • Two Wireless Bodypack Transmitters
    • Two WXHW Condenser Headworn Mics
    • Two WXGTR Guitar Cables
    • Operates in Regulation-Free 900 MHz Band
    • 1/4" Mix and XLR Discrete Outputs
    • On/Off, Mute Functions
    • Runs Up to 10 Hours on Two AA Batteries
    • AI: 909.3 to 926.8 MHz Frequency Band

  • Specifications:

    • Receiver
    • Type: Dual-channel wireless receiver
    • Frequency Band: AH: 909.3 to 926.8 MHz
    • Output Level: +10 dBv, maximum
    • Frequency Response: 20 Hz to 20 kHz
    • Antennas: 2 x antennas with dipole antenna technology
    • Output Connectors: 2 x XLR, male, balanced 1 x 1/4" / 6.3 mm, female, unbalanced (mono mix)
    • Controls: 2 x volume control knobs
    • Indicators: 2 x RF indicator lights
    • Display: LCD display

      Bodypack Transmitter
    • Connector: TB4M
    • Frequency Response: 20 Hz to 20 kHz
    • Input Level: Microphone Input: 1.5 Vrms (5 Vpp), maximum
    • Instrument Input: 1.5 Vrms (5 Vpp), maximum
    • RF Output: 10 mW
    • Modulation: High-definition digital QPSK
    • Switches: Power on/off switch Mute on/off switch
    • Indicators: LED indicator light
    • Power Requirements: 2 x AA alkaline or rechargeable batteries
    • Battery Life: >10 hours (alkaline)

      Microphone
    • Type: Headworn, condenser mic
    • Polar Pattern: Hypercardioid
    • Connector: TA4F

  • Item Includes:

    • RXGXLD2 Dual Receiver
    • 2 x TXBGXLD Bodypack Transmitters
    • 2 x StagePass WXHW Headworn Microphone
    • 2 x WXGTR Guitar Cables

  • GTIN:

    0631922108453
