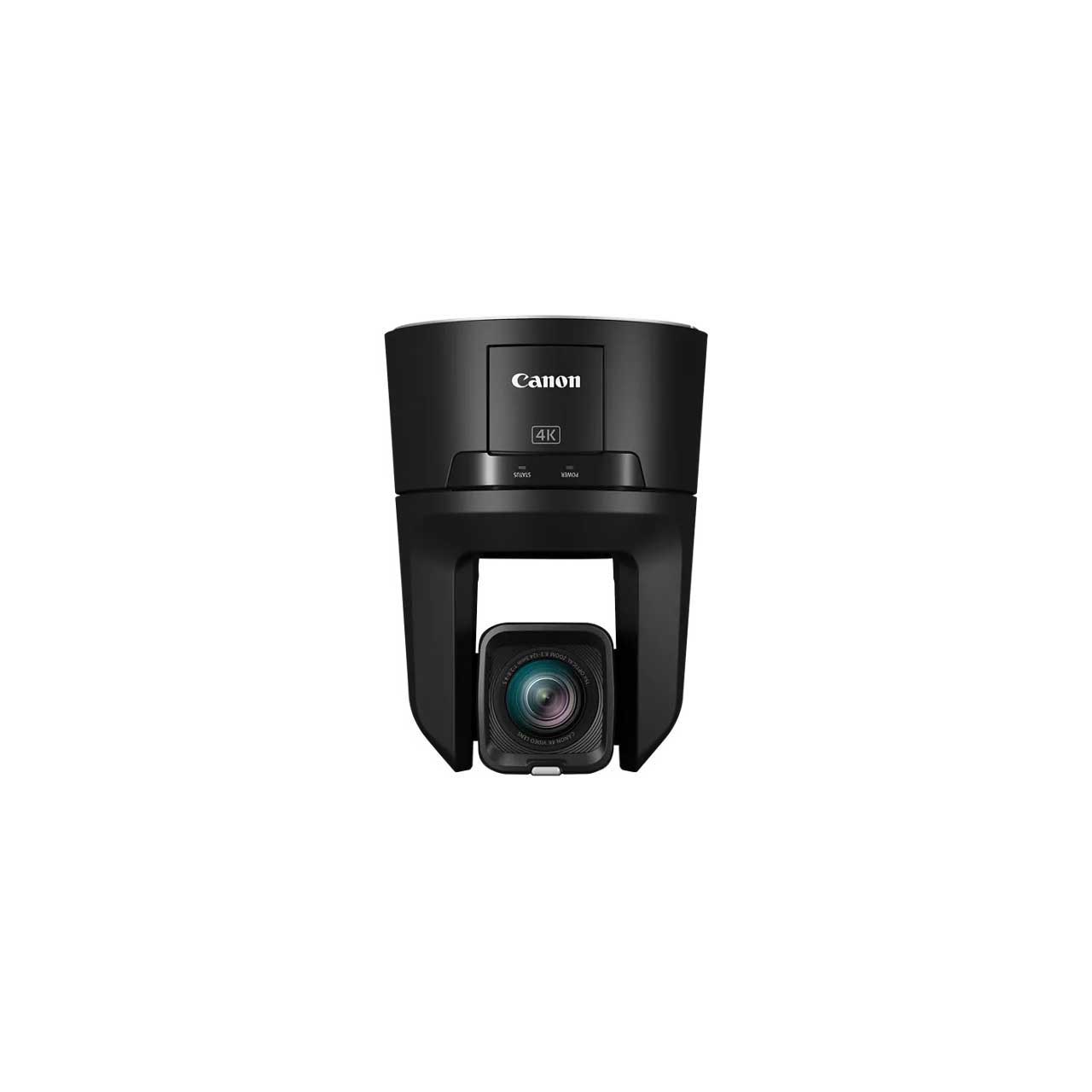

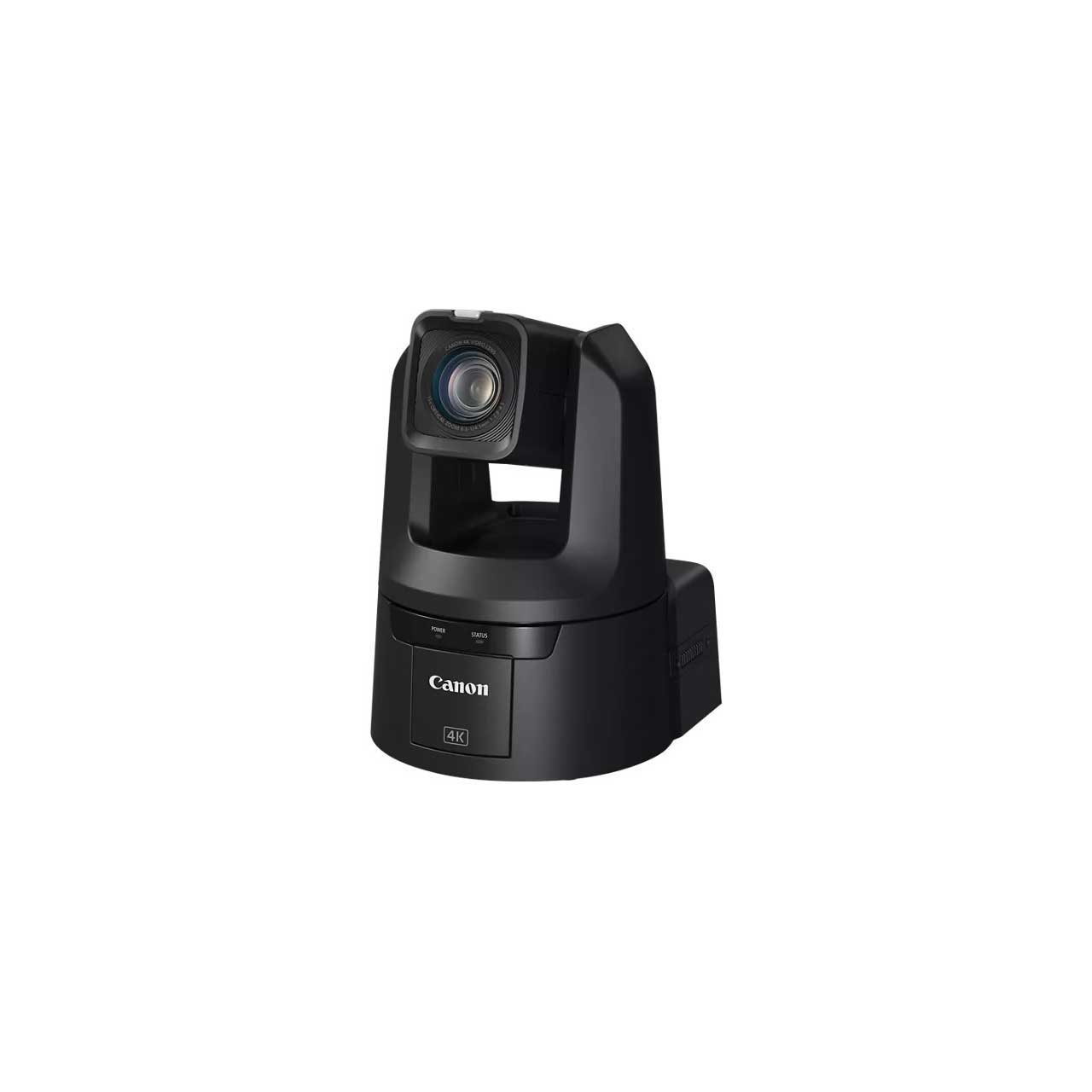

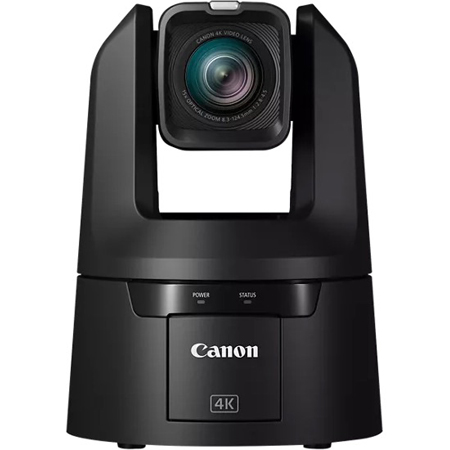

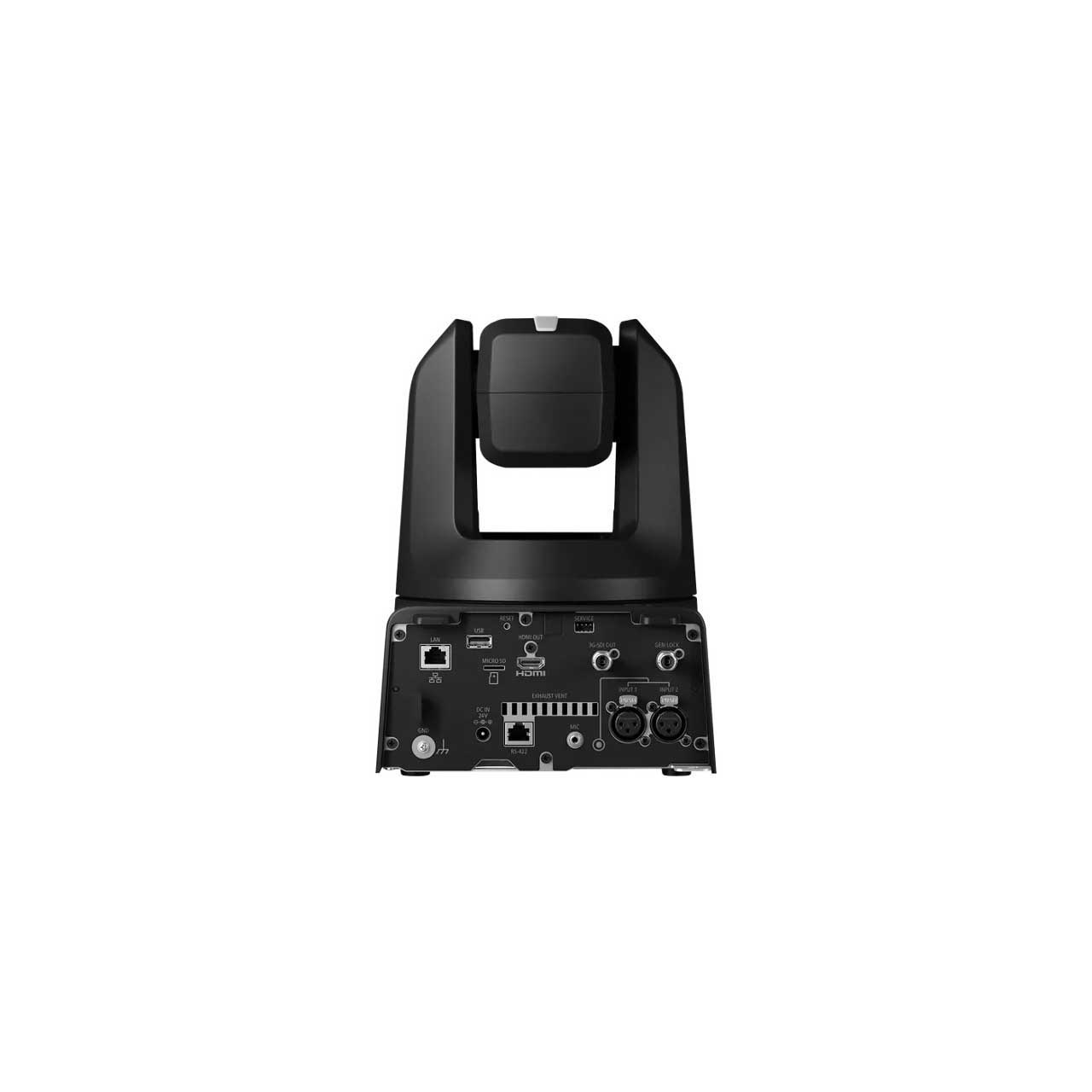

Canon CR-N500 NDI/HX 20x Digital / 15x Optical 4K30P/FHD 60P PTZ Camera - Black

ITEM #: CAN-CR-N500-BK MFG #: CR-N500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    CR-N500 - Overview

    Canon's CR-N500 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more.

    The CR-N500 produces incredible 4K and HD image quality with the combination of a 1" CMOS sensor and DIGIC DV 6 image processor, along with a 15x optical zoom (20x digital) with one of the widest in class 73-degree angle-of-view. These core components provide the image-processing power and speed that enables 4K UHD video acquisition, image stabilization and precise Dual Pixel CMOS AF. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N500.

    The CR-N500 camera supports multiple professional interfaces, including single cable PoE+ connectivity, which allows you to use NDIr|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N500 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as VISCA Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.

    The CR-N500 features a Canon 1.0-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 30p and up to 60fps in Full HD, making the CR-N500 PTZ camera great for the remote and unobtrusive capture of professional productions.

    The CR-N500's 1.0-inch sensor allows for larger photosites compared to smaller-sized sensors found in other PTZ cameras, resulting in stunning images with less noise in low-light situations. The larger sensor also exhibits a shallow depth of field at large apertures, producing a beautiful bokeh and blurred backgrounds in images, while Canon's DAF tracks and keeps subjects in sharp focus. The CR-N500's DIGIC DV 6 imaging engine drives the high sensitivity and low noise performance of the camera yielding amazing imagery in a variety of shooting conditions.

    • Features:

      • High Quality 4K 30P and FHD 60P Video Output
      • Smooth & Responsive Pan and Tilt Control
      • Virtually Seamless Integration into Canon Imaging Workflow
      • Easy Integration into IP Streaming
      • Various Interfaces Supported for Multiple Environments
      • One Person Operation
    • Specifications:

      • Camera
      • Zoom: Digital: 20x, Optical: 15x
      • Image Sensor: Type 1.0 (1.0 in.) single-plate CMOS sensor, Total pixels: approx. 13.40 megapixels, Effective pixels: approx. 8.29 megapixels (3840 x 2160)
      • Lens: f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm, 35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T)
      • Lens Configuration: 18 elements in 14 groups
      • Minimum Focusing Distance: 0.39 in. at full wide angle, 2.0 ft. throughout the zoom range
      • Angle of View: Horizontal: 73.0 (W) - 5.7° (T), Vertical: 45.2° (W) - 3.2° (T)
      • Shutter Speed: 1/3 - 1/2000 sec
      • Iris: Manual/Automatic aperture
      • Gain: -6.0 db 33.0 db
      • ND Filter: Built-in (Off, 1/4, 1/16, 1/64), motor operated
      • White Balance: AUTO (AWB), Set A, Set B, preset settings, color temperature setting (2,000 K - 15,000 K), Manual
      • Focus: Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking, AF type: Dual Pixel CMOS AF, Contrast AF
      • Gamma: Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3
      • Image Stabilizer: Optical-shift
      • Min. Subject Illumination: 3840 x 2160: Approx. 1.5 lux, 1920 x1080: Approx. 3 lux
      • Pan and Tilt: Pan operation range: Horizontal ±170°, Pan operation speed: 0.1° - 100°/sec., Tilt operation range: Vertical -30° - +90°, Tilt operation speed: 0.1° - 100°/sec.

        Video Output Format
      • SDI: 1920 x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
      • HDMI: 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit), 1920 x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit), 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
      • IP: 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), 1920 x1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
      • Protocol: XC Protocol, RTSP/RTP, NDIr|HX2, RTMP/RTMPS, Standard (VISCA) Communication (Serial), Standard (VISCA) Communication (IP)
      • Number of Presets: Max. 100 (including home position)

      • Communication Control: LAN, Wi-Fi, Serial, IR
      • Network: LAN x1, RJ45, 1000Base-T
      • 3G-SDI OUT: BNC jack (output only) x1, 0.8 Vp-p/75 , unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
      • GEN-LOCK: BNC jack x1, 1.0 Vp-p/75 , input only
      • HDMI OUT: HDMI connector x1, output only
      • RS-422: RJ45 connector x1
      • Input 1 / Input 2: INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced, Sensitivity (MIC): -60 dBu/600 /Att.: 20 dB, Sensitivity (LINE): +4 dBu/1 k or more, Supply Voltage: 48 V DC
      • Mic Terminal: 3.5 mm stereo mini jack (unbalanced, plug-in power supported), Sensitivity (MIC): -72 dBV/1 k or more/Att.: 20 dB, Sensitivity (LINE): -10 dBV/1 k or more, Supply Voltage: 2.4 V DC
      • USB Terminal: Type-A (USB 2.0) x1
      • Media Slot: microSD card slot x1

      • Operating Environment: +32°F - +104°F, Humidity: 10% - 90% (without condensation)
      • Storage Environment: +32°F - +104°F, Humidity: 10% - 90% (without condensation)
      • Power Supply: PoE: PoE+ power supply via LAN connector - PoE cannot be used, External power source: 24 V DC
      • Power Consumption: PoE+ Input: Approx. 16.2 W* max. (body only), DC Input: Approx. 18.6 W max. (body only)
      • Dimensions (W x H x D): 7.87 x 10.59 x 8.19 in.
      • Weight: 9.04 lb. (body only)
      • Supported Controllers
      • Hardware: RC-IP100
      • Software: Remote Camera Control Application
    • Item Includes:

      • 1x Camera Body (Satin Black)
      • 1x Mounting Plate with Screw
      • 1x Safety Wire
      • 1x Safety Wire with Screw
      • 1x AC Adapter
      • 1x AC Cable
      • 1x Infrared Remote Controller with Battery
      • 1x Installation Guide
      • 1x Warranty
    • GTIN:
