Canon RC-IP100 PTZ Controller with 7 Inch Touch Screen - Control up to 100 Canon Supported Cameras

ITEM #: CAN-RC-IP100 MFG #: RC-IP100

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Canon U.S.A., Inc.
Free Shipping with $49 Minimum Order

List Price:

$2,199.00

Our Price:

$1,999.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    RC-IP100 - Overview

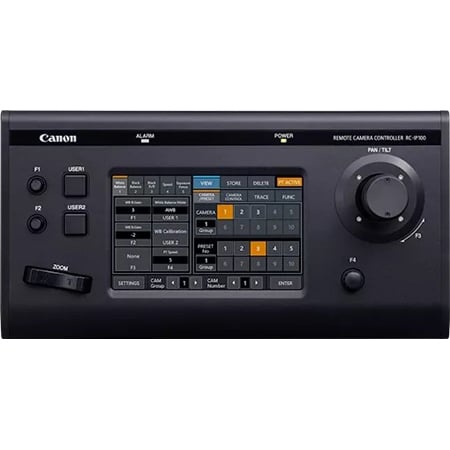

    Canon's RC-IP100 controller provides control for up to 100 supported cameras*. Additionally, through the serial port, the The RC-IP100 can control one compatible Canon camera via the NU protocol. The controller is equipped with a large 7" diagonal touch screen, zoom lever and joystick in order to pan, tilt, zoom and change camera picture settings with precise precision. The smooth responsiveness of the joystick allows operators to capture on-air movements with confidence. Pair this controller with a supported Canon PTZ camera to create the ideal camera/controller combination into your video production.

    *Supported Canon cameras include:
    CR-N700
    CR-N500
    CR-N300
    CR-X500
    CR-X300
    C500 Mark II (requires firmware v1.0.3.1 or later)
    C300 Mark III (requires firmware v1.0.1.1 or later)
    XF605 (requires firmware v1.0.1.1 or later)

    • Features:

      • Control up to 100 Canon Supported cameras
      • Smooth PTZ movement and Precise Control for Professional Productions
      • Adjust Pan, Tilt, Zoom and Change Camera Function Settings Remotely
      • Equipped with 7" diagonal Touch Screen, Control and Zoom Lever and 4 Customizable Buttons


    • Specifications:

      • General
      • Power: 12V DC (AC adapter power supply) CAUTION: Utilize included 12V DC power supply only. All other power supplies may cause permanent damage to controller.
      • Dimensions: 13.7 x 4.3 x 7.1 in
      • Weight: Approx. 4.6 lbs
      • Operating Temperature: 0 °C ~ 40 °C

        Camera Control
      • Controller Supported Cameras: CR-N700, CR-N500, CR-N300, CR-X500, CR-X300, C500 Mark II (requires firmware v1.0.3.1 or later), C300 Mark III (requires firmware v1.0.1.1 or later), XF605 (requires firmware v1.0.1.1 or later)
      • Number of Connectable Cameras: 1 unit (RS422), 100 units (*When RS422 is connected: 99 units), Preset (Store/Play/Delete): 100 per camera, Trace (Store/Play/Delete): 10 per camera
      • Communication System: IPv4
      • Touch Panel: 7-inch (diagonal) touch screen

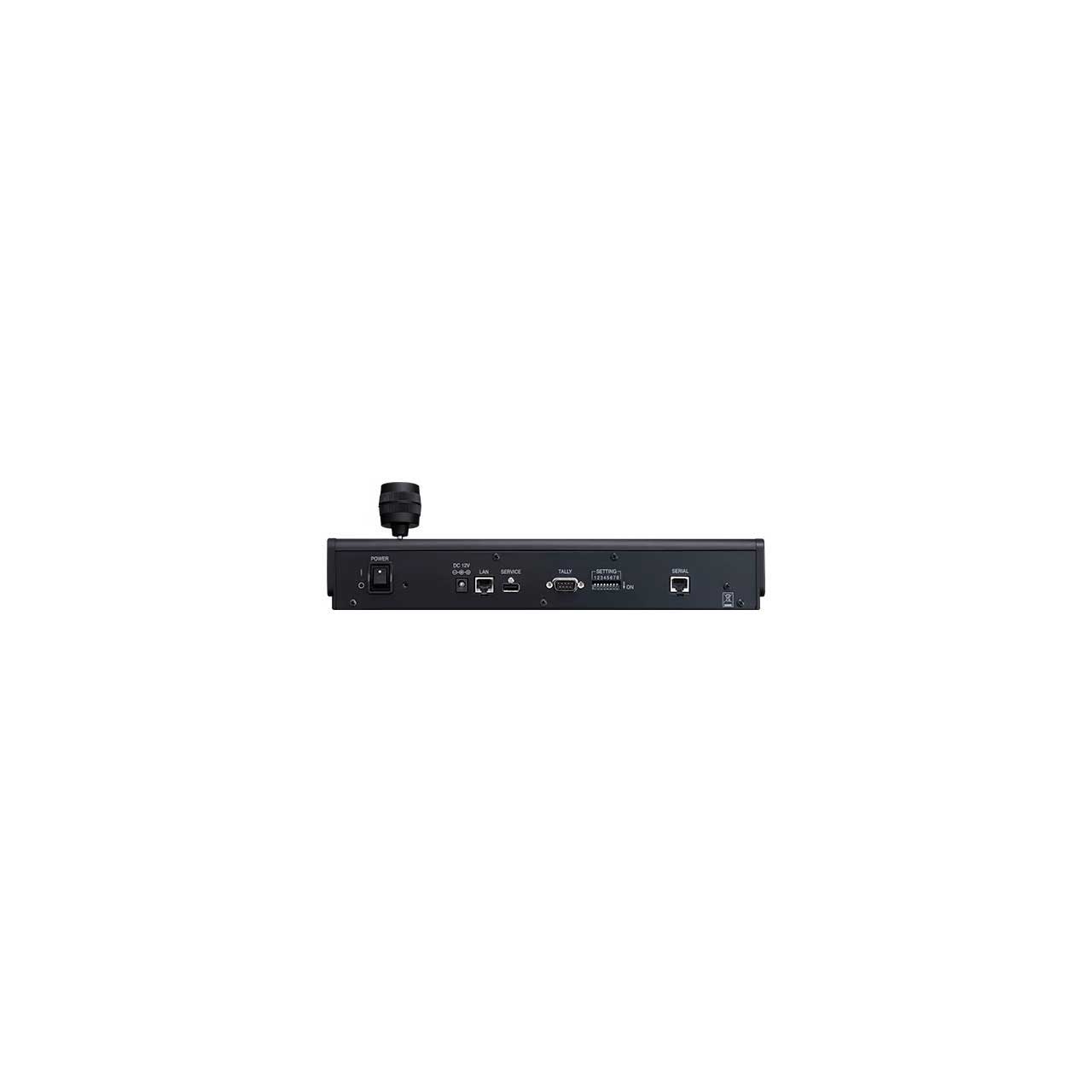

        Terminal
      • Tally: D-Sub 9 pin
      • LAN: R -45 x 1 (10 BASE-T/100 BASE-TX)
      • Serial: RJ-45 x 1 (RS422)


    • Item Includes:

      • 1x RC-IP100 Remote Camera Controller
      • 1x AC Adapter
      • 1x AC Cable
      • 1x Printed Documents


    • GTIN:

      0013803345261
