Canon CR-X300 4K UHD Outdoor PTZ Camera with 20x Zoom - Titanium White

Name: Canon CR-X300 4K UHD Outdoor PTZ Camera with 20x Zoom - Titanium White
Brand: Canon U.S.A., Inc.
SKU: CAN-CR-X300
Price: 13399.00 USD
Availability: PreSale

ITEM #: CAN-CR-X300 MFG #: CR-X300

Canon U.S.A., Inc.

List Price:

$14,850.00

Our Price:

$13,399.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CR-X300 - Overview

High Quality 4K 30P and Full HD 60P Video Output

The Canon CR-X300 features a 1/2.3" 4k-UHD CMOS imaging sensor and an optical 20x zoom lens, along with the a 20x digital zoom, all supported by Canon's highly advanced autofocus technology. The CR-X300 achieves astounding performance that enables this PTZ camera to be used in high-end production applications, including broadcast, sports, live events, and government. Housed in an aluminum die-cast body, it also features an IP65 rating for protection from dust and water, can be mounted right-side-up or upside down, yet it is small and lightweight enough to be carried around for portable installations Virtually anywhere.

The CR-X300 camera supports multiple professional interfaces, including single cable PoE++ connectivity, which allows you to use NDI|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as SRT (Supports Adaptive Bitrate), FreeD (Supports up to 4 destinations), RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-X300 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi.

Advanced 4K UHD CMOS Image Sensor
The CR-N300 features a Canon 1/2.3" 4K UHD CMOS image sensor capable of 4K UHD video capture at 30p up to 60fps in Full HD, making the PTZ camera a strong contender for professional production.

DIGIC DV 6 Image Processor
Get improved picture quality for both 4K UHD video and Full HD with the Over-Sampled HD Processing, along with Canon's superb autofocus logic.

4K 29.97P and 1080p 59.94P 4:2:2 10-bit Output
6D-SDI and HDMI terminals allow for output that supports integration into professional workflows, making it particularly useful for broadcast applications. The 6G-SDI and HDMI outputs provide an uncompressed signal at 3840x2160 or 1920x1080 resolution with 4:2:2 color sampling and 10-bit color depth, perfect for demanding television broadcast applications.

Hybrid AF
The CR-X300 is equipped with "Hybrid AF". Hybrid AF is an auto focus system that combines high-precision contrast AF technology and the high-speed phase-difference AF technology to confirm auto focus from the camera.

Features:
- 1/2.3" CMOS Sensor with Hybrid Auto Focus
- High Quality 4K 30p and Full HD 60p Video Output
- 20x Optical Zoom Lens with Optical Image Stabilization
- Renowned Canon Color Science
- Outdoor Camera with Wiper (IP65 Rated)
- 6G-SDI, HDMI, and IP Video Out
- Built-in NDI®HX2 and SRT (supports adaptive bitrate) support
- Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
- FreeD support for AR-VR systems
Specifications:
- Image Sensor:
  - Type 1/2.3" single-plate CMOS sensor
  - Total Pixels: approx. 21.14MP
  - Effective Pixels: approx. 8.29MP
- Lens: f=3.67 - 73.4 mm, F/1.8 - 2.8, 20x optical zoom 35mm equivalent focal length:
  - 4K UHD approx. 29.3mm (W) - 601mm (T)
  - Full HD approx. 30.5mm (W) - 627mm (T)
  - 8-bladed circular aperture
  - 12 elements in 10 groups
- Zoom:
  - Optical: 20x
  - Digital: 20x
- Angle of View:
  - 4K UHD:
  • Horizontal: 65.6° (W) - 3.6° (T)
  • Vertical: 39.8° (W) - 2.0° (T)
  - Full HD:
  • Horizontal: 63.5° (W) - 3.4° (T)
  • Vertical: 38.4° (W) - 1.9° (T)
- Shutter Speed: 1/6-1/2000 sec
- Focus: Manual, Continuous AF, Face Detection AF, Tracking AF type: Hybrid AF, Contrast AF
- Shooting Mode: F.Auto, P, Tv, Av, M
- Scene Mode: Portrait, Sports, Low light, Spotlight
- Gamma: Normal1, Normal3
- Color Space: Auto, Manual 1/3-1/1000 sec
- Color Matrix: BT.709, BT.2020
- ND Filter: ND filter: 1/8 at max, Enhanced ND filter: 1/32
- IR Mode: Electrically switchable
- White Balance: AUTO (AWB), Set A, Set B, preset settings, color temp setting, Manual
- Gain: 0.0 dB-36.0 dB
- Video Flip: Supports upright/ceiling installation, flip function
- Built-In Mic: Waterproof mic

  Video Output Signal
- SDI:
  - 3840x2160: 29.97P, 25.00P, 23.98P (4:2:2 10-bit)
  - 1920x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10-bit)
  - 1280x720: 59.94P, 50.00P (4:2:2 10-bit)
- HDMI:
  - 3840x2160: 29.97P, 25.00P, 23.98P (4:2:2 10-bit)
  - 1920x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P
  - 1280x720: 59.94P, 50.00P
- IP:
  - Frame Frequency 59.94Hz: 1920x1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit), 1280x720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit), 640x360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
  - Frame Frequency 29.97Hz: 3840x2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit), 1920x1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit), 1280x720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit), 640x360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
  - Frame Frequency 50.00Hz: 1920x1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit), 1280x720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit), 640x360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
  - Frame Frequency 25.00Hz: 3840x2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit), 1920x1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit), 1280x720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit), 640x360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8-bit)
  - Frame Frequency 23.98Hz: 3840x2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit), 1920x1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit), 1280x720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit), 640x360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8-bit)

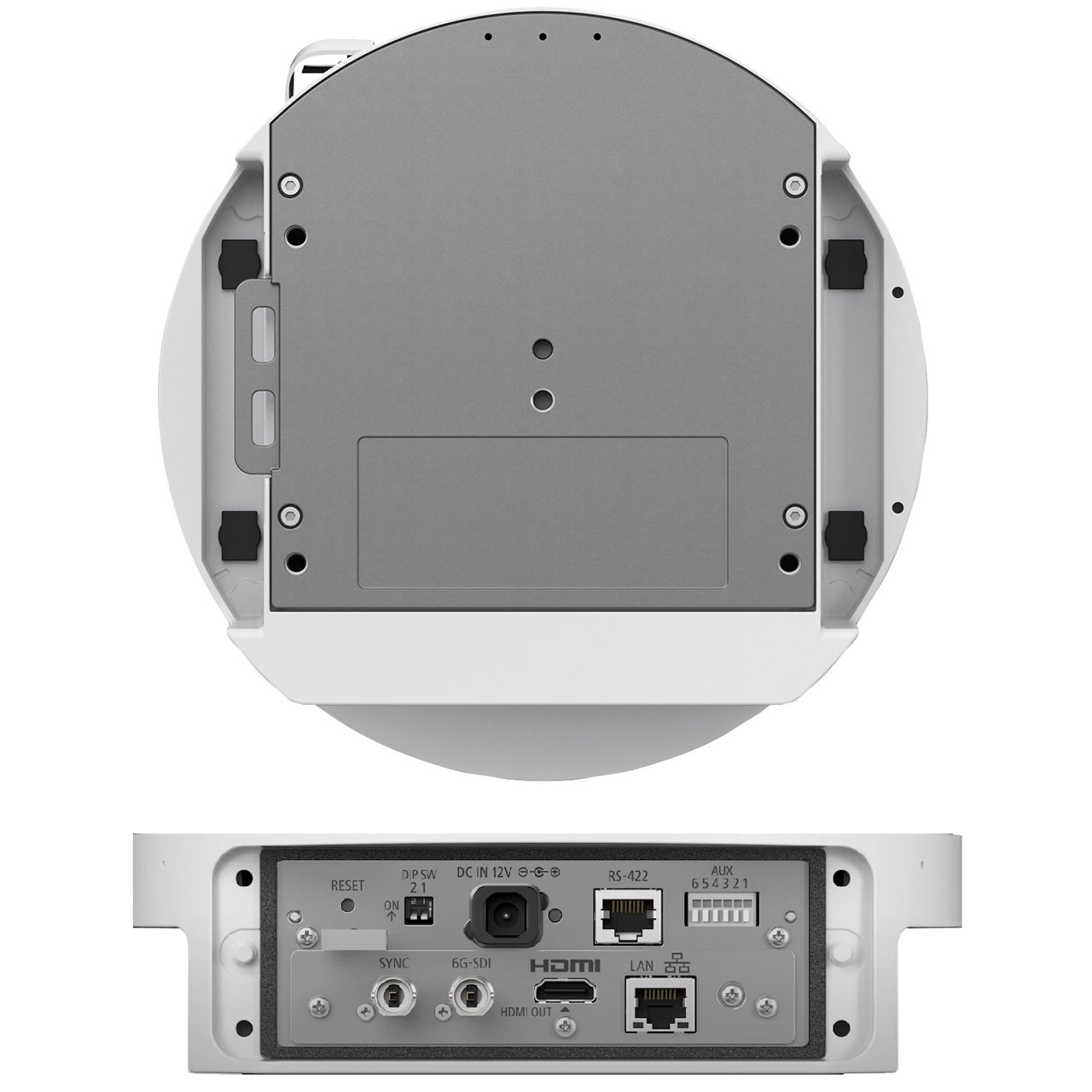

  Interface
- Communication Control: LAN, Serial
- Network: 1x LAN, RJ45, 1000Base-T
- 6G-SDI: 1x BNC jack (output only)
- GEN-LOCK: 1x BNC jack, 1.0 Vp-p/75, input only
- HDMI: 1x HDMI, output only
- RS-422: 1x RJ45
- External Device I/O Terminal: 1x AUX

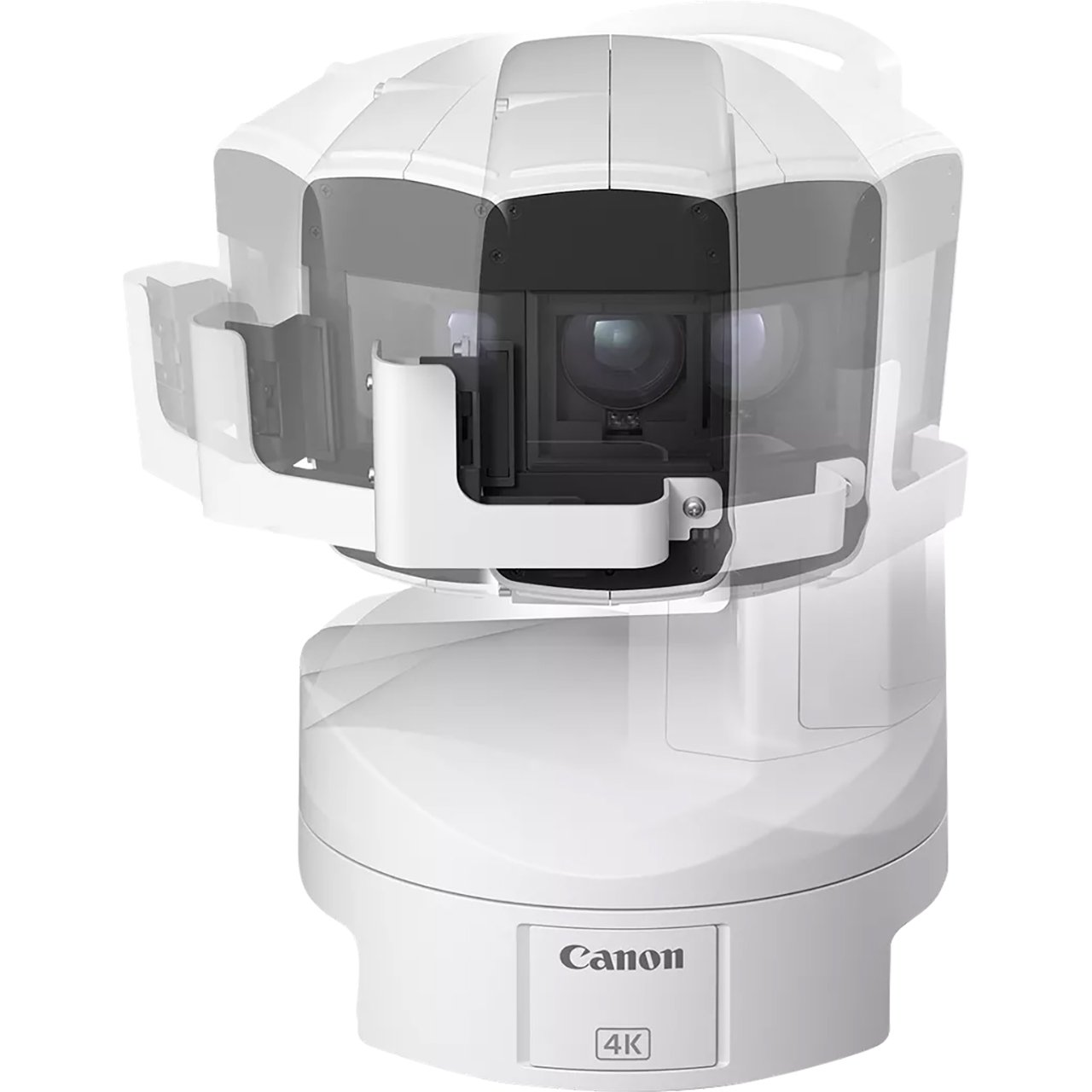

  Pan/Tilt
- Range:
  - Horizontal ±180°
  - Vertical -40° - +215°
- Operation Speed: 0.3° - 60°/sec
- Position Accuracy: within ±10
- Noise: NC45 or lower

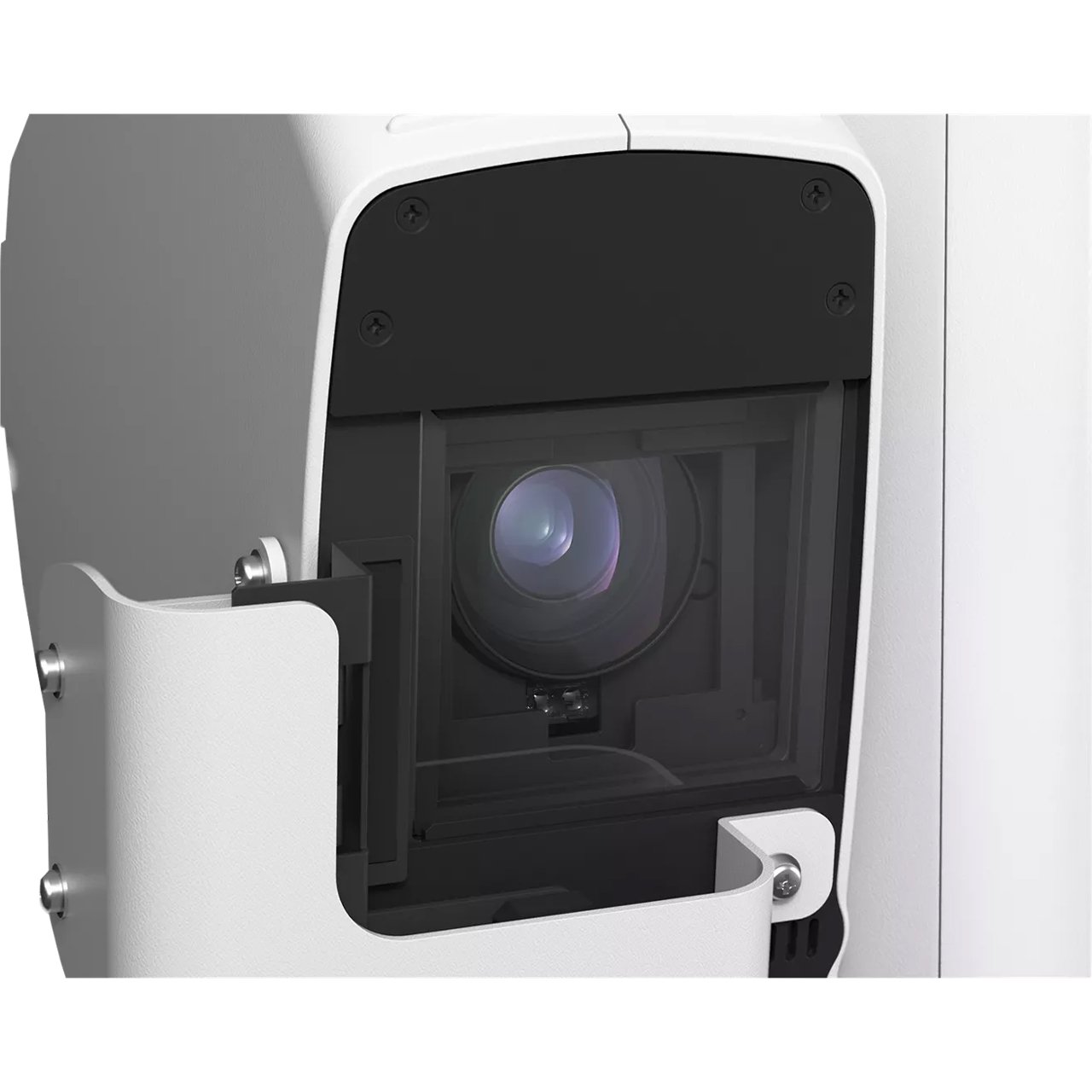

- Wiper: Equipped

  General
- Power Supply:
  - PoE: PoE++ power supply via LAN connector
  - PoE and PoE+ cannot be used
- External Power Source: 12V DC
- Power Consumption: PoE++ Input: Approx. 39.8W* max. (body only), DC Input: Approx. 37.7W max. (body only) * Class 5 (40.0W required) for power supply devices
- Dimensions (WxHxD): Approx. 8.54" x 12.24" x 8.54"
- Weight: Approx. 15.5 lbs (body only)
- Dust-Resistant/Waterproof: IP65
Item Includes:
- 1x CR-X300 PTZ camera
- 1x Power Cable
- 1x Connector Cover
- 1x Manual
- 1x EAC Leaflet
- 1x Remote Camera Control Application (RCCA)
- 1x Search Tool
