Sony BRC-AM7 4K60P Fully Featured AI Enabled NDI PTZ Camera with 20x Optical Zoom - Zoom Certified - Black

ITEM #: SNY-SNA-BRCAM7B MFG #: BRCAM7B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Sony Electronics Inc.
Free Shipping with $49 Minimum Order

List Price:

$15,260.00

Our Price:

$13,000.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BRCAM7B - Overview

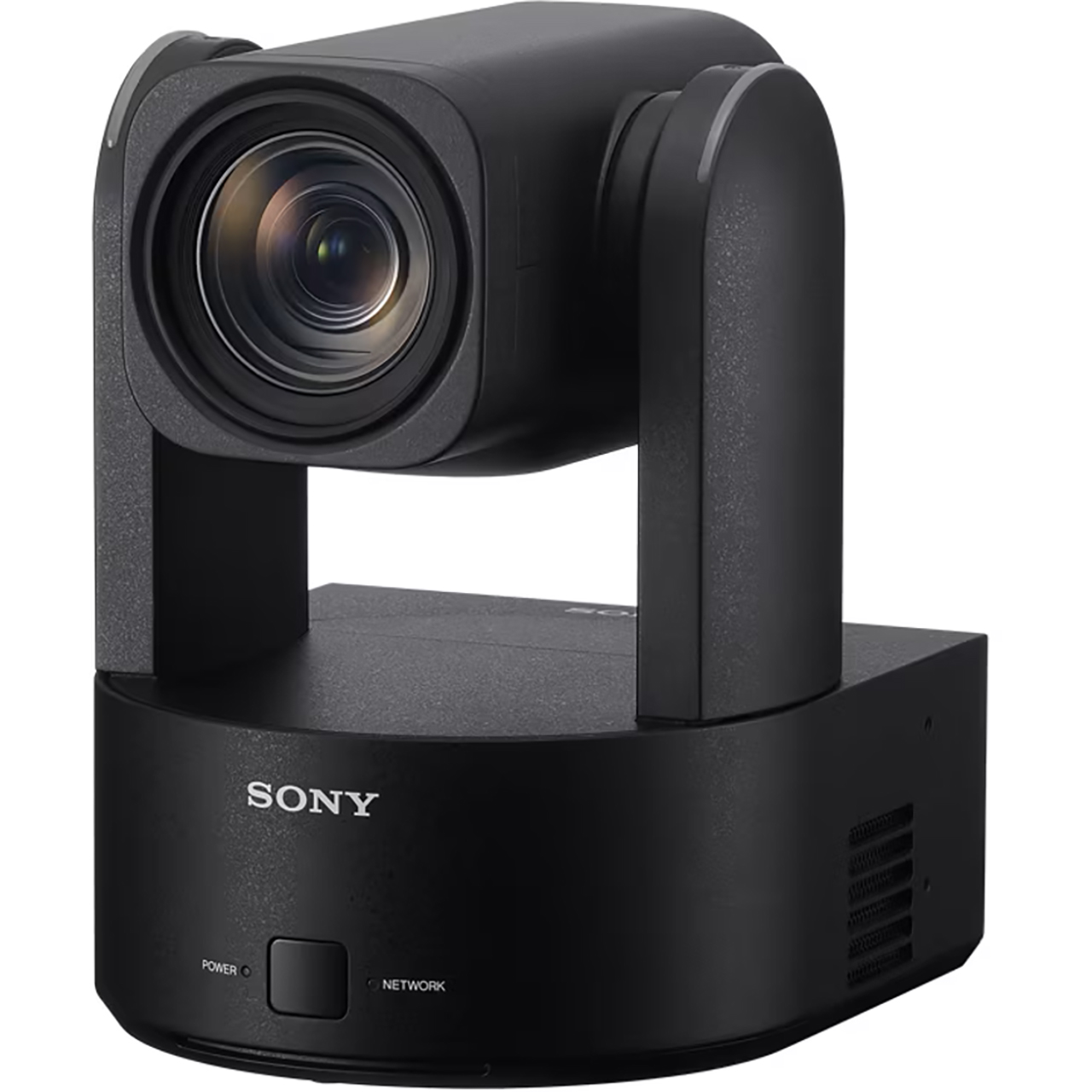

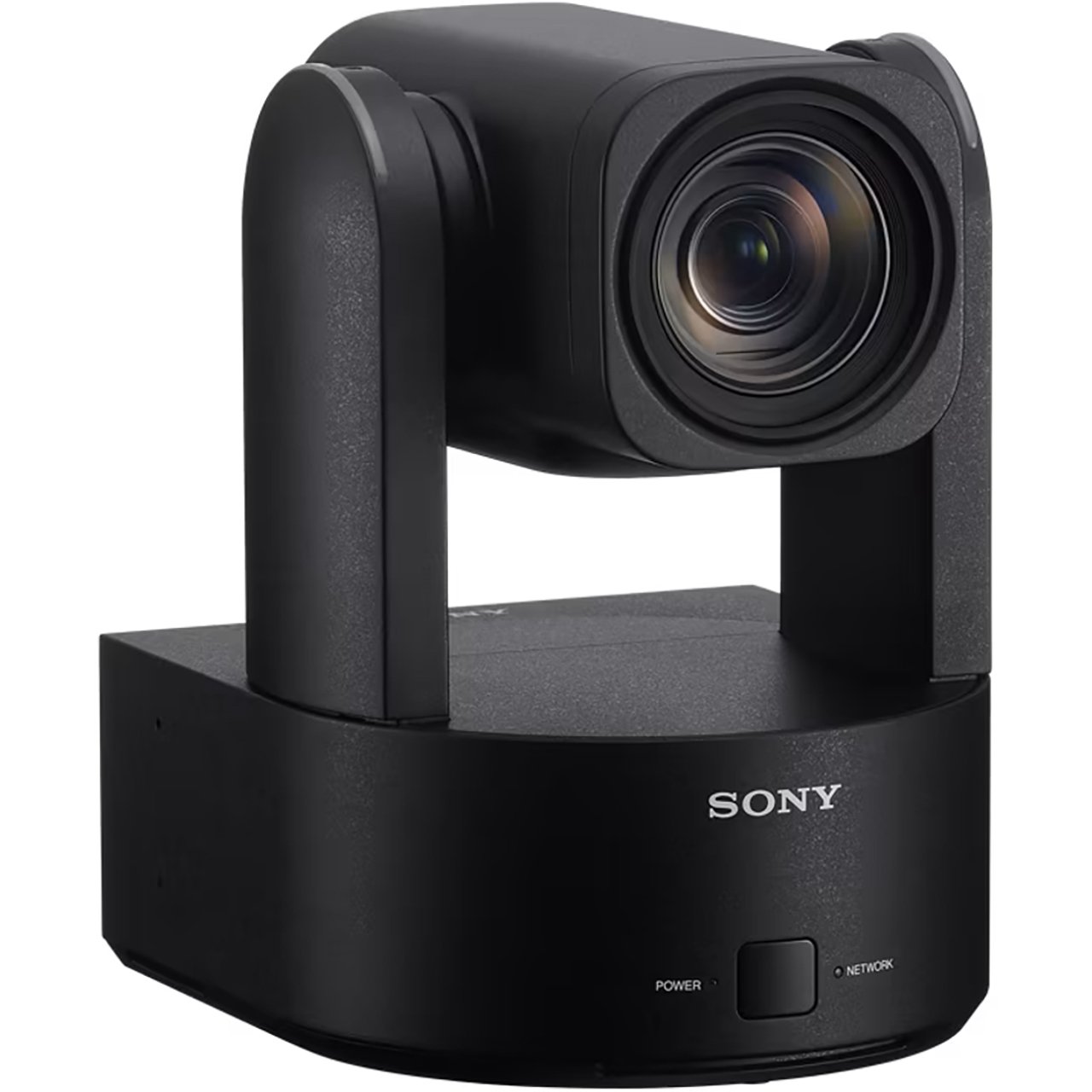

Sony BRC-AM7 is an Advanced PTZ Auto Framing camera with built-in AI analytics delivering flagship image quality. Offering high interoperability with other production systems.

Dramatically Improved Imaging Performance
Images captured over a 20x optical zoom range that covers everything from wide angles to close-ups are delivered as high-quality 4K 60p output. In addition, interoperability with existing systems has been improved by incorporating ITU709/709tone, S-Cinetone™, and S-Log3 support.

Built-In AI PTZ Auto Framing
Advanced AI analytics allow subjects to be accurately tracked with smooth, natural-looking framing, making it easier than ever to produce high-quality content with fewer camera operators. Direct pan and tilt drive using newly developed motors results in exceptionally smooth camera operation. This advanced drive system is also remarkably quiet and ideally suited to situations where silence is a requirement.

Seamless Integration with Sony's System Cameras
The BRC-AM7 is the smallest and lightest camera of its type in the world*, making it easy to install just about anywhere. It is unobtrusive for the same reason, even in multi-camera setups.

*Equipped with a 1.0-type image sensor and compatible with 4K 60p as an integrated lens PTZ remote camera.

Broad Connectivity

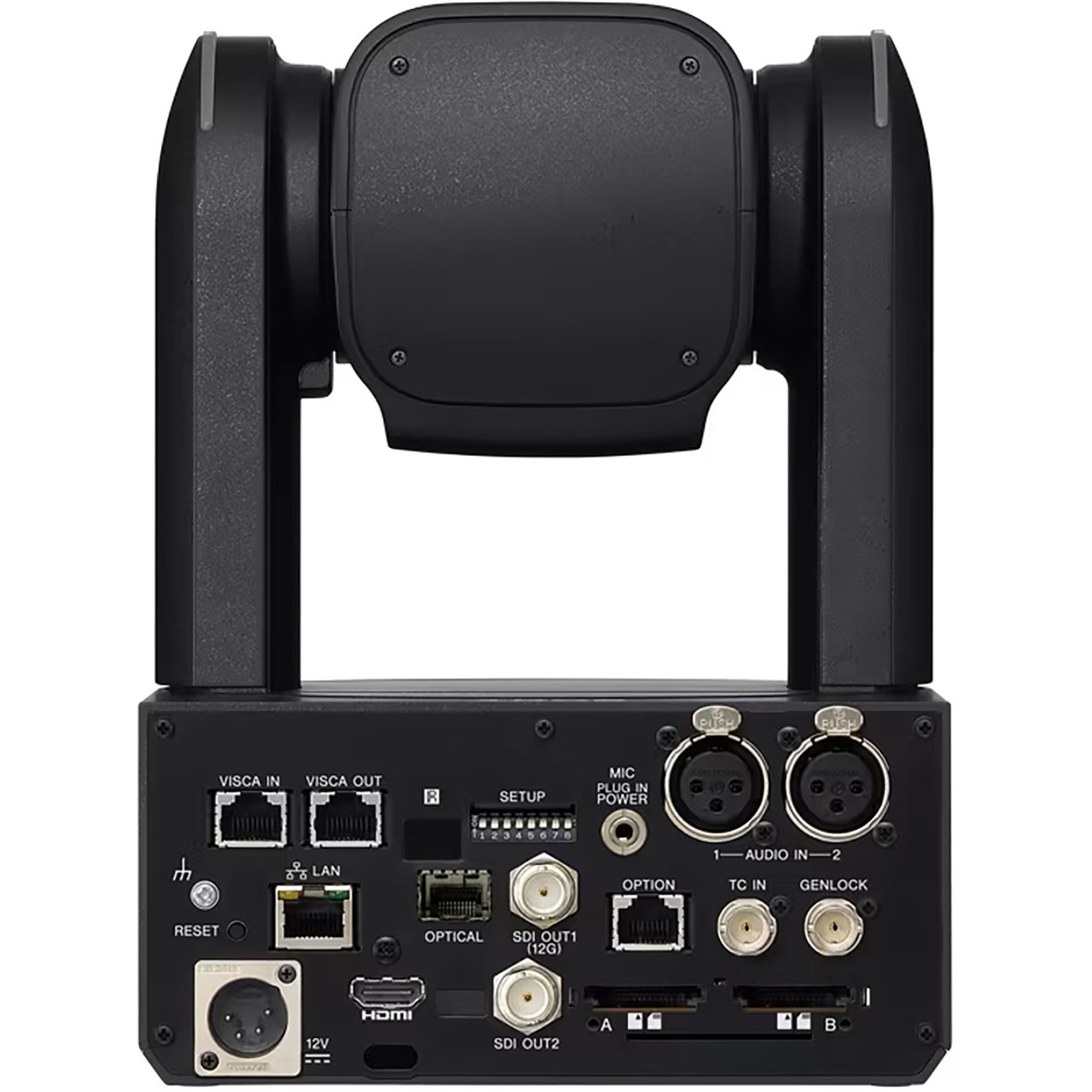

In addition to 12G SDI primary output, 3G SDI is provided for monitoring. The BRC-AM7 offers a variety of video output options such as optical-fiber 12G SDI available via an SFP slot, and HDMI. Audio input can be connected via a pair of 3-pin XLR type connectors or a 3.5mm stereo jack, providing plug-in compatibility.

Please Note: The BRC-AM7 has dual memory slots that are both compatible with CFexpress Type A and SDXC memory cards.* Slot A and Slot B accept CFexpress Type A and UHS II/UHS I SDXC memory cards for high-speed storage and retrieval of large volumes of data. The dual memory slots also allow simultaneous recording, relay recording, and proxy recording.

*Not compatible with CFexpress Type B memory cards. Internal recording and playback are not available when powered via PoE++.

  • Features:

    • Lead Room Effect
    • Multi-person Framing
    • Face Registration
    • Tracking Range
    • PTZ Auto Framing is performed only within the predefined area
    • Additional functions with RCP/MSU
    • Compatible with CNA-2
    • Multiple outputs for free-d protocol
    • Camera position offset data outputs for free-d protocol
    • Compatible with Zoom Sync


  • Specifications:

      General
    • Mass: Approx. 7lbs
    • Size: Approx. 6¾" x 8⅞" x 7⅝"
    • Power Requirements: DC 12V (11.0V - 17.0V), (PoE): PoE++
    • Power Consumption:
      - DC In: ≤ 132W (DC 12V)
      - PoE: ≤ 71.3W
    • Operating Temp.: 32°F - 104°F
    • Storage Temp.: -4°F - 140°F
    • Body Color: Black

      Camera
    • Imaging Device (Type): 1.0-type Exmor RS CMOS sensor
    • Number of Pixels (Total): Approx. 20.9MP
    • Number of Pixels (Max. Effective): Approx. 14.0MP
    • Optical Low-Pass Filter: Yes
    • F-Number: F2.8 - F4.5
    • Focal Length: f = 0.3 - 6.07"
    • Focal Length (35mm format): 0.94" - 18.9"
    • Focus range (front of the lens): Approx. 0.39" to infinity
    • Horizontal Viewing Angle: Approx. 75°
    • Vertical Viewing Angle: Approx. 46°
    • Optical Zoom: 20x

      Interface
    • SDI Output: SDI OUT1: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), HD-SDI/SDI OUT2: BNC, 3G-SDI (Level A)
    • HDMI Output: Type-A
    • Optical Output: SFP+ compliant
    • UVC Output: No
    • Output Format SDI OUT1: 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p, 23.98PsF, 29.97PsF, 25PsF, 1280 x 720/59.94p, 50p
    • Output Format SDI OUT2: 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p, 1280 x 720/59.94p, 50p
    • Output Format HDMI OUT: 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p, 1280 x 720/59.94p, 50p, 720 x 480/59.94p, 720 x 576/50p
    • Output Format SFP+: 3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p, 23.98PsF, 29.97PsF, 25PsF, 1280 x 720/59.94p, 50p
    • Audio Input:
      - 2x XLR-type 3-pin (female), line/mic/mic +48V selectable
      - Mic Reference: -30dBu - -80dBu
      - 1x 3.5mm Stereo Minijack, mic


  • Item Includes:

    • 1x Lens cap
    • 1x Remote commander
    • 1x Ceiling bracket A
    • 1x Ceiling bracket B
    • 6x Screw (M3x8)
    • 1x Screw (M4x8)
    • 1x Wire rope
    • 1x QR code sticker
    • 1x Warranty booklet
    • 1x Safety regulation
