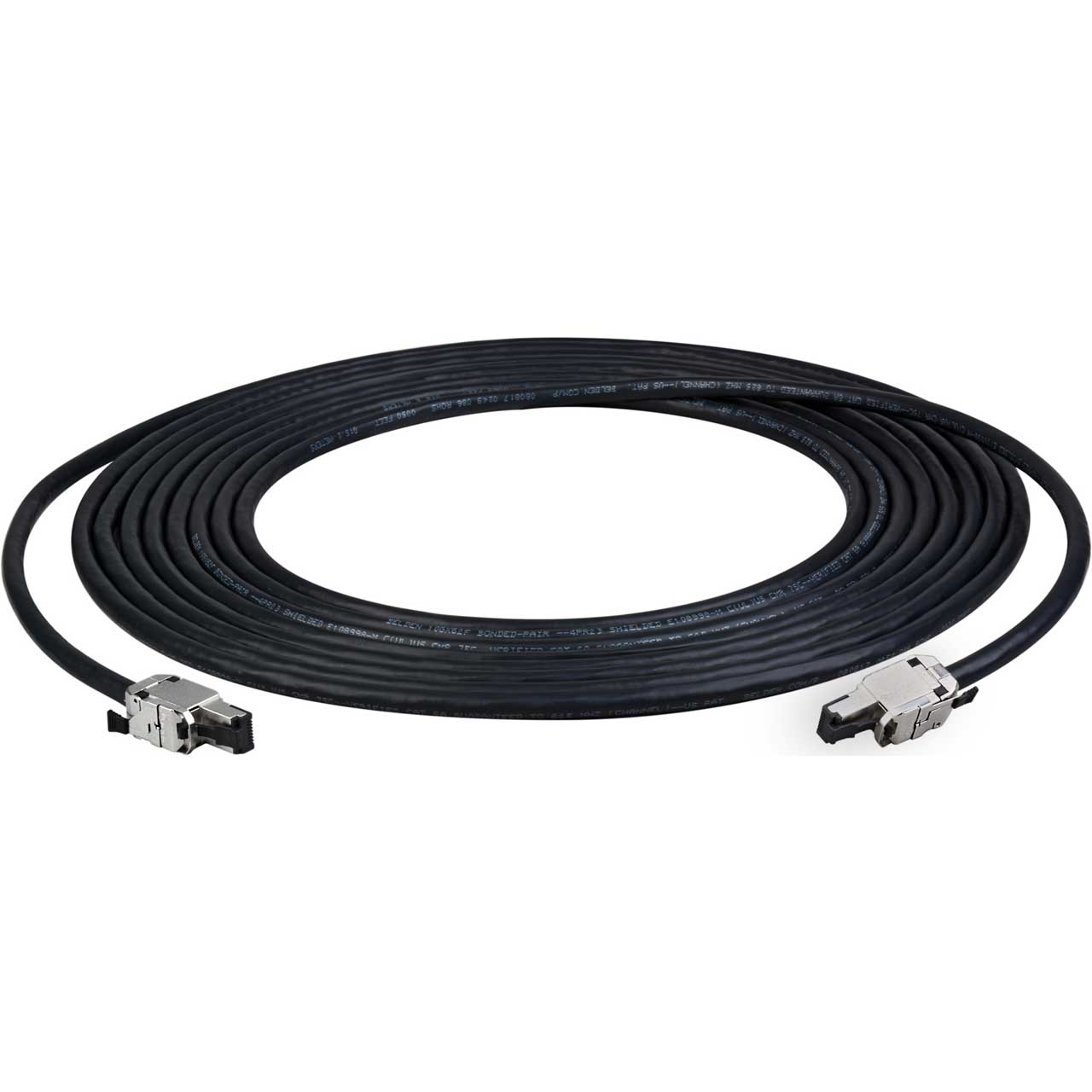

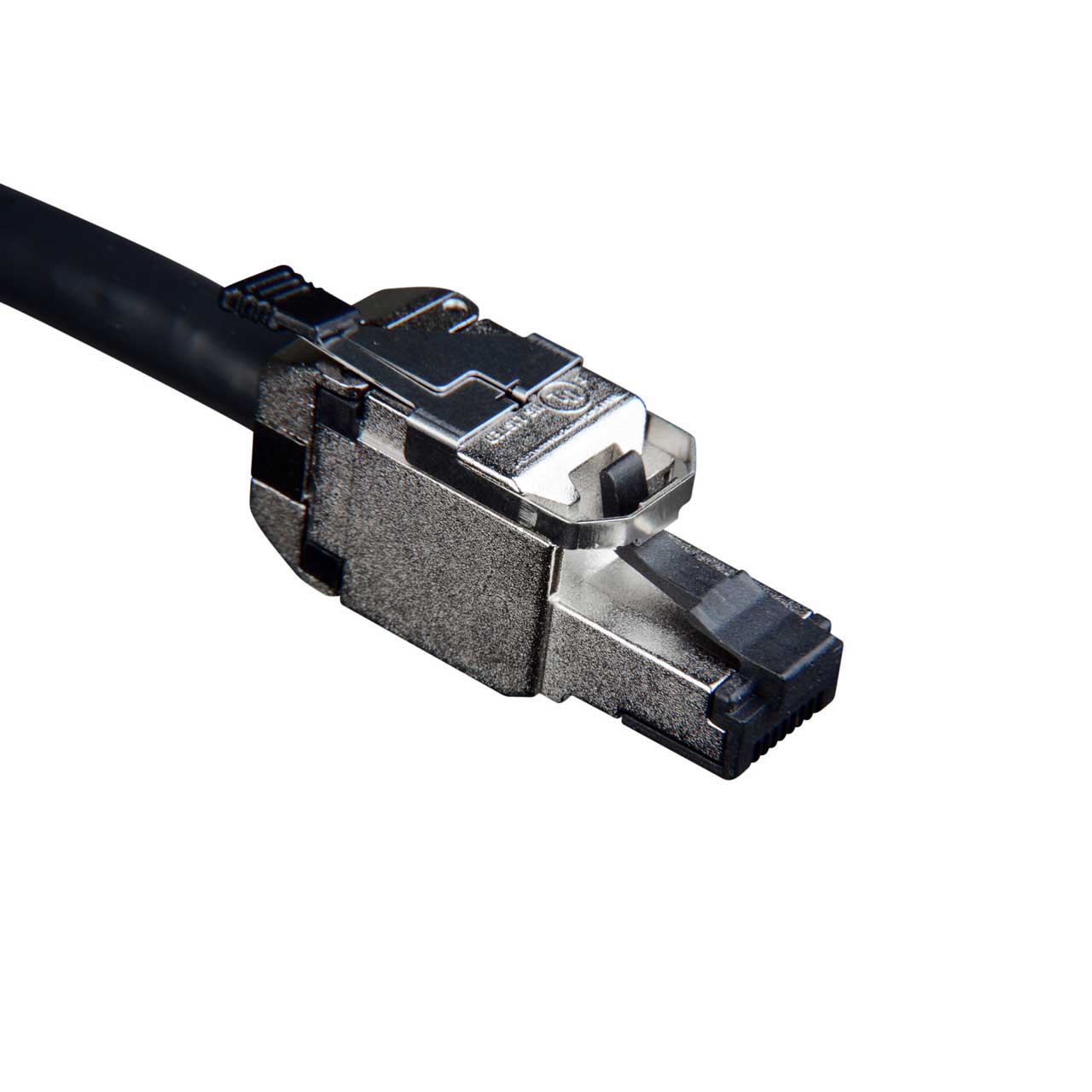

Laird, the leader in rugged 10G Ethernet RJ45 cables for 4K UHD transmission, introduces the CAT6A-REV series featuring the interchangeable Belden REVConnect system and bonded riser rated Belden cable. The Belden REVConnect plug adapts to today's needs for high performance and emerging applications. REVConnect cable ends can be easily changed in the field when this cable needs to be modified to a male-to-female extension. REVConnect is terminated on Belden's 10GX62F cable delivers a unified 10G Power Over Ethernet (PoE) solution in video over IP, digital signage, remote POV camera transmission and DANTE audio applications. This is sure to become the cable of choice in premise horizontal wiring, 10 Gigabit Ethernet distribution, video and AES67 digital audio uses. The cable's 4-Bonded-Pair and F/UTP-foil shielded construction ensure the highest performance in noisy environments.
10G Ethernet Max Distance
Laird certifies this Cat6a cable to 328 ft (100 m) for 10G Ethernet and 500 ft (152 m) for 1G Ethernet, validated through Bit Error Rate (BER) testing. IEEE 802.3 specifies a maximum of 328 ft (100 m) for Cat6a Ethernet applications; exceeding this threshold risks signal degradation and link failure. Supported signal types-including Ethernet, PoE, and AV-over-IP-each carry distinct distance limitations. Conductor gauge (AWG) affects signal attenuation, power delivery, and usable distance-higher AWG conductors may reduce maximum range. Always consult your application's specifications prior to deployment.
Laird Tech Note: Compliant with all PoE Specs, when installed according to TIA guidelines.
