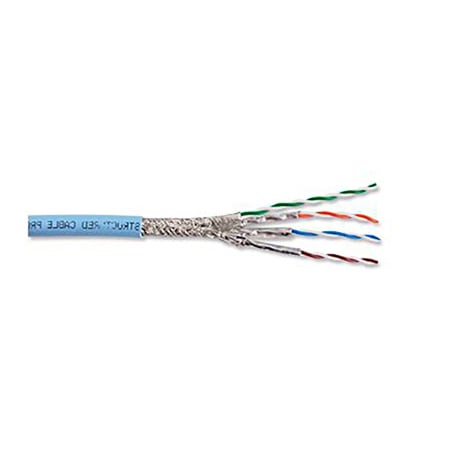

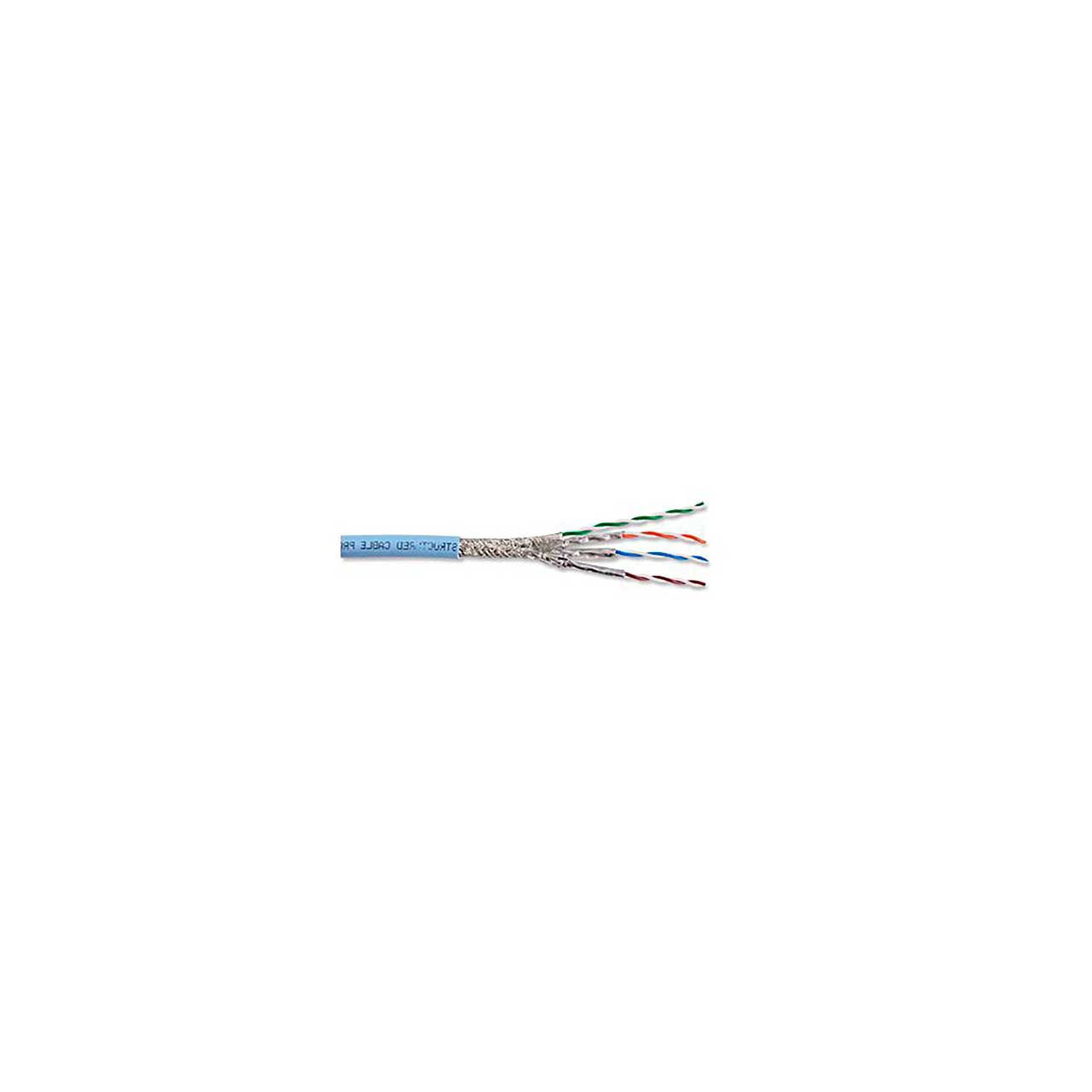

Category 7 10GBASE-T 1200 MHz 23 AWG Solid 4-Pair - Ice Blue - Per Foot

ITEM #: CAT7-LSZH-IB-FT MFG #: CAT7A-LS2H-BL FT

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$0.54

Our Price:

$0.49

Availability: In Stock
iAvailability Description Popup


    CAT7A-LS2H-BL FT - Overview

    Category 7 (Cat 7 Bulk Cable) S/FTP 1200MHz cables meet ISO/IEC 11801 Ed2 CLASS F standards for Category 7 performance.

    Each Cat 7 S/FTP cable is performance optimized with 4 balanced twisted pairs, 23 AWG PE foam insulated solid bare copper conductors. Each pair is AL Foil shielded eliminating cross talk; and an overall tinned copper braid shield that provides exceptional interference protection. Each Cat7 cable is constructed to create a round and flexible cable for easy pulling and stripping of the low smoke zero halogen (LSZH) cable jacket.

    Suitable Applications include:
    Structured premises cabling
    For transmission of digital and analogue voice and data signals.
    Especially suitable for all Class F applications.
    ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet, 1000Base-T, 10G Base-T.(IEEE 802.3)
    Token Ring4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s. (IEEE 802.5 )

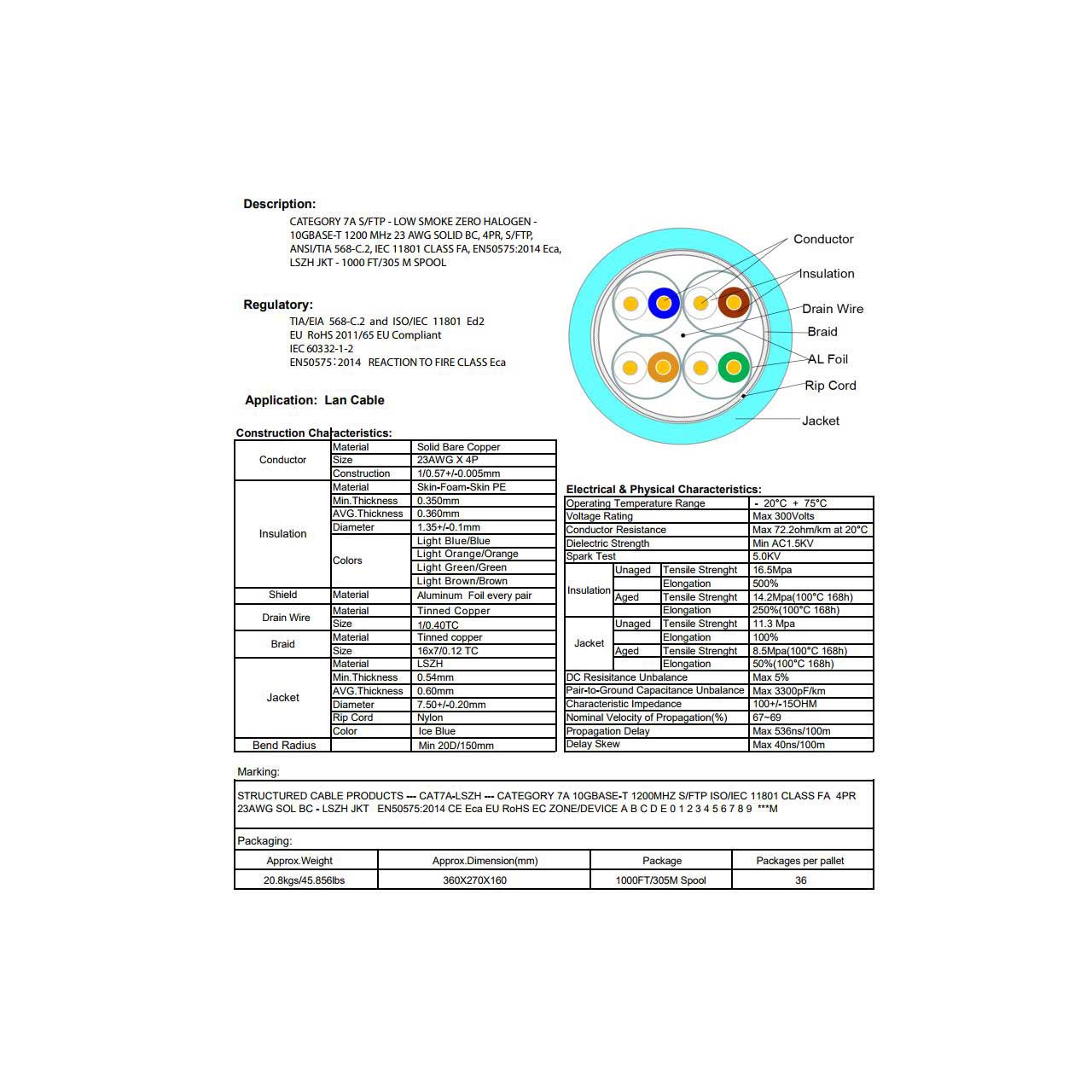

    • Specifications:

      • Conductor Material: Solid Bare Copper
      • Conductor Size: 0.58+/-0.008mm Conductor 23 AWG
      • Insulation Material: PE (Skin-Foam-Skin)
      • Insulation Diameter: 1.4 =/- 0.05mm
      • Insulation AVG. Thickness: 0.41+/0.05mm
      • No. of Insulation: 4 Pair
      • Shielding: Al-Foil Screneed
      • Braid: Tinned Copper
      • Jacket Color: Ice Blue


    CAT7A-LS2H-BL FT - Required Accessories

      CAT7A-LS2H-BL FT - Recommended Accessories
