SAPPHIRE BBG-2110-4HI/4SIO - Overview

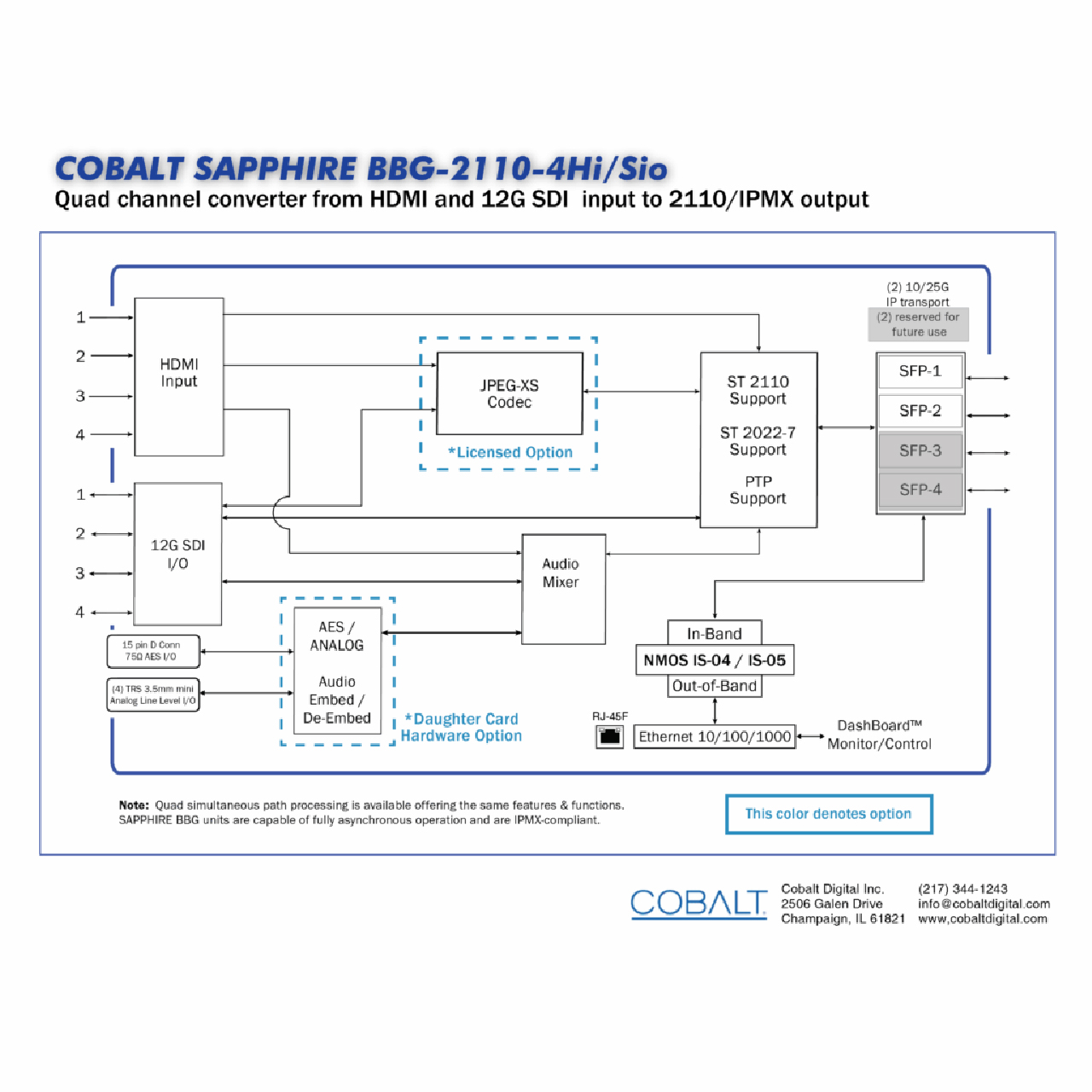

The Cobalt SAPPHIRE BBG-2110-4Hi/4Sio has four simultaneous HDMI and SDI inputs. The unit features dual SFP cages with support for 10G and 25G Ethernet ports with an additional 1Gbps copper Ethernet port for out-of-band management. The unit supports SMPTE ST2022-7 Seamless Switching up to Class C operation for WAN environments. The unit also supports NMOS IS 04/IS 05 control and management (both in-band and out-of-band) and in-band PTP support. Optional JPEG-XS compressed ST2110-22 requires a license.

Please Note: The SAPPHIRE BBG-2110-4Hi/4Sio currently supports 1 path of 4K. The other 3 paths support up to 1080p.

  • Features:

    • Quad-channel HDMI/SDI to IPMX/SMPTE ST 2110 converter unit with four simultaneous HDMI and SDI inputs
    • Designed to be mounted behind the monitor
    • Active cooling (fan)
    • Redundant power connections
    • 4x SFP cages - *Initially only 2 will be used but the other two are there for future additional IP networks or possible SDI over fiber support

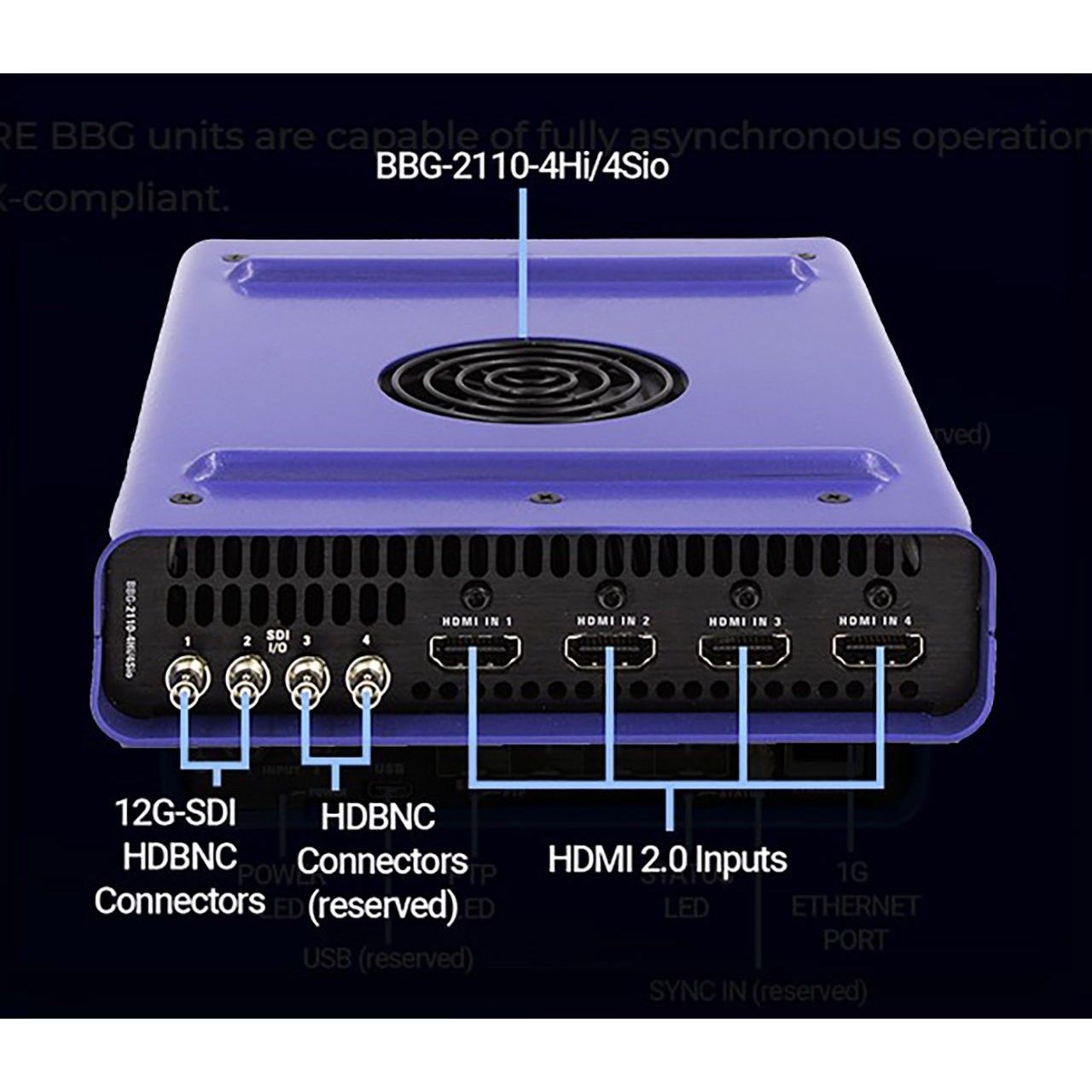

    • 4x bidirectional SDI I/O, either all inputs or all outputs
    • 4x HDMI 2.0 Inputs
    • Optional audio - BBG-4Hi/4Sio-AUD with 4x 3.5mm TRS jacks for consumer analog audio levels. Configurable in software as Analog Inputs or Outputs
    • 1x Reference Input (SYNC IN)(reserved for future use)
    • 1x Reference Output (SYNC OUT)(reserved for future use)
    • 1x RJ45 Ethernet Port 100/1000 for communication and control
    • SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant


  • Specifications:

    • Inputs:

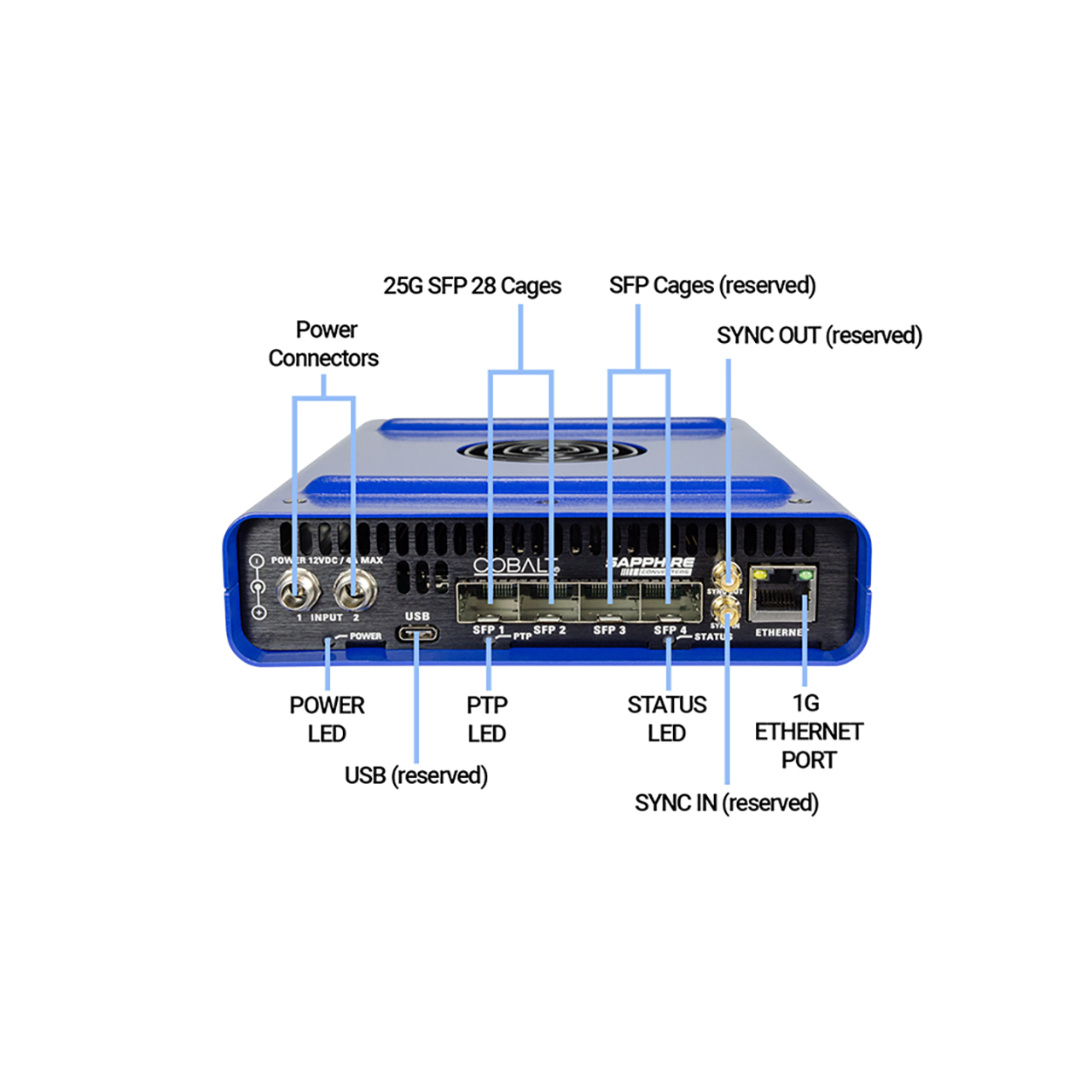

      - 4x 25G SFP28 cage receptacles (Note: Two of the SFP cages are reserved for future use.)
      - 4x HDMI 2.0 Inputs Input Type A standard connector
      - 4x HDBNC Bidirectional SDI I/O, either all inputs or all outputs
      - 1x HDBNC reference Input (Note: Reserved for future use.)
    • Outputs:
      - 4x HDBNC Bidirectional SDI I/O, either all inputs or all outputs
      - 1x HDBNC reference Output (Note: Reserved for future use.)
      - 8x Pairs AES (Note: AES on a 15-pin DSub connector will be enabled in the future and will require the-BBG-2110-4Hi/4Sio-AUD option.)
    • Control: 1x RJ45 Ethernet Port 100/1000
    • Power: 2x 12VDC/4A Redundant Inputs
    • Typical Power Consumption: < 35W
    • Dimensions: 5.8" x 7.85" x 1.6"
    • Weight: 1.43lbs, 2.43lbs with power supply and power cord (PS-40W-761K)
    • Other: Active cooling fan


  • Item Includes:

    • 1x BBG- Mounting Adapter


  • Warranty:

    • 5 Year Limited Warranty
