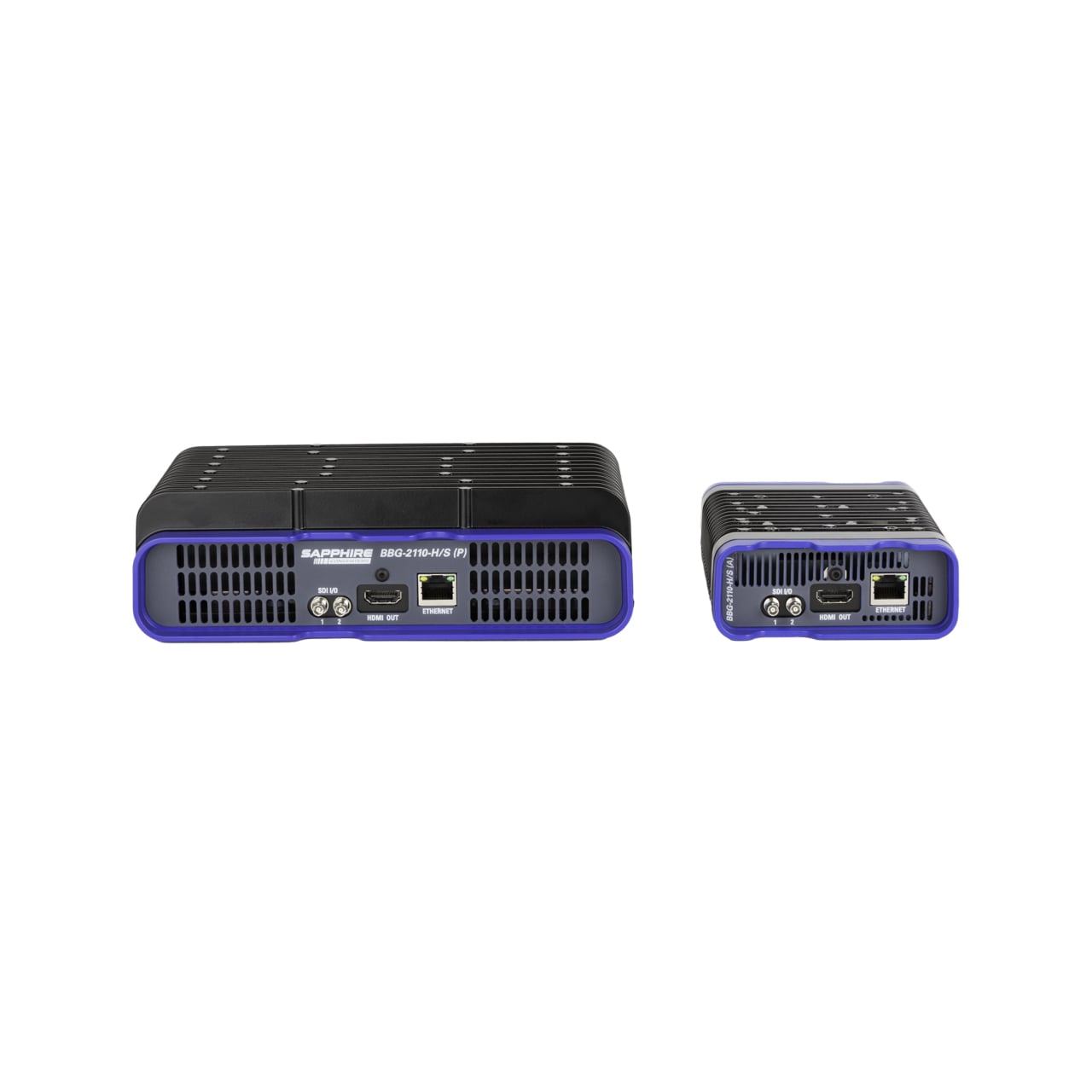

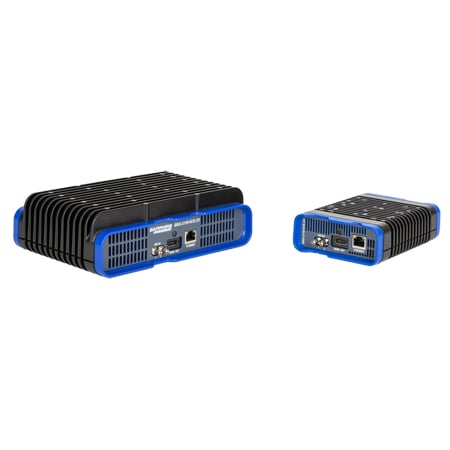

The Cobalt SAPPHIRE BBG-2110-H/S (A) addresses the need to display received JPEG-XS* content on HDMI monitors in a simple and cost-effective way. The mini-converter is designed to be mounted behind the monitor. The BBG-2110-H/S is a single-channel unit with simultaneous 12G SDI and HDMI outputs.

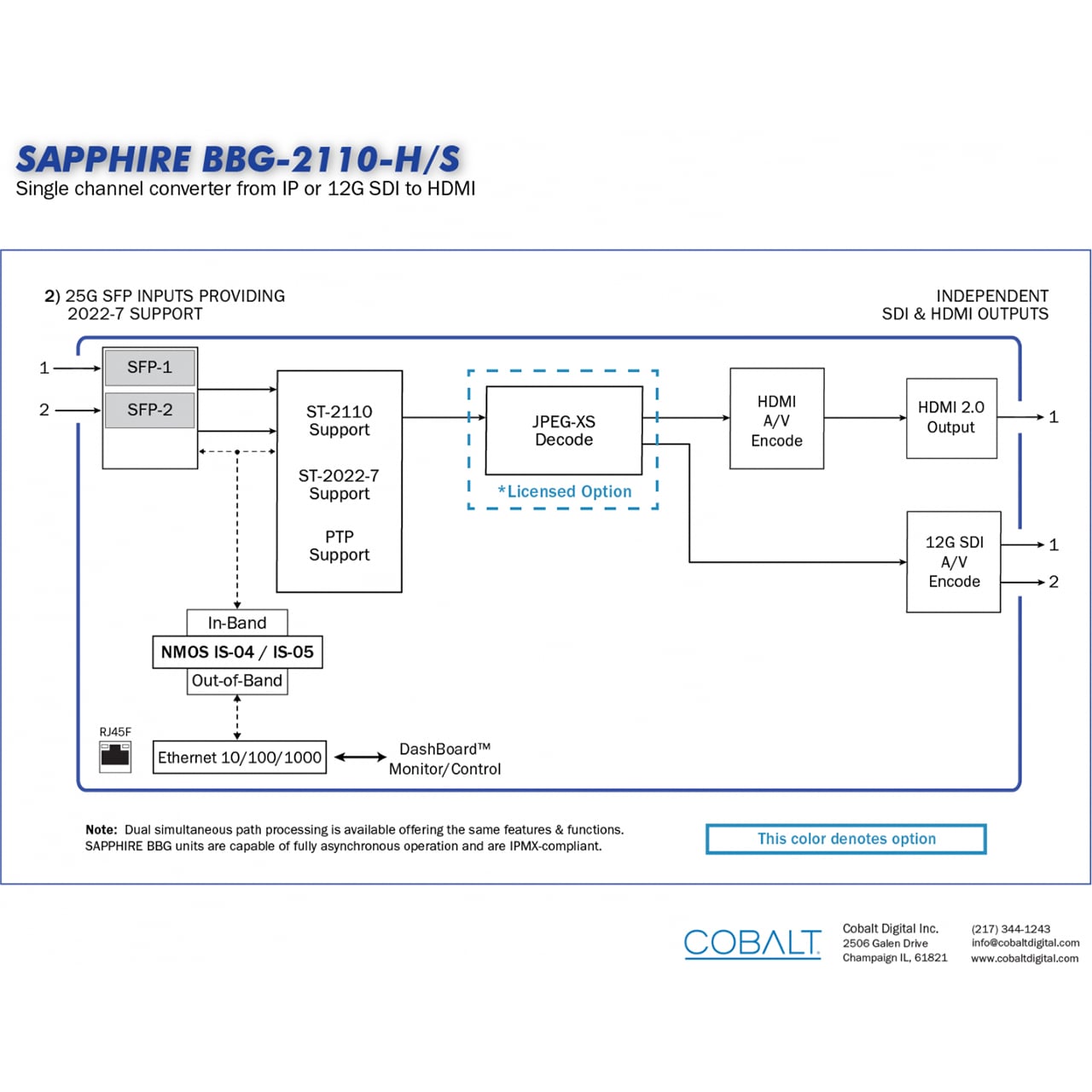

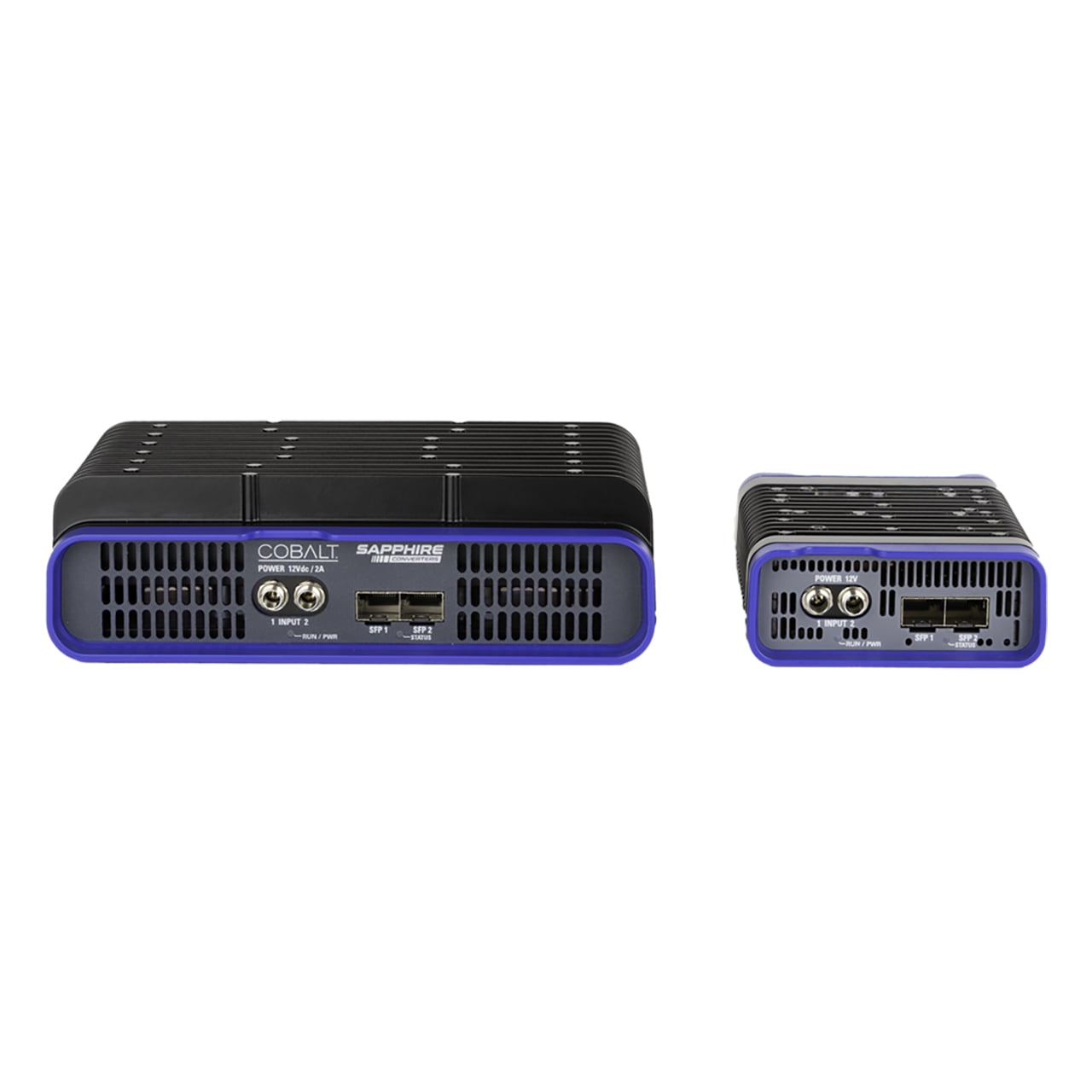

The converter includes dual SFP cages with support for 10G and 25G Ethernet ports, additional 1Gb copper Ethernet port for out- of band management, support for SMPTE ST 2022-7 Seamless Switching up to Class C operation for WAN environments, support for NMOS IS-04/IS-05 control and management (both in-band and out-of-band), and in-band PTP support. Also available is a passive fan-less design option for quiet environments. The unit also has support for uncompressed ST 2110-20 video.
The SAPPHIRE BBG units are the ideal choice for directly displaying incoming JPEG-XS* content on HDMI monitors, including content originating from a WAN connection. The units can be mounted directly behind the monitor and will not take up any rack space, and are incredibly quiet, which makes them ideal for control rooms.
