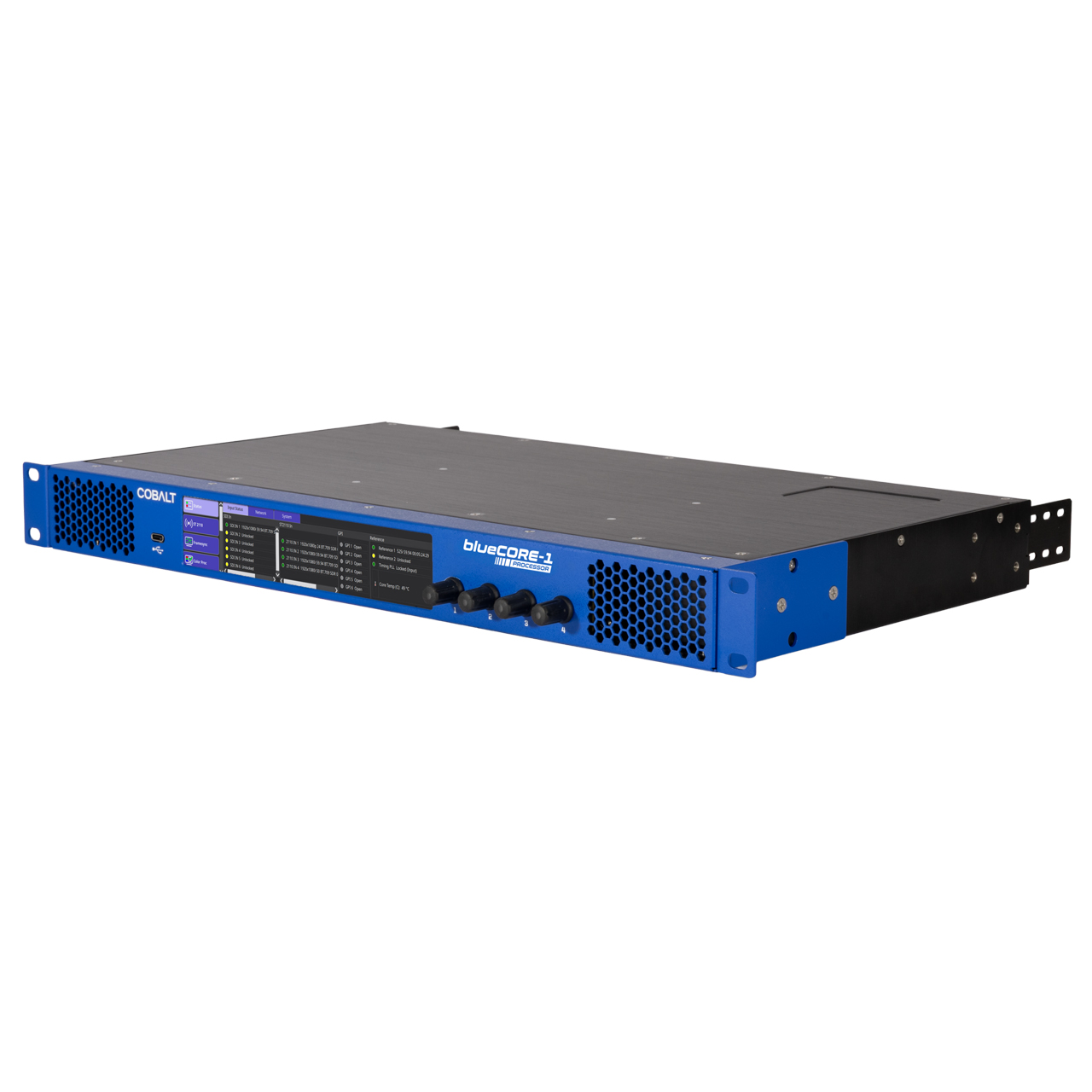

Cobalt blueCORE-1 1RU Quad Path Video & Audio Processor - 4x Independent 3G-SDI + SDI Inputs & Outputs

ITEM #: CB-BLUECORE-1 MFG #: BLUECORE-1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Cobalt Digital
Free Shipping with $49 Minimum Order

Our Price:

$6,950.00

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BLUECORE-1 - Overview

blueCORE processors provide the same quality and functionality as the Cobalt openGear processing cards - all in a self-contained standalone device!

The Cobalt blueCORE-1 hardware conversion technology ensures the highest image quality for any demanding project. The signal processor meets the needs of hybrid workflows that demand SDI, Fiber, and HDMI. It has flexible conversion and frame synchronization in a standalone, 1RU rack space.

This processor provides simultaneous processing with four independent signals up to 3G-SDI 10-bit broadcast quality video and independent groups of multi-channel embedded audio, AES audio, or MADI audio. Options enable logo insertion, ancillary data, Dante, Dolby, 3D-LUT, and other features. 12G/6G rates and 2160p resolution can be enabled by the +2K-TO-4K Option.

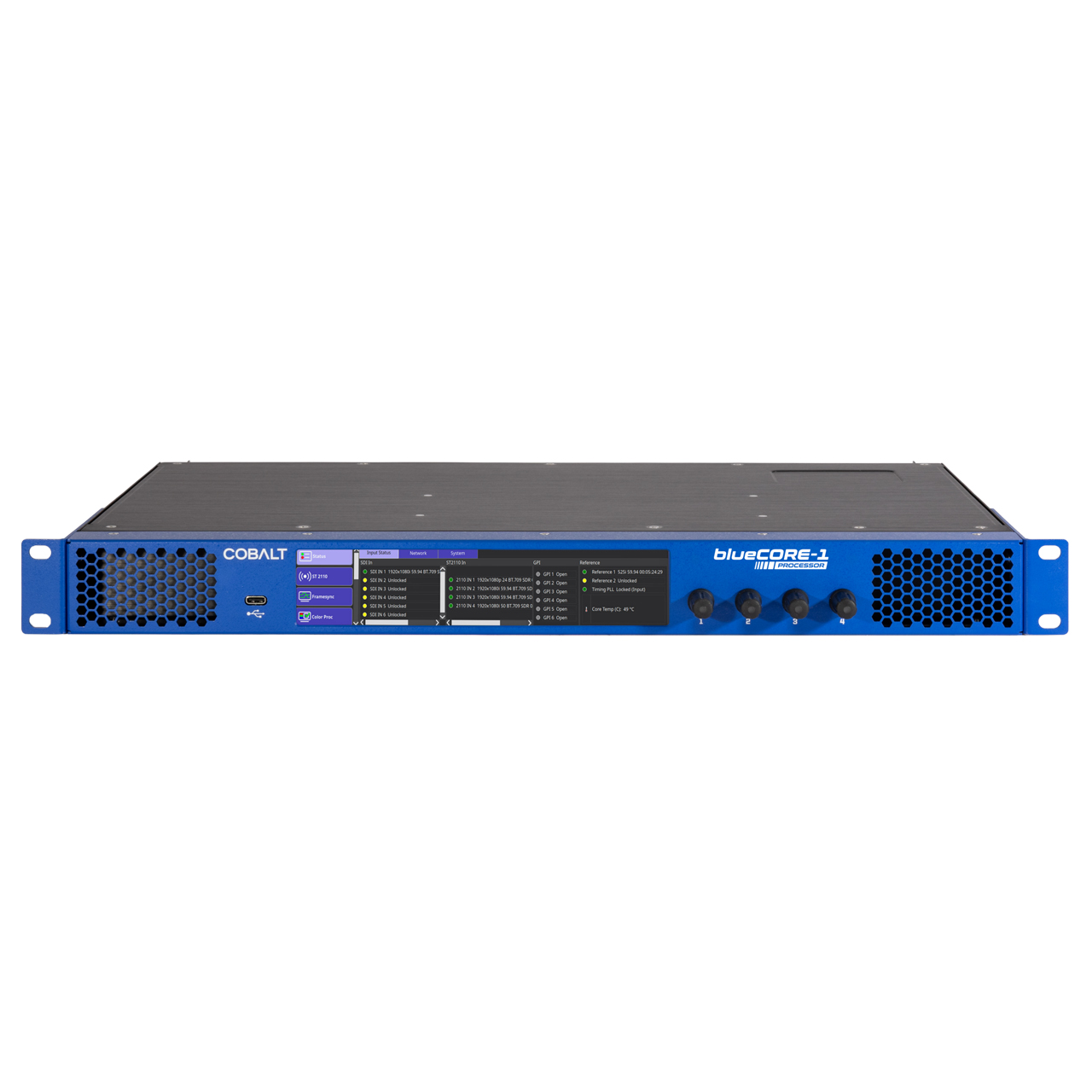

All Cobalt blueCORE models can be network connected, with web-based remote control. Each one is fully configurable through a 7" front panel touchscreen and four rotary knobs. The interface makes status monitoring and connecting to a network simple and easy.

Additionally, it offers looping reference input for black burst or tri-level timing.

Product Categories:
• Fiber Optic Transport: Fiber EO/OE/EOOE Converters with Audio Embed/De-Embed, Fiber EO/OE/EOOE Converters with Signal Processing
• ST 2110: Conversion, Processing
• Frame Synchronizers: Standalone Frame Synchronizers
• Keying/Branding: Standalone Downstream Keyer with Logo Insertion, Keying/Branding Available as Option
• 12G/4K-UHD: 12G Signal Processors
• Embedders/De-Embedders: Audio Embedders/De-Embedders, Standalone Audio Embed/De-Embed
• Converters: Standalone Format Converters
• Color Correction: +COLOR-4K, +COLOR-Color Correction Option
• Audio Processors: 3G Audio Processors
• Standalone Devices: Color Correction/Frame Sync

  • Features:

    • Option for real-time RGB color correction (using front panel knobs, OGCP-9000/CC, or Web UI)
    • Frame Sync
    • Up/Down/Cross conversion (UDX) and Frame Rate Conversion
    • Audio Routing and Shuffling
    • Audio Embedding and De-Embedding
    • Looping reference on the unit provides black burst or tri-level timing
    • Multi-input RP168 clean switch
    • Option for Logo Insertion
    • Option for SCTE-104 Insertion
    • Optional DANTE support (with license)
    • Optional Dolby support (when a factory-installed DSP daughter card and Dolby licenses are purchased)
    • Dual power connectors for redundant power

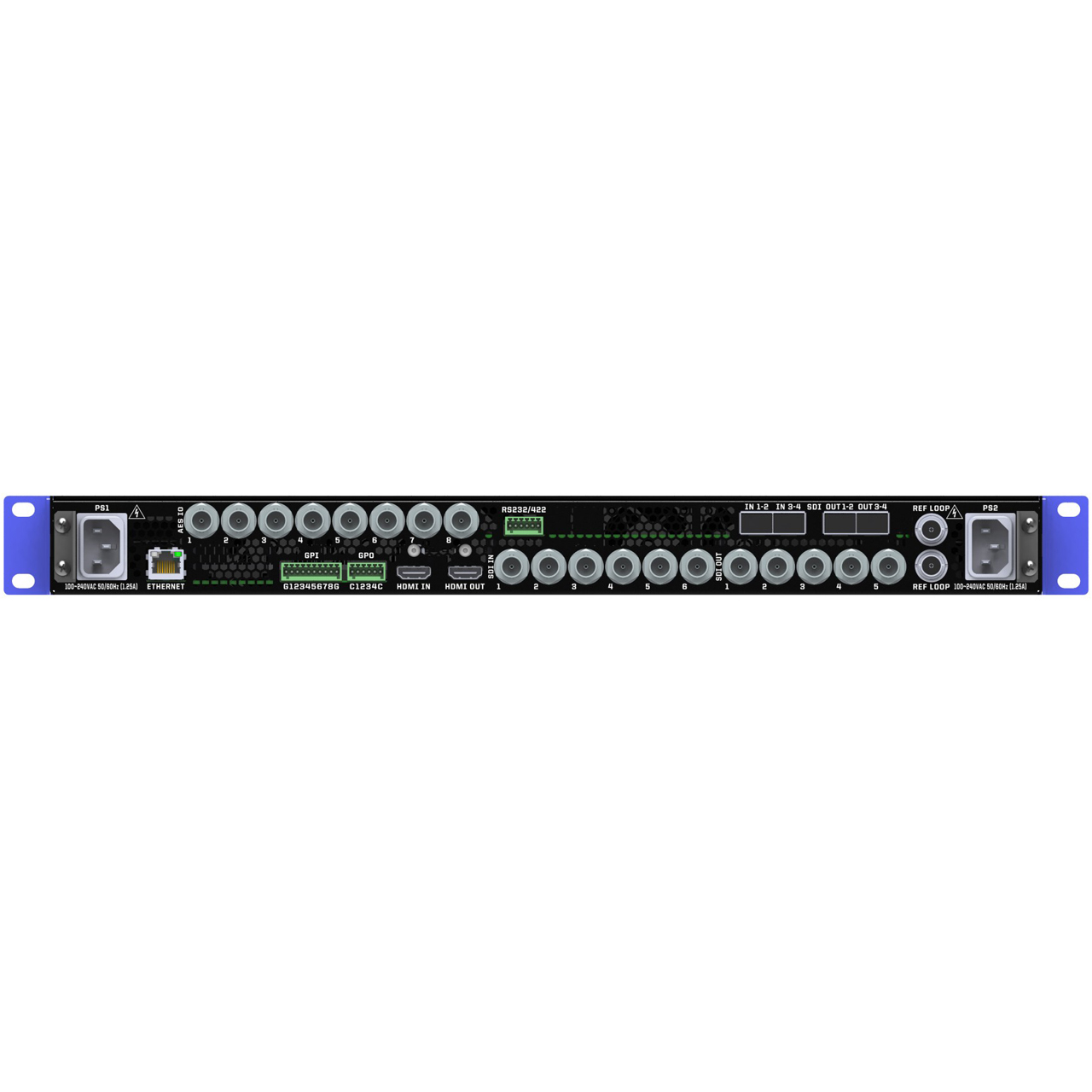

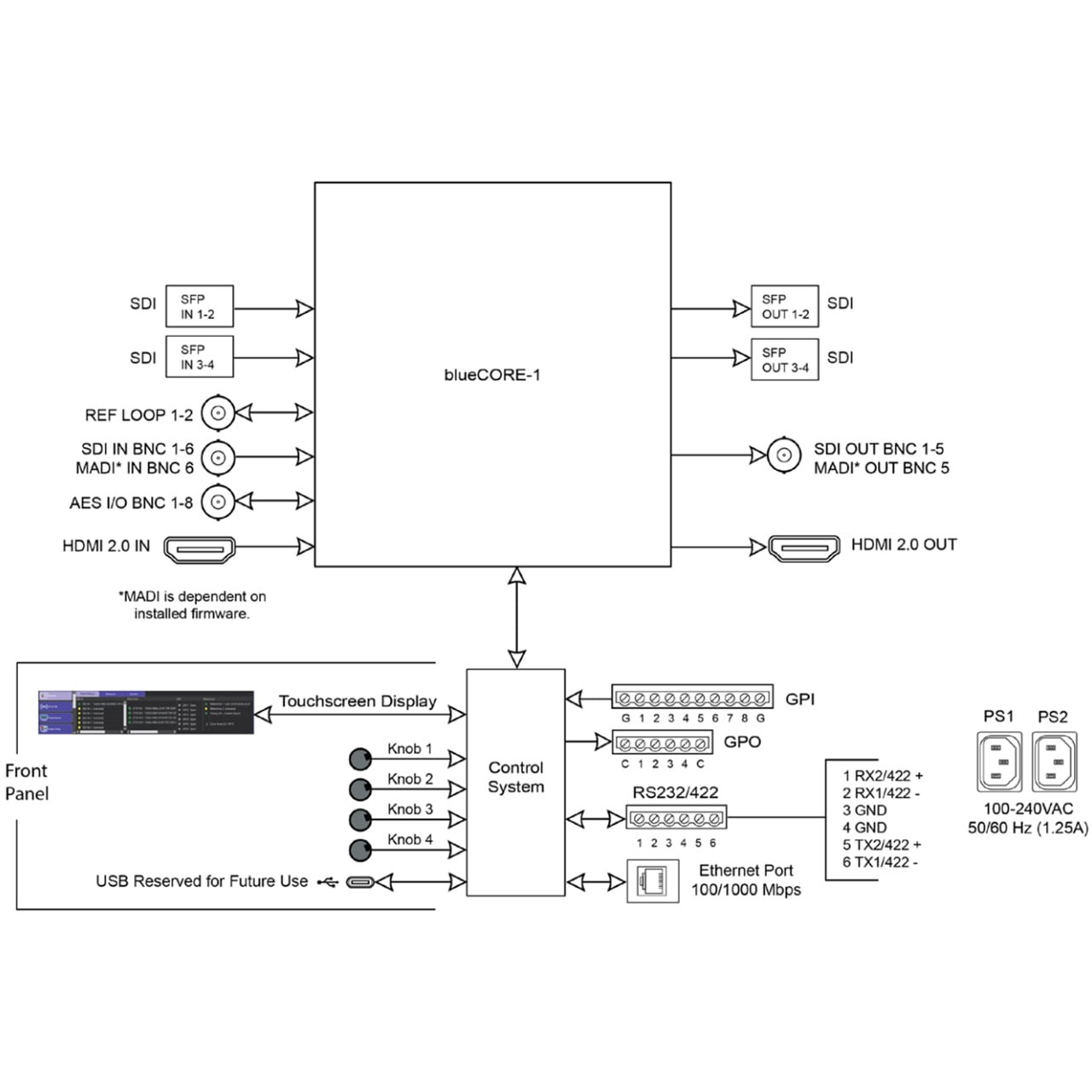

  • Specifications:

      Inputs:
      - 6x 12G*/6G*/3G/HD/SD-SDI BNC
      - 4x 12G*/6G*/3G/HD/SD-SDI Fiber (2 SFP cages)
      - 8x AES BNC (controllable in groups of 4 as inputs or outputs)
      - 1x MADI (shared with SDI BNC Input)
      - 1x HDMI 2.0
    • Outputs:
      - 5x 12G*/6G*/3G/HD/SD-SDI BNC
      - 4x 12G*/6G*/3G/HD/SD-SDI Fiber (2 SFP cages)
      - 8x AES BNC (controllable in groups of 4 as inputs or outputs)
      - 1x MADI (shared with SDI BNC Output)
      - 1x HDMI 2.0
      *Note: Inputs and outputs may be subject to firmware support.
    • Network Connection: 1x Ethernet 100/1000 Mbps port
    • Reference Connection: 2x Reference loop, BNC. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"
    • GPIO Connections:
      - 8x GPI
      - 4x GPO
    • Serial Communication:
      - 1x RS422
      - 2x RS232
    • Power Connection: 2x IEC320 C14 Power Connectors (for redundant power supply)
    • Return Loss:
      - > 5dB up to 12GHz*
      - > 10dB up to 3GHz
      - > 15 dB up to 1.4GHz
      - > 15dB up to 270MHz
    • Input Cable Length:
      - 45m Belden 1694A cable at 11.88Gbps*
      - 120m Belden 1694A cable at 2.97Gbps
      - 240m Belden 1694A cable at 1.485Gbps
      - 400m Belden 1694A cable at 270Mbps
    • Alignment Jitter (12G*/6G*/3G/HD/SD): < 0.3/0.3/0.3/0.2/0.2 UI
    • Output Signal Level: 800mV ±10%
    • DC Offset: 0V ±50mV
    • Frame Sync: Audio/Video Delay
    • Max Offset: 20 frames (Can be expanded to 60 frames with the +DLY option)
    • Latency (min): 1 frame
    • User Audio Delay: Offset from Video
    • Bulk Delay Control: -33msec - +3000msec
    • Per-Channel Delay Controls: -800msec - +800msec
    • Supported Resolutions: 525i, 625i, 720p, 1080i, 1080p, and 2160p*
    • Supported Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
    • Controls:
      - 7" Color LCD touchscreen display
      - 4x LED-illuminated rotary knobs

      Physical
    • Dimensions (WxHxD): 19" x 1.73" x 9.91"
    • Weight: 6.6lbs (or less, depending on factory-installed options)
    • Power Consumption: 50W


  • Item Includes:

    • 1x blueCORE-1 Supports four independent 3G-SDI channels and SDI inputs and outputs


  • Warranty:

    • 5 Year Limited
