Cobalt blueCORE-4 1RU Quad Path Video & Audio Processor - 1x 12G-SDI or 4x 3G-SDI + 3D-LUT & +3DLUT-PRO / ST2110 Support

Name: Cobalt blueCORE-4 1RU Quad Path Video & Audio Processor - 1x 12G-SDI or 4x 3G-SDI + 3D-LUT & +3DLUT-PRO / ST2110 Support
Brand: Cobalt Digital
SKU: CB-BLUECORE-4
Price: 13950.00 USD
Availability: InStock

ITEM #: CB-BLUECORE-4 MFG #: BLUECORE-4

Cobalt Digital

Our Price:

$13,950.00

Add to Wish List Leasing Options

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BLUECORE-4 - Overview

blueCORE processors provide the same quality and functionality as the Cobalt openGear processing cards - all in a self-contained standalone device!

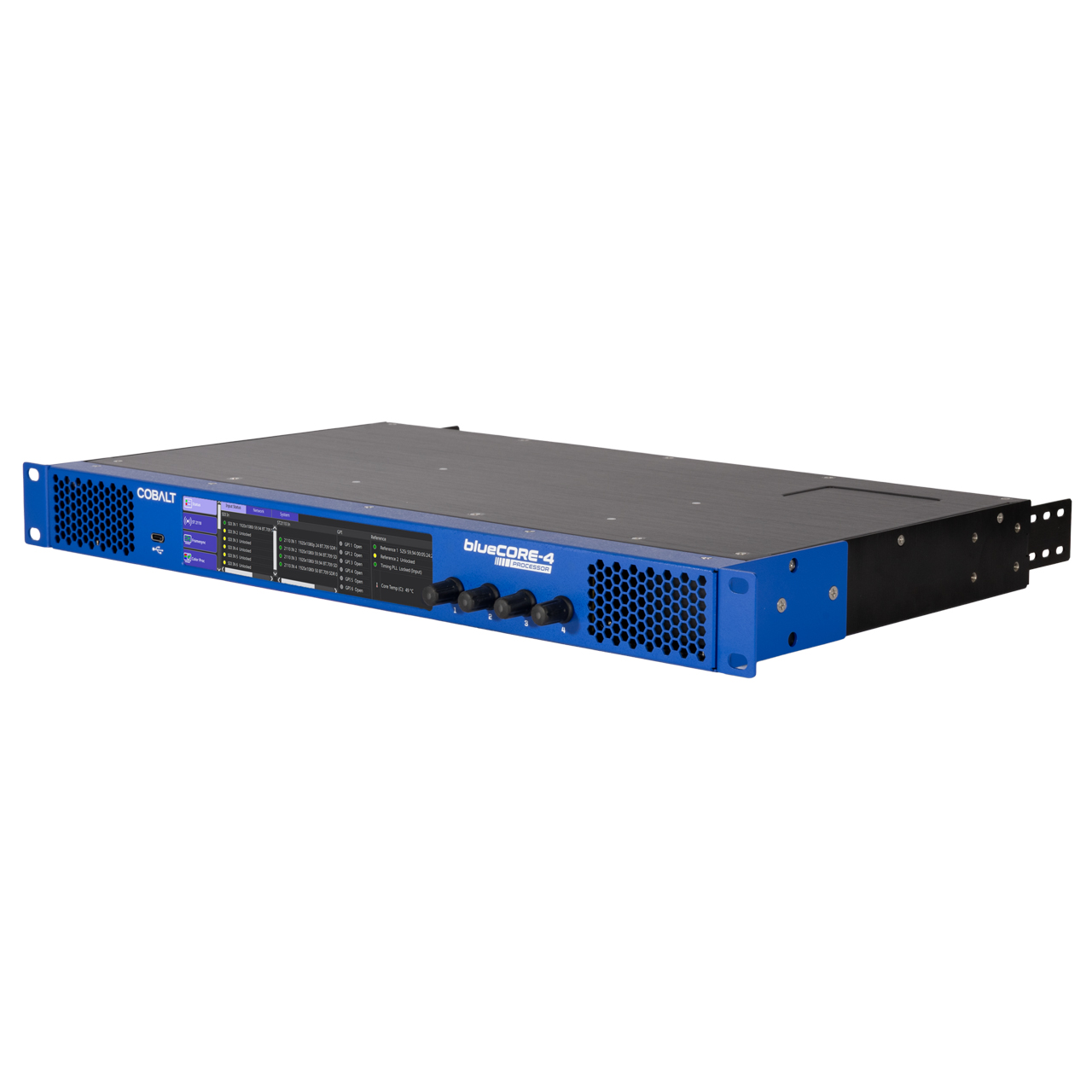

The Cobalt blueCORE-4 hardware conversion technology ensures the highest image quality for any demanding project. The signal processor meets the needs of hybrid workflows that require SDI, ST 2110, Fiber, and HDMI. It has flexible conversion and frame synchronization in a standalone, 1RU rack space.

This processor provides simultaneous audio and video processing with four independent signals (one path of 4K or four paths up to 1080p) with HDR support as 10-bit broadcast quality video and independent groups of multi-channel embedded audio, AES audio, or MADI audio. Options enable DANTE, Dolby, and other features.

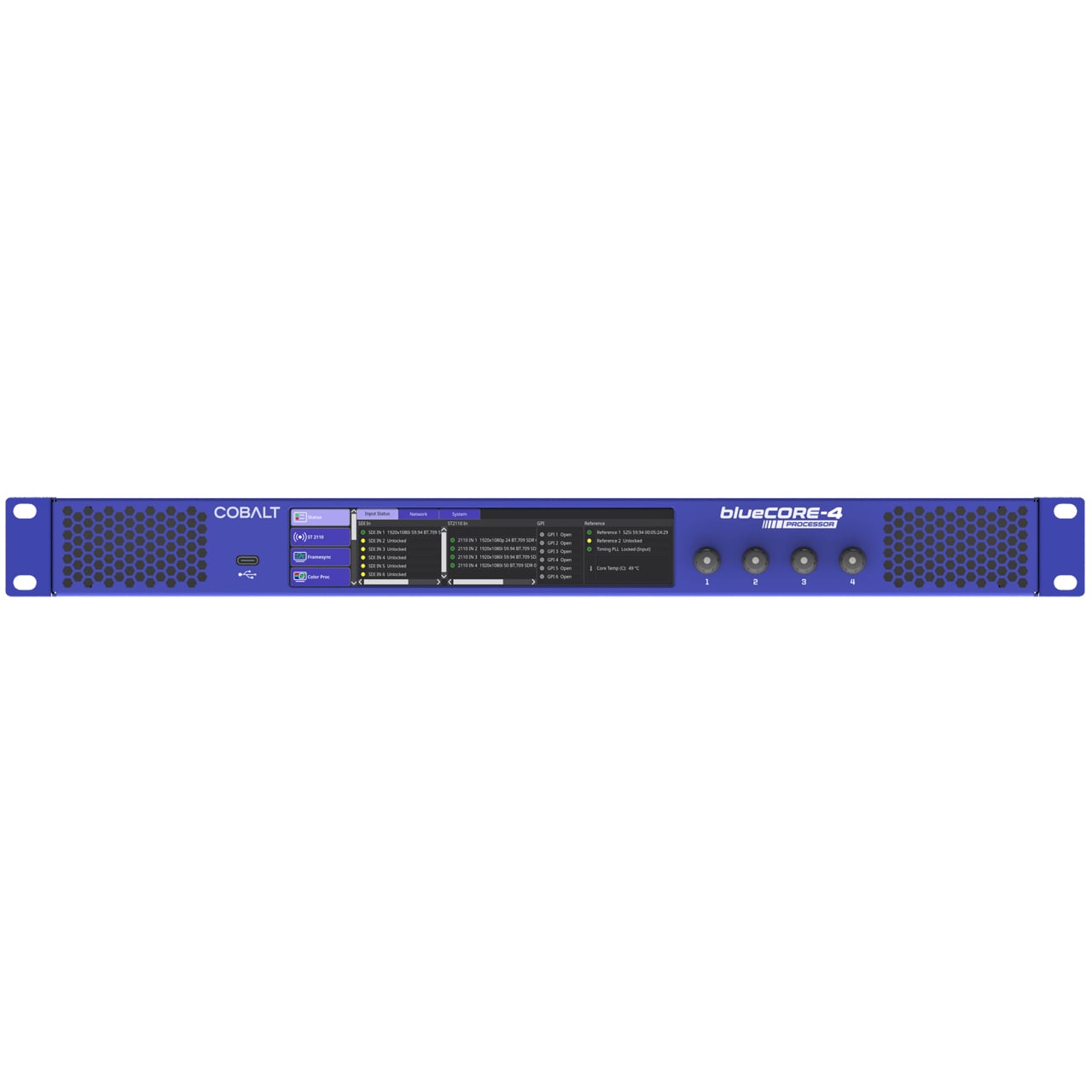

All Cobalt blueCORE models can be network connected, with web-based remote control. Each one is fully configurable through a 7" front panel touchscreen and four rotary knobs. The interface makes status monitoring and connecting to a network simple and easy.

Additionally, it offers looping reference input for black burst or tri-level timing.

Product Categories:
• Fiber Optic Transport: Fiber EO/OE/EOOE Converters with Audio Embed/De-Embed, Fiber EO/OE/EOOE Converters with Signal Processing
• ST 2110: Conversion, Processing
• Frame Synchronizers: Standalone Frame Synchronizers, 12G Frame Synchronizers
• Keying/Branding: Standalone Downstream Keyer with Logo Insertion, Keying/Branding Available as Option
• 12G/4K-UHD: 12G Signal Processors, 12G Frame Sync
• Embedders/De-Embedders: Audio Embedders/De-Embedders, Standalone Audio Embed/De-Embed
• Converters: Standalone Format Converters, 12G Format Converters
• Color Correction: +COLOR-4K, +COLOR-Color Correction Option
• Audio Processors: 12G Audio Processors, 3G Audio Processors
• Standalone Devices: Color Correction/Frame Sync

Features:
- Real-time RGB Color Correction (using front panel knobs, OGCP-9000/CC, or Web UI)
- Frame Sync
- Up/Down/Cross conversion (UDX) and Frame Rate Conversion
- Logo Insertion
- SCTE-104 Insertion
- ST 2110 and IPMX Support
- Audio Routing and Shuffling
- Audio Embedding and De-Embedding
- 3D-LUT is standard on this unit
- Optional Dolby support (with a factory-installed DSP daughter card)
- Redundant Power Supply
Specifications:

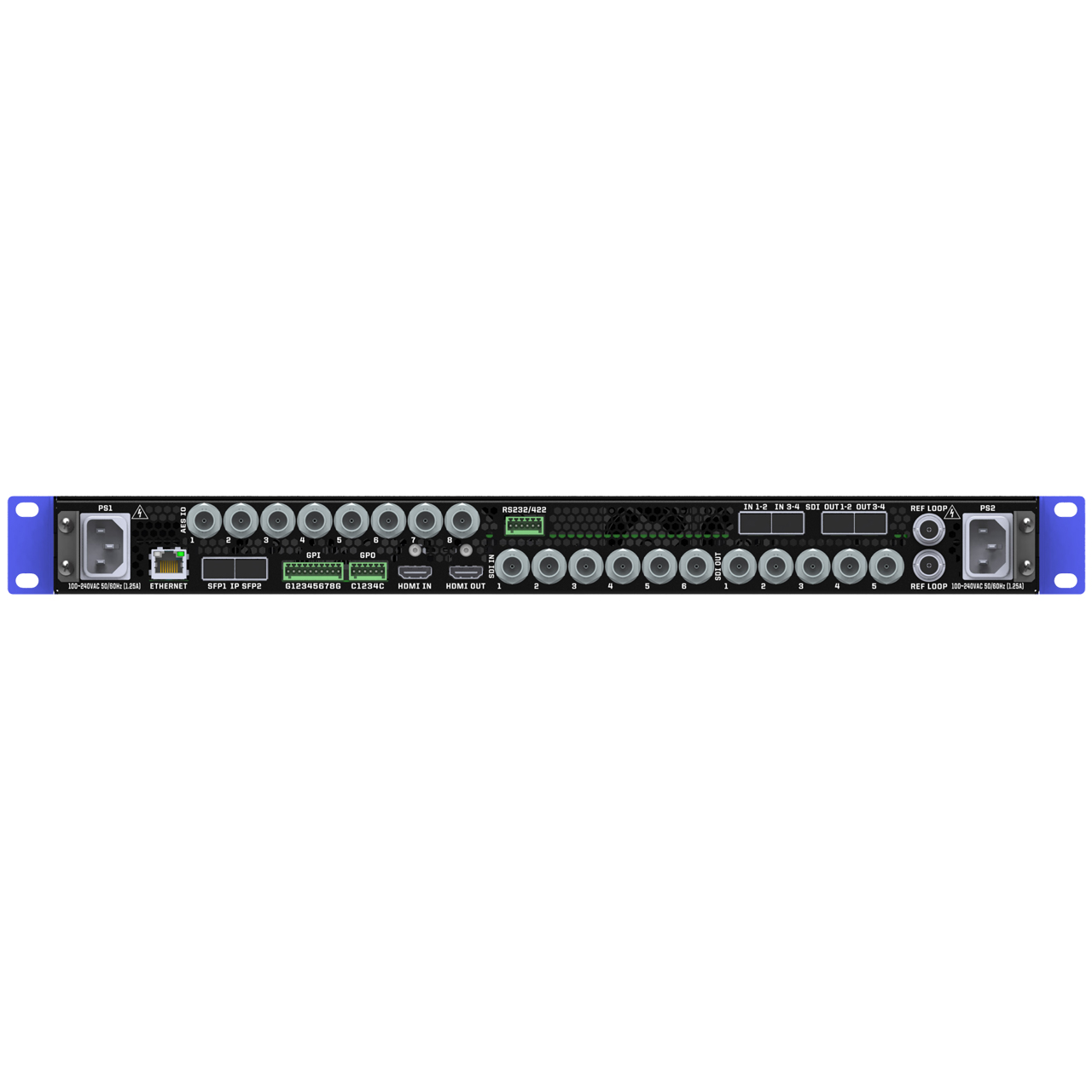

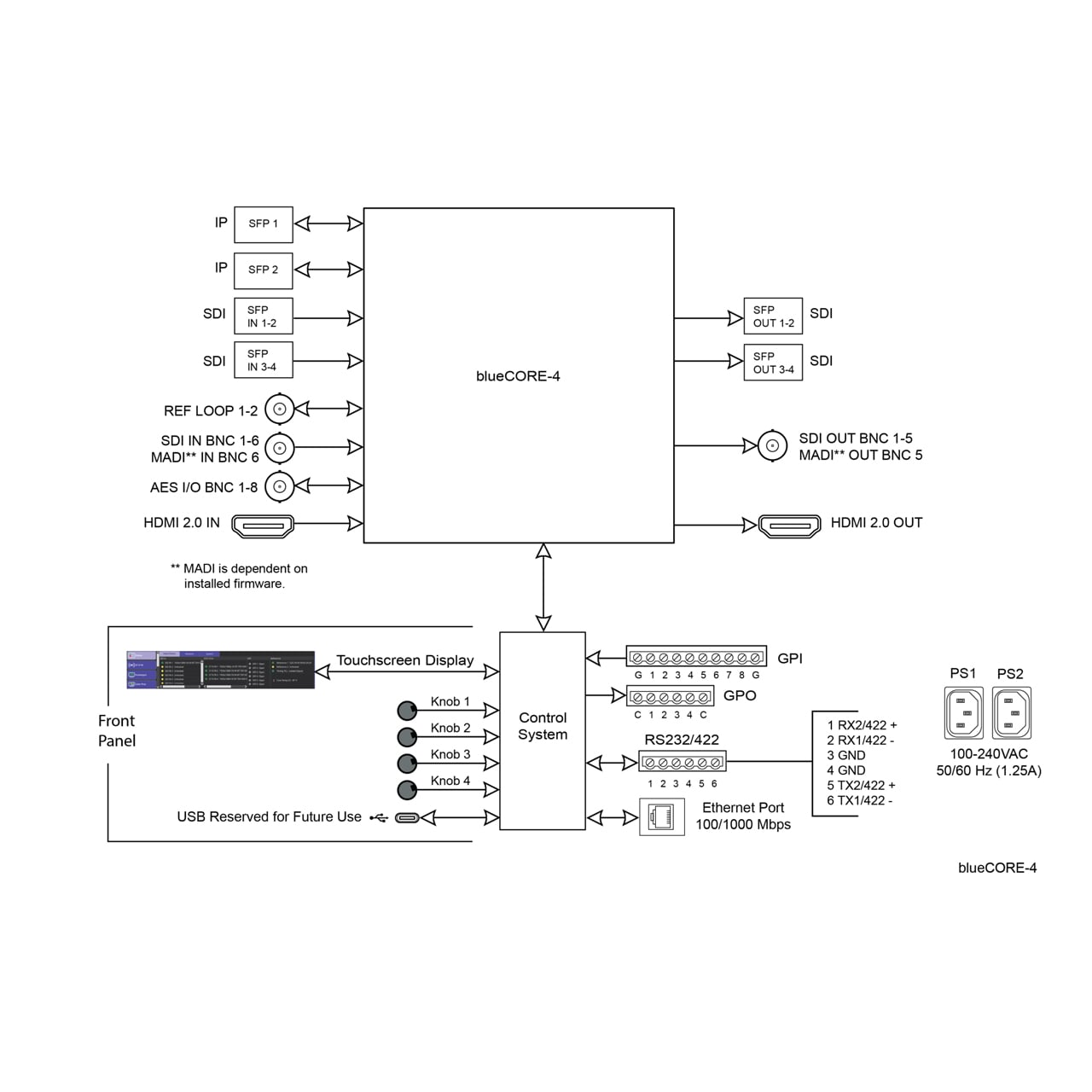

- Inputs:
  - 6x 12G/6G/3G/HD/SD-SDI BNC
  - 4x 12G/6G/3G/HD/SD-SDI Fiber (2x SFP cages)
  - 8x AES BNC (controllable in groups of 4 as inputs or outputs)
  - 1x MADI (shared with SDI BNC Input)
  - 1x HDMI 2.0
- Outputs:
  - 5x 12G/6G/3G/HD/SD-SDI BNC
  - 4x 12G/6G/3G/HD/SD-SDI Fiber (2x SFP cages)
  - 8x AES BNC (controllable in groups of 4 as inputs or outputs)
  - 1x MADI (shared with SDI BNC Output)
  - 1x HDMI 2.0
  *Note: Inputs and outputs may be subject to firmware support.
- ST 2110 Media/IPMX Media Connection: 2x IP SFP Cages 10G/25G
- Network Connection: 1x 100/1000Mbps Ethernet port
- Reference Connection: 2x Reference loop, BNC. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"
- GPIO Connections:
  - 8x GPI
  - 4x GPO
- Serial Communication:
  - 1x RS422
  - 2x RS232
- Power Connection: 2x IEC320 C14 Power Connectors (for redundant power supply)
- Controls:
  - 7" Color LCD touchscreen display
  - 4x LED-illuminated rotary knobs
- Return Loss:
  - > 5dB up to 12GHz
  - > 7dB up to 6GHz
  - > 10dB up to 3GHz
  - > 15dB up to 1.485GHz
  - > 18dB up to 270MHz
- Input Cable Length:
  - 45m Belden 1694A cable at 11.88Gbps
  - 120m Belden 1694A cable at 2.97Gbps
  - 240m Belden 1694A cable at 1.485Gbps
  - 400m Belden 1694A cable at 270Mbps
- Alignment Jitter (12G/6G/3G/HD/SD): < 0.3/0.3/0.3/0.2/0.2 UI
- Rise and Fall Time @ 11.88Gbps: < 45 ps
- Output Signal Level: 800mV ±10%
- DC Offset: 0V ±50mV
- Frame Sync: Audio/Video Delay
- Max Offset: 20 frames (Can be expanded to 60 frames with the +DLY option)
- Latency (min): 1 frame
- User Audio Delay: Offset from Video
- Bulk Delay Control: -33msec - +3000msec
- Per-channel Delay Controls: -800msec - +800msec
- Supported Resolutions: 525i, 625i, 720p, 1080i, 1080p, and 2160p
- Supported Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60

  Physical
- Dimensions (WxHxD): 19" x 1.73" x 12"
- Weight: 6.6lbs (or less, depending on factory-installed options)
- Power Consumption: 80W
Item Includes:
- 1x Cobalt blueCORE-4 1RU Quad Path Video & Audio Processor
