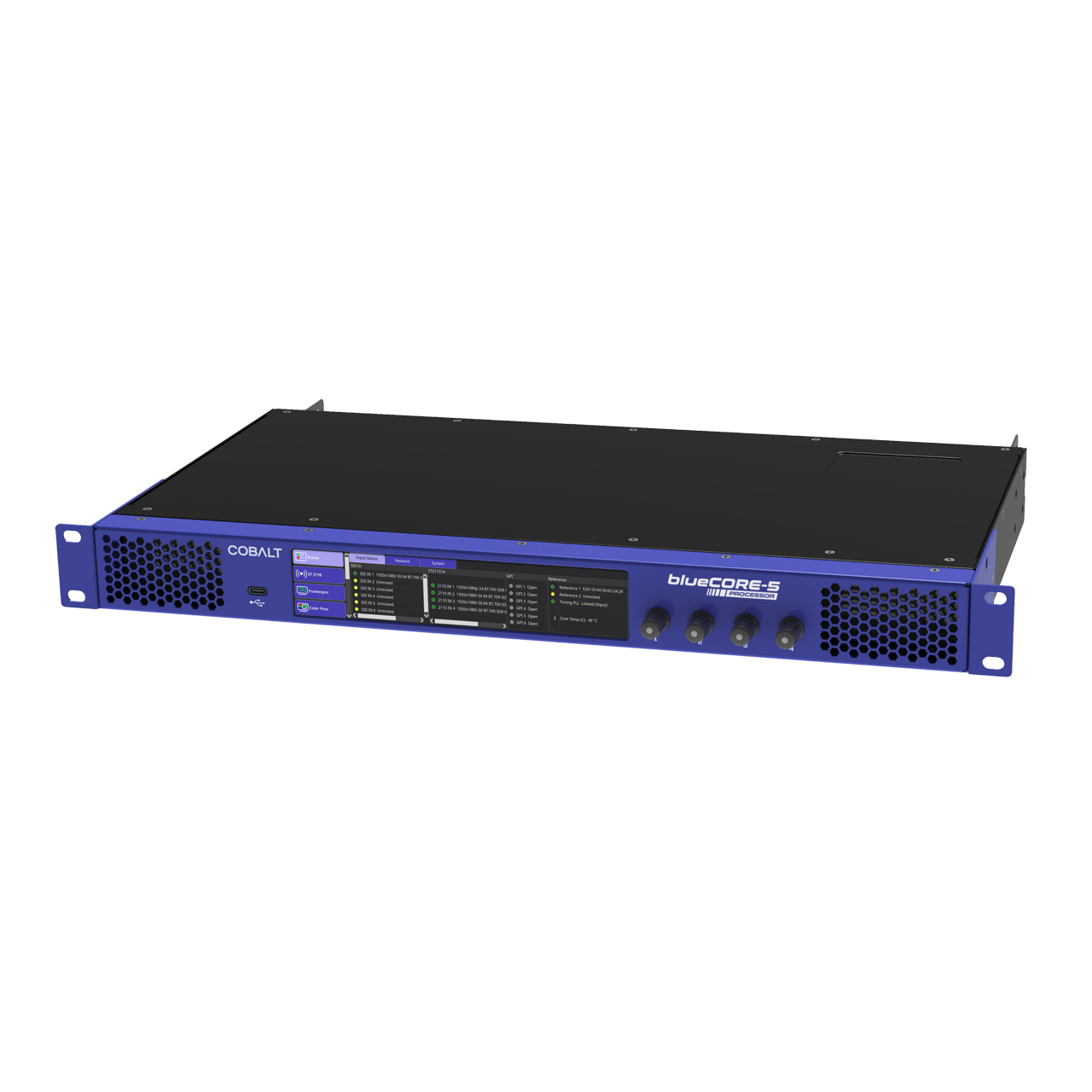

Cobalt blueCORE-5 1RU Quad Path Video & Audio Processor - 1x 4K Channel or 4x 1080p60 on ST 2110 / IPM & +3DLUT Licenses

ITEM #: CB-BLUECORE-5 MFG #: BLUECORE-5

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Cobalt Digital
Free Shipping with $49 Minimum Order

Our Price:

$11,950.00

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BLUECORE-5 - Overview

blueCORE processors provide the same quality and functionality as the Cobalt openGear processing cards in a self-contained standalone device!

The Cobalt blueCORE-5 hardware conversion technology ensures the highest image quality for any demanding project. The signal processor meets the needs of hybrid workflows that require SDI, ST 2110 and Fiber. It has flexible conversion and frame synchronization in a standalone, 1RU rack space.

This processor provides simultaneous audio and video processing with four independent signals (one path of 4K or four paths up to 1080p) with HDR support as 10-bit broadcast quality video and independent groups of multi-channel embedded audio or AES audio. Options enable SDI, MADI audio, DANTE, Dolby, and other features. The Cobalt blueCORE-5 is licensable to Cobalt blueCORE-4 for additional features.

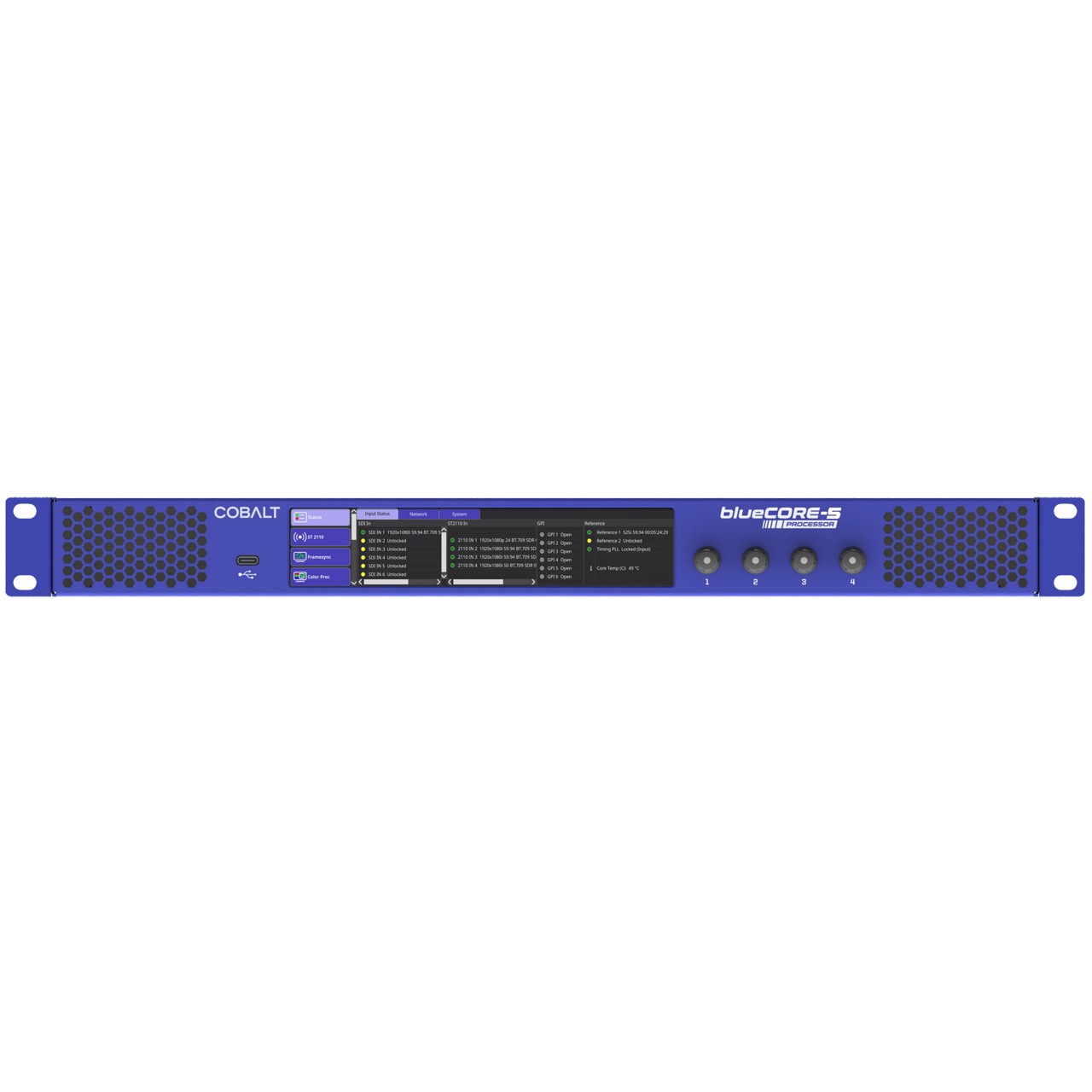

All Cobalt blueCORE models can be network connected, with web-based remote control. Each one is fully configurable through a 7" front panel touchscreen and four rotary knobs. The interface makes status monitoring and connecting to a network simple and easy.

Additionally, it offers looping reference input for black burst or tri-level timing.

Product Categories:
• Fiber Optic Transport: Fiber EO/OE/EOOE Converters with Audio Embed/De-Embed, Fiber EO/OE/EOOE Converters with Signal Processing
• ST 2110: Conversion, Processing
• Frame Synchronizers: Standalone Frame Synchronizers, 12G Frame Synchronizers
• Keying/Branding: Standalone Downstream Keyer with Logo Insertion, Keying/Branding Available as Option
• 12G/4K-UHD: 12G Signal Processors, 12G Frame Sync
• Embedders/De-Embedders: Audio Embedders/De-Embedders, Standalone Audio Embed/De-Embed
• Converters: Standalone Format Converters, 12G Format Converters
• Color Correction: +COLOR-4K, +COLOR-Color Correction Option
• Audio Processors: 12G Audio Processors, 3G Audio Processors
• Standalone Devices: Color Correction/Frame Sync

  • Features:

    • Real-time RGB Color Correction (using front panel knobs, OGCP-9000/CC, or Web UI)
    • Frame Sync
    • Up/Down/Cross conversion (UDX) and Frame Rate Conversion
    • Logo Insertion
    • SCTE-104 Insertion
    • Audio Routing and Shuffling
    • Audio Embedding and De-Embedding
    • 3D-LUT is standard on this unit
    • Optional DANTE support (with license)
    • Optional Dolby support (with factory-installed DSP daughter card and DOLBY license)
    • Redundant Power Supply


  • Specifications:

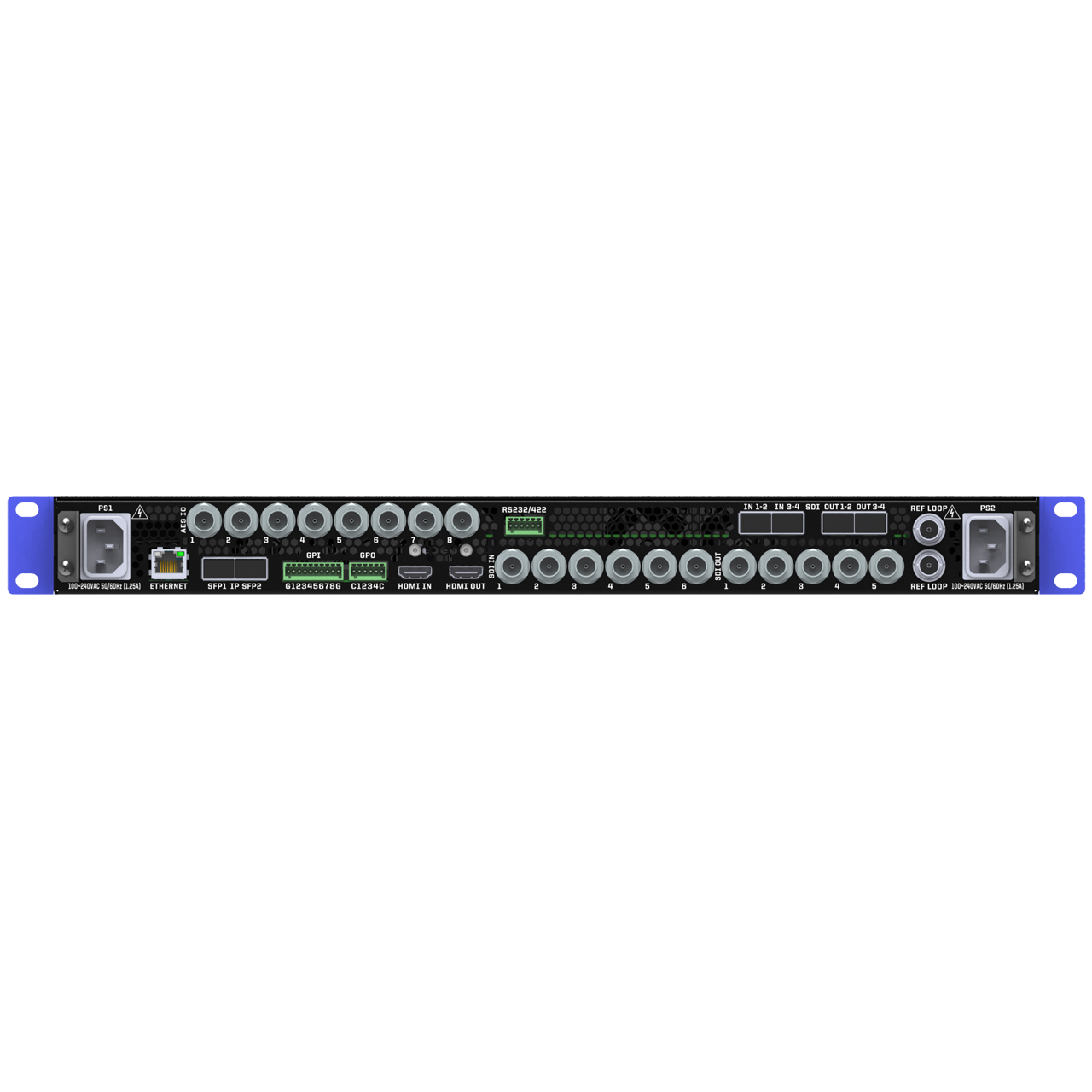

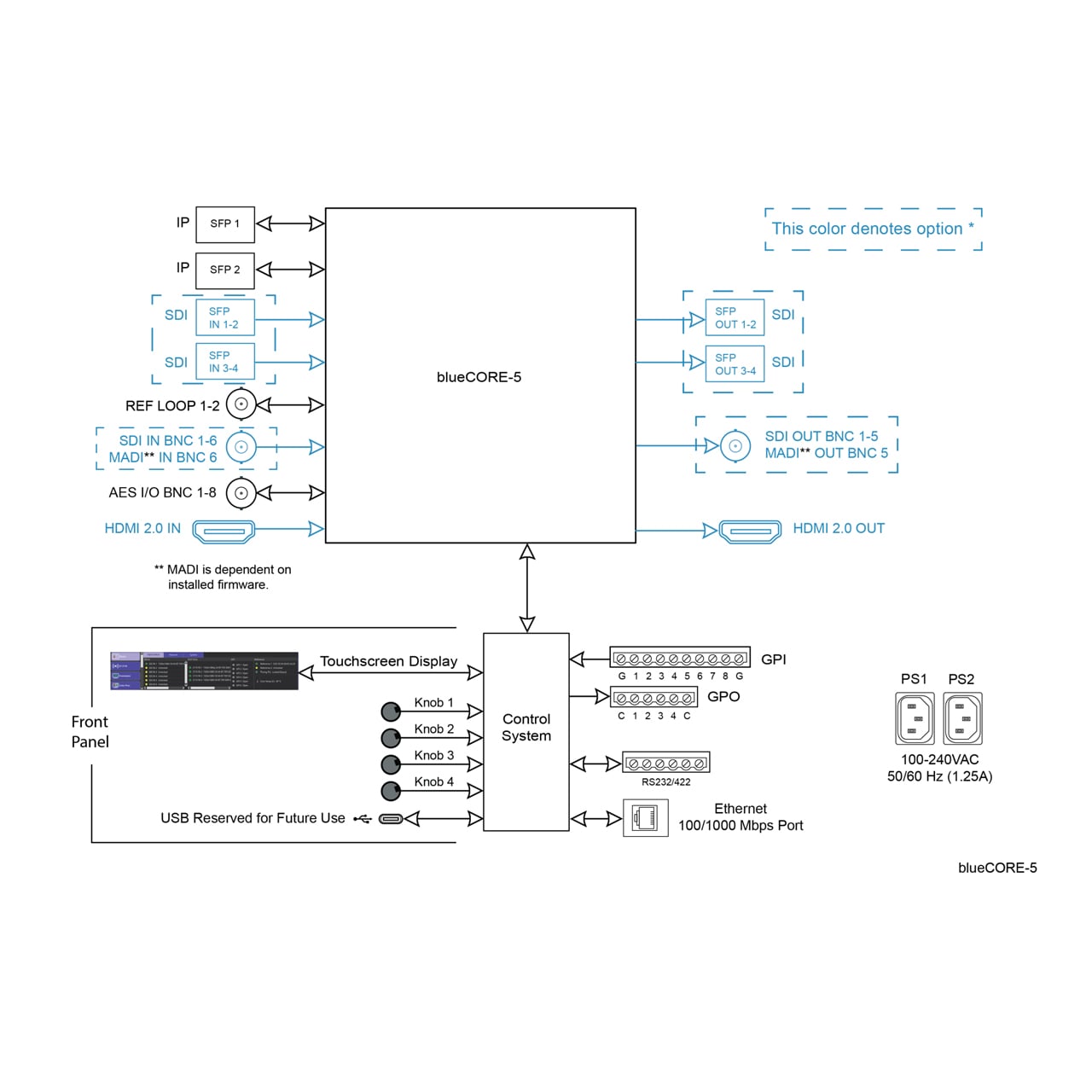

    • Inputs:
      - 8x AES BNC (may be input or output)
      - Optional 6x 12G/6G/3G/HD/SD-SDI BNC
      - Optional 1x MADI BNC (where supported by firmware)
      - Optional 1x HDMI 2.0 Connector
    • Outputs:
      - 8x AES BNC (may be input or output)
      - Optional 5x 12G/6G/3G/HD/SD-SDI BNC
      - Optional 1x MADI BNC (where supported by firmware)
      - Optional 1x HDMI 2.0 Connector
      *Note: Inputs and outputs may be subject to firmware support.
    • ST 2110 Media/IPMX Media Connection:
      - Enabled only by license (sold separately)
      - 2x IP SFP Cages 10G/25G
    • Network Connection: 1x 100/1000Mbps Ethernet port
    • Reference Connection: 2x Reference loop, BNC. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"
    • GPIO Connections:
      - 8x GPI
      - 4x GPO
    • Serial Communication:
      - 1x RS422
      - 2x RS232
    • Power Connection: 2x IEC320 C14 Power Connectors (for redundant power supply)
    • Controls:
      - 7" Color LCD touchscreen display
      - 4x LED-illuminated rotary knobs
    • Return Loss:
      - > 5dB up to 12GHz
      - > 7dB up to 6GHz
      - > 10dB up to 3GHz
      - > 15dB up to 1.485GHz
      - > 18dB up to 270MHz
    • Input Cable Length:
      - 45m Belden 1694A cable at 11.88Gbps
      - 120m Belden 1694A cable at 2.97Gbps
      - 240m Belden 1694A cable at 1.485Gbps
      - 400m Belden 1694A cable at 270Mbps
    • Alignment Jitter (12G/6G/3G/HD/SD): < 0.3/0.3/0.3/0.2/0.2 UI
    • Rise and Fall Time @ 11.88Gbps: < 45 ps
    • Output Signal Level: 800mV ±10%
    • DC Offset: 0V ±50mV

      Frame Sync Audio/Video Delay
    • Max Offset: 20 frames (Can be expanded to 60 frames with the +DLY option)
    • Latency (min): 1 frame

      User Audio Delay Offset from Video
    • Bulk Delay Control: -33msec - +3000msec
    • Per-Channel Delay Controls: -800msec - +800msec
    • Supported Resolutions: 525i, 625i, 720p, 1080i, 1080p, and 2160p
    • Supported Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60

      Physical
    • Dimensions (WxHxD): 19" x 1.73" x 12"
    • Weight: 6.6lbs (or less, depending on factory-installed options)
    • Power Consumption: 80W


  • Item Includes:

    • 1x Cobalt blueCORE-5 1RU Quad Path Video & Audio Processor
