A Professional Multi-Standard Decoder Designed to Meet the Most Stringent Requirements for Today's Broadcasters!

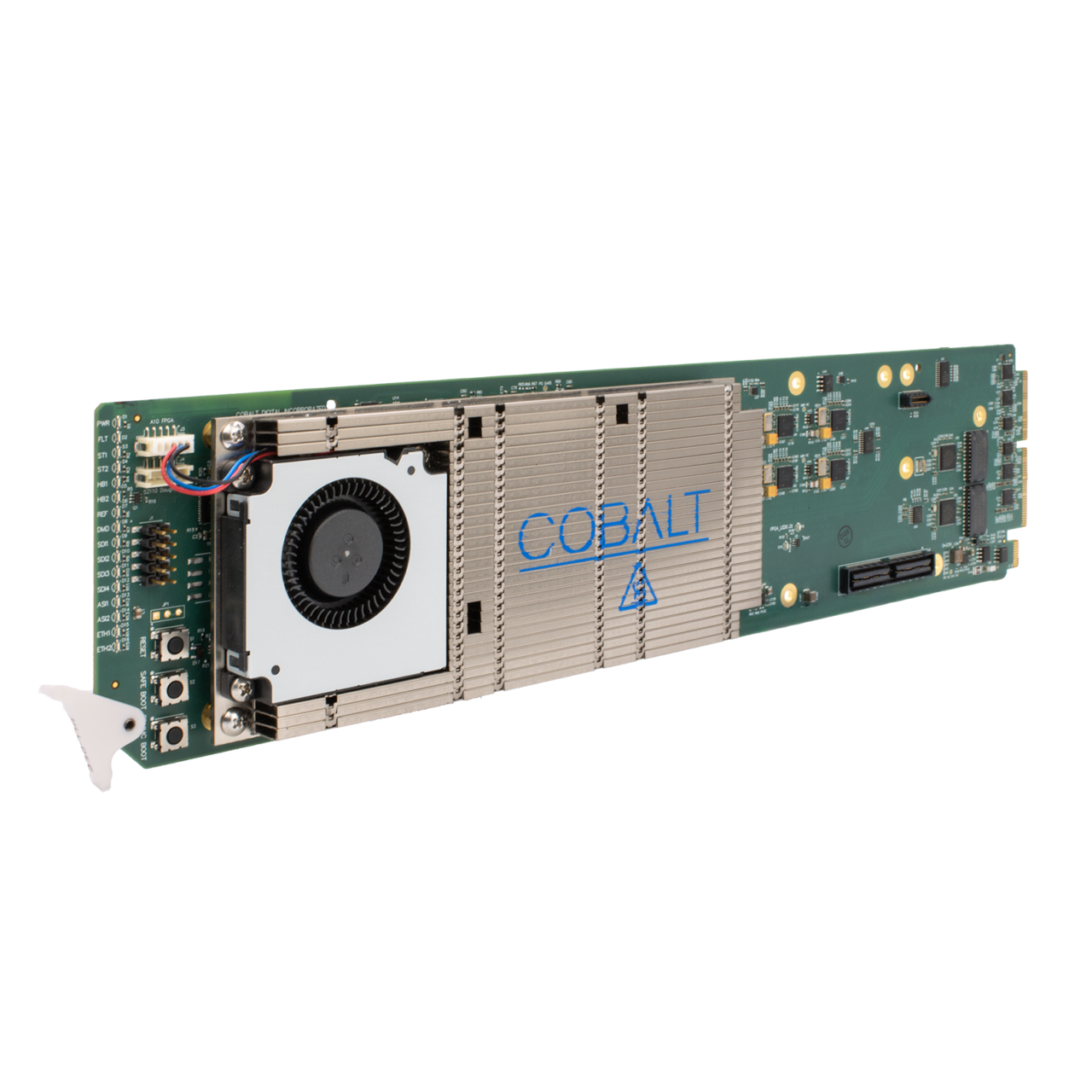

The Cobalt PACIFIC ULL-DEC AVC/MPEG-2 HEVC Upgradeable Software Defined Broadcast Decoder is a professional multi-standard decoder designed to meet the most stringent requirements for today's broadcasters. It supports MPEG-2 and AVC (H.264) (4K support available), as well as offering a full complement of audio decoding capabilities. The PACIFIC ULL-DEC is an industry-standard openGear card and provides an ideal platform for transitioning to state-of-the-art decoding capabilities.
-
- The PACIFIC ULL-DEC Decoder supports MPEG-2, MPEG-4 AVC (H.264) and (optionally) HEVC (H.265), so it can be deployed today and upgraded as your needs change
- Support for one input stream up to 1080p60 (two independent streams with +AVC option), or (optionally) a single UHD 4Kp60 input stream
- Full audio support with decoding of MPEG-1 Layers I/II/III, AAC-LC, HE-AAC, Dolby AC-3/EAC-4/AC-4, SMPTE 302M LPCM, and Dolby-E
- Support for MPEG-2 and MPEG-4 AVC (H.264)
- Supports all popular formats: 480i, 576i, 720p, 1080i, and 1080p. Supports frame rate of: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
- Support for 4:2:0 8-bit/10-bit decoding (*MPEG-2 does not support 4:2:2 or 10-bit)
- Support for 2 stereo pairs (4 audio channels) in any combination of MPEG-1 Layer II, AAC-LC, and HE-AAC (v1/v2) modes, upgradable to 16 stereo pairs (32 channels)
- A 20-slot openGear® frame can support up to 10 PACIFIC ULL-DEC cards, for a total of 20 HD or 10 UHD 4K
- Pass-through support for Dolby AC-3/EAC-3/AC-4
- Ultra low latency of under 5ms of latency for suitable streams
- Remote control/monitoring via DashBoard™ software
- Full ancillary data support
- Supports ASI, UDP, and RTP. Other protocols available as options
- Support for one decode channel up to 1080p60
- Hot-swappable
-
Inputs- 2x DVB-ASI inputs
- 2x Gigabit Ethernet ports for IP input, supporting the following protocols:
- UDP unicast/multicast
- RTP unicast/multicast with optional SMPTE-2022 FEC
- RTMP Client
- RTMP Server (requires optional license)
- RTSP Client
- RIST for contribution over the Internet (requires optional license)
- SRT for legacy contribution over the Internet (requires optional license)
- Outputs
- 2x SDI outputs each supporting 12G-SDI, 3G-SDI, 1.5G-SDI, and SD-SDI
- 2x SDI outputs each supporting 3G-SDI, 1.5G-SDI, and SD-SDI Support for all standard frame rates (interlaced and progressive):
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- Video Decoding
- Decoding Standards:
- MPEG-2
- MPEG-4 AVC (H.264)
- HEVC (H.265) (Option) - Support for one 1080p60 decode session (dual 1080p60
- decode session support optional)
- Support for UHD decoding (option) in AVC and HEVC modes
- (Maximum resolution 3840x2160p60)
- Support for 4:2:0 and 4:2:2 (option) color spaces in all modes
- Support for 8-bit / 10-bit decoding in all modes (10-bit/4:2:2 not available in MPEG-2)
- Low latency decoding supported
- Audio Decoding:
- Decoding Standards:
- MPEG-1 Layers l/ll/lll
- AAC-LC
- HE-AAC (v1/v2)
- LPCM (SMPTE-302M)
- Dolby AC-3/EAC-3/AC-4 support - Maximum number of channels supported (subject to licensing):
- MPEG-1 Layers l/ll/lll: 16 stereo pairs (32 audio channels)
- Dolby AC-3: 16 stereo pairs or an equivalent number of surround channels
- Dolby EAC-3: 8 stereo pairs (16 channels or an equivalent number of surround channels)
- Dolby AC-4: 16 stereo pairs or an equivalent number of surround channels
- Dolby-E: 16 channels or an equivalent number of surround channels
- AAC-LC: 8 stereo pairs (16 channels or an equivalent number of surround channels)
- HE-AAC (v1/v2) 8 stereo pairs (16 channels or an equivalent number of surround channels)
- Optional support for 5.1 Surround Sound decoding, in AAC and Dolby modes
- Video Post-Processing
- Support for up/down/cross conversion of output video (independent of incoming stream)
- Conversion between interlaced and progressive
- Frame rate conversion
- High Dynamic Range (HDR) support
- Ancillary Data Support
- Closed-Captioning: SMPTE-334M (EIA-608 and EIA-708 supported), Line 21 (SD signals)
- OP-47/SMPTE RDD-08 teletext subtitles
- AFD: SMPTE-2016
- SCTE-35 to SCTE-104 conversion
- SMPTE-2038 generic ancillary data transport (timecode, KLV, etc)
- SMPTE-2108 HDR Metadata
- Pass-through support for Dolby AC-3/EAC-3/AC-4
-
- Five Year Limited Warranty
