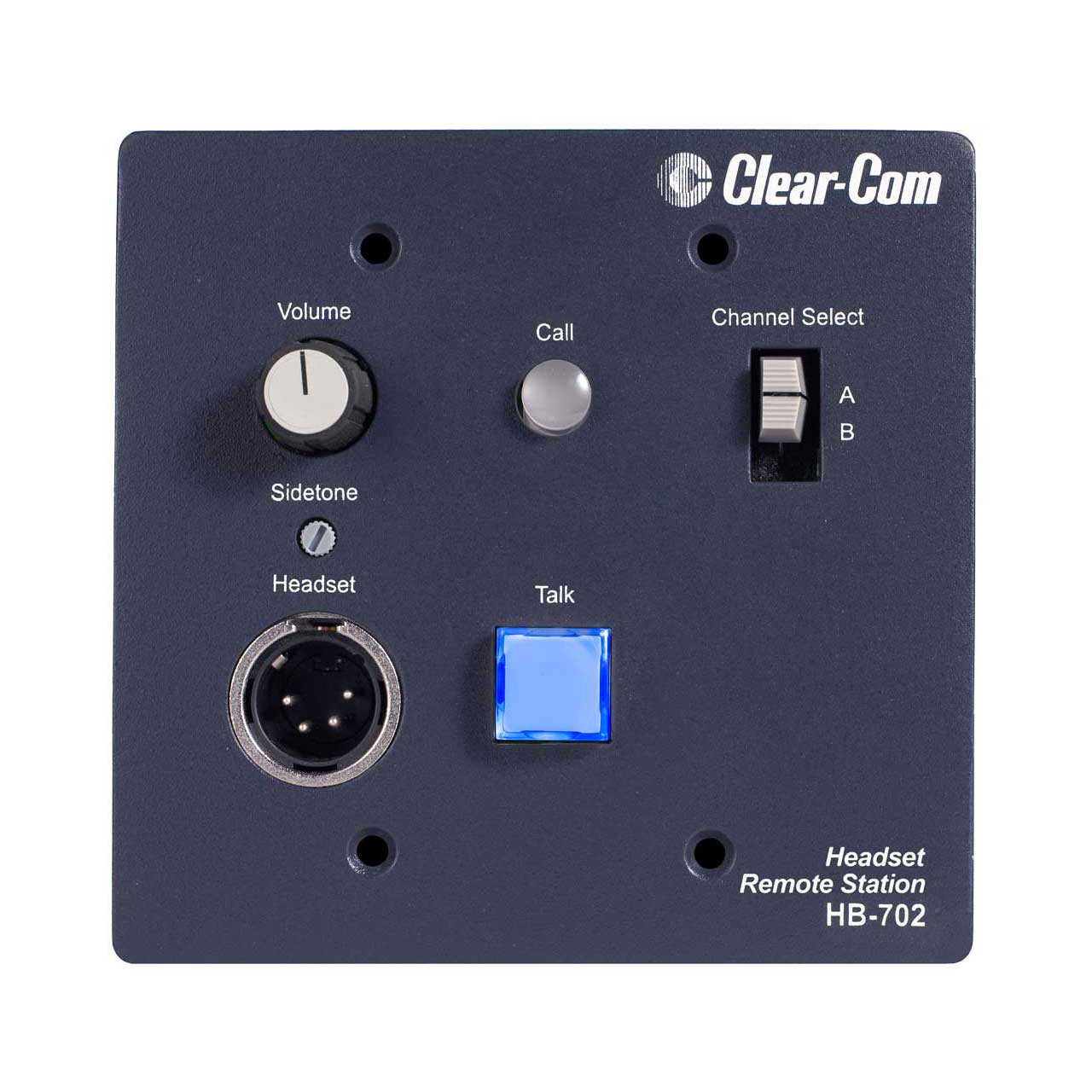

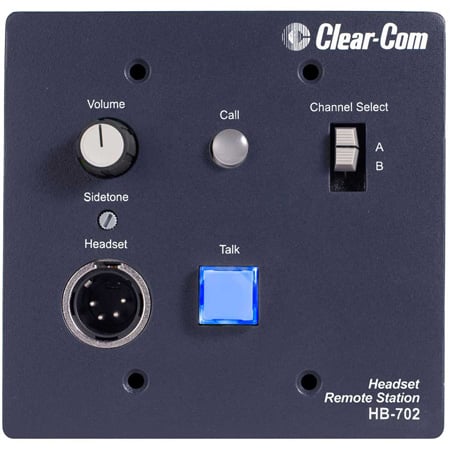

ClearCom HB-702 Encore Intercom System 2-Channel Remote Headset Station

ITEM #: CC-HB702 MFG #: HB-702

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: In Stock
iAvailability Description Popup

    HB-702 - Overview

    The Clear-Com HB-702 is a two-channel-selectable, full duplex headset station, able to be mounted into a wall or other surface. This headset station is ideal for installation in theatrical, performance, broadcast, and industrial facilities wherever a multichannel, full-duplex headset communications panel is desired.

    The unit mounts in a standard U.S. two-gang outlet box. The stations offer excellent speech intelligibility even in high noise environments. Microprocessor-controlled logic plus a set of internal and external controls allow the features of these stations to be tailored to your needs. Electronic switching for the talk button, blue-color LED (on) or amber-color (o), permits momentary or latching operation. A Remote Mic Kill (RMK) signal on the intercom line will turn o the talk function if it is accidentally left on.

    A red-color LED tracks the incoming call signal, so it can be used for visual cueing. An associated call button allows the user to place a call signal on the selected intercom line. The standard 4-pin XLR headset jack accommodates Clear-Com and compatible dynamic headsets. A sidetone level control adjusts the amount of the user's voice heard in the headset. An automatic limiter circuit adjusts and limits the microphone output to the intercom line. The two-position switch on the HB-702 allow you to select from the attached intercom channels. Connections to the intercom lines are made via a screw-terminal block, using standard two-wire shielded mic cable.

    • Features:

      • 2-Channel Remote Headset Station
      • Momentary/Latching Talk switch with LED
      • Microprocessor controlled logic and switching
      • Visual call signaling
      • Headset connector with volume control and sidetone adjust
      • Optional 4-wire daughter board for flexibility
      • Mountable into a standard US two-gang outlet box
    • Specifications:

      • Headset Microphone Input
      • Input Type: Dynamic
      • Input Impedance: >= 1K
      • Mic Limiter Threshold: -2dBu ± 3dB
      • Mic Limiter Range: >= 15dB

        Program Line Input
      • Input Impedance: >= 5K

        Headset Output
      • Load Impedance: >= 8
      • Output Impedance: <= 25
      • Output Limiter Threshold: +5dBu ± 3dB
      • Maximum Output Level before Distortion: >= 17dBu

        Partyline Output
      • Off Noise: < -74dBu
      • Output Impedance: >10K

        Partyline Input
      • Crosstalk: < -60dB
      • Max level before Clipping: >= 12dBu

        Frequency Response
      • Headset Mic - Partyline: 300 - 15kHz ± 3dB
      • Partyline - Headset Out: 300 - 15kHz ± 3dB

        Max Distortion
      • Headset Mic - Partyline: <= 0.5%
      • Partyline - Headset Out: <= 0.2%

      • Headset Mic - Partyline: < -70dBu

        Max Gain
      • Headset Mic - Partyline: 41dB ± 2dB
      • Partyline - Headset Out: >= 34dB

      • Input Voltage Range: 20-30V DC
      • Input Current (Idle): <= 50mA
      • Input Current (Max): <=100mA

        Internal Adjustments and Connections
      • Intercom Line: Seven terminal connector
      • Option Switches: Two DIP switches
      • Option Board Jumper: Two sets of options jumpers

      • 32 - 122°F (0 - 50°C)

      • 4.5 x 4.6 1.75in (HxWxD)
      • (114 x 117 x 44mm)

      • 0.46lbs (0.21kg)
