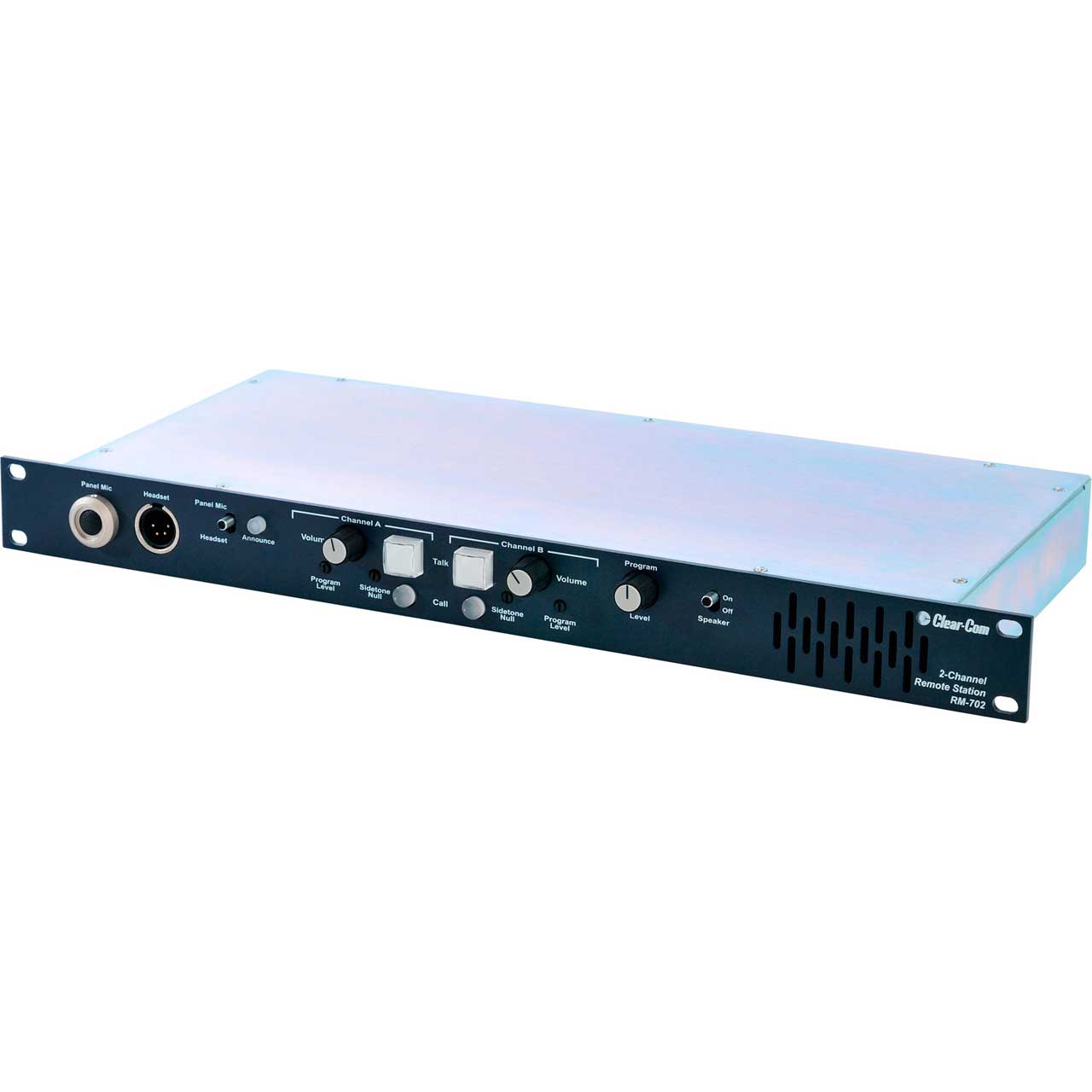

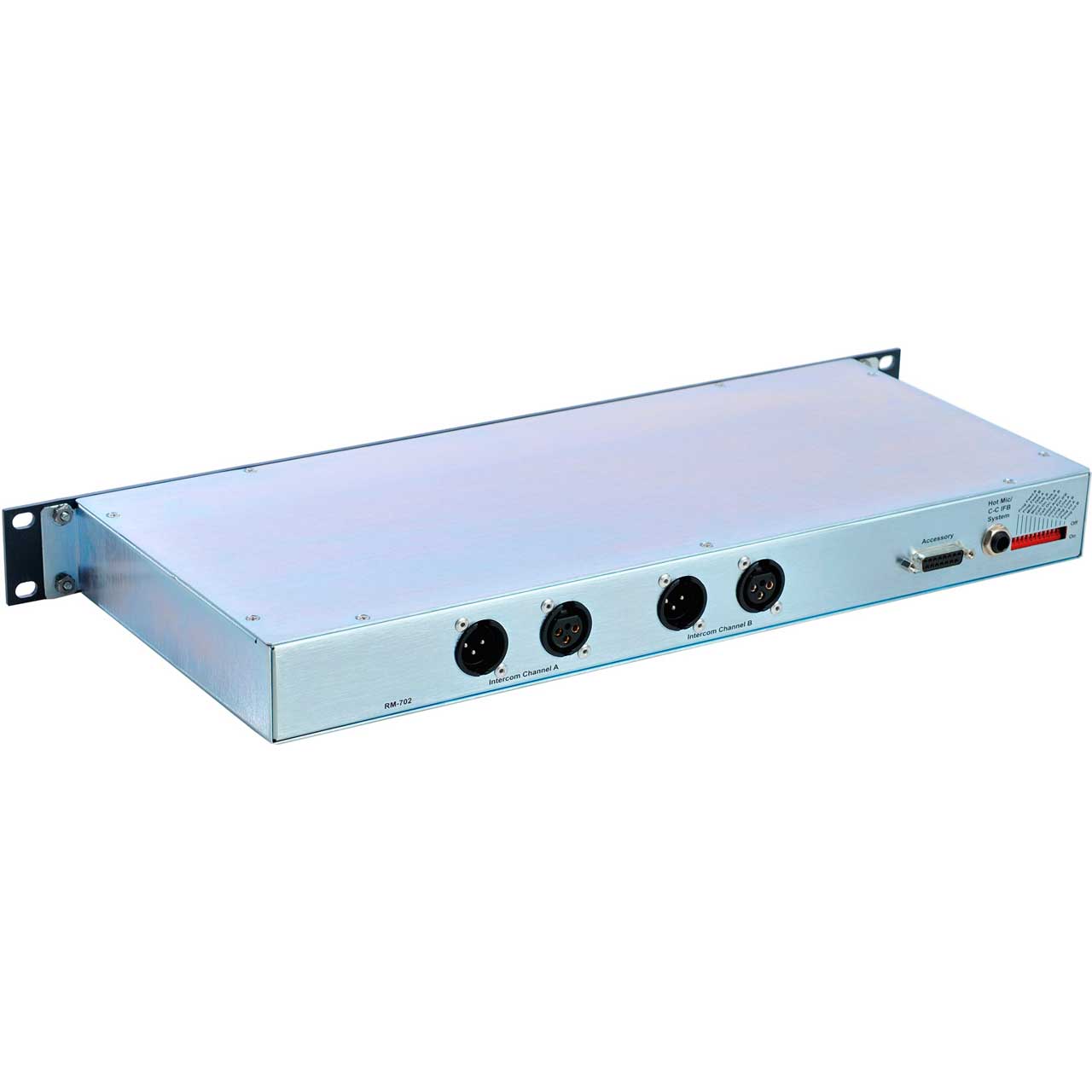

Clear-Com RM-702 Encore 2-Channel 1RU Intercom Remote Headset Station with built-in Speaker

ITEM #: CC-RM702 MFG #: RM-702

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$1,380.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    RM-702 - Overview

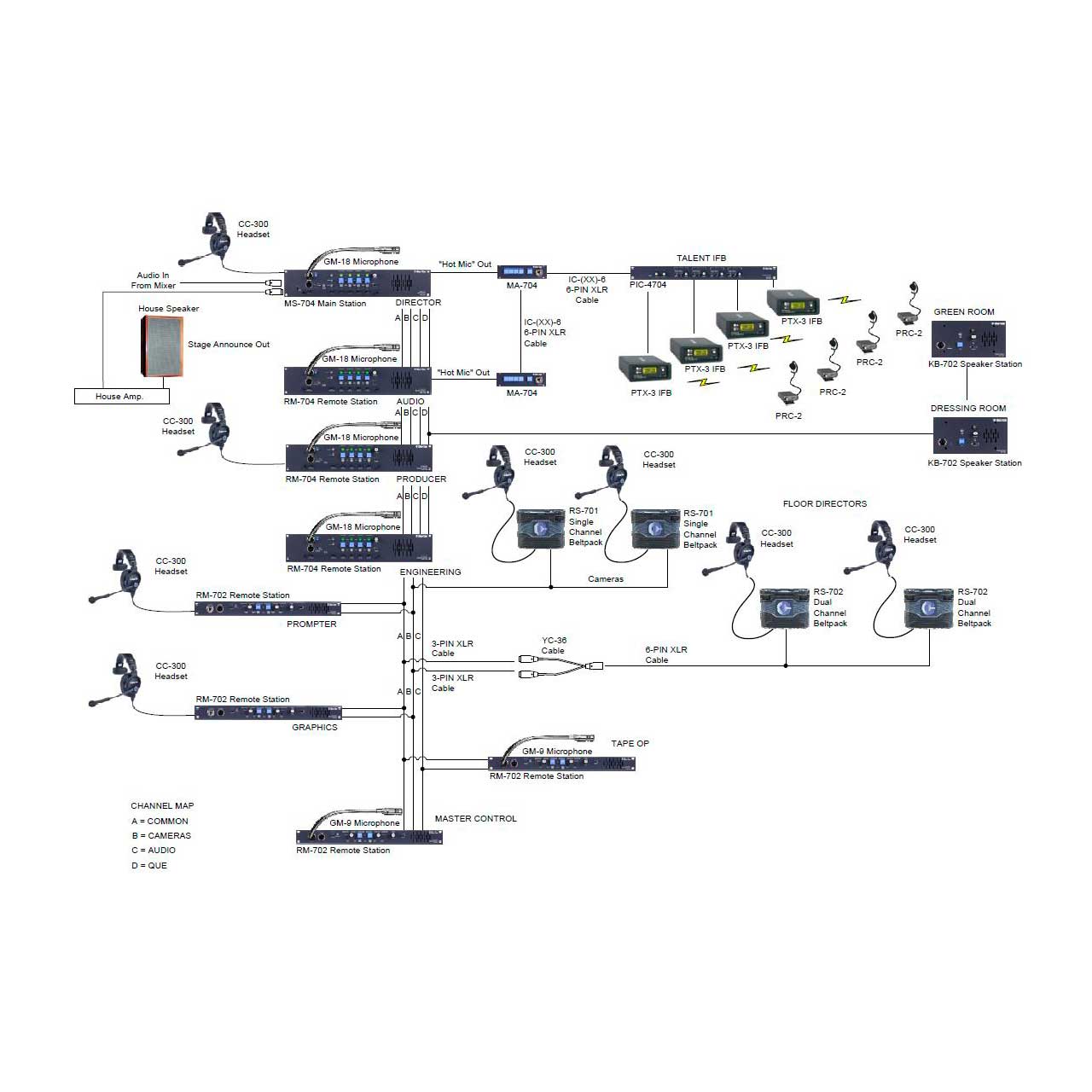

    The Clearcom RM-702 is a 1RU two-channel remote station with programmable front panel buttons and individual channel volume control designed as part of the Encore Analog Partyline Intercom System. The RM-702 is powered directly from the intercom line and requires no external AC power.

    Easy to install and connect over standard, two-conductor shielded mic cable. Clear-Com Encore systems have front-panel key controls or ergonomically-designed beltpacks for intuitive operations - even by the novice user.

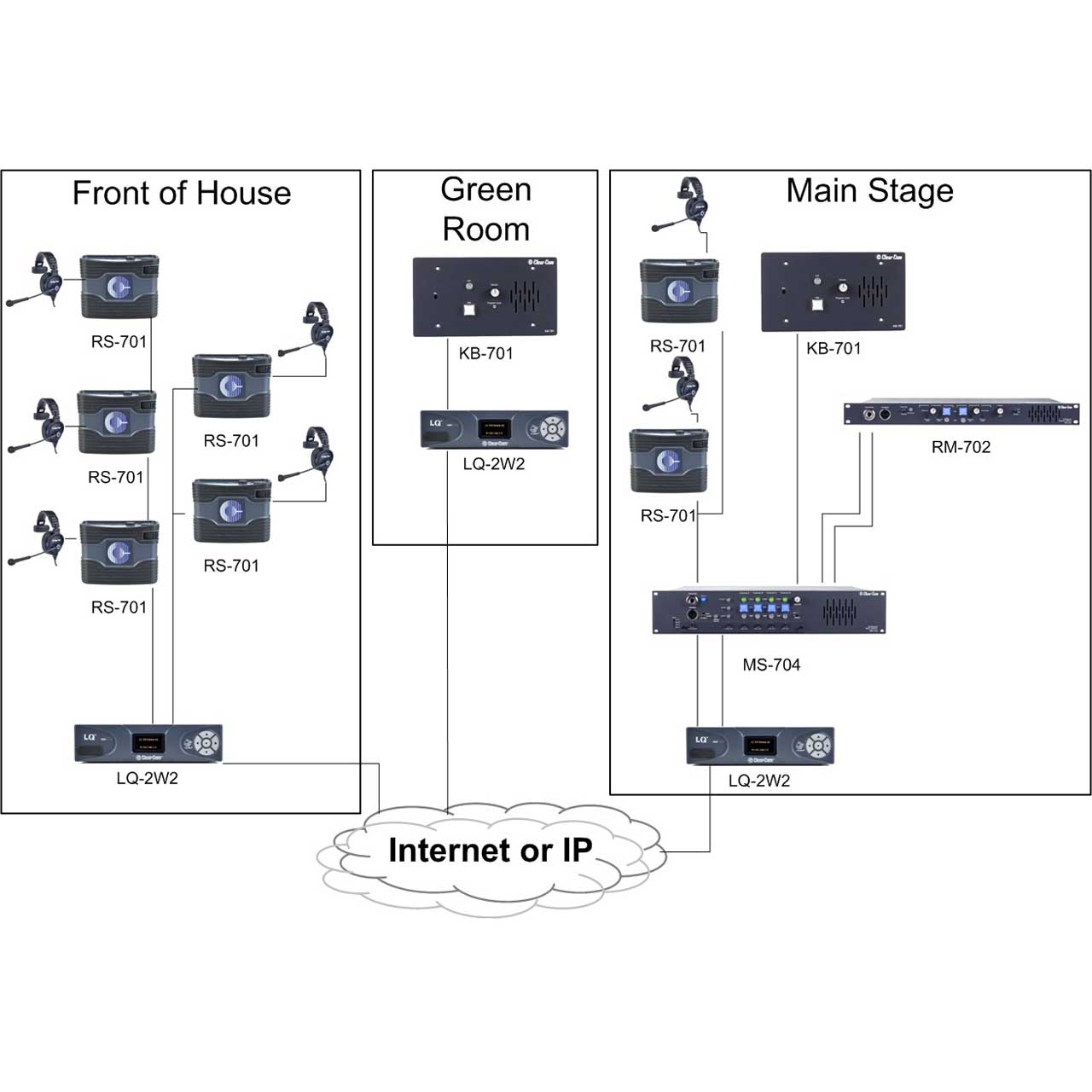

    Clear-Com Encore provides you with fast, simple and instant access to the person or persons you need to speak to the most on any given intercom channel. Unlike other communication options, this full-duplex platform allows people (on their independent user devices) on the same channel to carry out bi-directional, conversational-style communication, without being concerned with the quality of the connection or sound. The system can scale over standard mic cable or over IP interfaces.

    • Features:

      • 2-Channel 1RU Remote Station with built-in Speaker
      • Selectable one- or two-channel communication
      • Momentary/Latching talk buttons
      • Individual call buttons
      • Visual and audible call signaling
      • Balanced audio input with program interrupt (IFB)
      • Hot mic and line-level outputs
      • Stage announce output with relay
      • Built-in speaker

    • Specifications:

      • Panel Microphone Input
      • Input Type: Electret
      • Input Impedance: >=2K
      • Mic Limiter Threshold: 0dBu ±3dB
      • Mic Limiter Range: >= 20dB

        Headset Microphone Input
      • Input Type: Dynamic
      • Input Impedance: >= 1K
      • Mic Limiter Threshold: 0dBu ± 3dB
      • Mic Limiter Range: >= 15dB

        Speaker Output
      • Load Impedance: >= 4
      • Max Output Level before 1% Distortion: 20dBu ± 2dBu

        Partyline Output
      • Output Noise: < -74dBu
      • Output Impedance: >10K

        Partyline Input
      • Crosstalk: < -60dB
      • Max level before Clipping: >= 12dBu
      • Sidetone Null Capability: > 25dB

        Stage Announce/Balanced Line Out
      • Type: Balanced
      • Output Impedance: >= 200Ω
      • Load Impedance: >= 600Ω

        IFB/Hot Mic
      • Type: Unbalanced
      • Output Impedance: 180Ω
      • Load Impedance: >= 600Ω

        Frequency Response
      • Panel Mic - Partyline: 600Ω - 10kHz ± 3dB
      • Headset Mic - Partyline: 200Ω - 12kHz ± 3dB
      • Headset Mic - Line Out: 200Ω - 12kHz ± 3dB
      • Program Input - Partyline: 100Ω - 17kHz ± 3dB
      • Program Input - Headset Out: 200Ω - 10kHz ± 3dB
      • Program Input - Speaker Out: 300Ω - 10kHz ± 3dB
      • Partyline - Headset Out: 200Ω - 10kHz ± 3dB
      • Partyline - Speaker Out: 300Ω - 10kHz ± 3dB

        Max Distortion
      • Panel Mic - Partyline: <= 0.5%
      • Headset Mic - Partyline: <= 0.5%
      • Headset Mic - Line Out: <= 0.5%
      • Program Input - Partyline: <= 0.2%
      • Program Input - Headset Out: <= 0.2%
      • Program Input - Speaker Out: <= 0.5%
      • Partyline - Headset Out: <= 0.2%
      • Partyline - Speaker Out: <= 0.5%

        Noise
      • Panel Mic - Partyline: < -65dBu
      • Headset Mic - Partyline: < -70dBu
      • Headset Mic - Line Out: < -55dBu
      • Program Input - Partyline: < -85dBu
      • Program Input - Headset Out: < -60dBu
      • Program Input - Speaker Out: < -60dBu
      • Partyline - Headset Out: < -50dBu
      • Partyline - Speaker Out: < -50dBu

        Max Gain
      • Panel Mic - Partyline: >= 37dB
      • Headset Mic - Partyline: 41dB ± 2dB
      • Headset Mic - Hot Mic Out: 55dB ± 3dB
      • Headset Mic - Announce Out: 55dB ± 3dB
      • Program Input - Partyline: >= -16dB
      • Program Input - Headset Out: >= 18dB
      • Program Input - Speaker Out: >= 24dB
      • Partyline - Headset Out: >= 34dB
      • Partyline - Speaker Out: >= 40dB

        Min Gain
      • Panel Mic - Partyline: <= 25dB

    • GTIN:

      0657248932206
