ATX Networks CEF-860CH3 Single Channel Elimination Filter - 860 mHz
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

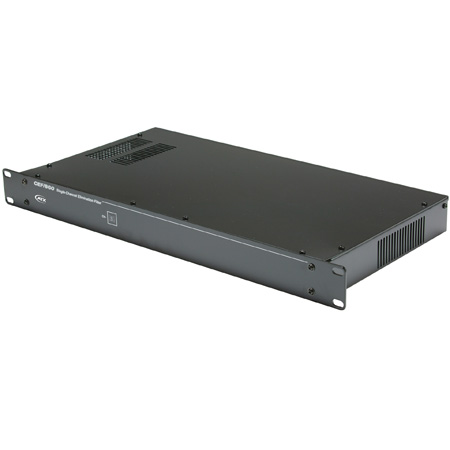

    ATX Networks CEF-860CH3 Single Channel Elimination Filter - 860 mHz

    Manufacturer: ATX Networks

    Item #: CEF-860CH3   •   MFG #: CEF/860CH3


    List Price:$760.00
    Our Price:$559.60

    free ship
    Direct Ship from manufacturer, contact us for availability
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      The ATX Network CEF860CH3 is professional grade single channel elimination filter designed to provide a 6MHz-wide carrier-free environment to insert locally originated channels. When used in conjunction with ATX NetworkΓÇÖs high quality modulators, these units are the most cost-effective method to add locally originated programming to an MATV or CATV system while ensuring the highest quality picture across the band. This unit employs multi-stage cavity bandpass and notch filtering to provide single channel rejection depth typically greater than -55dB, thereby eliminating disruptive carriers and greatly improving picture quality. Also, the unique filter design and sharp frequency cut-off provide minimum adjacent channel disruption and excellent passband frequency response ensuring no degradation in system performance. In systems requiring more than one inserted channel, up to 3-units can be cascaded for multiple channel elimination and reinsertion with negligible interaction. The CEF860 is pre-tuned to any channel in the notch range for easy drop-in installation.

      • Features

        • 142 Channel frequency passband 5 to 860 MHz (CATV T7-T13, 2-13, A1-A5, A-ZZZ, 89-135)
        • Rejects a total of 66 channels ranging from Ch.2-Ch.TT
        • Deep -50 dB minimum cavity-tuned notch filter for clean signal removal of selected cable channels and subsequent insertion of locally originated signals
        • Sharp filter cut-off edges allow adjacent channels to be processed with negligible loss
        • High-Q helical resonators with unique coupling circuitry provide excellent long-term stability
        • Up to 4 units can be cascaded for multiple channel elimination and reinsertion with negligible interaction
      • Specifications

        • Passband Frequency Range: 5 to 860 MHz
        • Rejection Band Frequency Range: 54 to 450 MHz
        • Rejection Band Channel Range: Ch.2-Ch.TT
        • Rejection Bandwidth: 6 MHz
        • Channel Rejection (min): 50 dB
        • Insertion Loss: 5 dB
        • Adjacent Channel Loss (Low-Band): 6 dB, (Mid-, High-, Super-, Hyper-Band): 8 dB
        • Impedance: 75 ω F-Female
        • Dimensions: 19” (W) x 9” (D) x 1.75” (H)
        • Weight: 7.5 lbs.
      • Warranty

        • 5 Year Limited Warranty
