Chief Fusion 32-65 Inch Display Medium Adjustable TV Wall Mount - Black

ITEM #: CHF-MSM1U MFG #: MSM1U

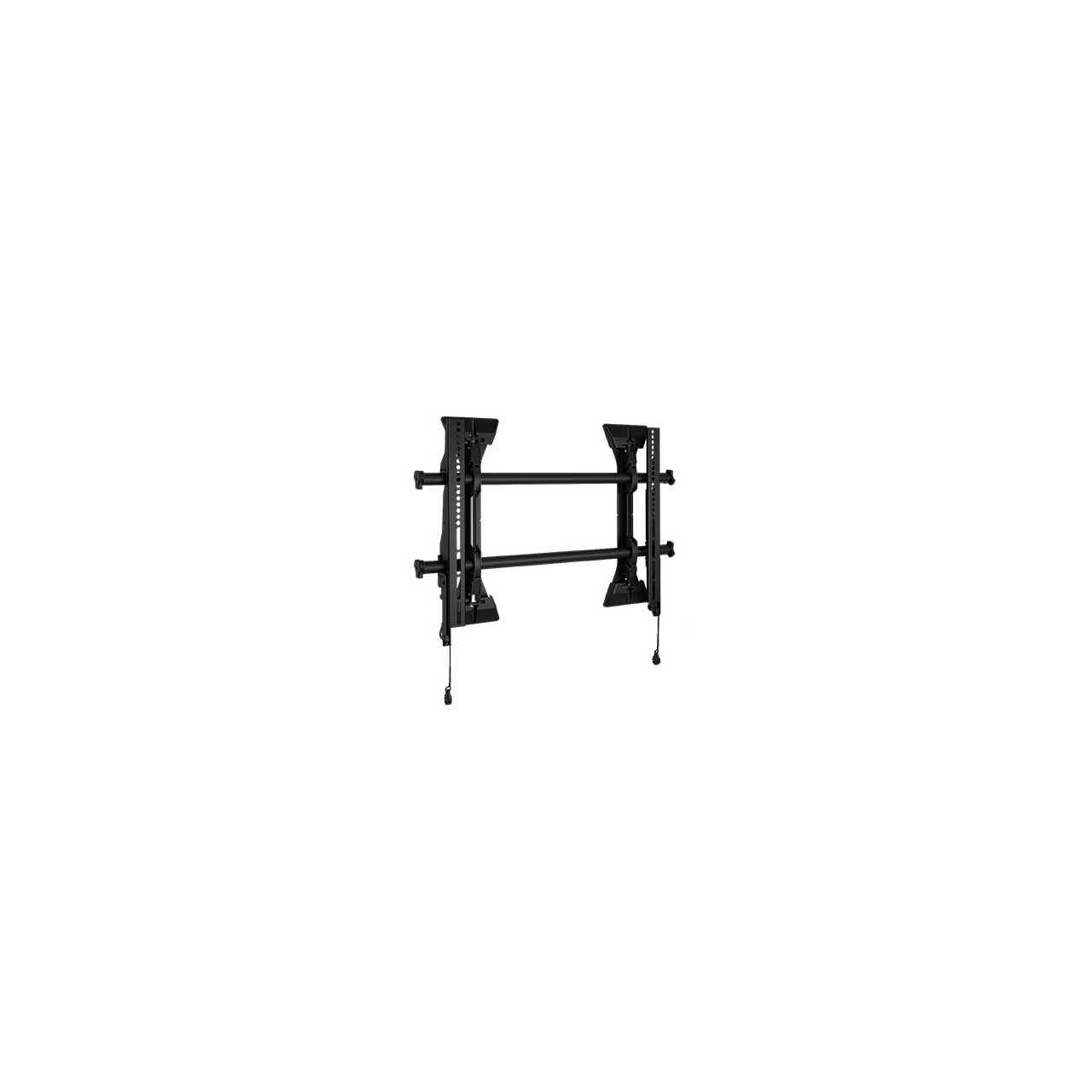

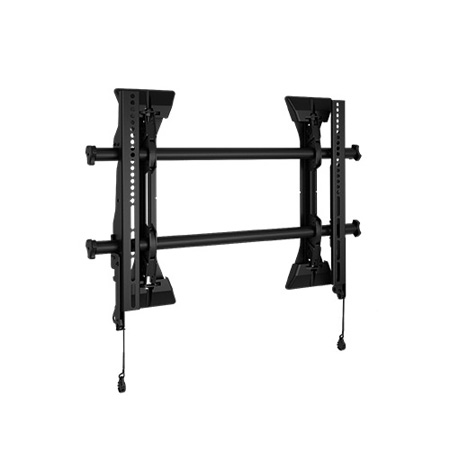

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$245.00

Our Price:

$163.20

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    MSM1U - Overview

    Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.

    New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

    Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

    For single stud applications, order the FCA1S Single Stud Adaptor Accessory.

    • Features:

      • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
      • ControlZone Leveling for post-installation fine tuning of height and leveling
      • Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering
      • Set screws keep the mount rigid, stable and secure throughout the life of the installation
      • ClickConnect offers an audible click when the screen safely engages with the mount
      • Built-in cable stand provides easy access under the screen
      • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
      • Multiple installation options for various stud distances
      • Exclusive nesting spacers can be stacked to achieve any depth
      • Quick-Store Cords use magnets to easily store and access pull cords
      • Improved cable management with new end caps
      • Integrated Security
      • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
      • Easy Open box with less waste to throw away

    • Specifications:

      • Certifications: UL Listed
      • Color: Black
      • Lateral Shift: 12.9" (327 mm)
      • Manual Height Adjustment: 1" (25 mm)
      • Mounting Pattern Compatibility (Universal Versions): 100 mm x 100 mm - 650 mm x 400 mm
      • Orientation: Landscape
      • Overall Dimensions (H x W x D): 18.25 x 25.75 x 2" (464 x 654 x 51 mm)
      • Shipping Weight: 17.16 lbs
      • Solution Type: Universal
      • Typical Screen Sizes: 26 - 47"
      • Wall Stud Compatibility (inches): 16-24
      • Weight Capacity: 125 lbs (57 kg)

    • GTIN:

      0841872163284
