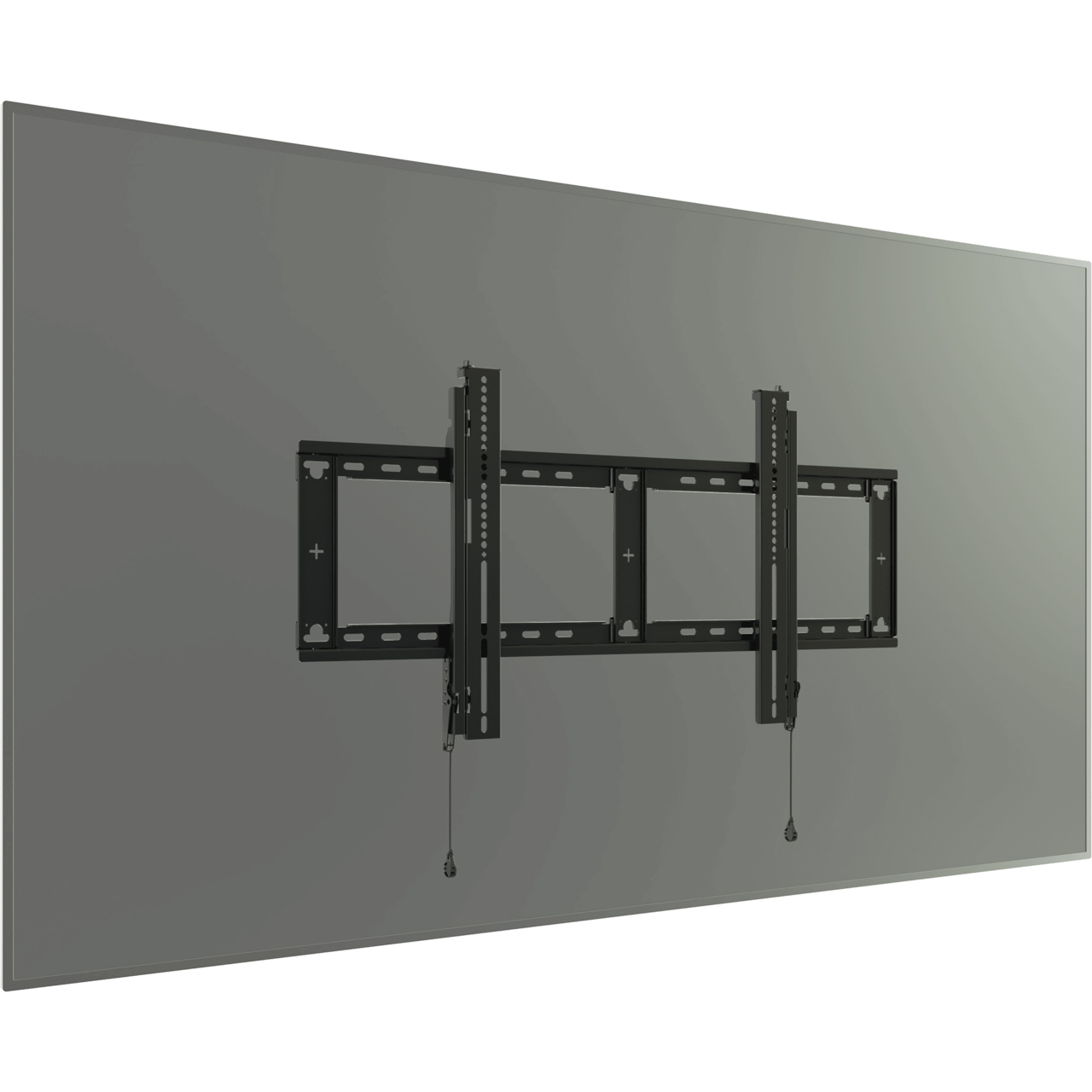

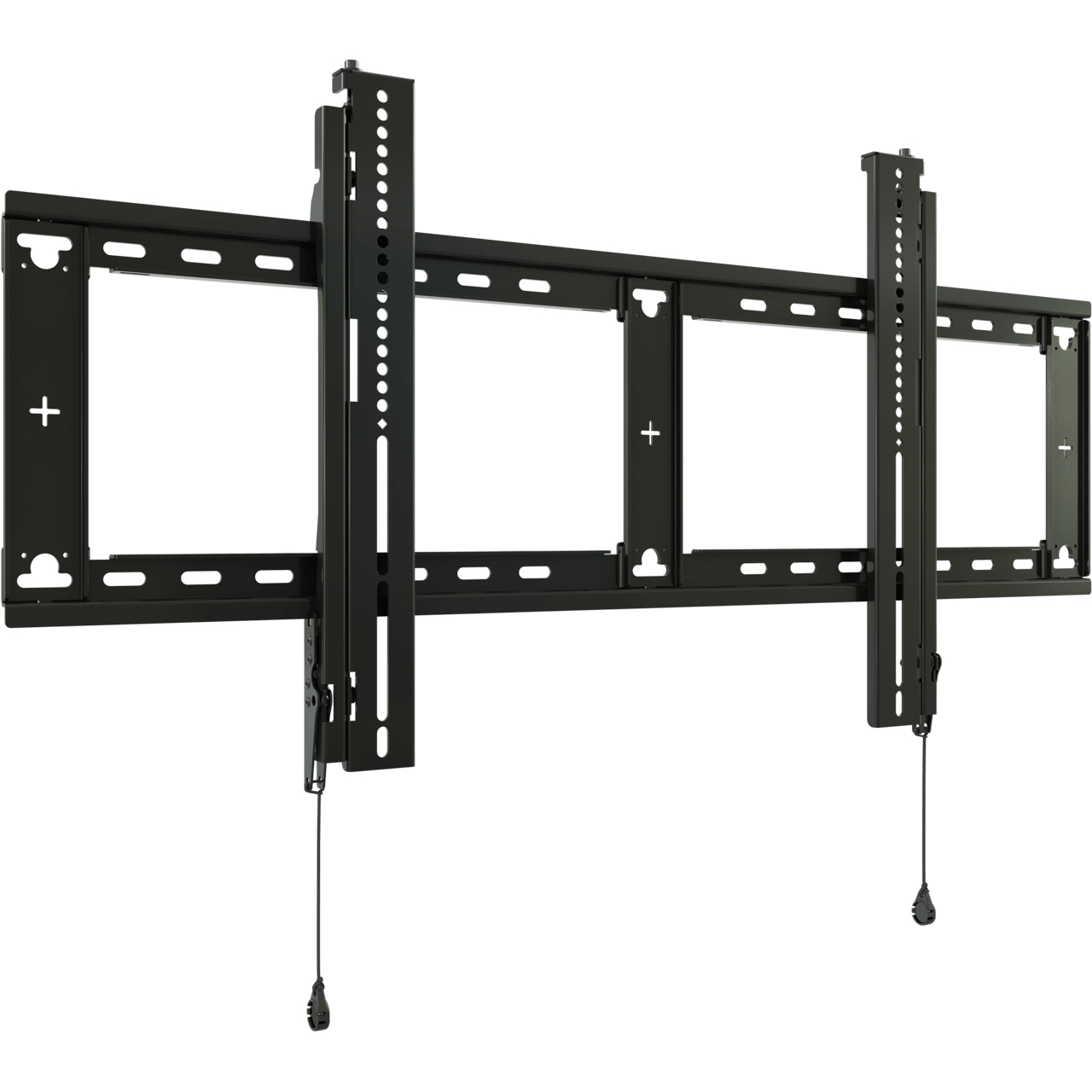

Chief RLF3 Fit Large Fixed Display Wall Mount - For Displays 43-86 Inches - Black

RLF3 - Overview

• Features:

  • Low profile 1" (25 mm) depth facilitates ADA compliance for typical AV design requirements
  • Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 960 x 450 mm
  • Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Easy access magnetic quick-store release pullcords
  • Kickstand for easy access to power and signal connections
  • Theft deterrent security options (not included)
  • UL and TUV safety standards compliant


• Specifications:

  • Depth: 1 in (2.5 cm)
  • Height: 19.19 in (48.7 cm)
  • Manual Height Adjustment: 0.75 in (19.1 mm)
  • Minimum Depth: 1 in (2.5 cm)
  • Typical Screen Size: 43"- 86" (1092mm - 2184mm)
  • Wall Stud Compatibility In: Dual Stud
  • Weight Capacity: 200 lbs (90.7 kg)
  • Width: 38 in (96.5 cm)
  • Adjustability: Fixed
  • Application: Wall
  • Orientation: Landscape
  • Solution Type: Universal
  • VESA Mounting Pattern: Up to 960 x 450 mm


• GTIN:

  0841872176635
