Chief RLT3 Fit Large Tilt Display Wall Mount - for Displays 43-86 Inches - Black

ITEM #: CHF-RLT3 MFG #: RLT3

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$211.00

Our Price:

$152.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    RLT3 - Overview

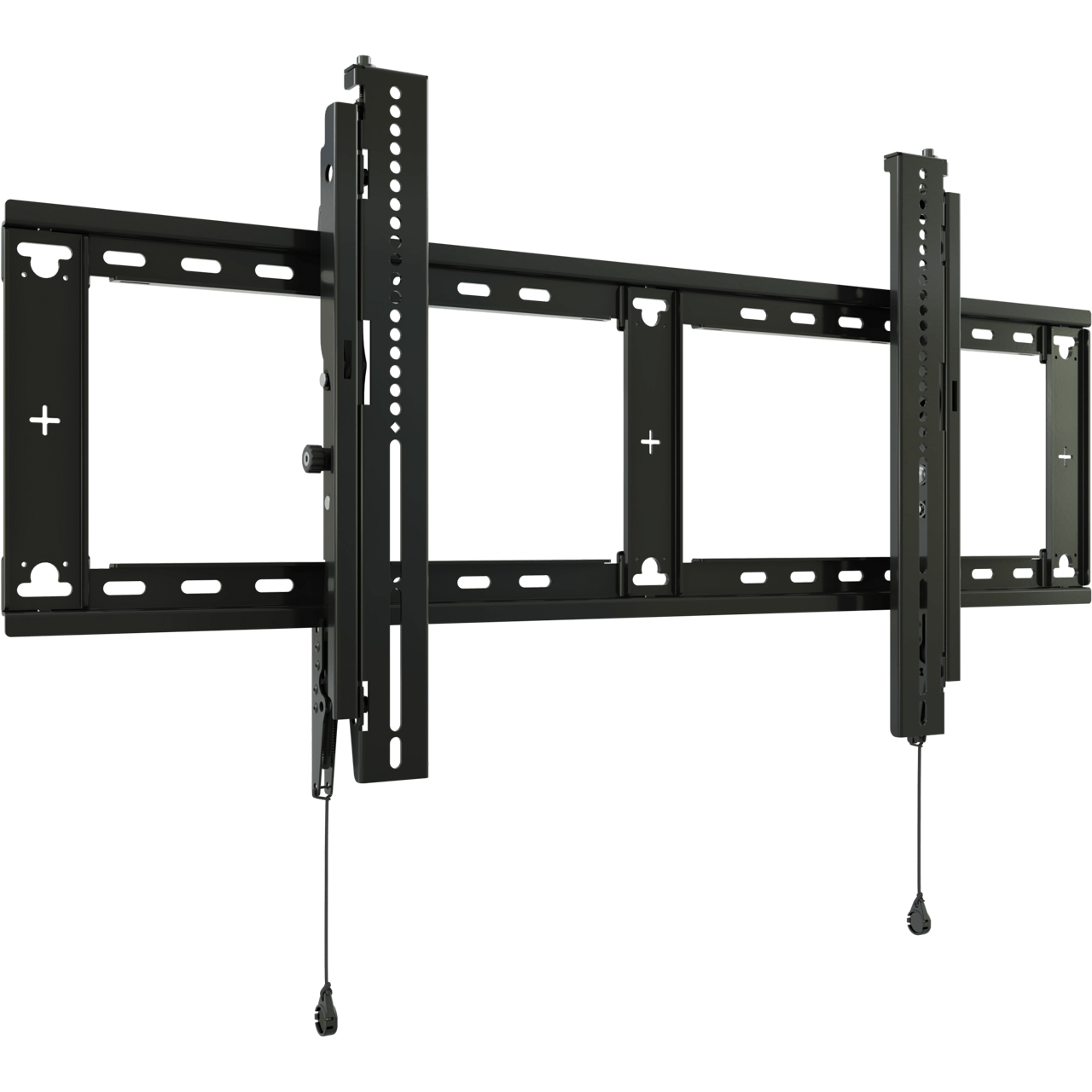

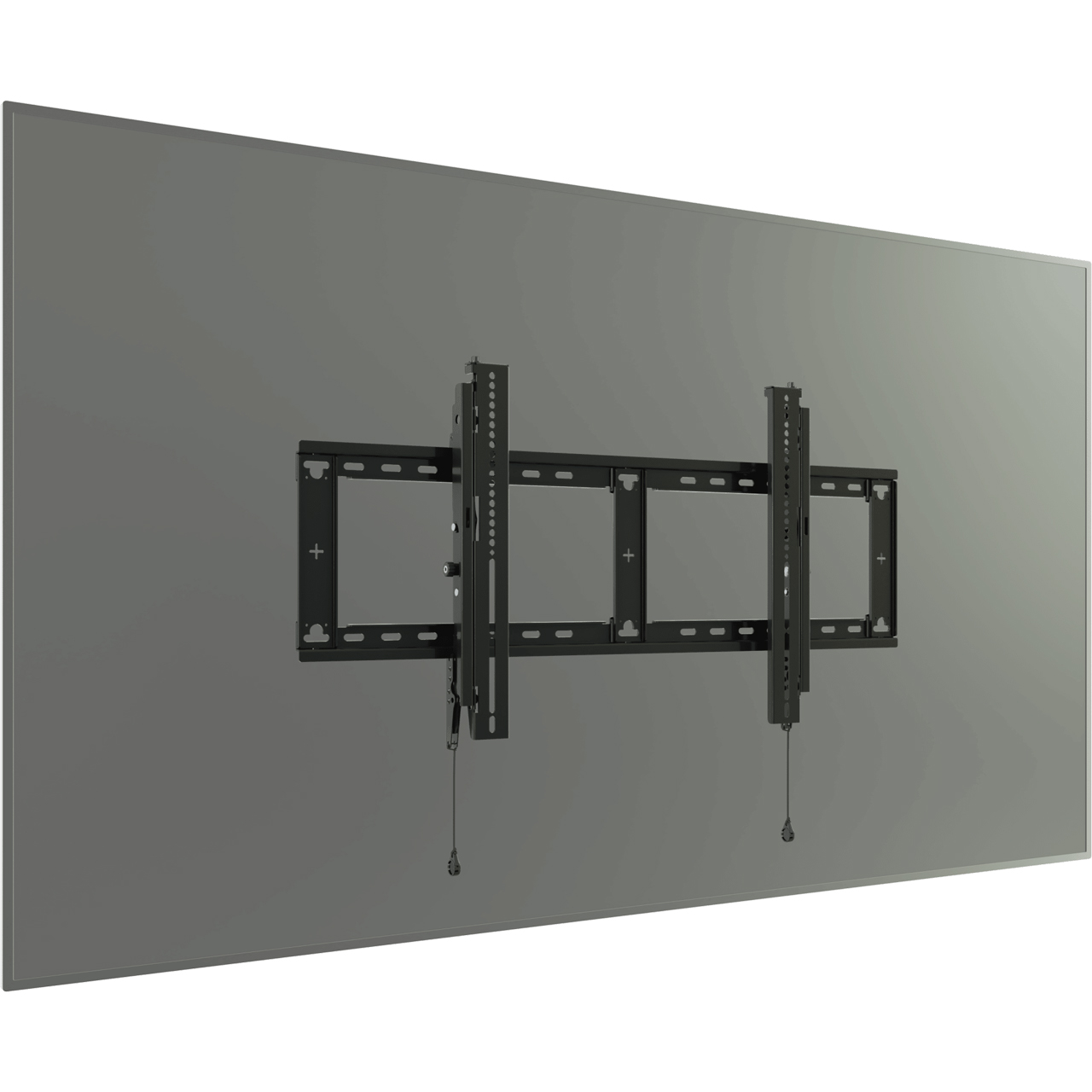

    The Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.

    • Features:

      • Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
      • Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included

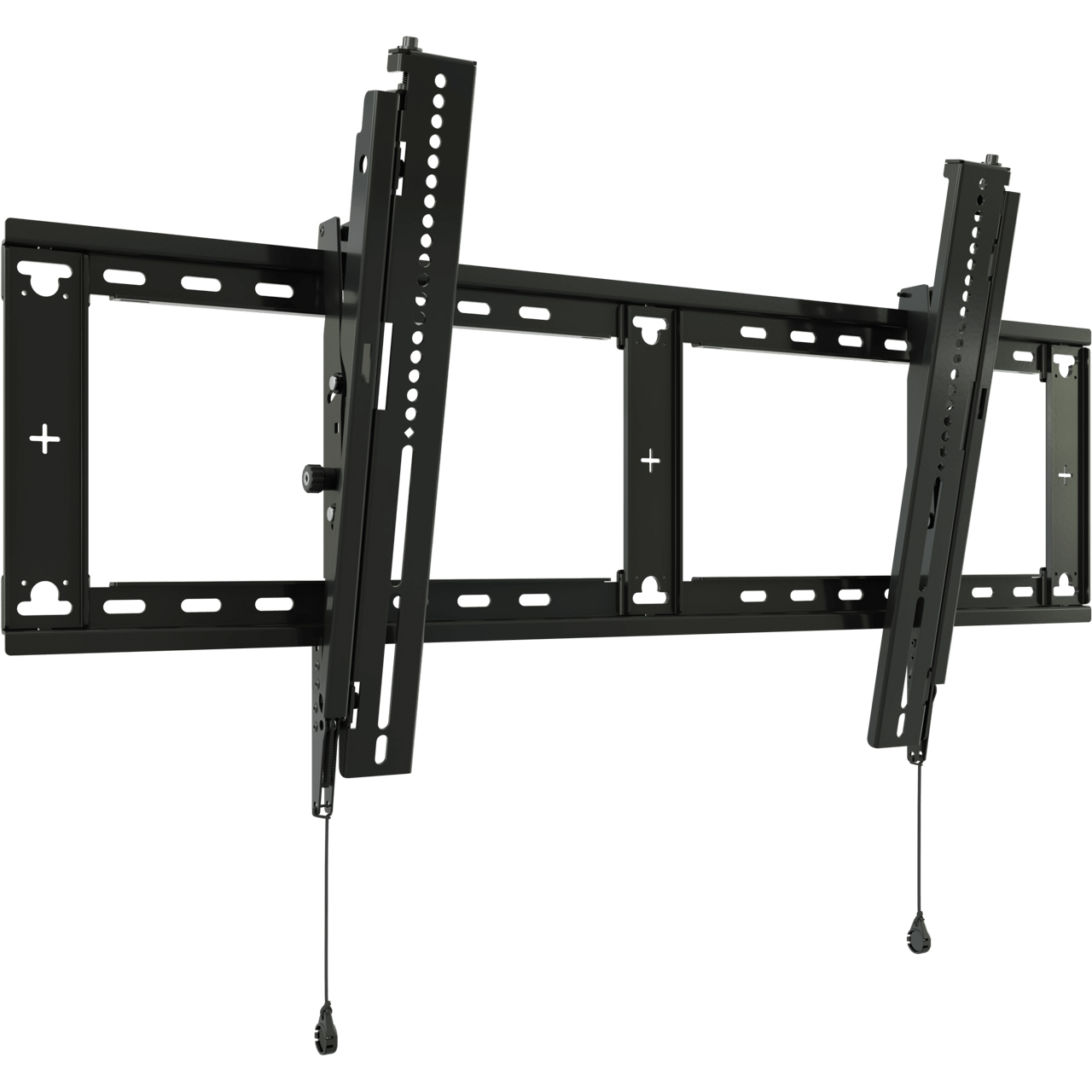

      • Display can be tilted up to 12° to set the optimal viewing angle
      • Open wall plate allows for flexible positioning around power and data wall boxes
      • Supports display mounting patterns up to 915 x 450 mm
      • Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
      • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
      • Easy access magnetic quick-store release pullcords
      • Kickstand for easy access to power and signal connections
      • Theft deterrent security options (not included)
      • UL and TUV safety standards approved

    • Specifications:

      • Depth: 2 in (5.1 cm)
      • Height: 19.18 in (48.7 cm)
      • Manual Height Adjustment: 0.75 in (19.1 mm)
      • Minimum Depth: 2 in (5.1 cm)
      • Overall Dimensions: 19.18" x 38" x 2" (487 x 965 x 51mm)
      • Typical Screen Size: 43"- 86" (1092mm - 2184mm)
      • Wall Stud Compatibility In: Dual Stud
      • Weight Capacity: 200 lbs (90.7 kg)
      • Width: 38 in (96.5 cm)
      • Adjustability: Tilt
      • Application: Wall
      • Orientation: Landscape
      • Solution Type: Universal
      • Tilt: -12°
      • VESA Mounting Pattern: Up to 915 x 450 mm

    • GTIN:

      0841872176642
