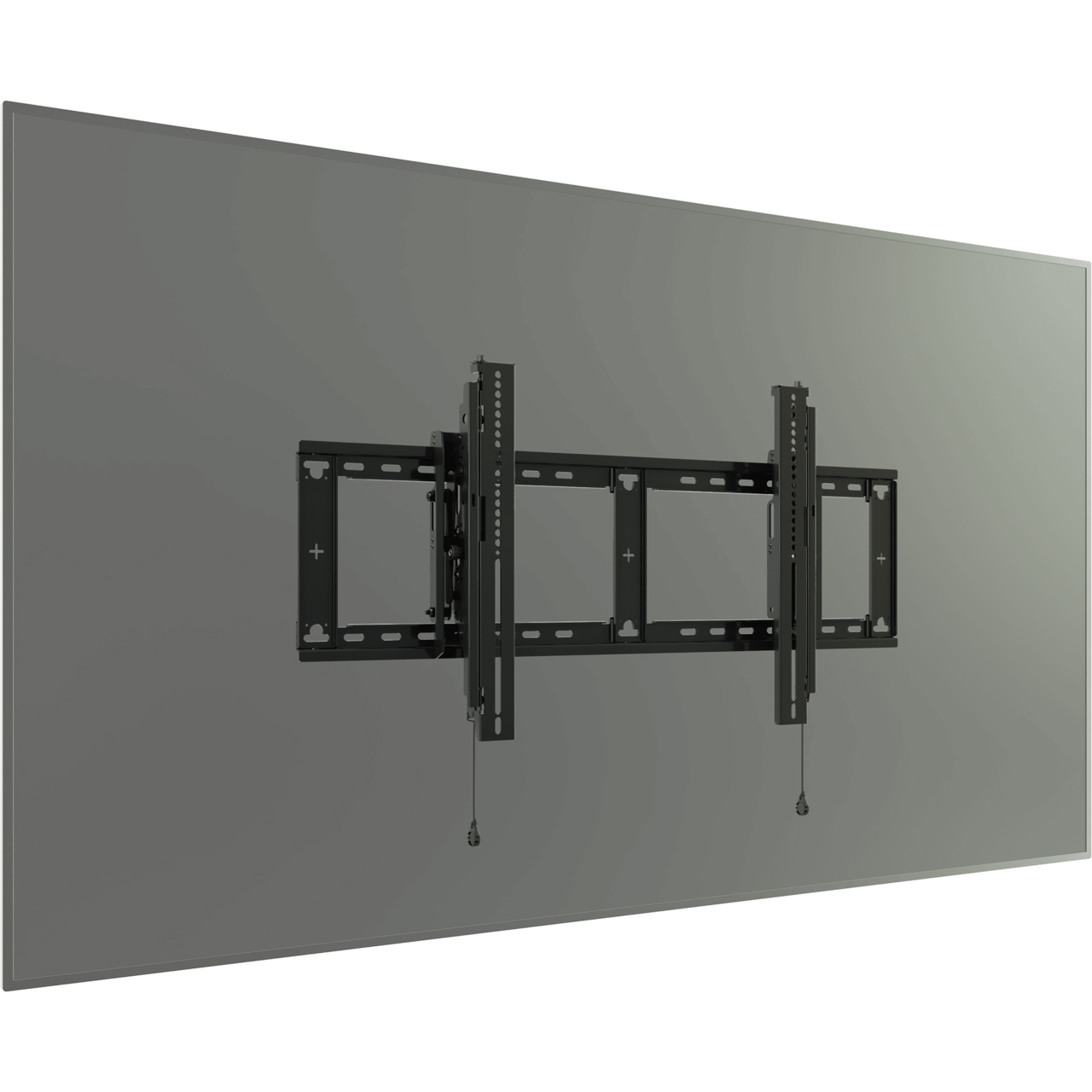

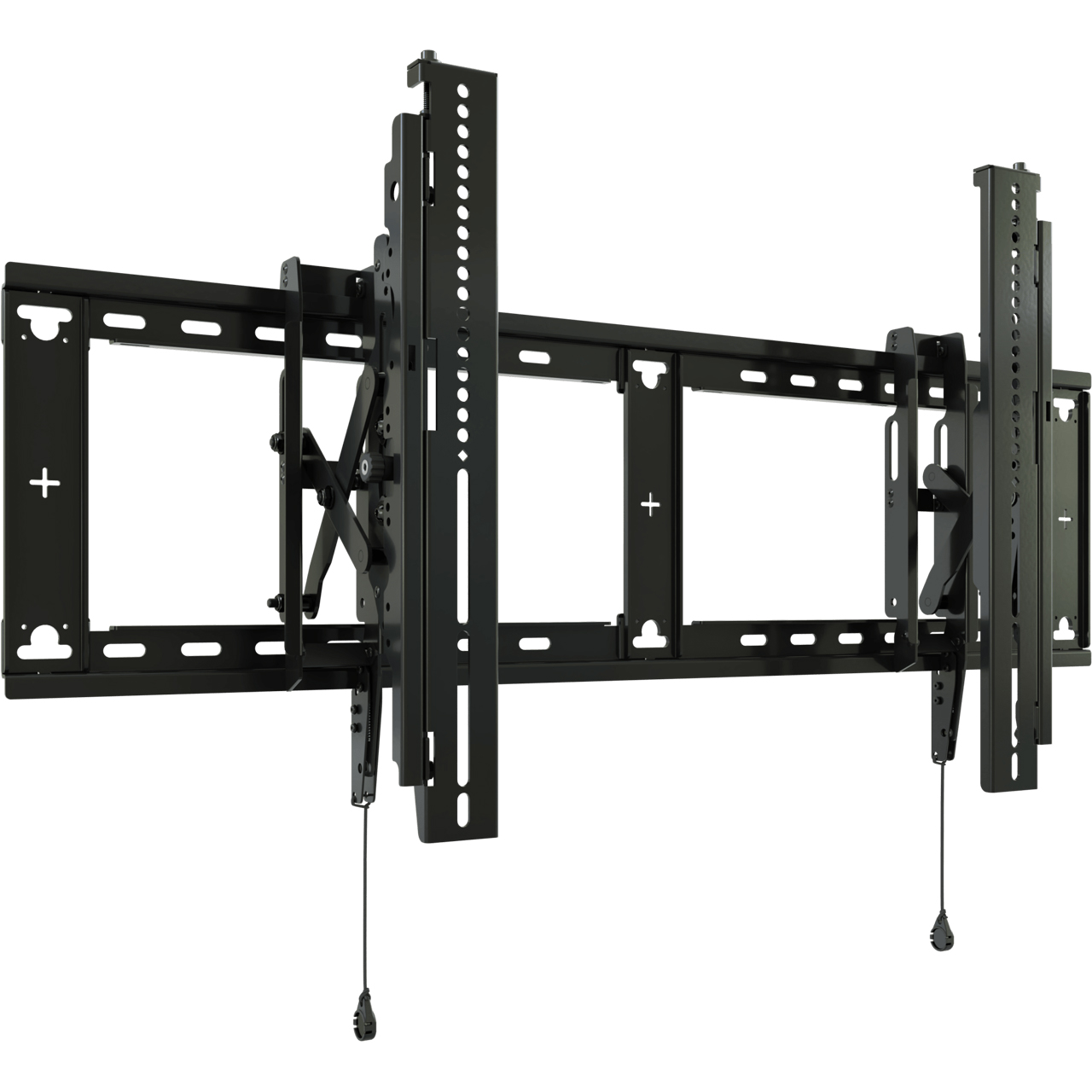

Chief RLXT3 Fit Large Tilt Display Wall Mount - For Displays 43-86 Inches - Black

RLXT3 - Overview

• Features:

  • Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included

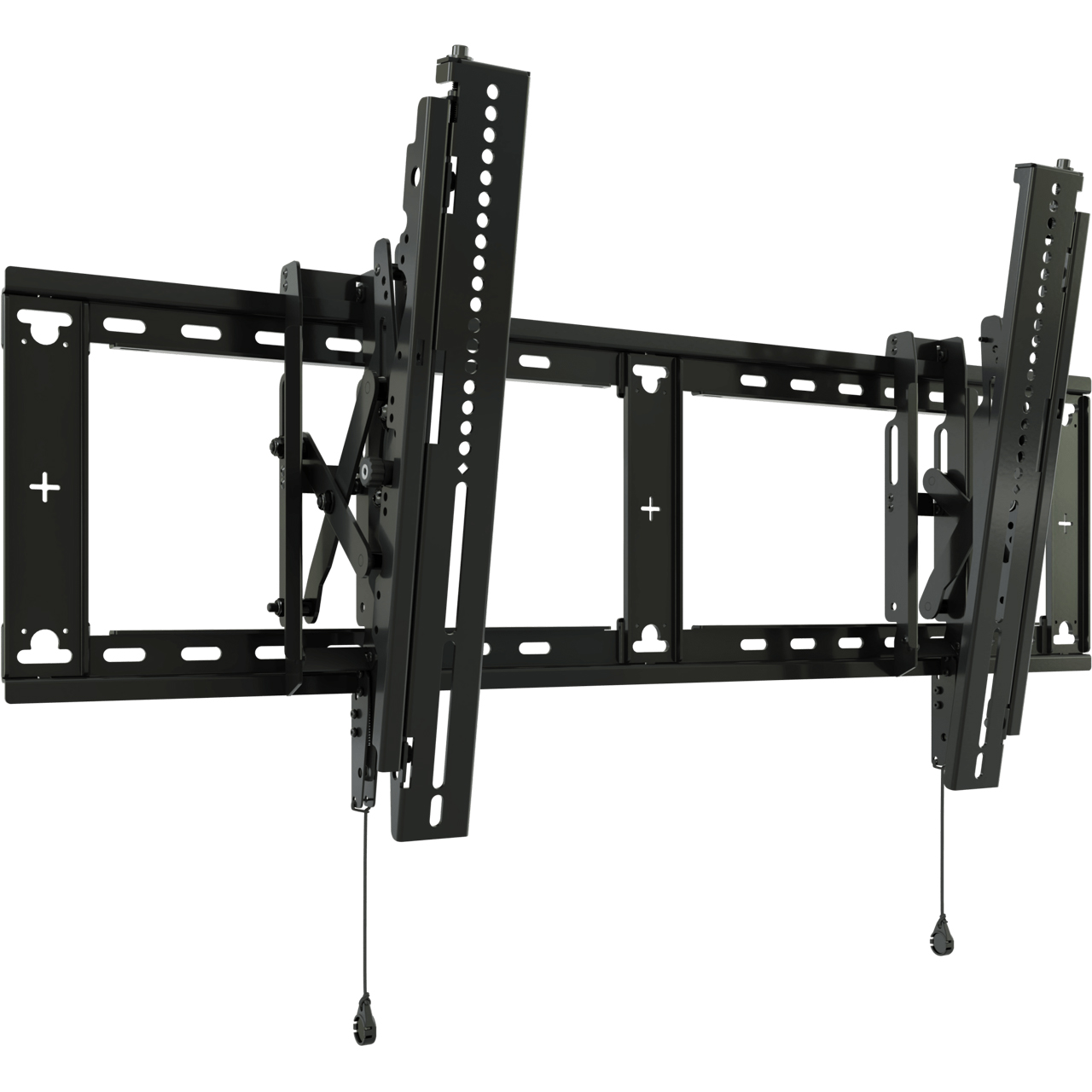

  • Display can be tilted 10° forward or back to set the optimal viewing angle – especially useful for large screens
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 863 x 450 mm
  • Rigid wall plate supports up to 150 lbs (68 kg) and has additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Easy access magnetic quick-store release pullcords
  • Kickstand for easy access to power and signal connections
  • Theft deterrent locking option to secure the screen in place with padlock or steel cable (not included)
  • UL and TUV safety standards approved


• Specifications:

  • Depth:2.67 in (6.8 cm)
  • Height: 19.18 in (48.7 cm)
  • Manual Height Adjustment: 0.75 in (19.1 mm)
  • Maximum Extension: 6 in (15.2 cm)
  • Minimum Depth: 2.67 in (6.8 cm)
  • Overall Dimensions: 19.18" x 38" x 2.67" (487 x 965 x 68mm)
  • Typical Screen Size: 43"- 85"(1092mm - 2159mm)
  • Wall Stud Compatibility In: Dual Stud
  • Weight Capacity: 150 lbs (68 kg)
  • Width: 38 in (96.5 cm)
  • Adjustability: Extension, Tilt
  • Application" Wall
  • Orientation: Landscape
  • Solution Type: Universal
  • Tilt: +/- 10°
  • VESA Mounting Pattern: Up to 863 x 450 mm


• GTIN:

  0841872176659
