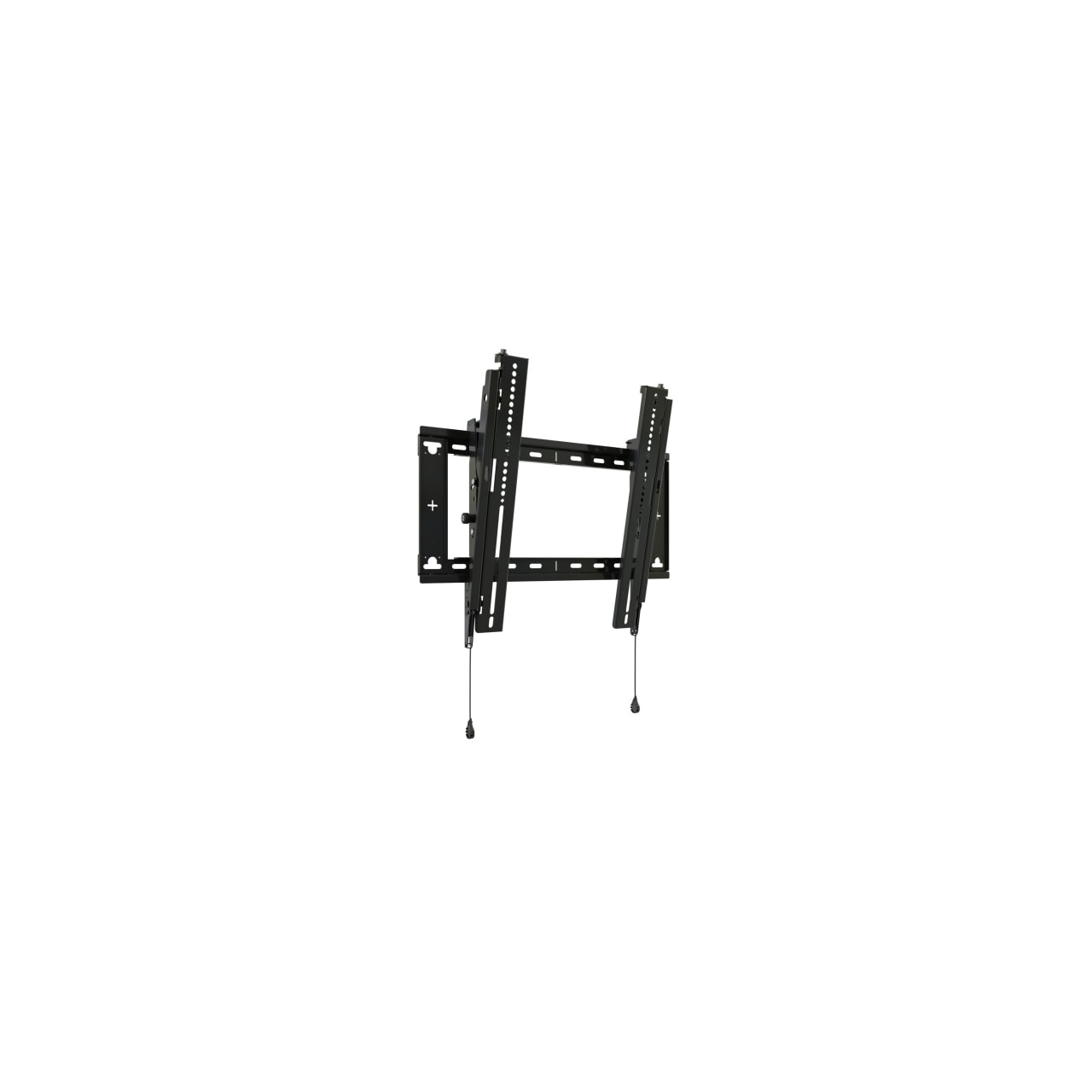

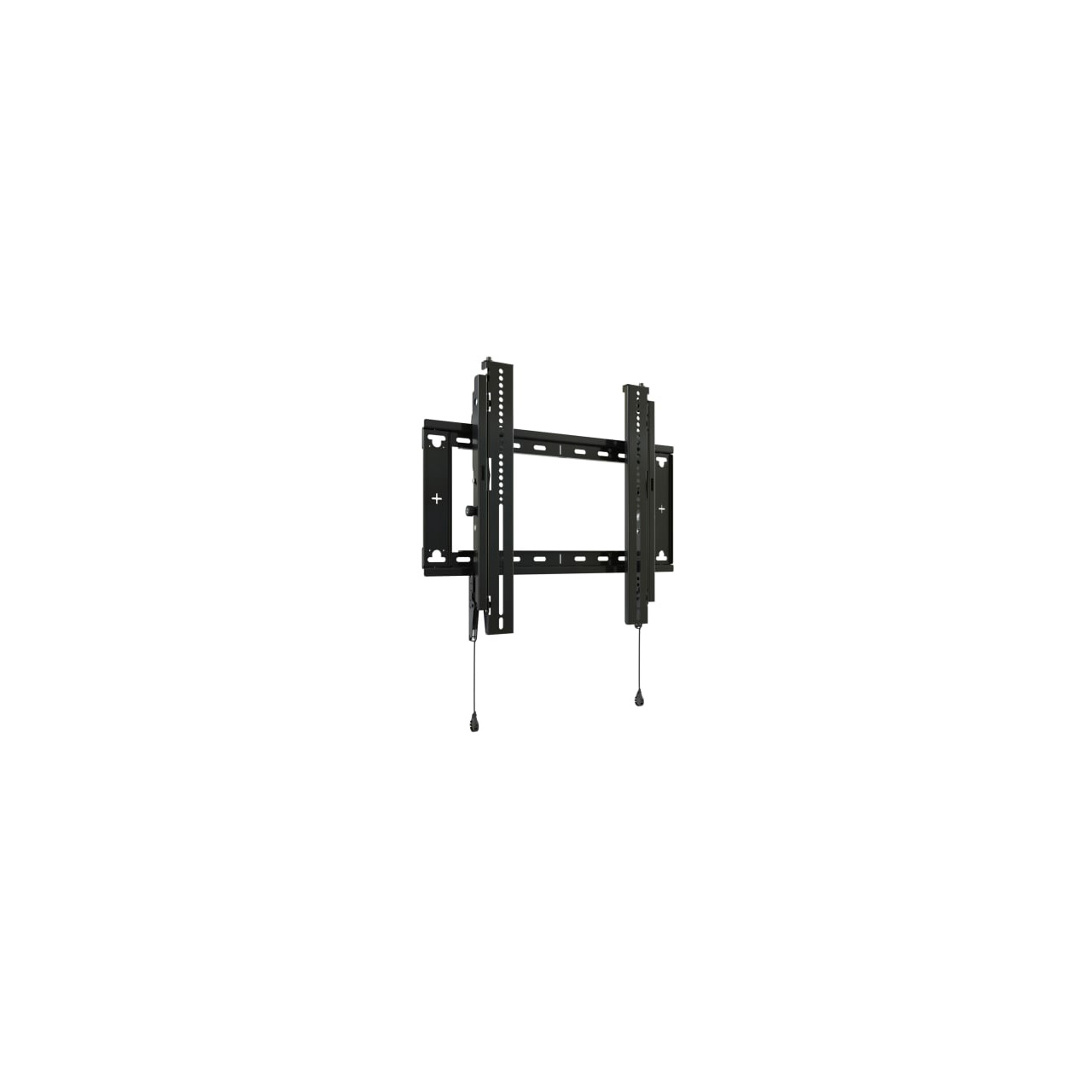

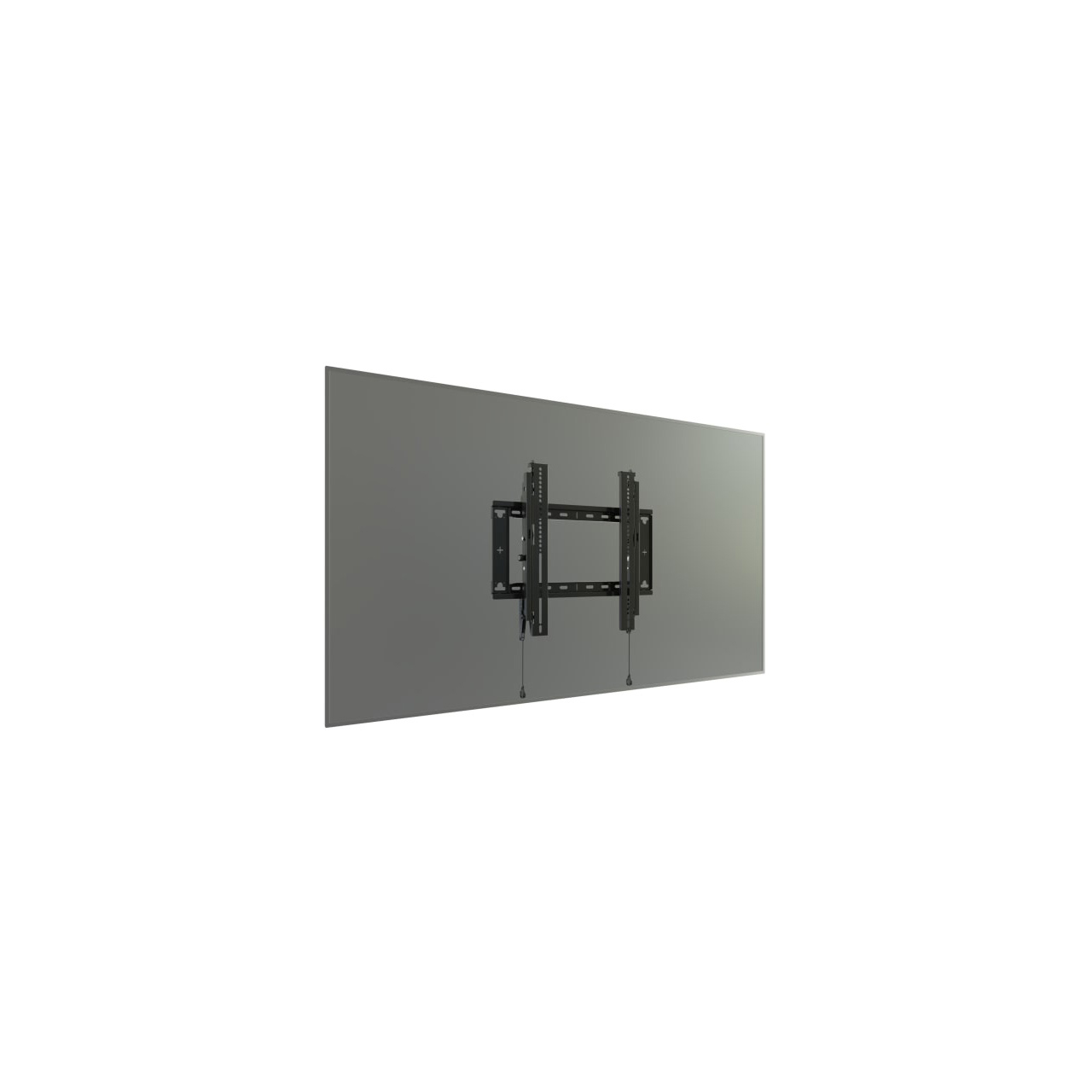

Chief RMT3 Fit Medium Tilt Display Wall Mount - For Displays 32-65 Inches - Black

RMT3 - Overview

• Features:

  • Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
  • Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
  • Display can be tilted up to 12° to set the optimal viewing angle
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 508 x 450 mm
  • Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Easy access magnetic quick-store release pullcords
  • Kickstand for easy access to power and signal connections
  • Theft deterrent security options (not included)
  • UL and TUV safety standards approved


• Specifications:

  • Depth: 2 in (5.1 cm)
  • Height: 19.18 in (48.7 cm)
  • Manual Height Adjustment: 0.75 in (19.1 mm)
  • Minimum Depth: 2 in (5.1 cm)
  • Overall Dimensions: 19.18" x 22" x 2" (487 x 559 x51mm)
  • Typical Screen Size: 32" - 65" (813mm - 1651mm)
  • Weight Capacity: 125 lbs (56.7 kg)
  • Width: 22 in (55.9 cm)
  • Adjustability: Tilt
  • Application: Wall
  • Orientation: Landscape, Portrait
  • Solution Type: Universal
  • Tilt: -12°
  • VESA Mounting Pattern: Up to 508 x 450 mm


• GTIN:

  0841872176673
