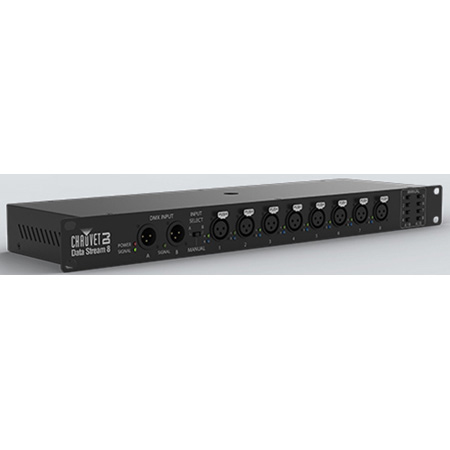

Chauvet Data Stream 8 Universal DMX-512 Optical Splitter

ITEM #: CHVT-DATASTREAM8 MFG #: DATASTREAM 8

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$519.99

Our Price:

$389.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DATASTREAM 8 - Overview

    The Chauvet DJ Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.

    • Features:

      • Flexible DMX splitter provides up to 8 outputs from dual inputs
      • Each input can be used simultaneously and sent to any output
      • Master 3-position switch quickly sends A or B input to all 8 outputs
      • Individual 2-position switches send data from either the A or B input
      • Optically isolated outputs provide protection in the event of a short
      • Threaded insert safely secures to overhead truss

    • Specifications:

      • DMX Connectors: 3-pin XLR
      • Rackmount: 1U
      • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
      • Power and Current: 2 W, 0.04 A @ 120 V, 60 Hz 2 W, 0.03 A @ 230 V, 50 Hz
      • Weight: 4.6 lbs (2.1 kg)
      • Size: 19 inc x 5.2 inch x 1.7 inch (483 x 132 x 44 mm)

    • Item Includes:

      • Data Stream 8
      • Power cord
      • Warranty card
      • Quick Reference Guide

    • GTIN:

      0781462217990
