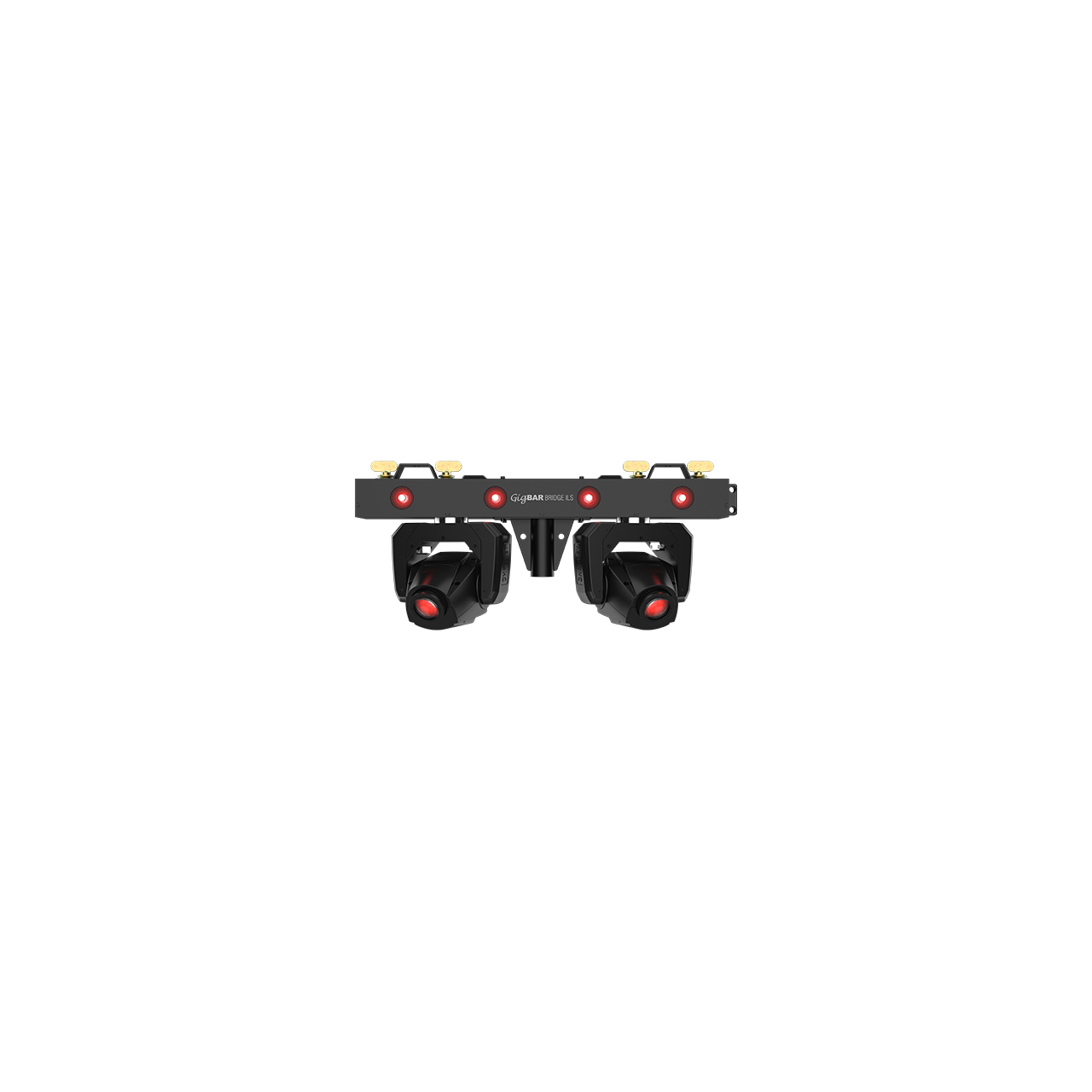

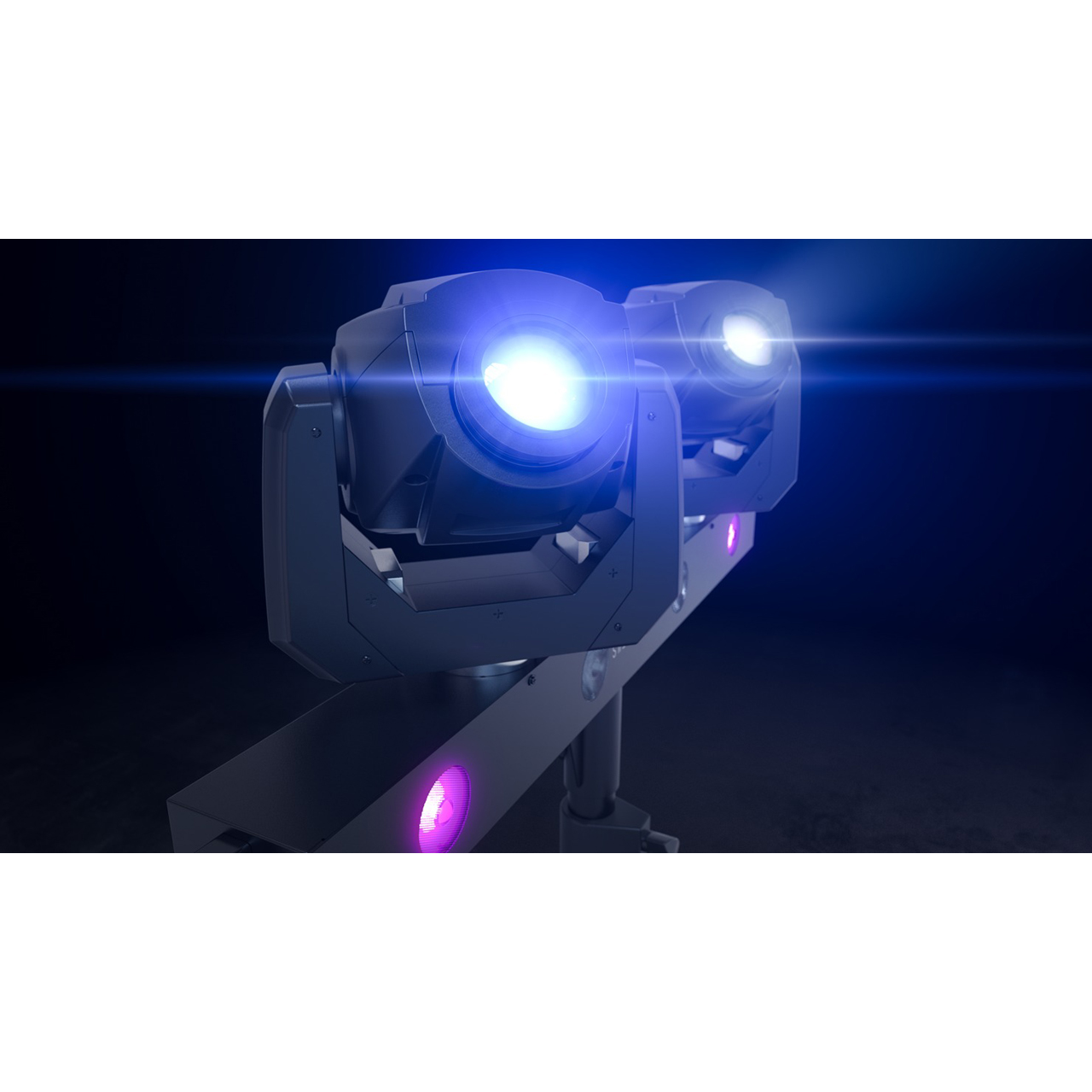

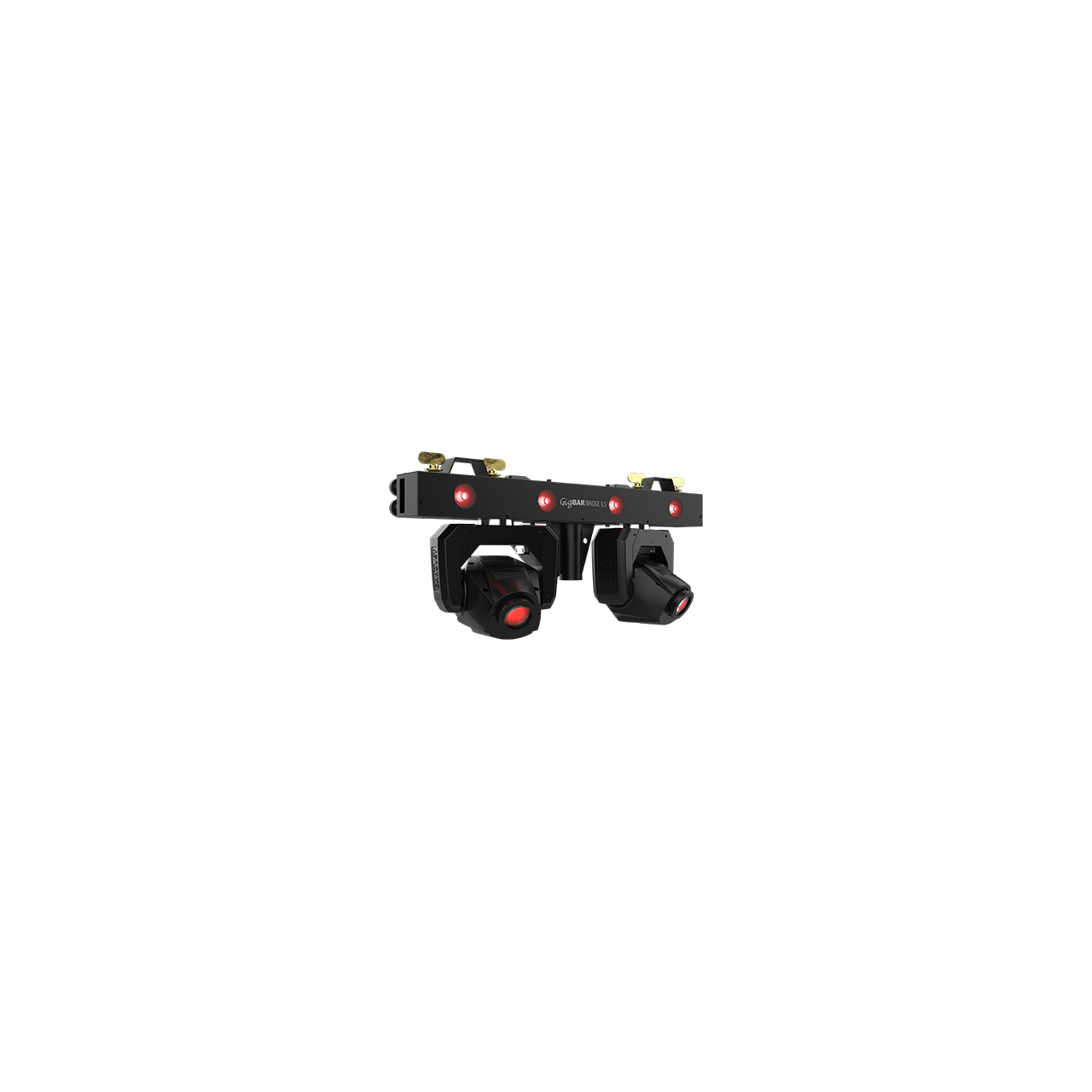

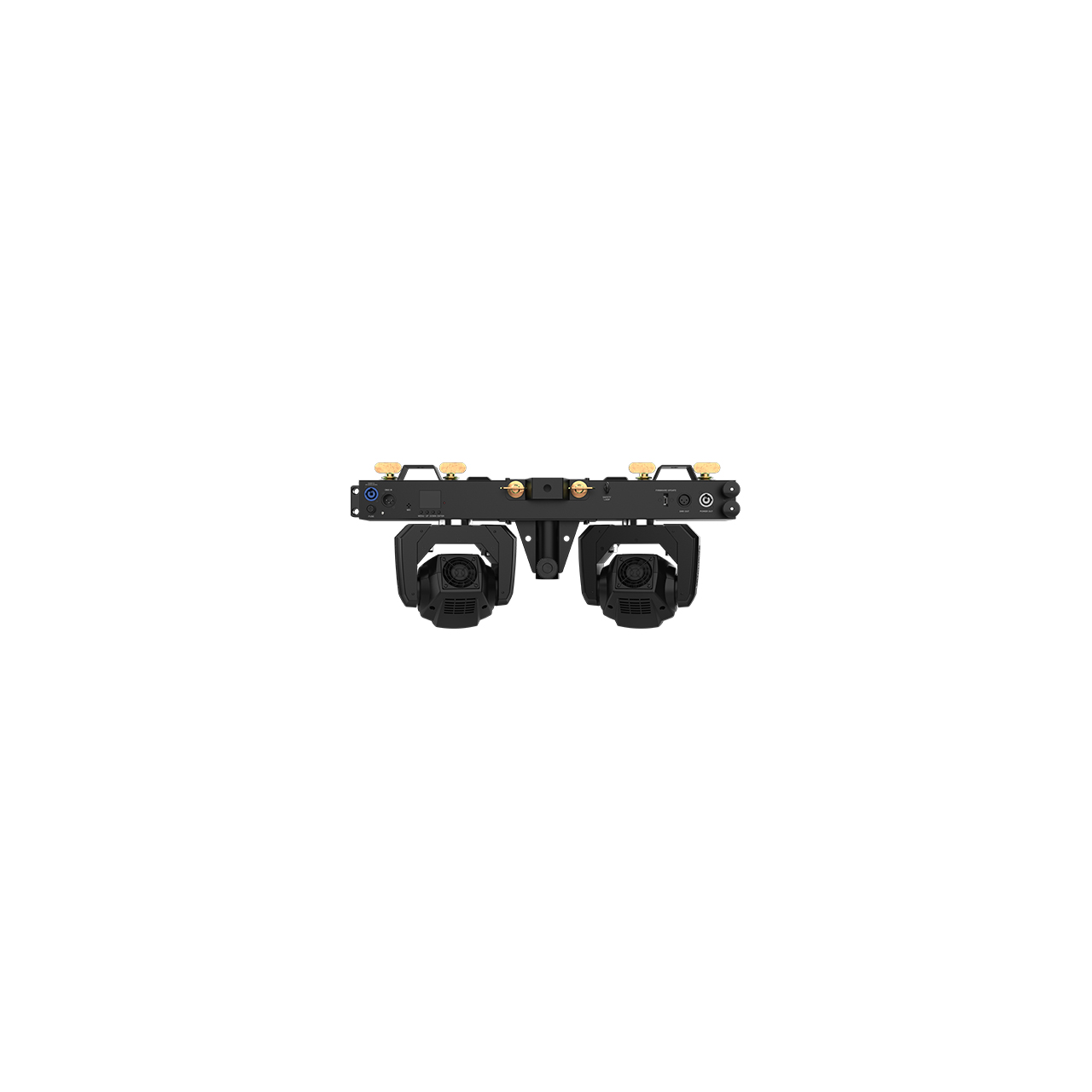

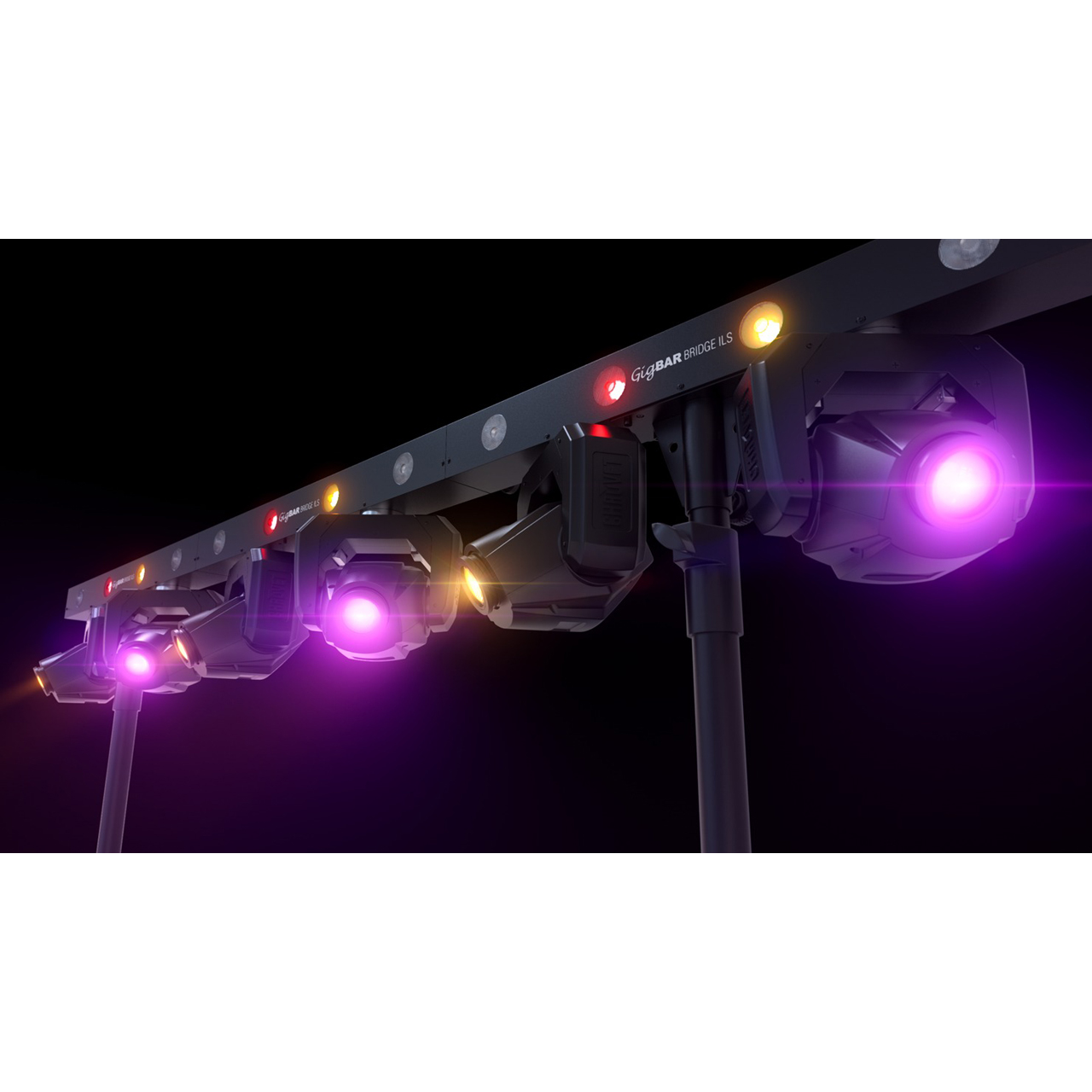

Chauvet DJ GigBAR Bridge ILS Bar-Mounted Movable Wash Lights

GIGBAR BRIDGE ILS - Overview

• Features:

  • 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
  • Quickly and securely connect multiple fixtures with the built-in locking system
  • Built-in DFI transceiver communicates DMX or ILS signals wirelessly
  • Safely mounts onto truss or mobile tripods using the removable bracket
  • Easy navigation and access all functions directly from the full-color LCD display
  • Powerful moving heads with separate color and gobo wheels allow for creative programming
  • Totem Mode keeps the moving heads focused on the dance floor
  • Save time running cables and extension cords by power linking multiple units
  • ILS compatibility for use in the ILS ecosystem


• Specifications:

  • DMX Channels: 3, 16 or 46
  • DMX Connectors: 3-pin XLRv
  • Strobe Rate: 0 to 20Hz
  • Operating Frequency: 2.4 GHZ
  • Power Linking: 8 units @ 120 V; 13 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight: 18.6lbs (8.4kg)
  • Size: 26 x 2.8 x 12" (660 x 71 x 305mm)
  • Approvals: CE, RoHS , FCC
  • Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
  • Gobos (moving head): 9 + open, continuous scroll at variable speeds
  • Light Source (moving head): 1 LED (cool white) 70W (3A), 50,000 hours life expectancy
  • Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
  • Beam Angle (wash): Field Angle (wash): 22°
  • Field Angle (wash): 38°
  • Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz: 191 W, 1.5 A @ 120 VAC, 60Hz
  • Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
  • Fits Tripod Sizes: 1.5" (37.4mm)
  • Max Unobstructed Distance (D-Fi): 600 ft (183m)
  • Optional Controllers: RF, Footswitch, ILS Command


• Item Includes:

  • 1x GigBAR Bridge ILS
  • 1x Power cord
  • 2x Hanging brackets
  • 1x Carry bag
  • 1x Quick Reference Guide


• GTIN:

  0781462226558
