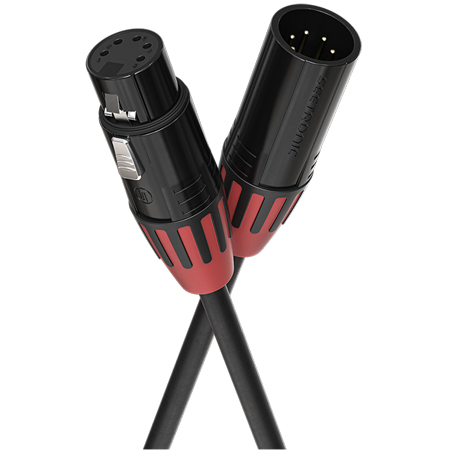

Chauvet RIGLINKDMX15FT Riglink 5-Pin Double Shielded DMX Cable with XLR Connectors - 1.5 Foot

ITEM #: CHVT-RLDMX15FT MFG #: RIGLINKDMX15FT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$20.50

Our Price:

$18.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RIGLINKDMX15FT - Overview

The Chauvet RIGLINKDMX15FT is a 1.5-foot production-grade DMX lighting cable with 5-pin XLR DMX connections. Constructed with multiple rugged materials, the cable's high-torsion tinned oxygen-free copper element achieves over 89% shielding effectiveness to enhance cable resistance, ideal for long-term installations and touring applications. The cable's braided and aluminum foil double shielding design and its highly elastic PVC outer jacket provide a flexible and durable cable body. The low-dielectric constant LDPE insulation offers low capacitance to meet precise impedance requirements for stable signal transmissions.

  • Features:

    • Color-coded connectors eliminate cable length guesswork
    • Certified components meet worldwide safety standards
    • Built rugged for live performance and life on the road
    • Reliable transmission and robust connection systems
    • Seetronic professional production-grade connectors
    • Features a braided and aluminium foil double shielding design, ensuring optimal protection against interference
    • Designed for 110Ω DMX-512 applications
    • Utilises low-dielectric constant LDPE insulation
    • Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body

  • Specifications:

      Physical
    • Conductor Specification: 2x 0.22mm² (24AWG)
    • Conductor Structure: OFC 24/0. 12BC
    • Insulation Material: LDPE
    • Insulation OD: 1.8mm
    • Outer Jacket Material: PVC (Black)
    • Outer Diameter: 0.6mm ±0.2mm
    • IP65

      Connections
    • 1x XLR 5-Pin Male
    • 1x XLR 5-Pin Female

      Electrical
    • Withstand Voltage: 0.5kV
    • Conductor Resistance: 88.2Ω/km
    • Capacitance between Conductors: 50pF/m
    • Conductor and Shield Capacitance: 122pF/m
    • Impedance: 110Ω

  • Item Includes:

    • 1x Riglink 5-Pin Double Shielded DMX Cable - 1.5 Foot

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0781462227388
