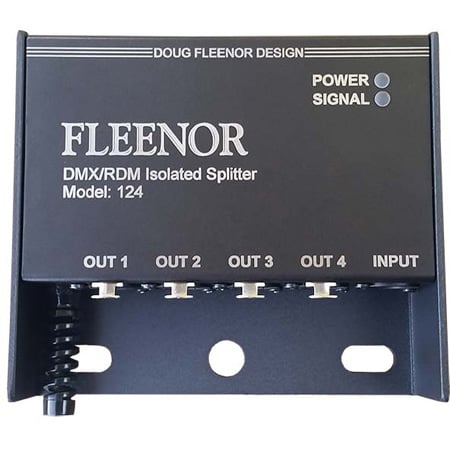

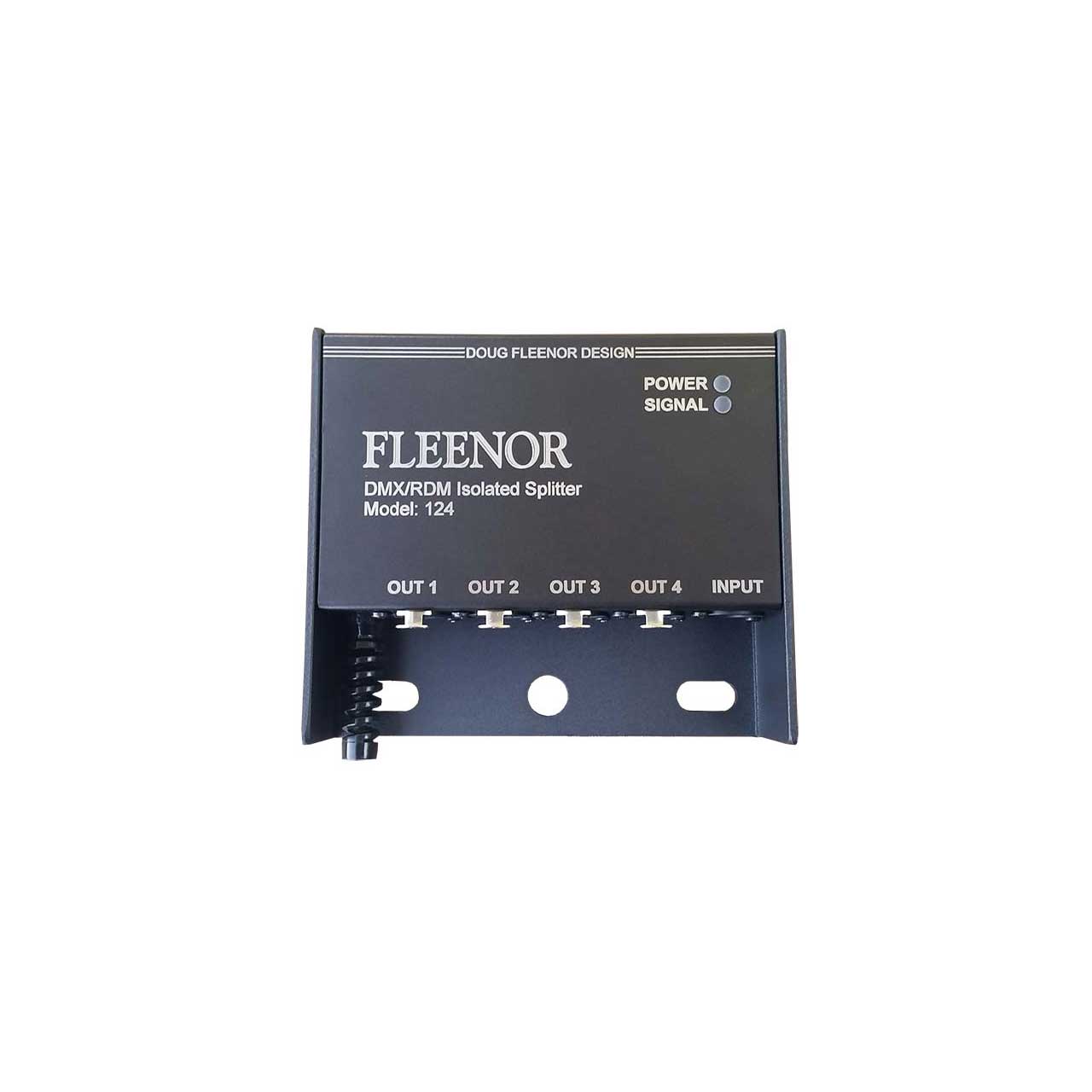

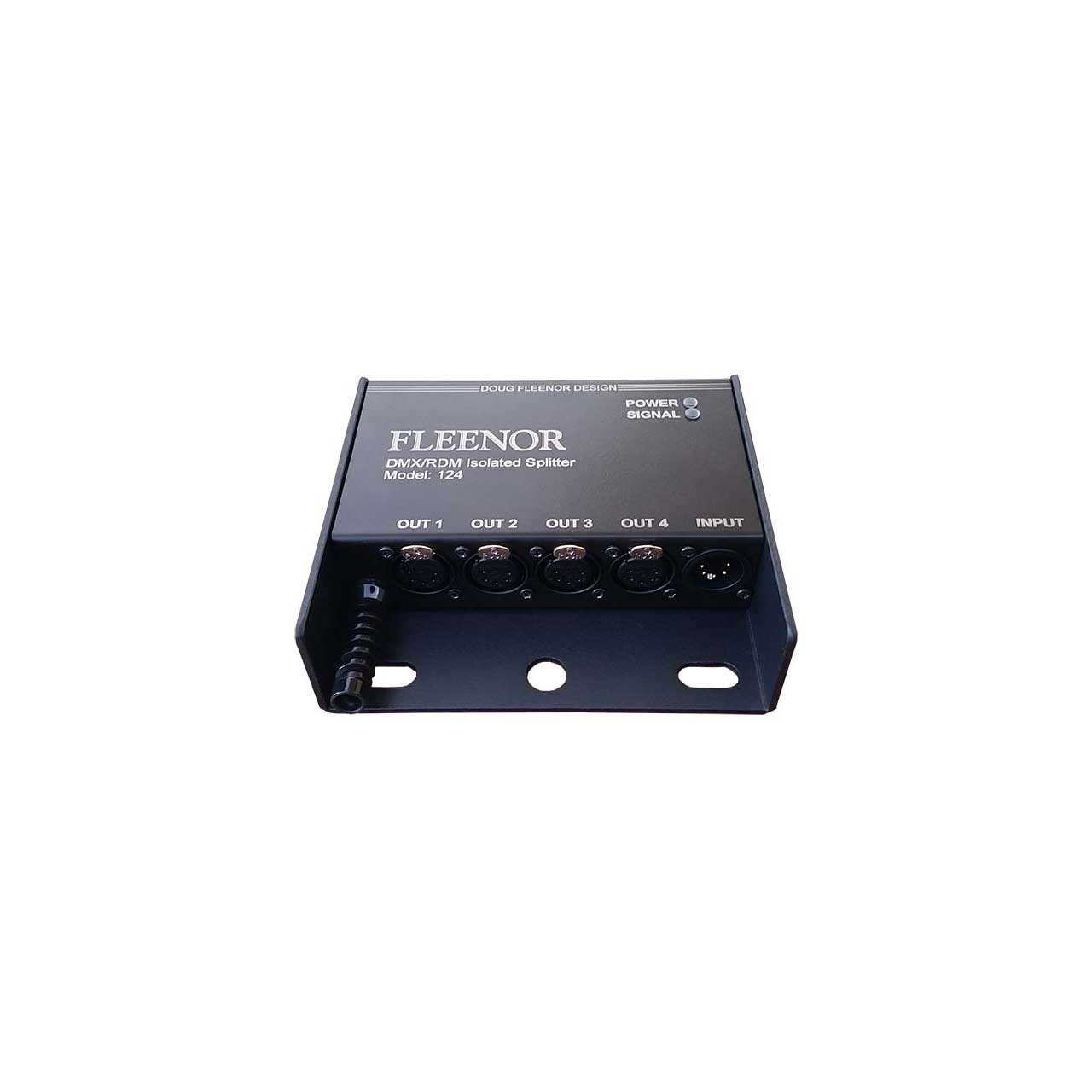

Doug Fleenor Design 124-5 4 Output Bi-directional DMX Splitter with 5-Pin XLR Connectors

ITEM #: DFD-124-5 MFG #: 124-5

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$503.00

Our Price:

$444.00

Availability: In Stock
iAvailability Description Popup


    124-5 - Overview

    The Doug Fleenor 124 Design is a four output DMX splitter that also supports the RDM protocol. It is available with 3 pin XLR (model 124-3), 5 pin XLR (model 124-5), or RJ-45 connectors. Each output features its own driver circuit, insuring a problem on one output will not affect the other outputs. The four outputs share a common (pin 1s are tied together). The input is completely isolated from the outputs (there are no electrical connections between any of the input pins and any of the output pins).

    • Specifications:

      • Input circuit: Protected EIA-485 receiver (LT1785)
      • Input protection: Undamaged by up to 60 Volts continuous, 15KV transients
      • Input signal: DMX512, DMX512/1990, DMX512-A, or RDM

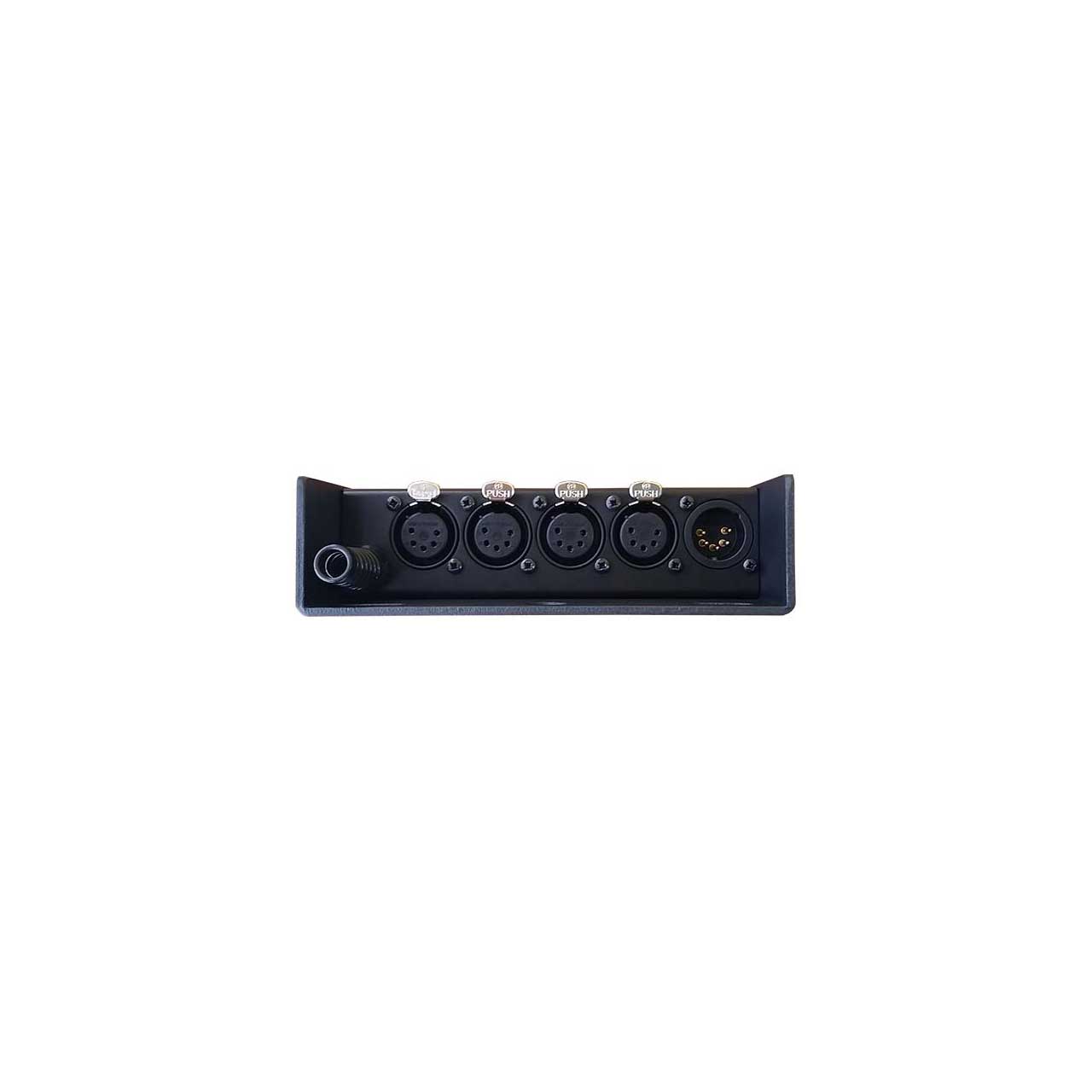

      • Signal connectors: Gold plated 3 or 5 pin Neutrik ‘A’ XLR’s (Phoenix terminal blocks or Neutrik RJ45 optional)
      • Termination: Input and all outputs are terminated per RDM specifications
      • Power input: 100-240 VAC, 50-60 Hz., 0.5 Amps, auto-switching
      • Indicators: Red POWER indicator. Green SIGNAL lights when DMX512 or RDM is present
      • Cooling: Convection cooling, no fan required
      • Isolation: DMX512/RDM input is optically isolated to 1,500 Volts
      • Color: Black - Laser engraved legends on top surface
      • Size and weight(H x D x W): 1.6 in x 4.8 in x 5.5 in / 2 pounds
      • Environmental: 0-40 degrees C, 10-90% humidity, non-condensing

    • Warranty:

      • 5 year
