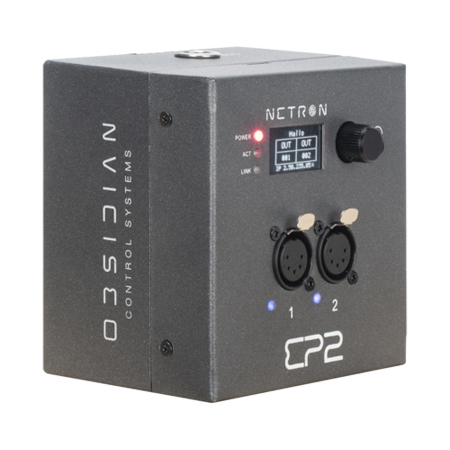

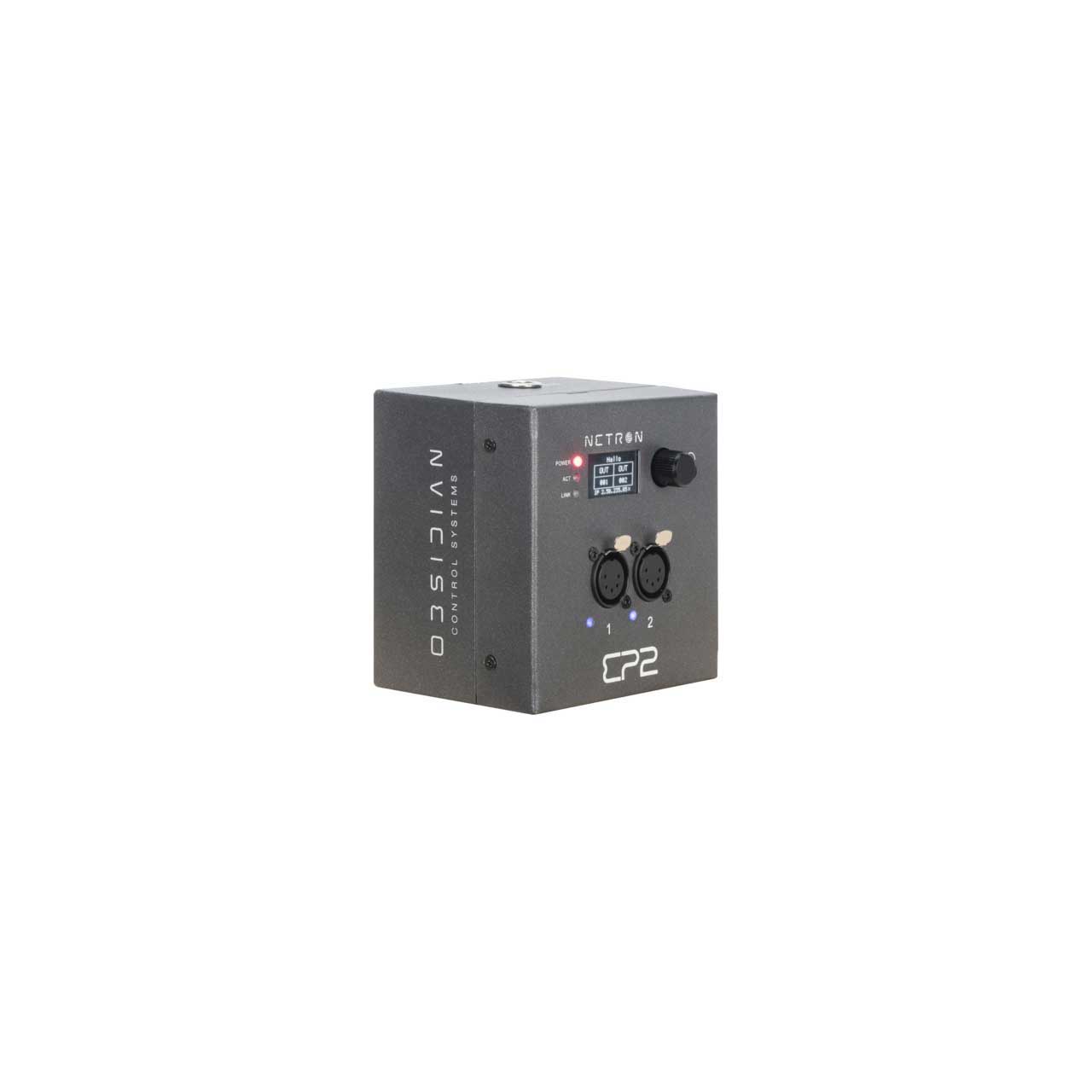

Elation Professional EP2 Ethernet to DMX Gateway with 2 RDM Ports

EP2 - Overview

• Features:

  • RDM, ArtNet and sACN support
  • Factory and user presets for plug and play setups
  • POE or USB-C powered
  • 1.3" OLED Display with rotary knob
  • Remote configuration via internal webpage
  • Powder-coated compact metal housing
  • Connect to ONYX PC for a full four Universe Solution
  • In-wall, On-Wall, Truss and Standalone mounting
  • Unlocks ONYX NOVA 4-Universe License
  • For all technical details and documentation for NETRON devices please visit


• Specifications:

  • Mounting: Standalone (backbox included). Truss-mount (M10 + M12 mounting hole). In or On-wall 2-Gang (US) or 50mm round (EU)
  • Front Connections: (2) 5pin DMX/RDM optically isolated ports. Ports are bidirectional for DMX In and Output

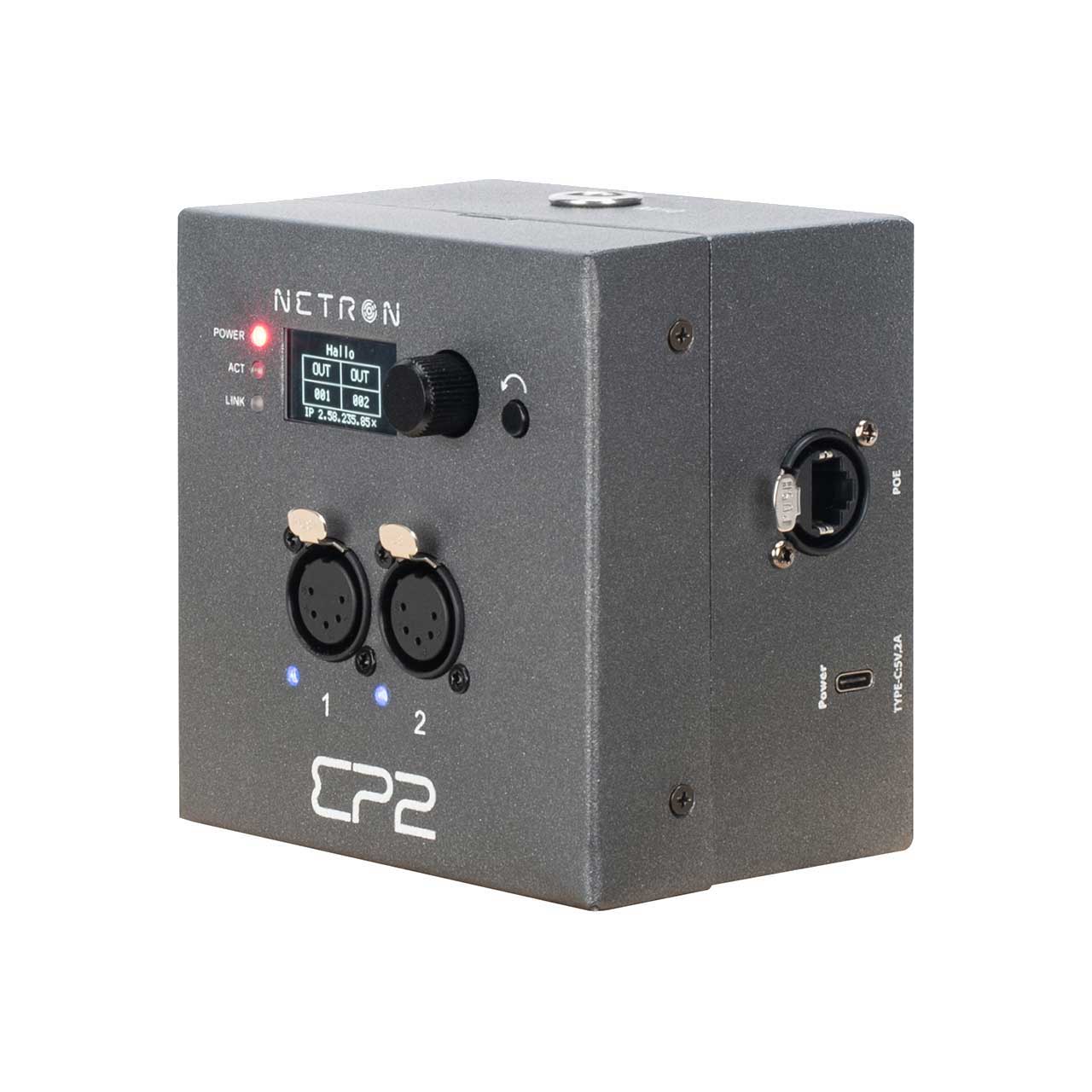

  • Side Connections: (1) Locking RJ45 Ethernet network connections (POE), USB-C power option (5V, 2A)
  • Dimensions: 4.6 x 4.5 x 3.5"
  • Weight: 1.76lbs. (0.8kg)
  • Electrical: USB-C 5V, POE 802.3af


• Item Includes:

  • 1x Universal 5V/2A USB Power Adapter (UK, US, Europe, & AUS connectors), 100-240V
  • 1x 1.5m Obsidian USB-C cable

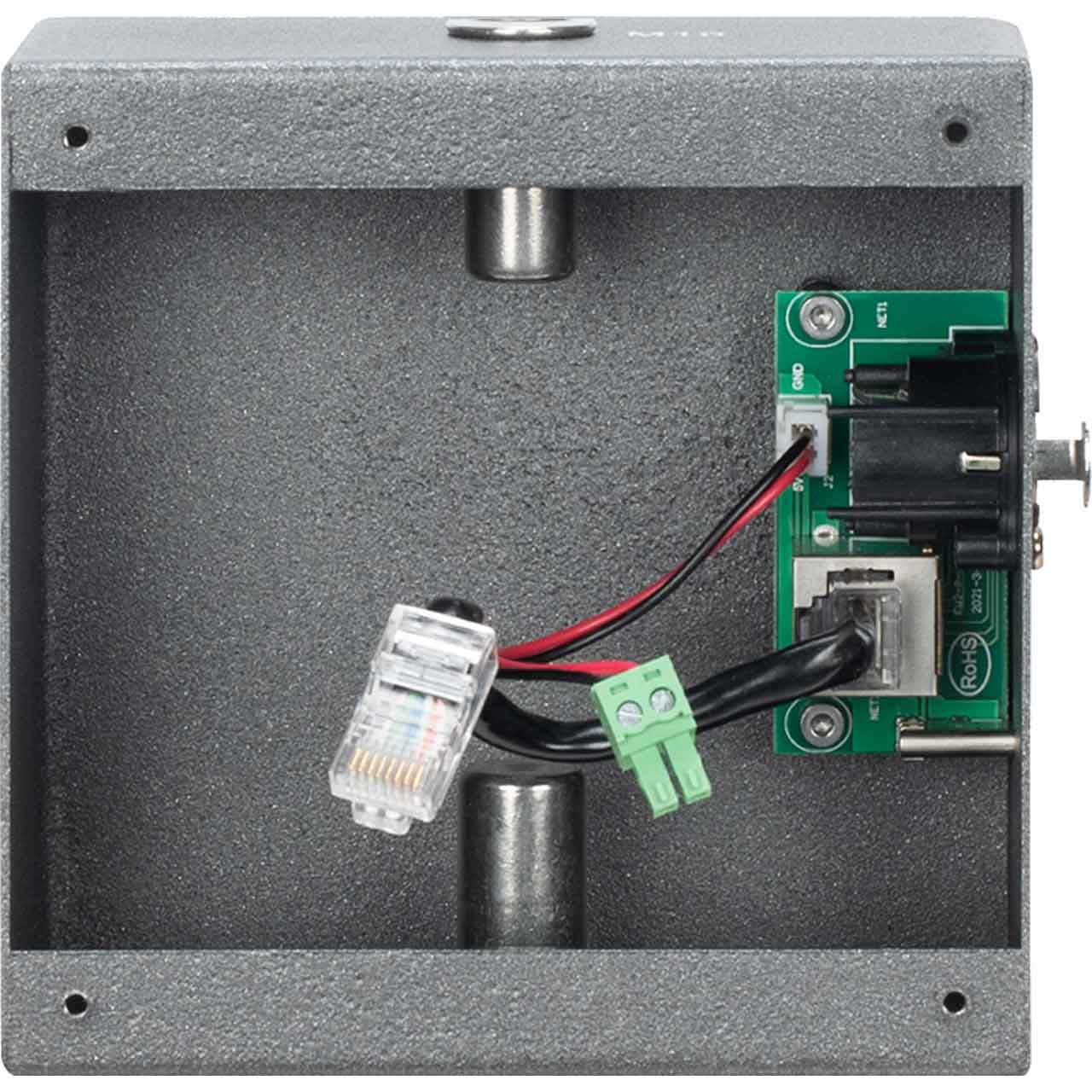

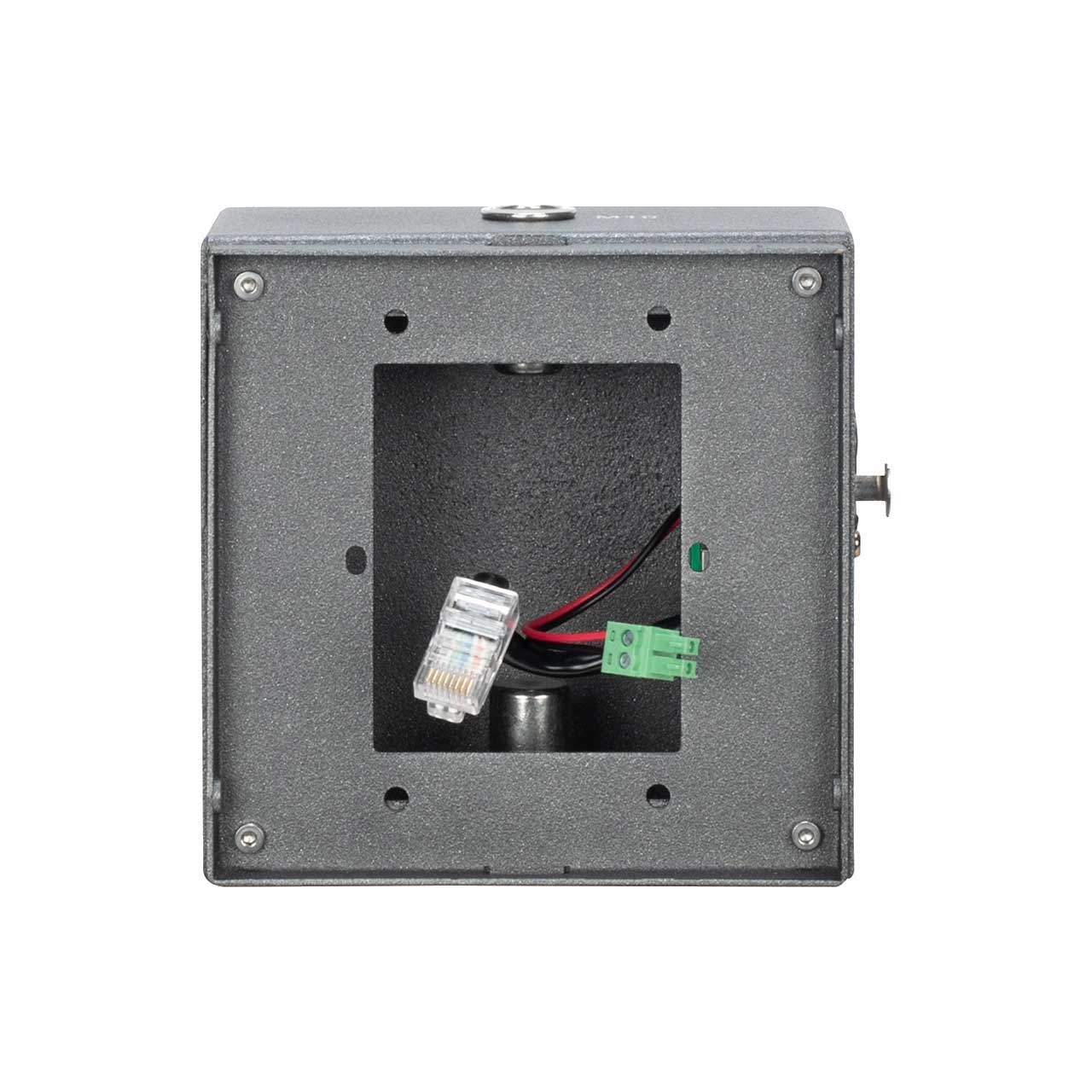

  • 1x Wallmount Enclosure

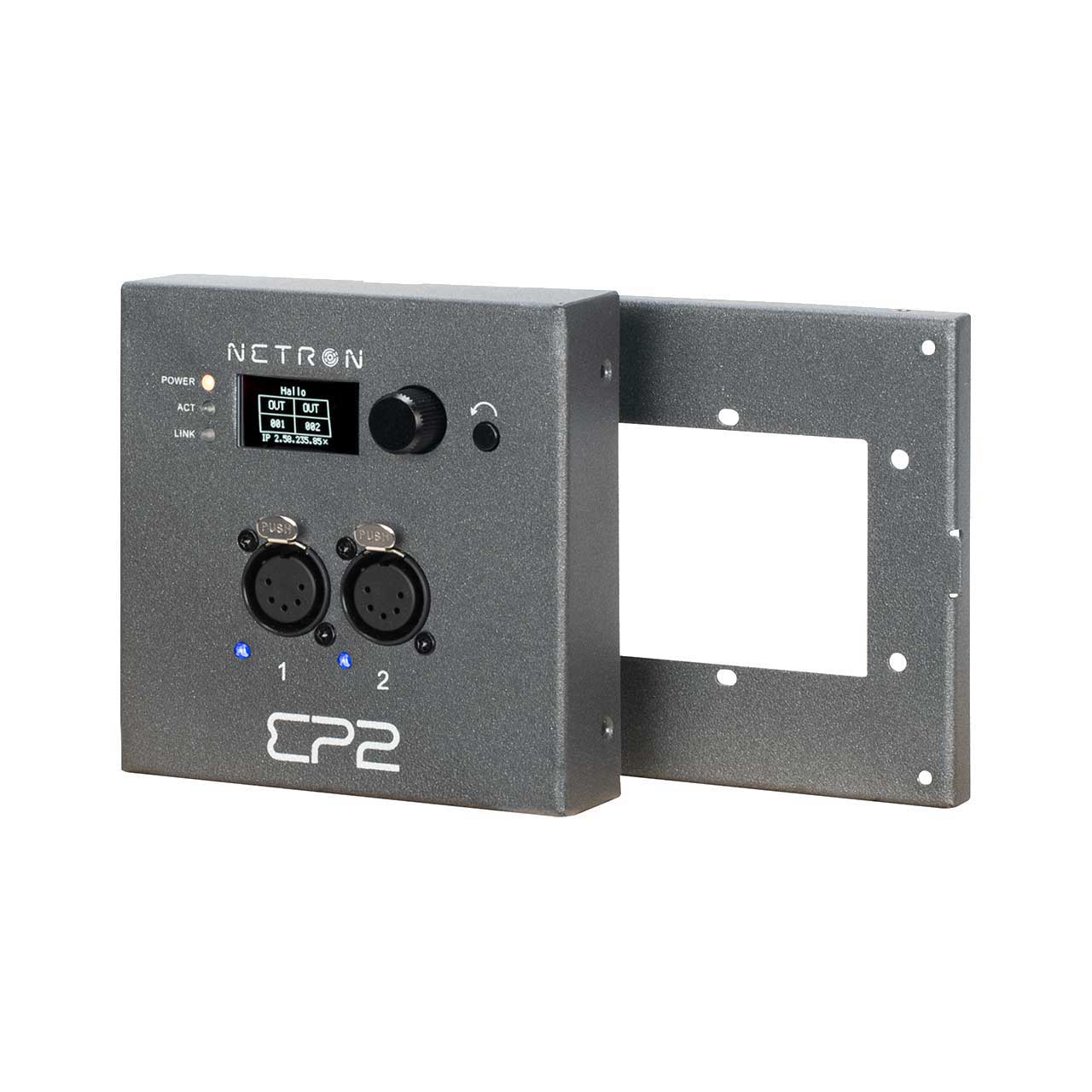

  • 1x In-wall mounting ring


• GTIN:

  0810008262955
