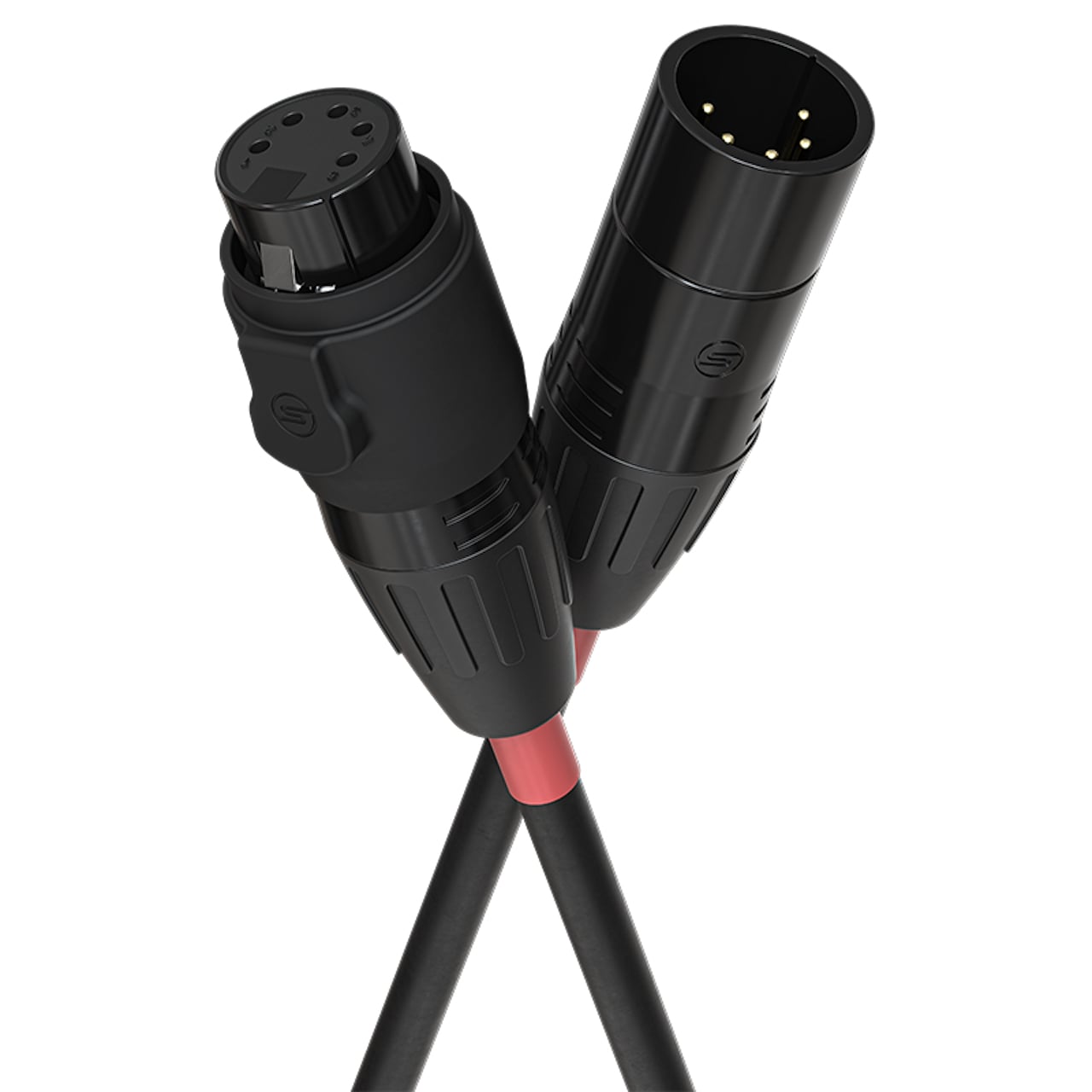

Chauvet RIGLINKIPDMX15FT Riglink 5-Pin Double Shielded IP65 Rated DMX Cable with XLR Connectors - 1.5 Foot

ITEM #: CHVT-RLIPDMX15FT MFG #: RIGLINKIPDMX15FT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$24.00

Our Price:

$20.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RIGLINKIPDMX15FT - Overview

The Chauvet RIGLINKPOWERKON15FT is a 1.5-foot production-grade DMX lighting cable with 5-pin XLR DMX connections. Constructed with multiple rugged materials, the cable is IP65-rated for indoor and outdoor use. The cable's high-torsion tinned oxygen-free copper elements achieve over 89% shielding effectiveness to enhance cable resistance, which is ideal for long-term installations, live events, and touring applications. The cable's braided and aluminum foil double shielding design and its highly elastic PVC outer jacket provide a flexible and durable cable body. The low-dielectric constant LDPE insulation offers low capacitance to meet precise impedance requirements for stable signal transmissions.

  • Features:

    • Color-coded connectors eliminate cable length guesswork
    • Certified components meet worldwide safety standards
    • Built rugged for live performance and life on the road
    • Reliable transmission and robust connection systems
    • Seetronic professional production-grade connectors
    • Features a braided and aluminium foil double shielding design, ensuring optimal protection against interference
    • Designed for 110Ω DMX-512 applications
    • Utilises low-dielectric constant LDPE insulation
    • Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body

  • Specifications:

      Physical
    • Conductor Specification: 2x 0.22mm² (24AWG)
    • Conductor Structure: OFC 24/0. 12BC
    • Insulation Material: LDPE
    • Insulation OD: 1.8mm
    • Shield Structure: OFC 16/8/0.1TC + AL
    • Outer Jacket Material: PVC (Black)
    • Outer Diameter: 0.6mm ± 0.2mm
    • IP65

      Connections
    • 1x XLR 5-Pin Male
    • 1x XLR 5-Pin Female

      Electrical
    • Withstand Voltage: 0.5kV
    • Conductor Resistance: 88.2Ω/km
    • Capacitance between Conductors: 50pF/m
    • Conductor and Shield Capacitance: 122pF/m
    • Impedance: 110Ω

  • Item Includes:

    • 1x Riglink 5-Pin Double Shielded IP65 Rated DMX Cable - 1.5 Foot

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0781462227494
