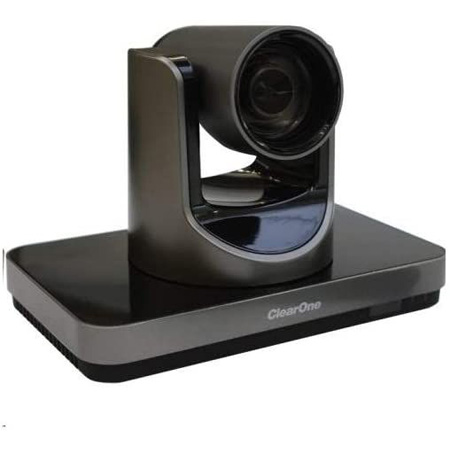

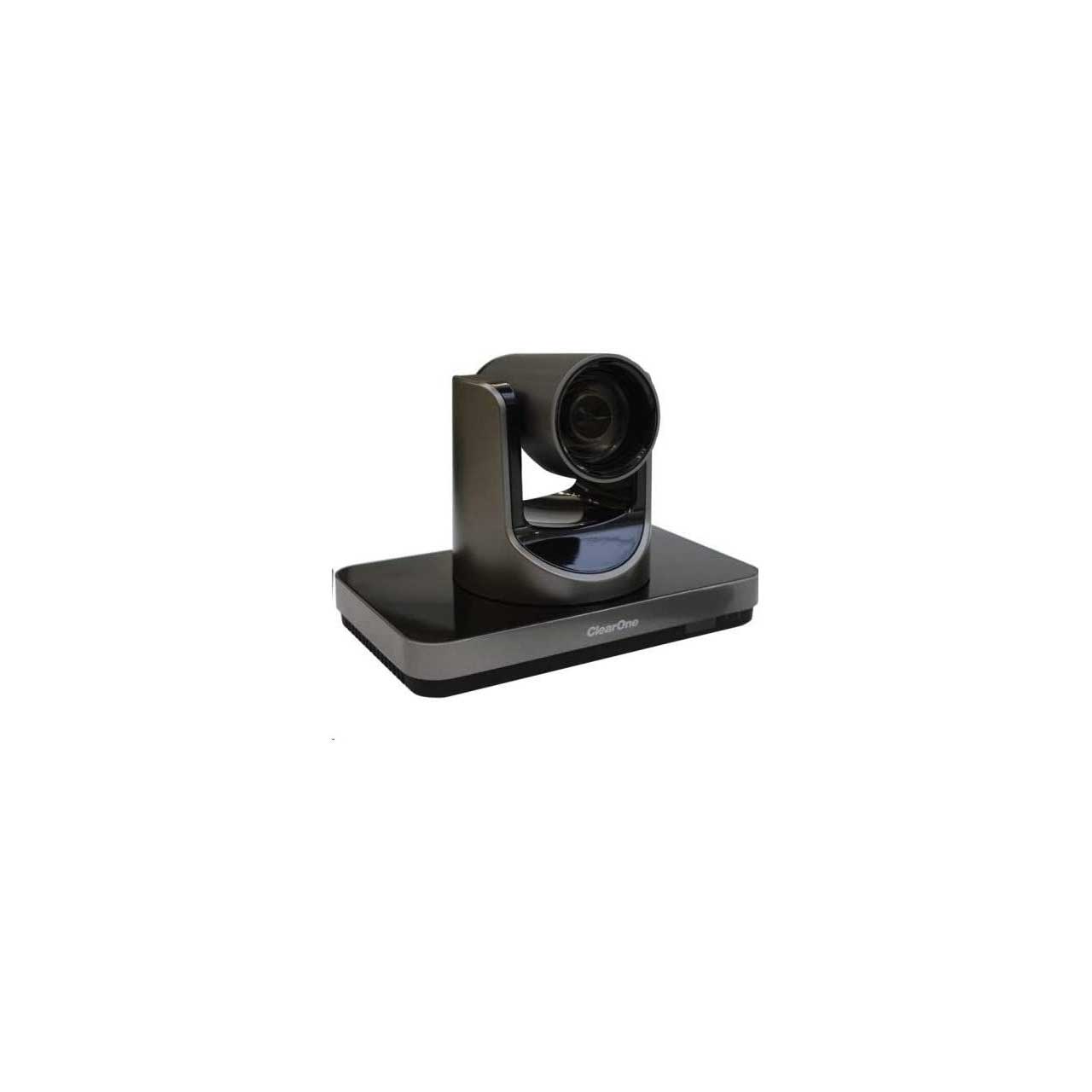

ClearOne 910-2100-003 UNITE 200 Professional-Grade PTZ Camera with USB / HDMI & IP Connections

910-2100-003 - Overview

910-2100-003 - Overview

• Features:

  • Full HD 1080p video, 12x optical zoom, and wide-angle capability to capture all participants in the room with advanced noise reduction.
  • Support for USB 3.0/2.0, HDMI, and IP with simultaneous video output to all three outputs.
  • H.264 and H.265 streaming and line-in interface to stream audio along with video over IP.
  • Compatible with popular applications such as COLLABORATE® Space, Microsoft Teams,Cisco Jabber, WebEx, GoToMeeting, Google Hangouts, and more.
  • Zoom Rooms Compatible


• Specifications:

  • Camera
  • Video System: 1080 p/60, 1080 p/50, 1080 i/60, 1080 i/50, 1080 p/30, 1080 p/25, 720 p/60, 720 p/50, 720 p/30, 720 p/25
  • Sensor: 1/2.7 inch, CMOS, Effective Pixel: 2.07M
  • Scanning Mode: Progressive
  • Lens: 12x, f3.5MM - 42.3MM, f1.8 - f2.8
  • Minimal Illumination: 0.05 l ux @ (f1.8, Agc On)
  • Shutter: 1/30S - 1/10000S
  • White Balance: Auto , Indoor, Outdoor, One Push, Manual
  • Backlight Compensation: Supported
  • Digital Noise Reduction: 2D and 3D digital noise reduction
  • Video S/N: ?55dB
  • Horizontal angle of view: 72.5° - 6.9°
  • Vertical angle of view: 44.8° - 3.9°
  • Horizontal rotation range: ±170°
  • Vertical rotation range: -30° - +90°
  • Pan Speed range: 1.7° - 100°/S
  • Tilt Speed range: 1.7° - 69.9°/S
  • H & V FLIP: Supported
  • Image Freezing: Supported
  • Number of Presets: 255
  • Flexible Installation: Stand Mount, upside-down mount

    USB Features
  • Operating System:Windows 7, Windows 8, Windows 8.1, Windows 10, MAC OSX, Linux
  • Color System: YUV 4:2:2
  • Video Formats: USB3.0: 1080 p/30,1080 p/25,720 p/30,720 p/25
  • USB Video Communication: UVC 1.0
  • UVC PTZ: Supported

    Input/Output Interface
  • HD Output: 1 x HDMI: Version 1.3
  • Network Interface: 1 x RJ45: 10M/100M/1000M Adaptive Ethernet Port
  • Audio Input: 1-CH 3.5MM Audio Interface , Line In
  • USB: 1 x USB3.0: type B Female jack 1 x USB2.0: type a Female jack (reserved interface)
  • Communication: 1 x Rs-232 in: 8-Pin Min din, Max distance: 30M, Protocol: viscA/Pelco -d/PElcO -P 1 x RS-232 Out: 8-Pin Min din, Max distance: 30M, Protocols: visca network use Only 1 x RS485: Share with RS232 Out, Max distance: 1200M, Protocol

    Generic Specification
  • Power Jack: Jeita Type (DC in 12V)
  • Input Voltage: dc 12v
  • Power Consumption: 12w (MAX)
  • Operating Temperature: -10°c - 40°c
  • Storage Temperature: -40°c - 60°c
  • Dimension: 240MM x 144MM x 160MM
  • Weight: 1.65Kg (3.6lB)


• Item Includes:

  • 1x ClearOne 910-2100-003 UNITE 200 Professional-Grade PTZ Camera with USB / HDMI & IP Connections


• Warranty:

  • 2
