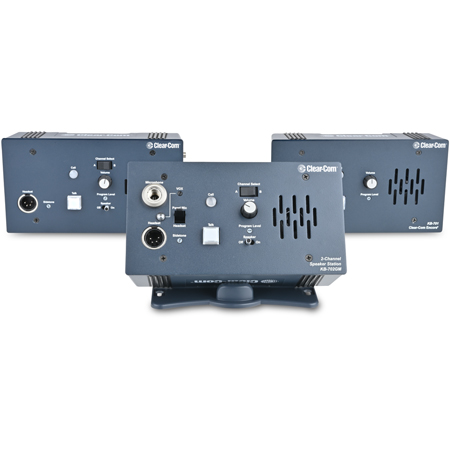

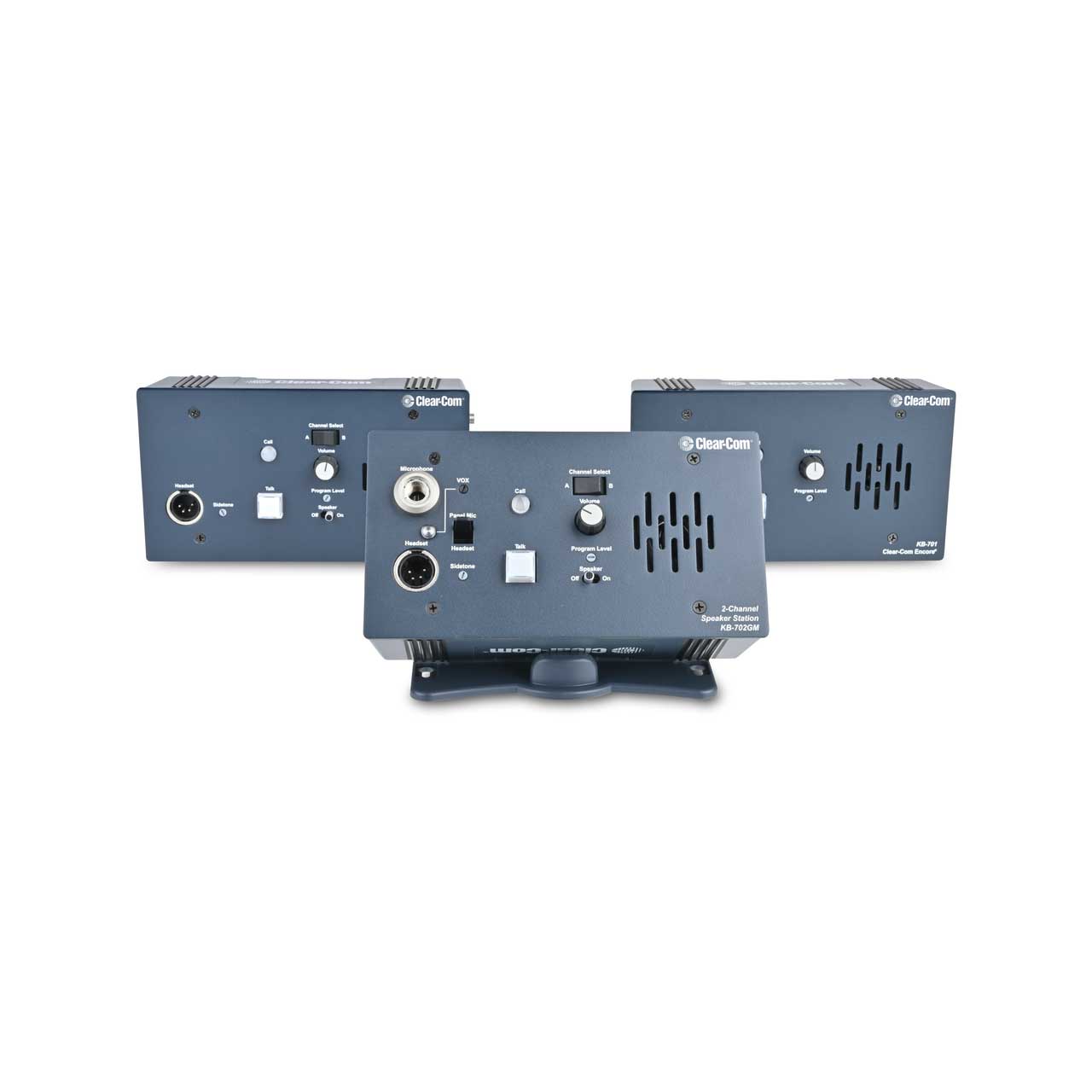

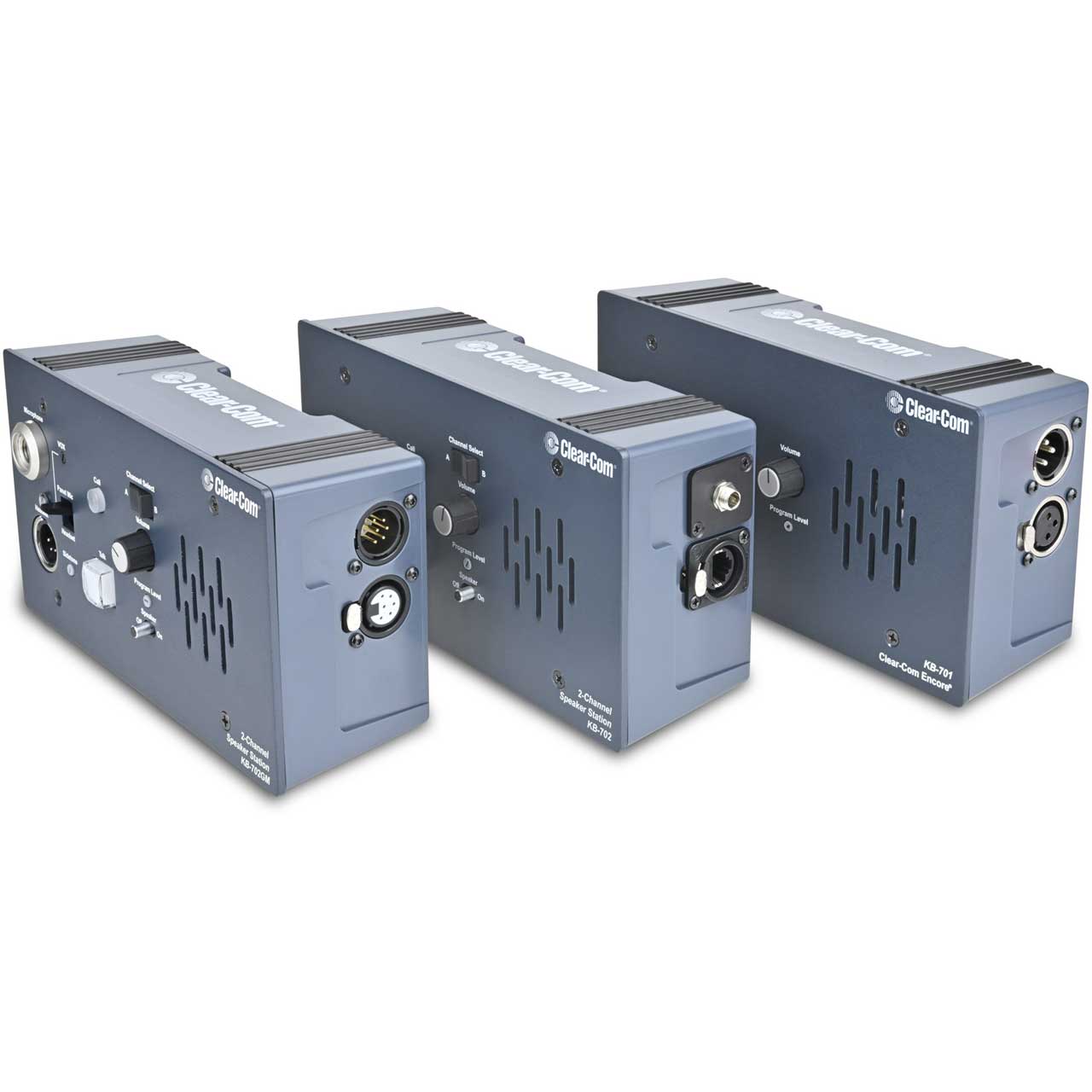

Clear-Com U-BOX-X6 Encore Surface Mount Enclosure - 2 Channel - Desk/Wall for KB Speaker Stations

ITEM #: CLCM-U-BOX-X6 MFG #: U-BOX-X6

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$400.00

Availability: In Stock
iAvailability Description Popup


    U-BOX-X6 - Overview

    The Clear-Com U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation. Each version of the U-Box contains all necessary wiring to attach a respective KB device to the enclosure. The U-Box can be mounted flush to a wall or desk with a provided angled mounting bracket. The mounting bracket provides 45® operation of the KB speaker station from horizontal and vertical surfaces. Screw head eyelets are available on both the U-Box and the wall mount for permanent fastening. The U-Box can also be fastened to a VESA 75 universal mount providing a wide range of mounting options available from third party vendors.

    U-Box-X6- Dual Channel

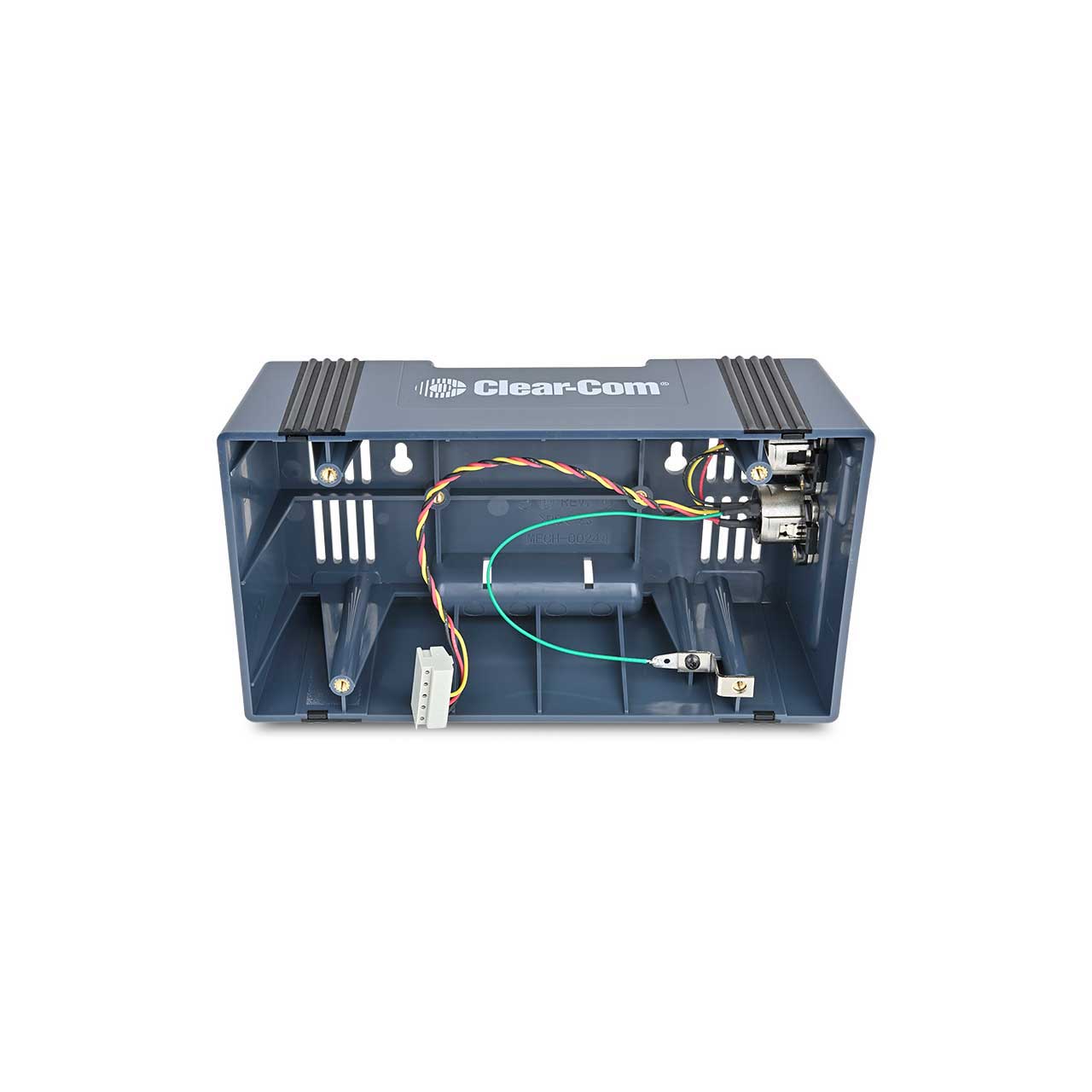

    The U-Box-X6 is equipped with "Switchcraft™-style" 6-pin male and female XLR connectors on the side of the U-Box-X6, wired in parallel, for dual channel connectivity to the partyline intercom line. Internally, a pre-wired wiring harness is provided for an easy connection to the KB station. U-Box-X6 can be series-connected with 6-pin capable Clear-Com stations and accessories, such as the RS-702 beltpack, YC-36 adaptors and dual pair IC-xxx-2P cables.

    • Features:

      • Enclosure for KB speaker station
      • Permanently installed or portable
      • Integrated handles
      • Vertical or angled KB installation
      • Desktop or wall mount
      • VESA 75 mounting option
      • Rugged enclosure
      • Available wired for single or dual-channel partyline and 4-wire

    • Specifications:

      • Connectors
      • XLR Partyline: "Switchcraft-style"* 6-pin XLR-M/F

        Environmental
      • 32° - 158°F (0 - 70°C)

        Mounting
      • Keyholes Center-to-Center: 4.0in (101.6mm)
      • Keyhole Diameter: 0.318-0.159in (8.08-4.04mm)
      • VESA Sockets Center-to-Center: 2.95in (75mm)
      • VESA Thread Type: M4x10
      • Mounting Bracket - Keyholes Center-to-Center: 5.9in (149.9mm)

        Dimensions
      • U-Box: 4.5 x 8.2 x 2.8in (HxWxD)
      • U-Box in Mounting Bracket: 5.4 x 8.3 x 6.1in (HxWxD)

        Weight
      • U-Box: 0.71lbs (0.32kg)
      • U-Box with Mounting Bracket: 0.90lbs (0.41kg)
      • U-Box with KB Speaker Station: 1.97lbs (0.89kg

    • Item Includes:

      • 1x Clear-Com U-BOX-X6 Encore Surface Mount - 2 Channel - Desk/Wall for KB Speaker Stations
      • 1x Screw Kit to fasten KB / HB (4 screws) 6-32 x 1/2"
      • 1x Mounting Bracket Kit


    U-BOX-X6 - Required Accessories
